Pop up square basket

Up.JPG Pop up square basket

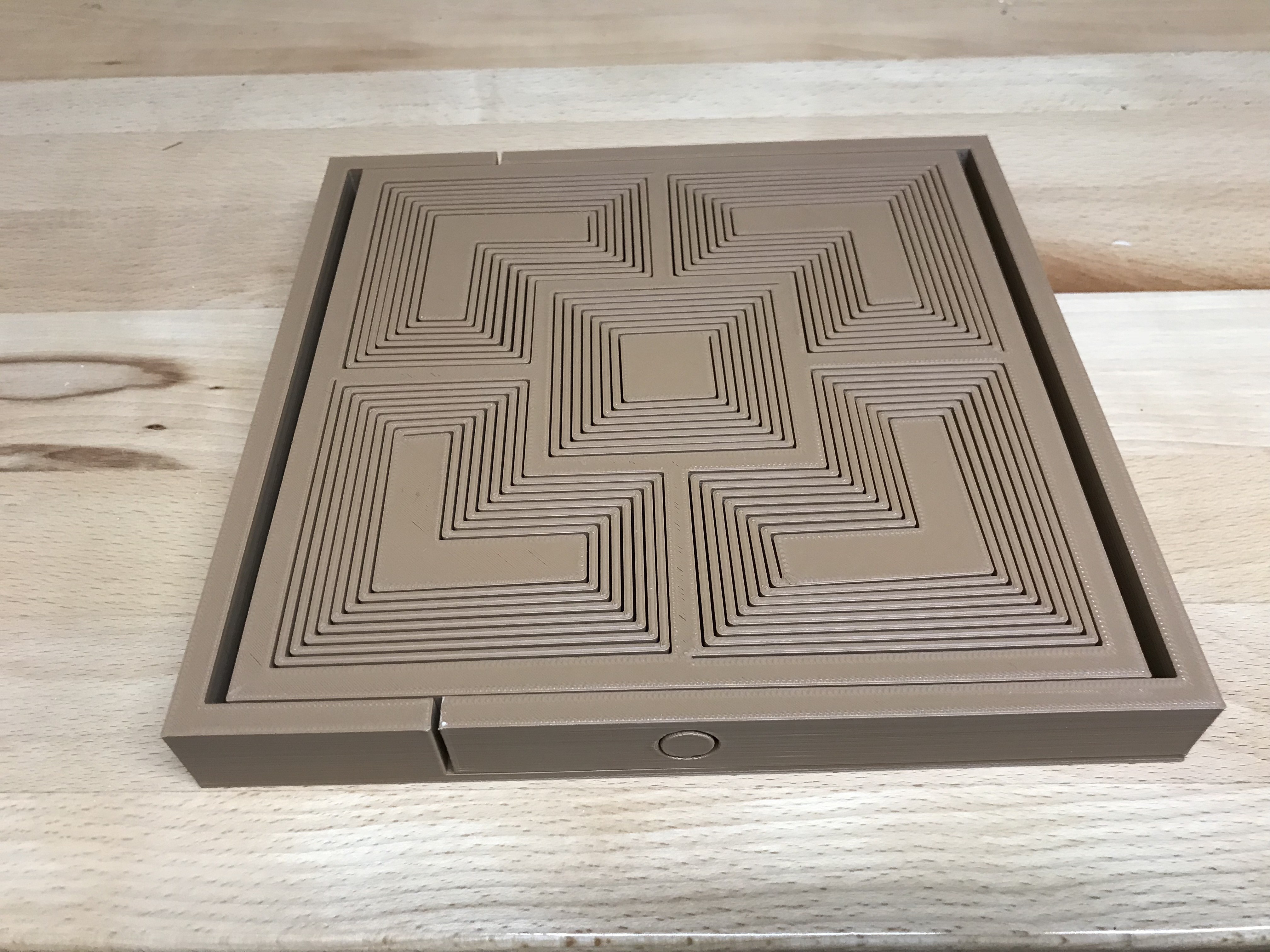

Down.JPG Pop up square basket

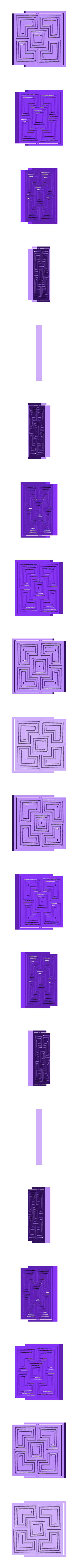

PopUpSquareTop.stl Pop up square basket

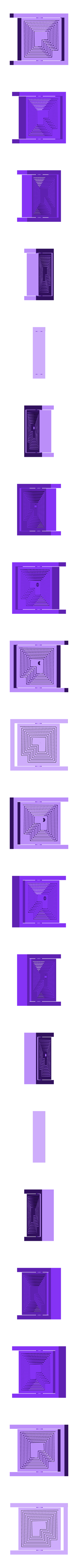

PopUpSquareBase.stl Pop up square basket

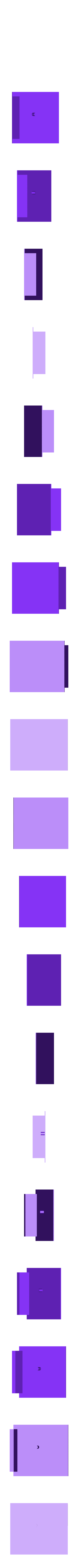

TestBase.stl Pop up square basket

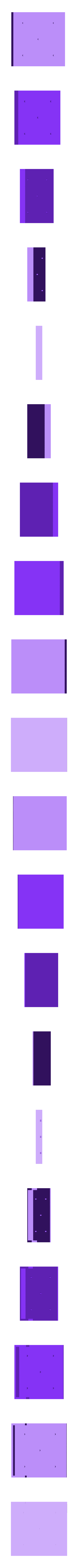

TestTop.stl Pop up square basket
Advertising
Share
Add to
Make
?
Creation quality: 4.6/5 (9 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 74.7k views
  • 390 likes
  • 5.5k downloads
  • 2 collections
  • 2 comments
Licence CC BY-NC-SA
Last update 2018-06-04 at 15:16
Publication date 2018-06-03 at 11:28
Design number 26254
3D design format
STL Folder details Close
  • PopUpSquareBase.stl
  • PopUpSquareTop.stl
  • TestBase.stl
  • TestTop.stl

Learn more about the formats
PatternToPrint

PatternToPrint

3D printer file info

3D model description

This is the pop up basket I initially displayed at #mrrf18 . The basket can lay flat and appear as a trivet or you can lift up and rotate the handle where it pops out into a 5 section basket. Uses a virtual spiral cut to allow the pop up action. Modeled in OpenSCAD.

Was featured in a 3D Printing Nerd Video https://www.youtube.com/watch?v=lZh3dMzlZ_E

3D printing settings

Was printed at 0.25mm layer height with 15% infill but both could be adjusted. Printed with PLA but other filament types should work.

Print the test model to see if the pop up mechanism works well, if too stiff lower your flow rate and if too loose increase your flow rate. Print the top part on a raft to avoid the cuts getting fused together.(Note: it seems others have printed without raft and it still worked fine) The top gets glued to the base, be sure to only glue the pegs and the area close to the peg so that the basket can still pop up.
