Pool vacuum cleaner nozzle for INTEX filter hose

Advertising
?
Creation quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.

  • 11.4k views
  • 17 likes
  • 381 downloads
  • 2 collections
  • 1 comment

Licence CC BY-SA
Publication date 2019-05-29 at 13:06
Design number 58230
3D design format
STL Folder details Close
  • INTEX_Vacuum_nozzle.STL
  • INTEX_Vacuum_nozzle_v2.STL

Learn more about the formats

3D printer file info

3D model description

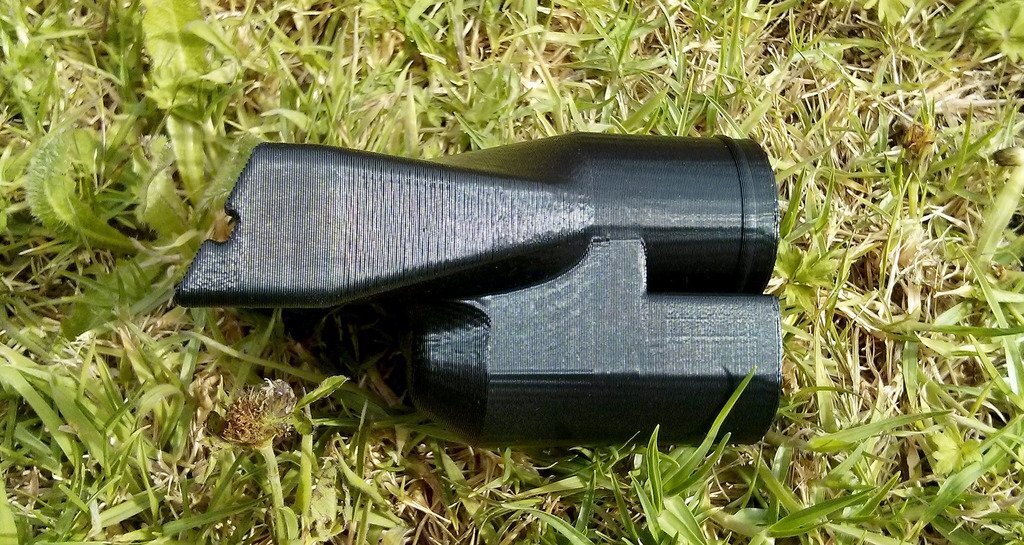

This is a printable pool vacuum cleaning nozzle designed to fit INTEX 1 1/4" filter pump hose. It also fits standard broomstick pole.

http://youtu.be/FkS9bqbzDso

It is designed to allow cleaning of the small 8-12' INTEX/Bestway pools via filter pump rather than Venturi type vacuum.

EDIT:

Version v2 added. Modified design has improved bevel angle to allow more natural nozzle to ground parallel position.

I have only tested (printed and used) old design therefore v2 nozzle is not shown on pictures or video.

Pros:

- it's cheaper than INTEX vacuum kit

- filters smaller particles than Venturi kit (original INTEX pump filter vs vacuum net)

Cons:

- It's fiddly to use if you don't have the hose extension

- takes 3h to print (0.3mm with 30% infill, no supports)

- unknown durability

Tested on MB 2x using ABS at 0.3mm with 30% infill, enabled raft and no supports.

NB. Let me know if you would like a different nozzle angle or any other size modification.

3D printing settings

Tested on MB 2x using ABS at 0.3mm with 30% infill, enabled raft and no supports.
