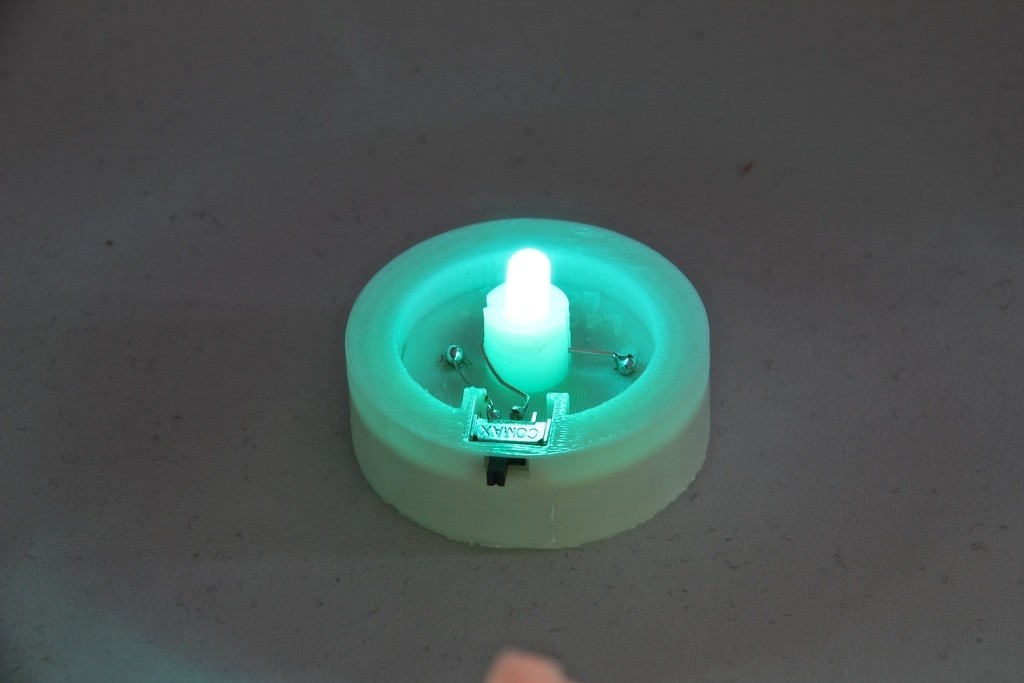

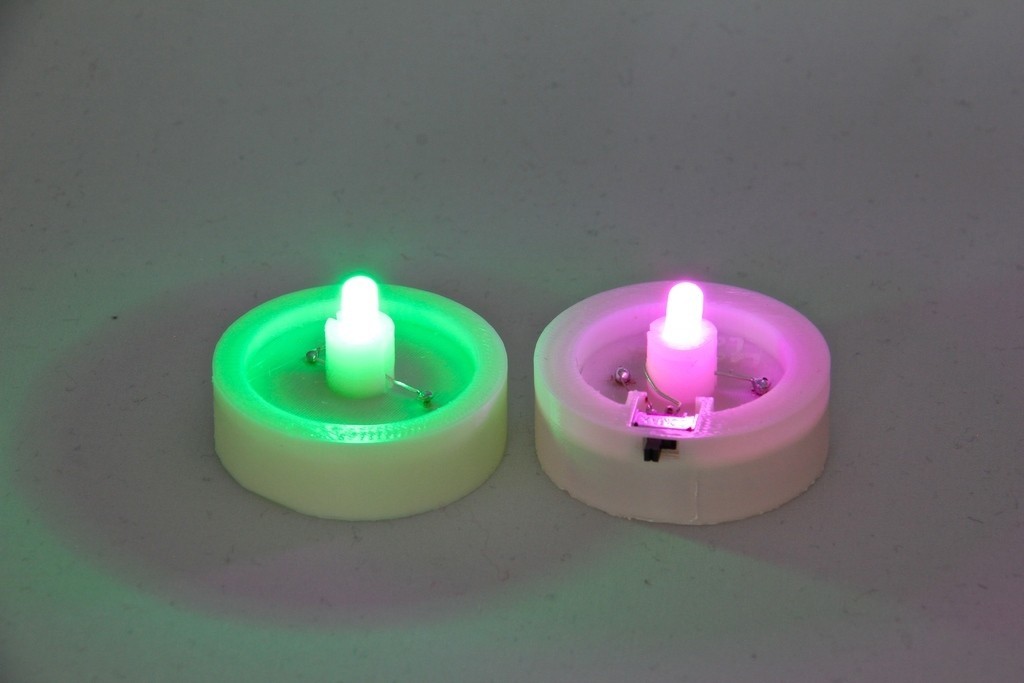

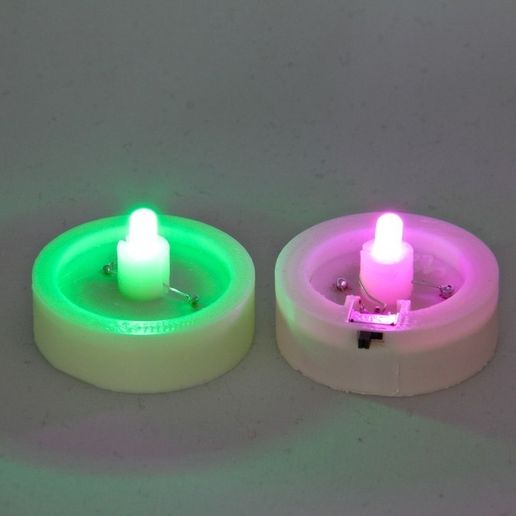

Parametric LED Tea Light

Download free 3D printing designs Parametric LED Tea Light, LurgrodDownload free 3D printing designs Parametric LED Tea Light, LurgrodDownload free 3D printing designs Parametric LED Tea Light, LurgrodDownload free 3D printing designs Parametric LED Tea Light, LurgrodDownload free 3D printing designs Parametric LED Tea Light, LurgrodDownload free 3D printing designs Parametric LED Tea Light, LurgrodDownload free 3D printing designs Parametric LED Tea Light, Lurgrod

Did you 3D print this model?

3D model description

Features:

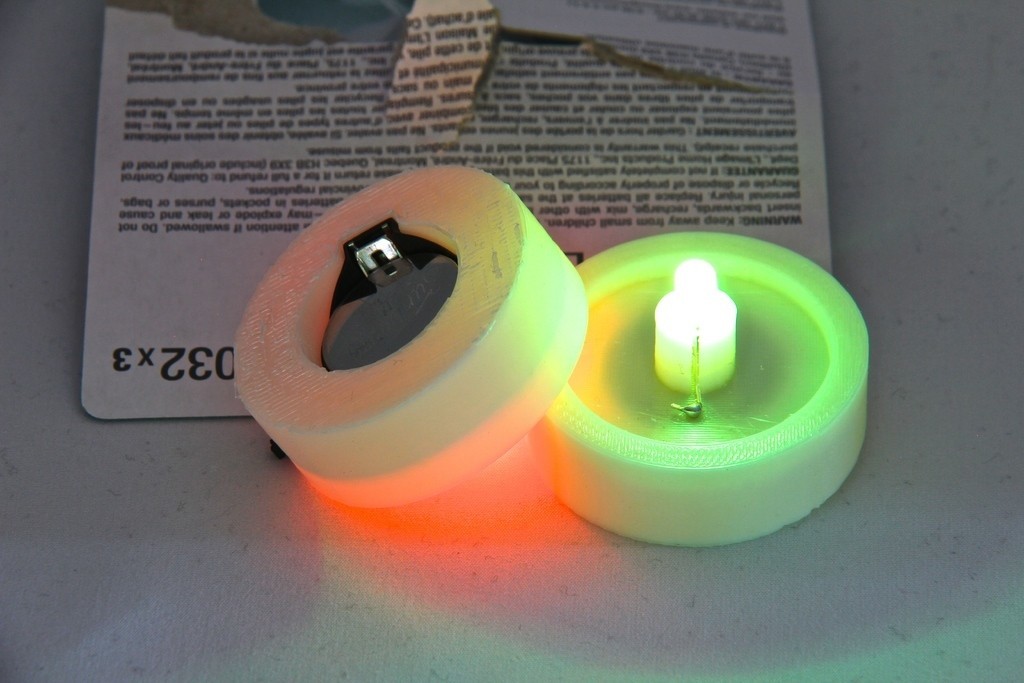

  • Standard CR2032 Battery (Clip in)
  • 5mm LED
  • Easy Solder
  • Ideal light source for your projects
  • Optional Switch
  • Text for lead identification of LED

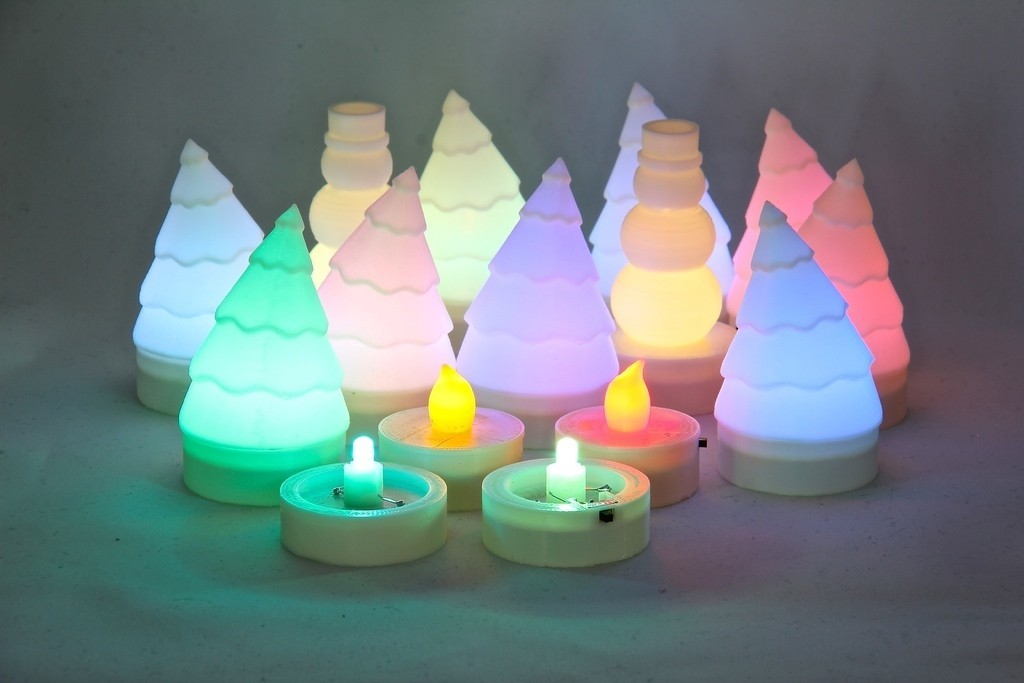

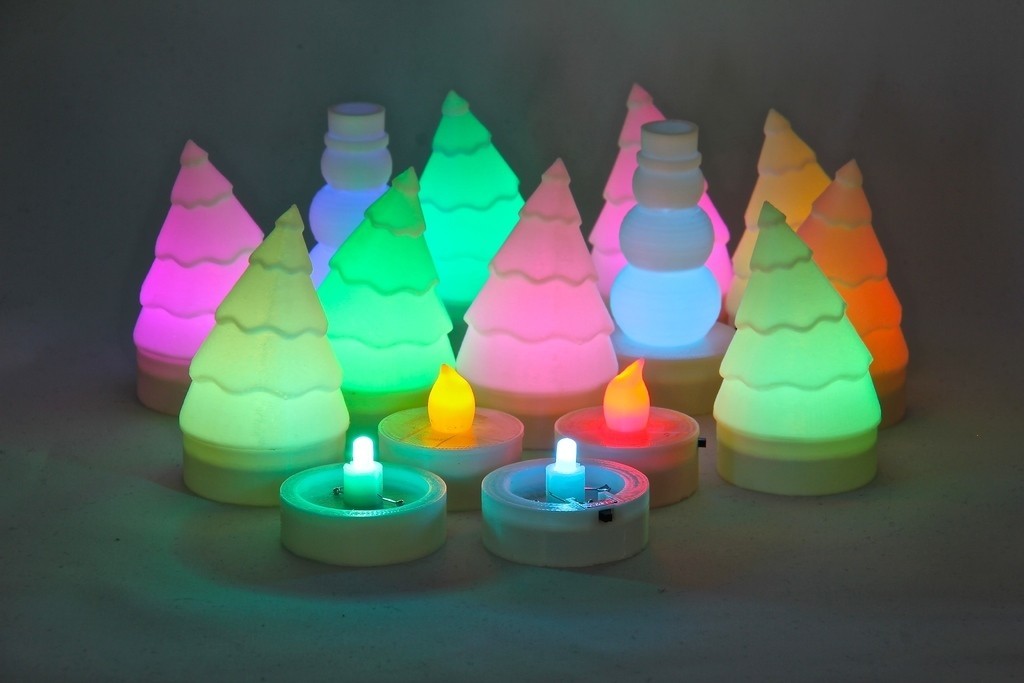

Hats:

Hats can be placed on top of the tea light with a push fit, here are some
suggestions:
* Candle TeaLiight Hat: http://www.thingiverse.com/thing:1188098
* Christmas Tree Hat: http://www.thingiverse.com/thing:193814
(Diameter: 42; Height: 14.65; LED Holder Outer Diameter: 9.8)
* Snowman Hat: http://www.thingiverse.com/thing:1188099

Parts:

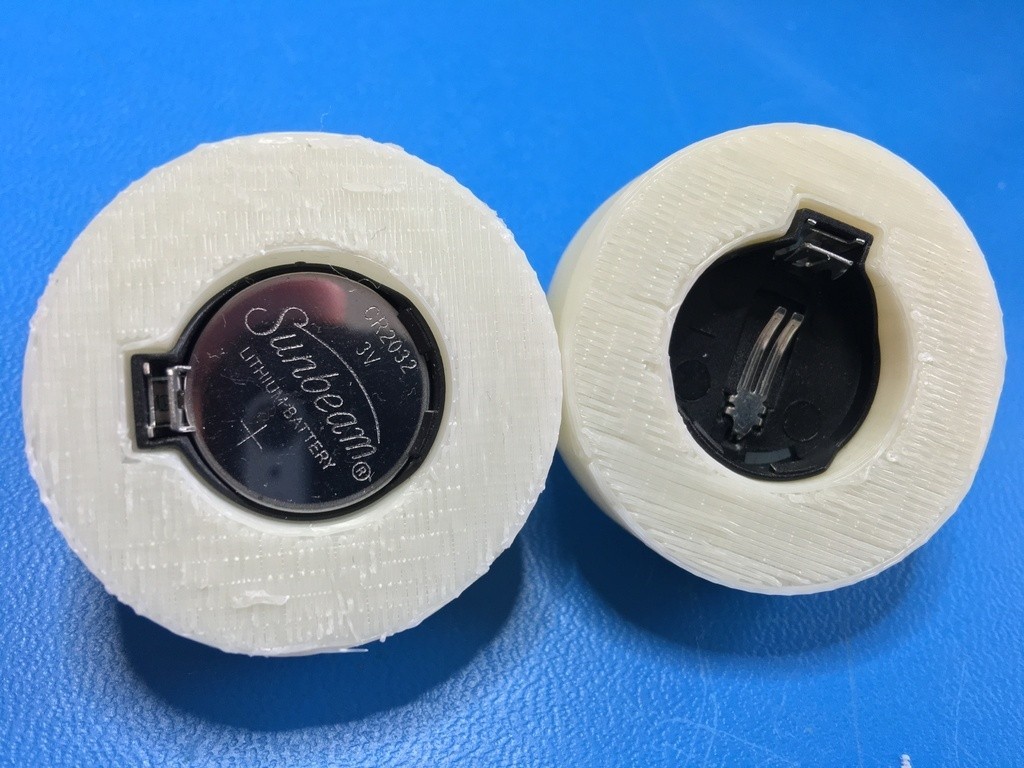

Battery Holder:
LED:

Any 5mm LED that has a 3 Volt forward voltage or less will do, here
are some animated suggestions:
* https://www.sparkfun.com/products/11450 (slow color cycle)
* https://www.adafruit.com/products/679 (slow color cycle)
* http://shop.evilmadscientist.com/productsmenu/partsmenu/353 (candle flicker)

Switch (Optional):

The battery holder can be used as a switch by using the built
in clip, but if a switch is desired:
* http://www.digikey.com/product-search/en?keywords=CKN10397

DISCLAIMER: Use at your own risk.

  • 3D model format: STL
