3D model description

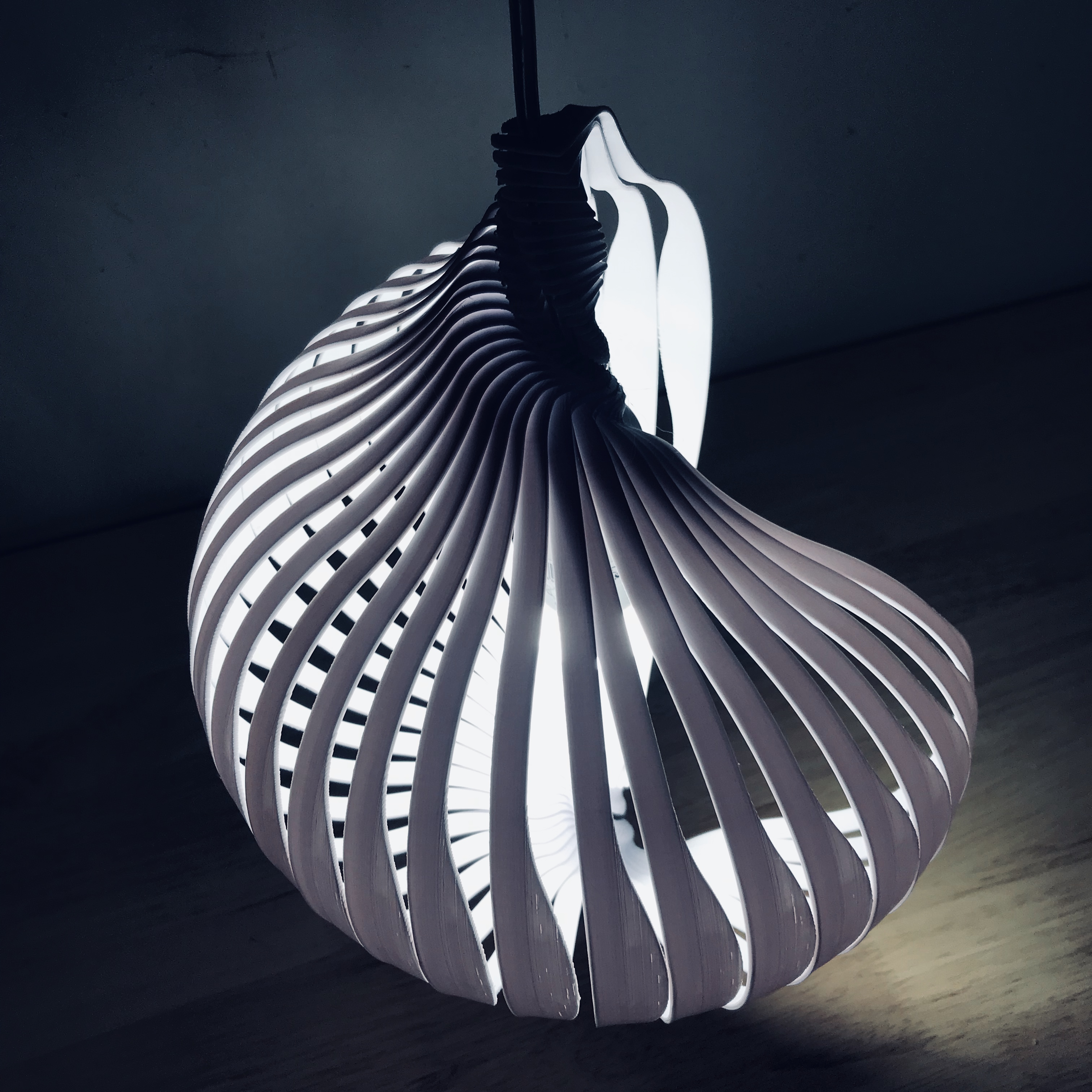

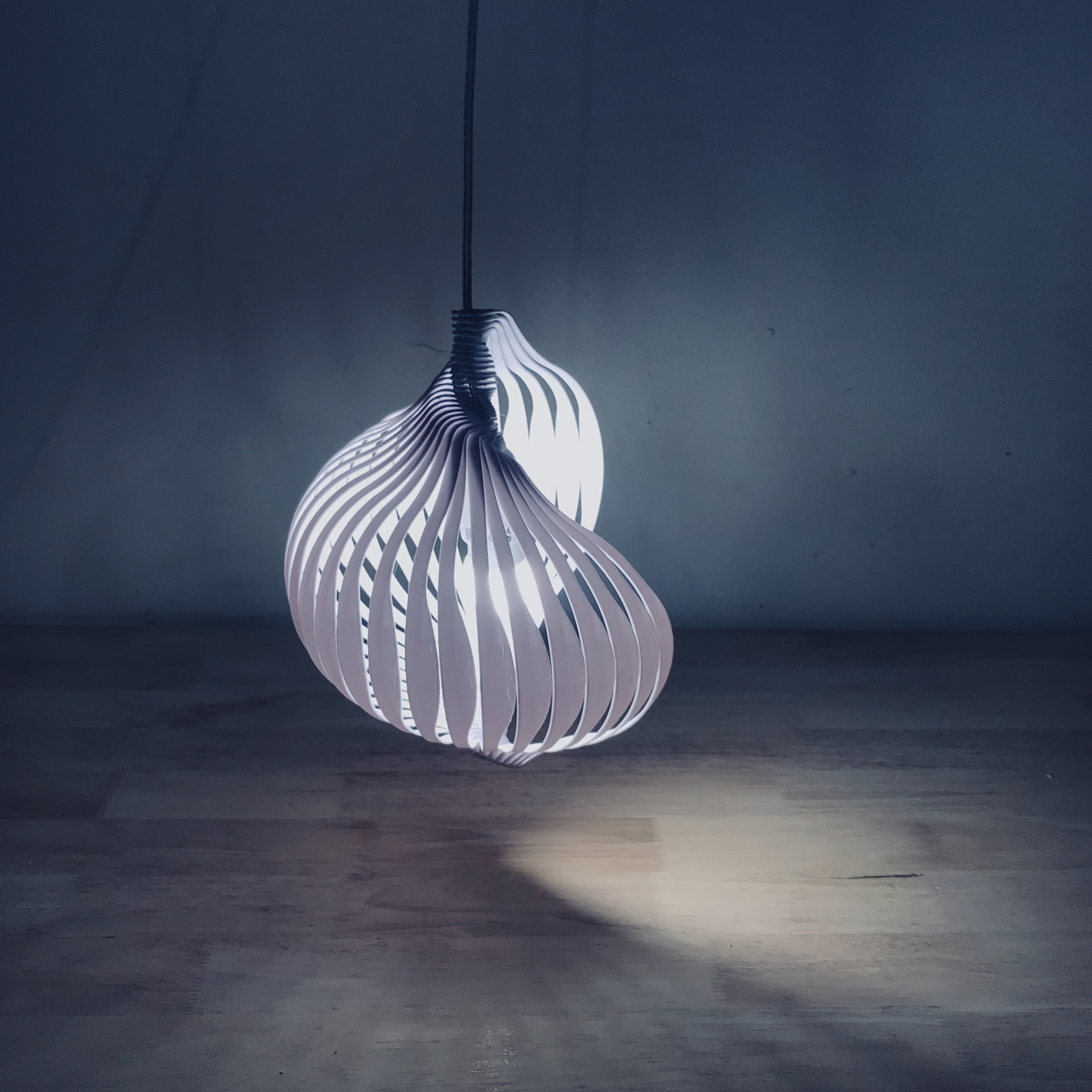

NAUTILUX is a lampshade inspired by our seabed. Its pure and organic form immediately reminds us of shells and other underwater creatures.

#POLYMAKERCHALLENGE

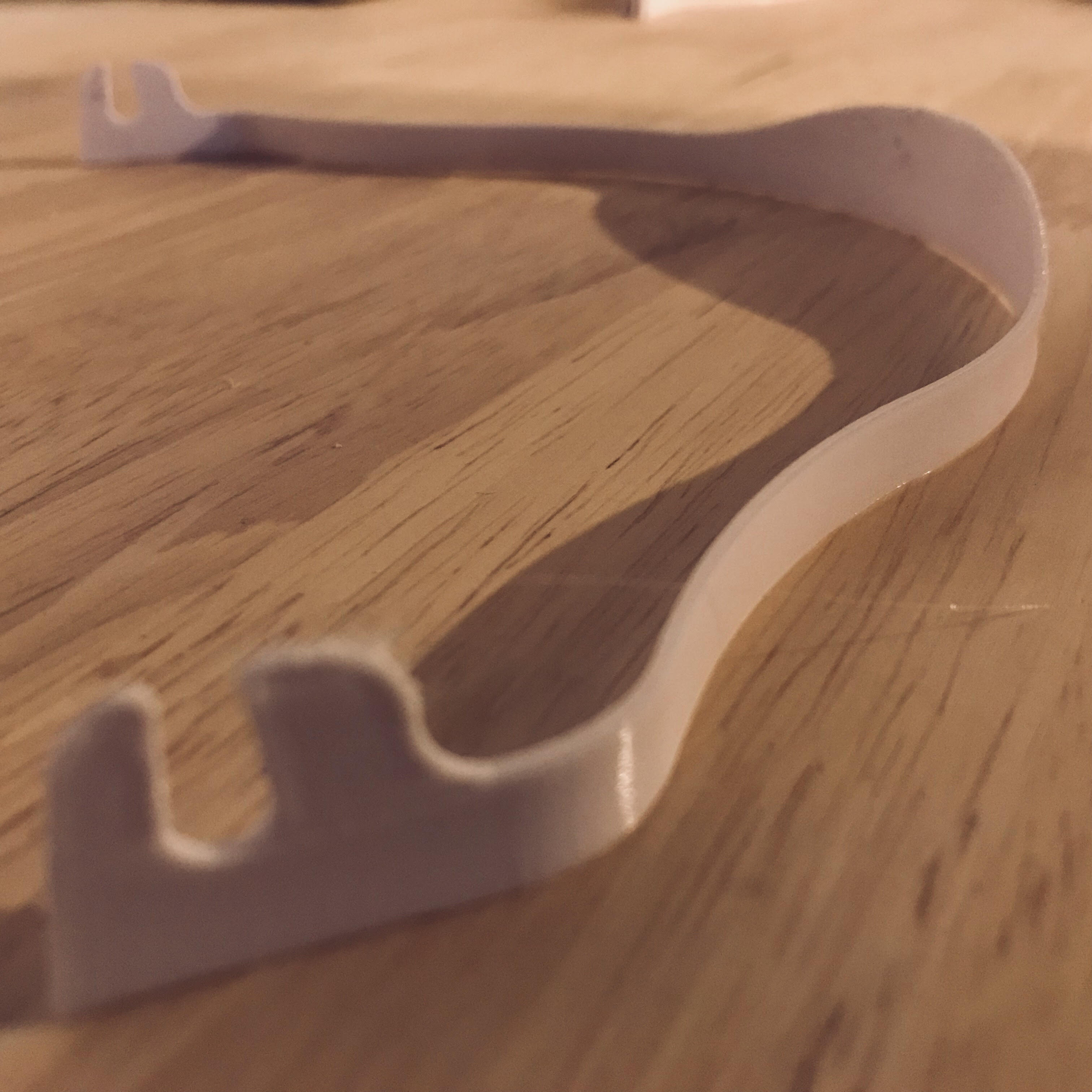

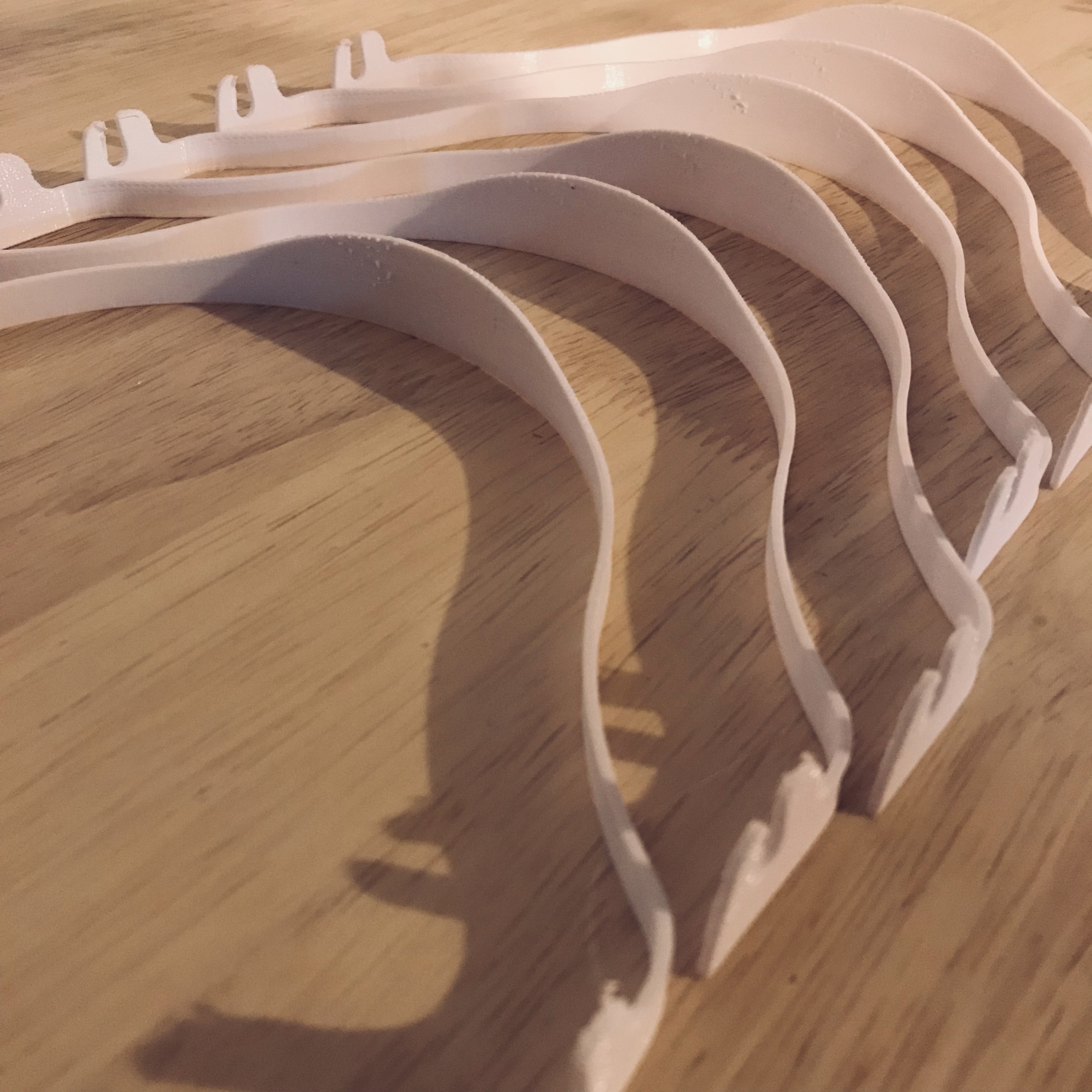

The printing and assembly of NAUTILUX is extremely simple. Simply print only one piece, without support, and repeat this print as many times as you want "edges" or "frames" to your NAUTILUX.

For a complete turn you'll need 36 pieces.

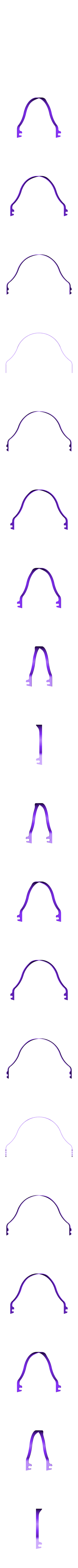

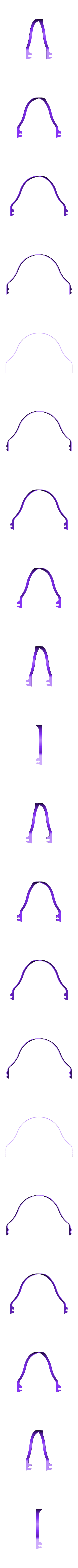

The structure exists in 3 different models, with cable passages at 5 MM, 6 MM and 7 MM depending on the electric cable you will use (fabric sheathed or not for example).

For the example, NAUTILUX is presented with an E27 socket and an LED bulb). To align the frame at the bottom of the lamp, I used a simple M5 bolt.

3D printing settings

PLA printing.

T° : Extruder: 205°c 0°c platen (not heated)

Accuracy: 0.1 mm

Filling: FULL

Wall thickness: 1 mm

No media for printing

Dimensions : (values rounded to the whole number).

The printing times are given as an indication and are rounded off (depending on the cleaning of the part etc.).

BONE_5(or 6 or 7) : 200 X 120 X 18 mm - 1 H printing time

  • 3D file format: STL
  • Last update: 2020/01/28 at 18:51
  • Publication date: 2019/06/16 at 14:50
