Motorized Halloween Ghost Nightlight

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 4.5k views
  • 21 likes
  • 414 downloads

3D model description

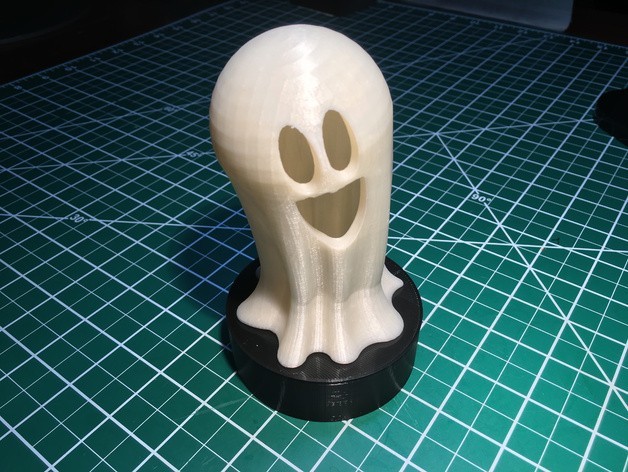

Motorized Halloween Ghost Nightlight is a lighted, animated nightstand, tabletop, etc. Halloween decoration.

I used the ghost from this thing "http://www.thingiverse.com/thing:1805929" and mounted it on a motorized base. The motorized base will also except the pumpkin from this thing "http://www.thingiverse.com/thing:1784381", so you may choose whichever character, or both, to sit on the motorized base.

Lighting and motorization are optional, but the components are designed to except a motor and an LED light as described in the Post-Printing section.

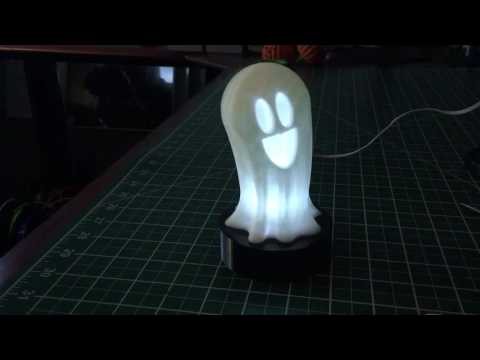

Video of prototype is here: https://www.youtube.com/watch?v=4tsZ7Q7Sy8Q.

Video of prototype with pumpkin is here: https://www.youtube.com/watch?v=LEuChUZ7N9A.

Designed using Sketchup Make 2016 and printed in PLA on an Ultimaker 2 Extended.


3D printing settings

Printer Brand:

Ultimaker

Printer:

Ultimaker 2

Rafts:

No

Supports:

No

Resolution:

.1mm

Infill:

20%

Notes:
Supports may be required for "Gear Crown.stl".

Post-Printing
Parts I Purchased:

1) Gear Motor: DC 6V 60 RPM High Torque Electric Replacement Gear Box Motor (Amazon).

2) LED: Diffused white led (various sources).

3) Resistor: 330ohm 1/8 watt (various sources).

4) Coaxial Power Jack: Coaxial (Radio Shack part number 274-1583).

5) Power Supply: 6VDC (Radio Shack 273-315).

Printing:

Print 2 "Pin.stl". Print 1 each of the remaining pieces.

When printing "Gear Crown.stl", supports may be required depending on your printer, printer settings and color.

Assembly:

Prior to assembly, test fit and trim, file, sand, etc. all parts as necessary for smooth movement of moving surfaces, and tight fit for non moving surfaces. Depending on the colors you chose and your printer settings, more or less trimming, filing and/or sanding will be required. If the tight fitting components are too loose, add a small dot of cyanoacrylate to each side of the pin, allow to dry completely (I use accelerator to speed the process), then try the fit again. Repeat until tight.

Assemble as per "Assembly.stl". I perform the assembly task in the following order:

1) Using a modeling knife, carefully remove the support material from the hexagonal hole and wiring trough from "Base.stl".

2) Solder and test the LED assembly. The LED assembly consists of the LED, the 330 ohm 1/8 watt resistor, two 1.5" lengths of 28 gauge stranded wire, and heat shrink tubing. From the base of the LED to the end of the resistor, the assembly should be no longer than 8mm such that it fits inside of "Axle Lighted.stl".

3) Press the LED assembly into "Axle Lighted.stl". From the disk side of "Axle Lighted.stl", insert the LED assembly, wires first.

4) Press two "Pin.stl" into "Gear Crown.stl". After testing, a small dot of thick cyanoacrylate may be used to hold them in position.

5) Using the axle lighted assembly, attach the gear crown assembly to "Base.stl" making sure the axle lighted assembly wire slot aligns with the wire trough on "Base.stl". The gear crown assembly should rotate freely on the axle.

6) Press "Gear Motor.stl" onto the gear motor.

7) With the LED assembly wires carefully positioned in the wire trough on "Base.stl", carefully slide the gear motor assembly into "Based.stl" starting from the end opposite of the wire trough.

8) Attach the coaxial power jack to "Top.stl".

9) Solder the coaxial power jack center terminal and the LED assembly positive terminal to the motor positive terminal. Solder the battery holder negative terminal and the LED assembly negative terminal to the motor negative terminal.

10) Test the assembly for proper operation. The LED should illuminate and the motor should turn.

11) Press "Top.stl" onto the base assembly noting the alignment slot.

12) Attach "Ghost.stl" to the gear crown assembly by sliding the pin heads into the large holes in "Ghost.stl", then rotating "Ghost.stl" counter clockwise (as viewed from the top) to secure it in place on the gear crown assembly.

Plug it in and enjoy!

3D printer file information

  • 3D design format: STL Folder details Close

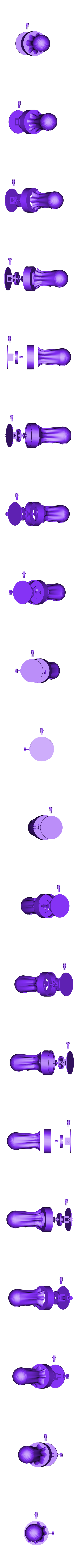

    • Assembly.stl

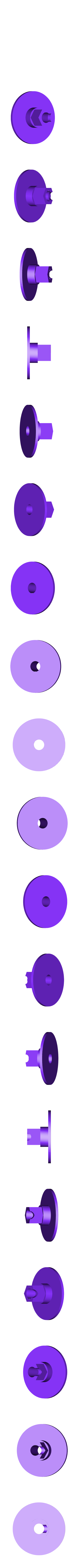

    • Axle_Lighted.stl
    • Base.stl

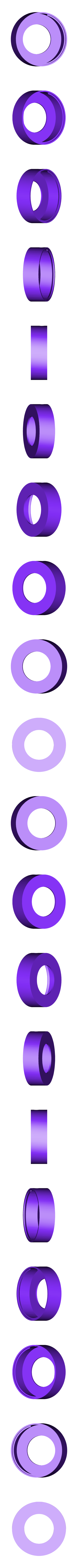

    • Gear_Crown.stl
    • Gear_Motor.stl

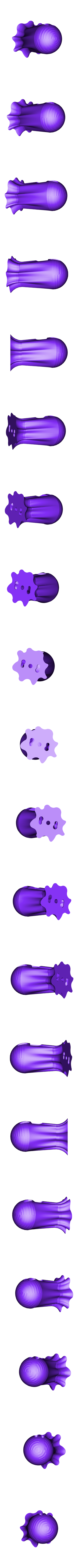

    • Ghost.stl
