Modular Furniture Connectors

?
Creation quality: 5.0/5 (7 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

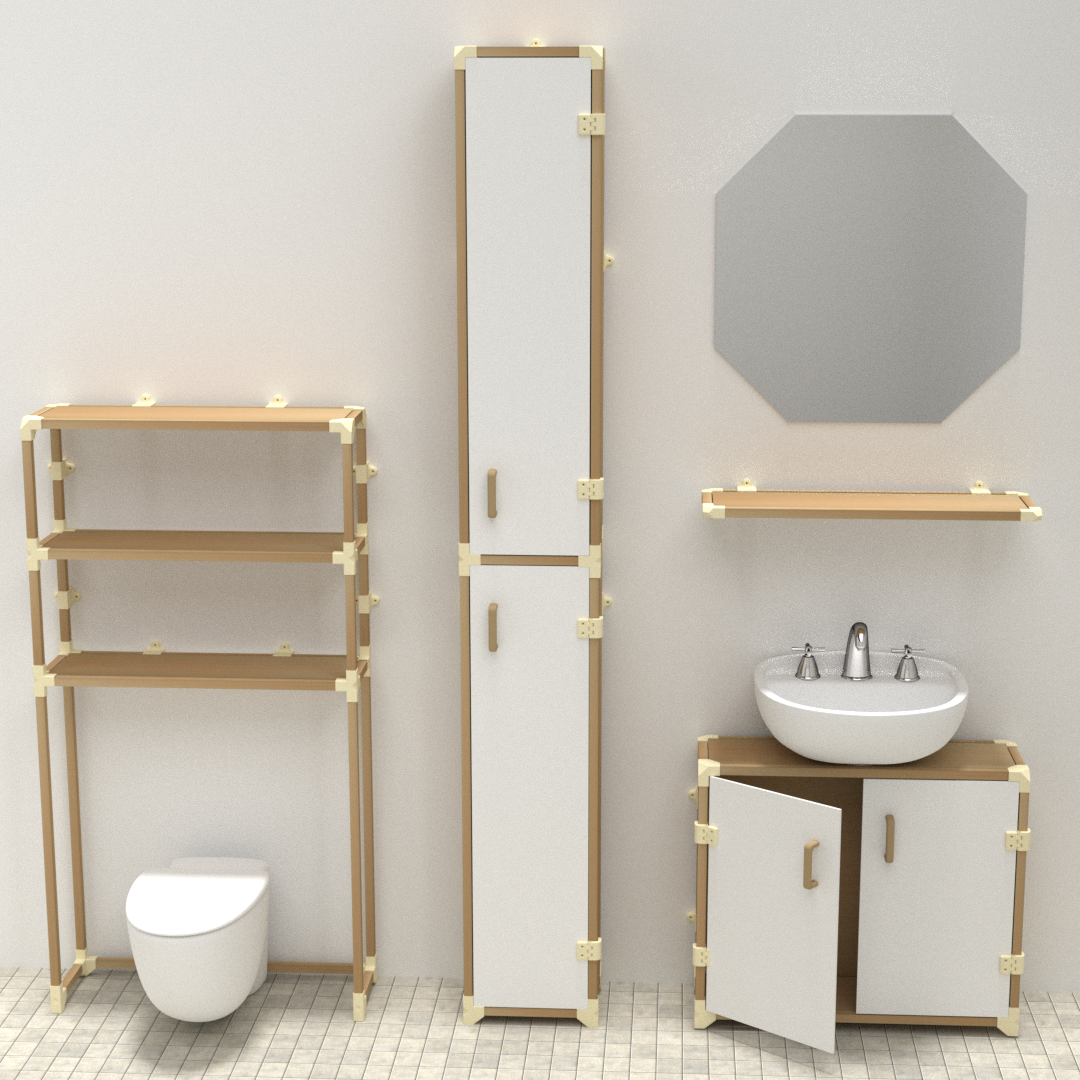

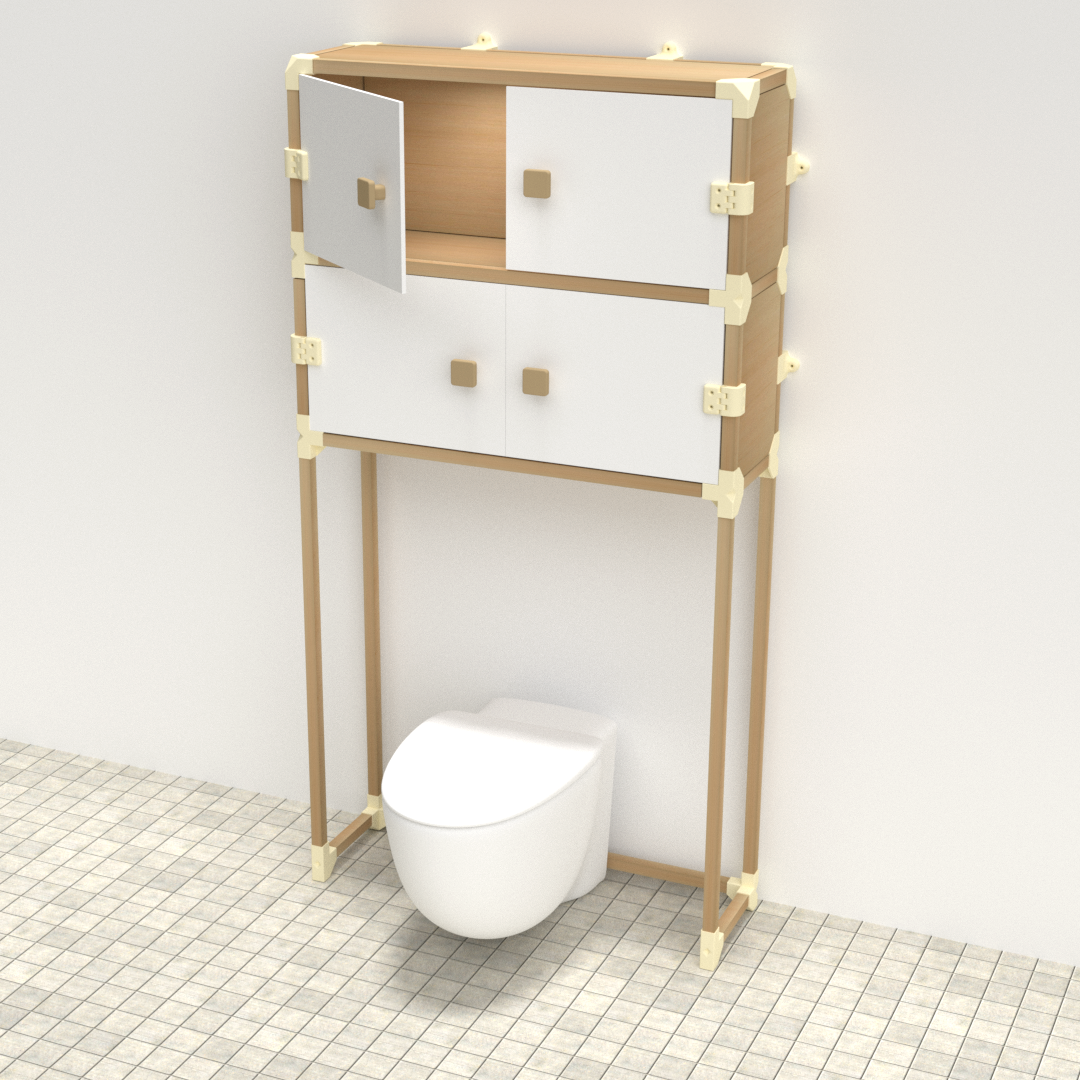

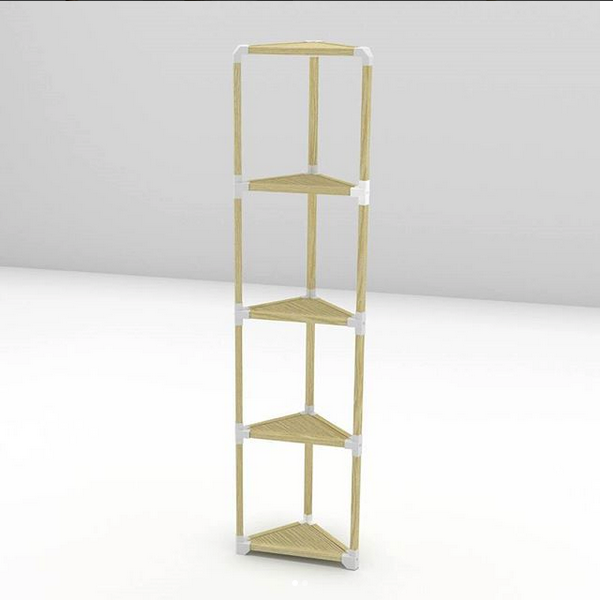

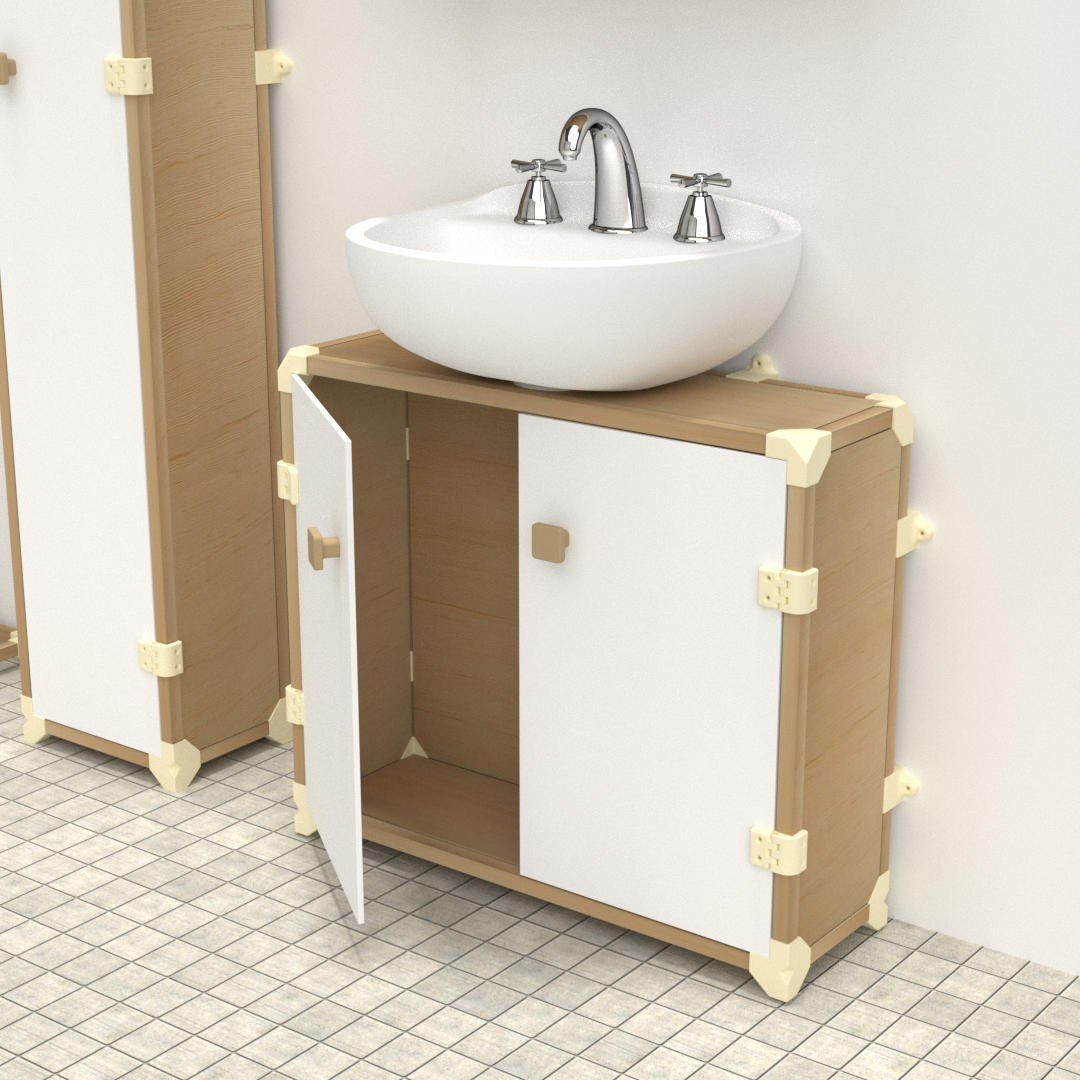

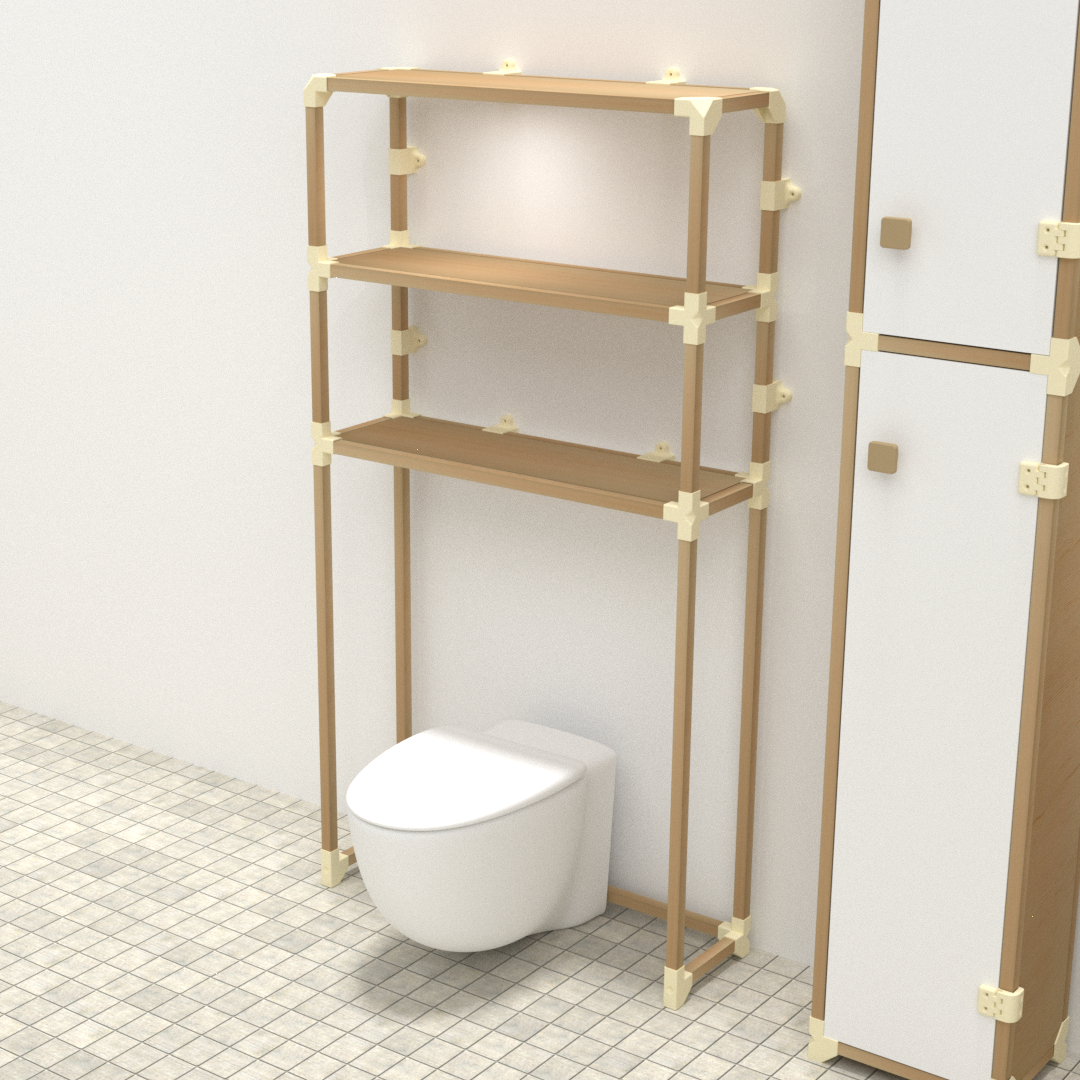

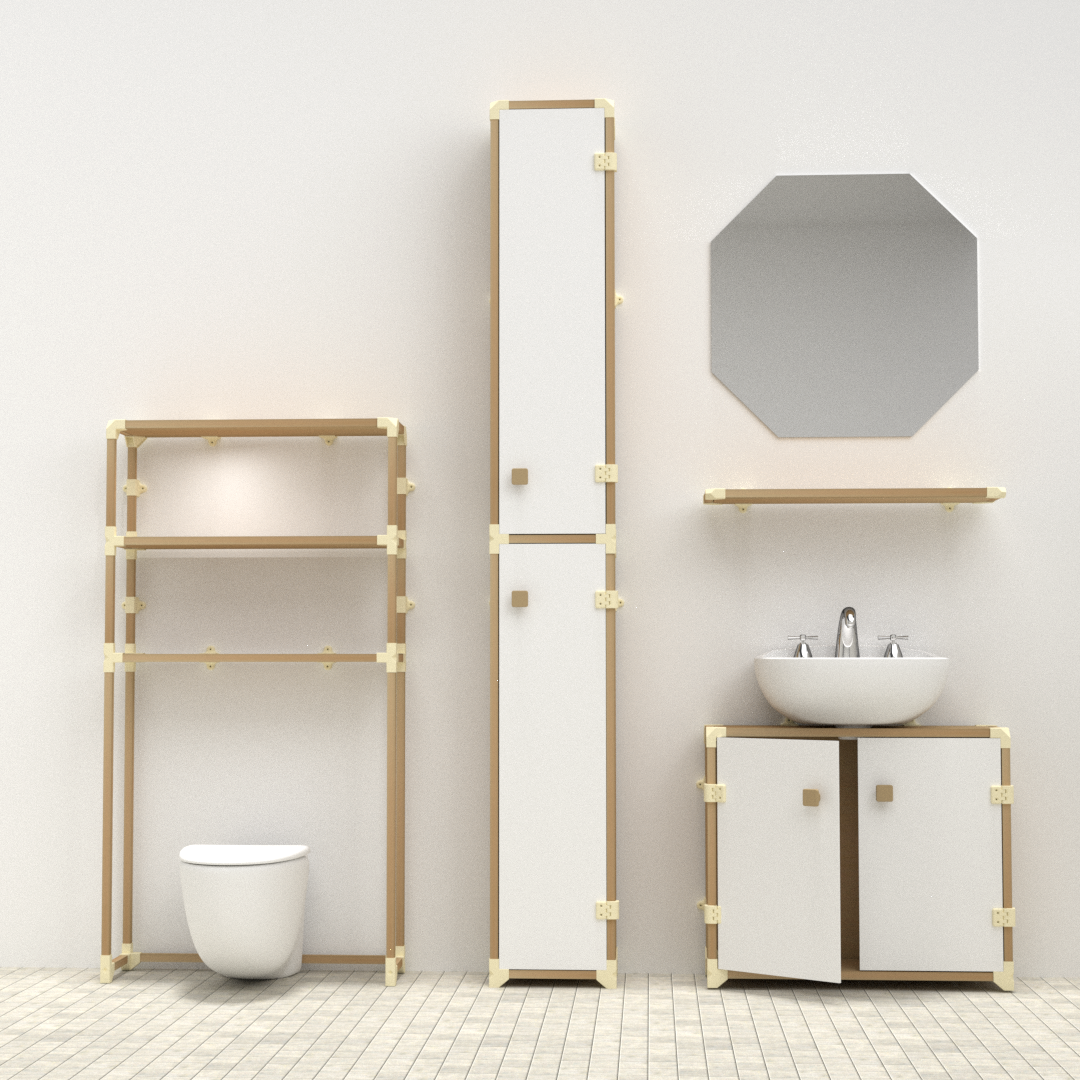

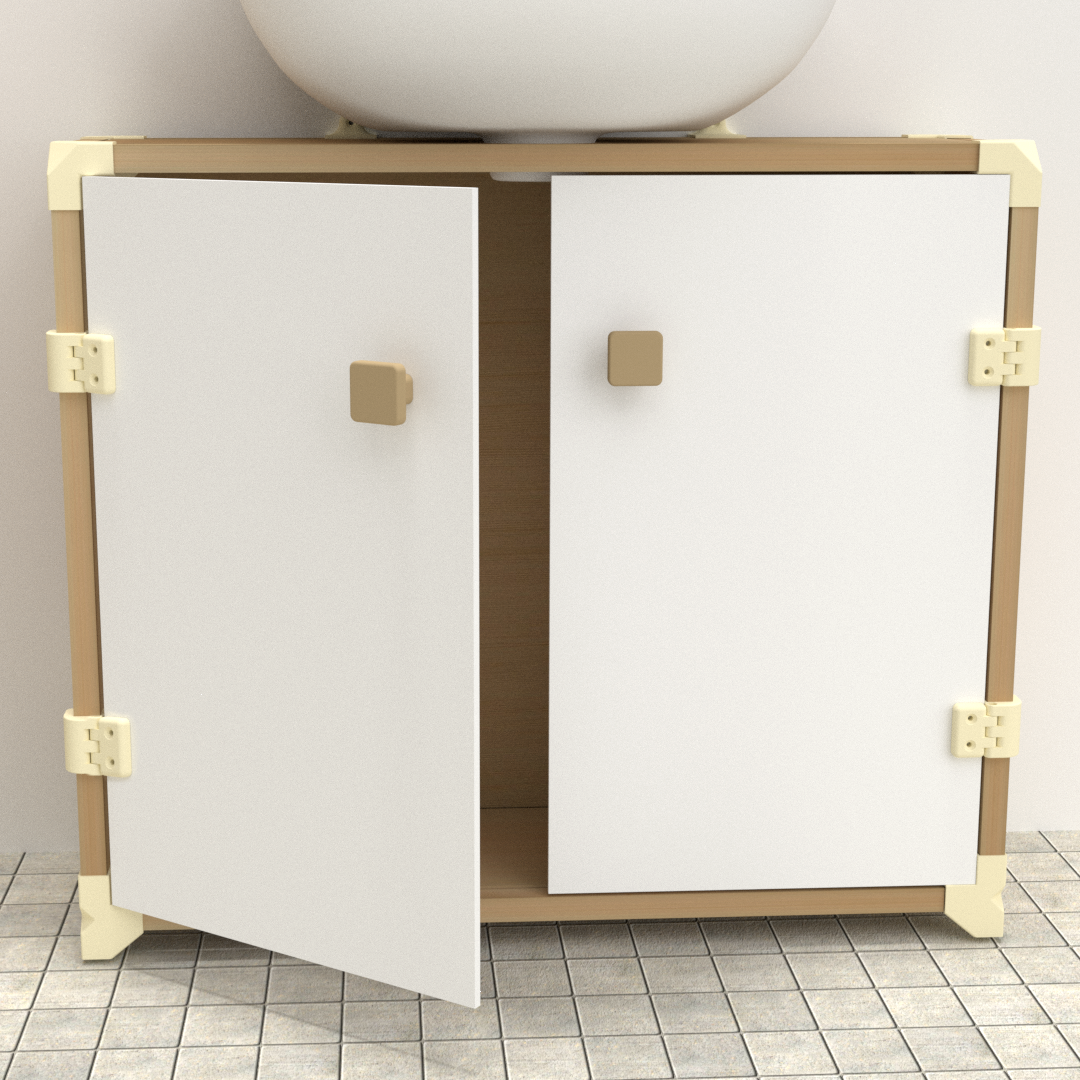

Kit de conectores para madera de 20x20 y tablones de 18mm de espesor (aunque se existe la posibilidad de adaptar espesores de hasta 2mm con un extra imprimible) para crear muebles! Fáciles de imprimir y montaje sencillo y divertido.

#DAGOMERLIN

53 conectores para cualquier posibilidad de ensamblaje!

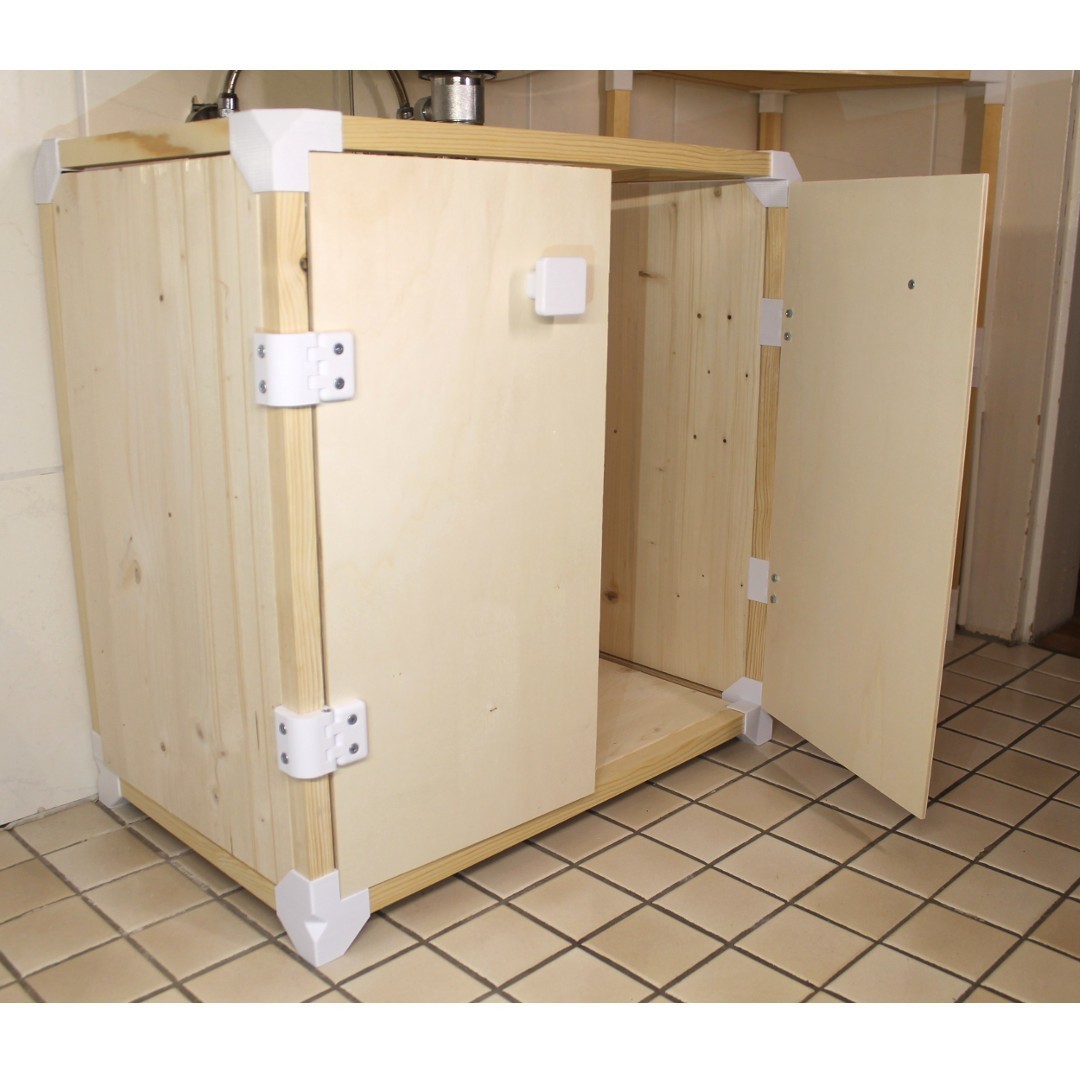

Bisagras!

2 Tipos de manillas para puertas!

Sujetador para pared!

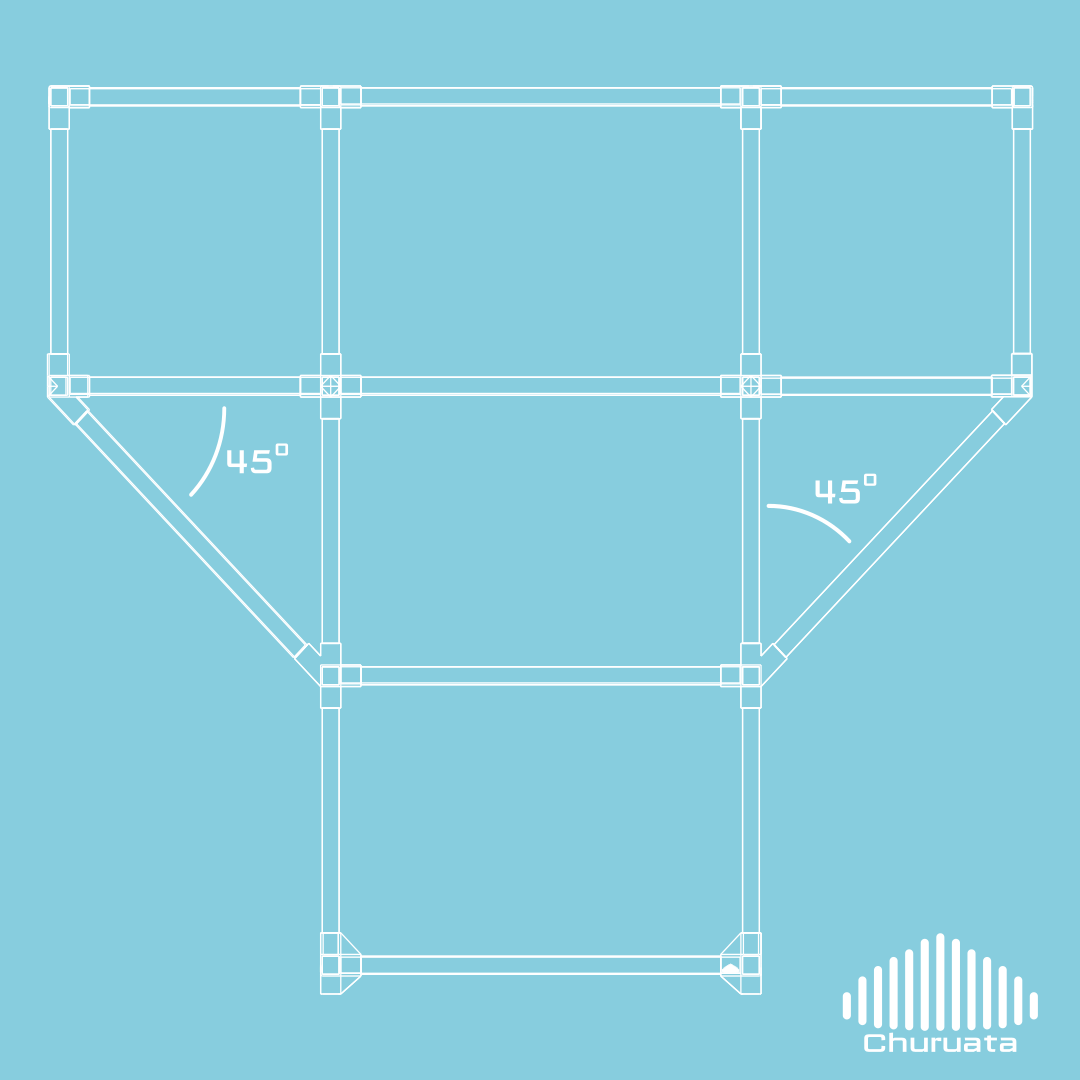

conectores de 45º!

Y mucho mas! Descubre tu mismo todas las posibilidades!

STL Files Names Meanings:

L=Left/Izquierda
R=Right/Derecha
45=45º
90=90º
W=Wall/Pared
F=Foot/Pata
T=Top/Tope
B=Bottom/Fondo
MD=Middle/en medio

And there are combinations between these abbreviations/Hay combinaciones de estas abreviaturas.

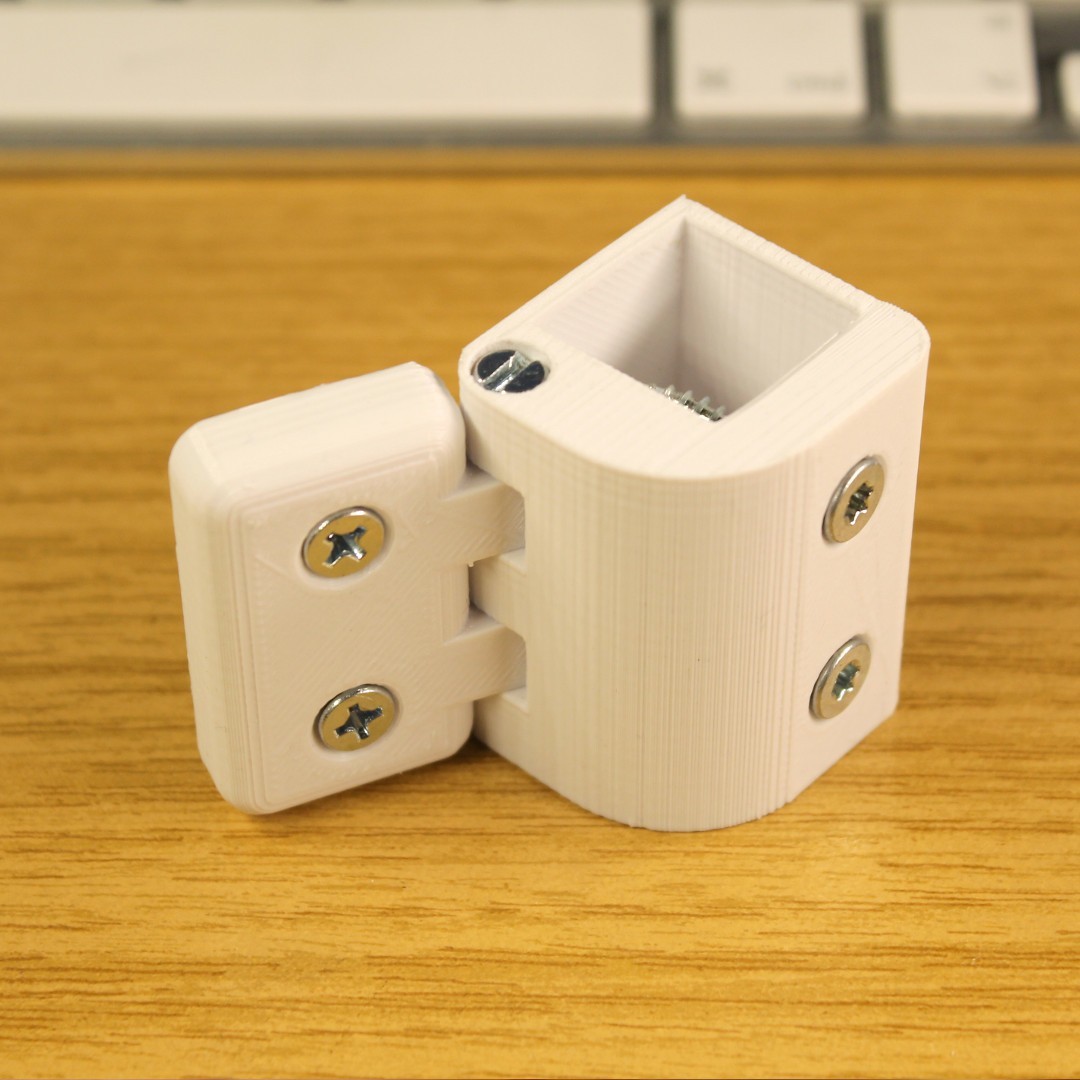

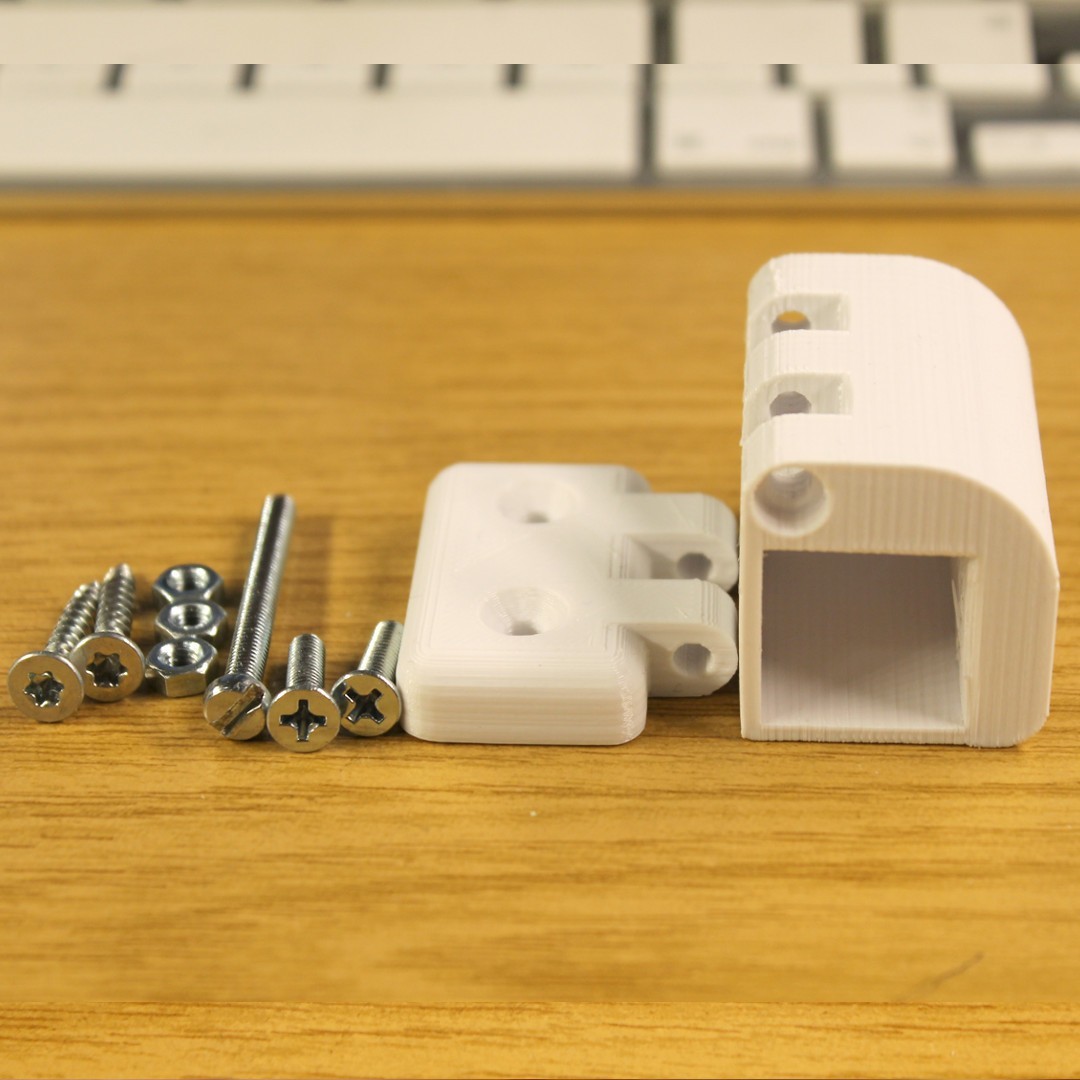

PD: Si usas bisagras necesitaras el siguiente hardware:

For each hinge/para cada Bisagra
(1) M4x40 Screw/Tornillo
(2) M4x16 Screw/Tornillo
(2) M4x16 madera/wood Screw/Tornillo
(3) M4 Nuts/Tuercas

Para cada manilla/handle/knob

(1) M4x25 screw/tornillo
(1) M4 Nut/tuerca

https://www.instagram.com/churuata3d/
https://www.facebook.com/churuata3d


3D printing settings

PLA
20% Infill
0.2 layer height
30% vel

3D printer file information

  • 3D design format: STL Folder details Close
    • extra02mm.stl
    • extra03mm.stl
    • extra04mm.stl
    • extra05mm.stl
    • extra06mm.stl
    • extra07mm.stl
    • extra08mm.stl
    • extra09mm.stl
    • extra10mm.stl
    • extra11mm.stl
    • extra12mm.stl
    • extra13mm.stl
    • extra14mm.stl
    • extra15mm.stl
    • extra16mm.stl
    • joint01a90.stl
    • joint01b90.stl
    • joint01c90.stl
    • joint02a45L.stl
    • joint02a45R.stl
    • joint02a90.stl
    • joint02a90F.stl
    • joint02a90W.stl
    • joint02b45.stl
    • joint02b90.stl
    • joint02b90F.stl
    • joint02b90W.stl
    • joint02c45.stl
    • joint02c90.stl
    • joint02c90F.stl
    • joint02c90W.stl
    • joint03a45BL.stl
    • joint03a45BR.stl
    • joint03a45TL.stl
    • joint03a45TR.stl
    • joint03a90.stl
    • joint03a90F.stl
    • joint03a90FW.stl
    • joint03a90W.stl
    • joint03b45B.stl
    • joint03b45T.stl
    • joint03b90.stl
    • joint03b90F.stl
    • joint03b90FW.stl
    • joint03b90W.stl
    • joint03c45B.stl
    • joint03c90.stl
    • joint03c90F.stl
    • joint03c90FW.stl
    • joint03c90W.stl
    • joint04a.stl
    • joint04b.stl
    • joint04c.stl
    • joint04d.stl
    • joint05a45.stl
    • joint05b45.stl
    • joint05b45F.stl
    • joint06aHL.stl
    • joint06aHR.stl
    • joint06bHW.stl
    • joint07aTL.stl
    • joint07aTR.stl
    • joint07bML.stl
    • joint07bMR.stl
    • joint07cMDL.stl
    • joint07cMDR.stl
    • joint07dFL.stl
    • joint07dFR.stl
    • joint08a-wallfasten.stl
    • joint08b-wallmount.stl
    • joint08c-handle.stl
    • joint08d-knob.stl
    • joint08e-2-pieces-together.stl
    • joint08f.stl

    Learn more about the formats

  • Last update: 2017-11-23 at 20:36
  • Publication date: 2017-11-17 at 11:31

License

CC BY NC SA

Tags

Creator

Diseño e Impresión 3D

Soluciones 3D

Inkscape, Blender, Freecad

Hagen - Deutchland
