Modular dual monitor stand

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.7k views
  • 12 likes
  • 133 downloads

3D model description

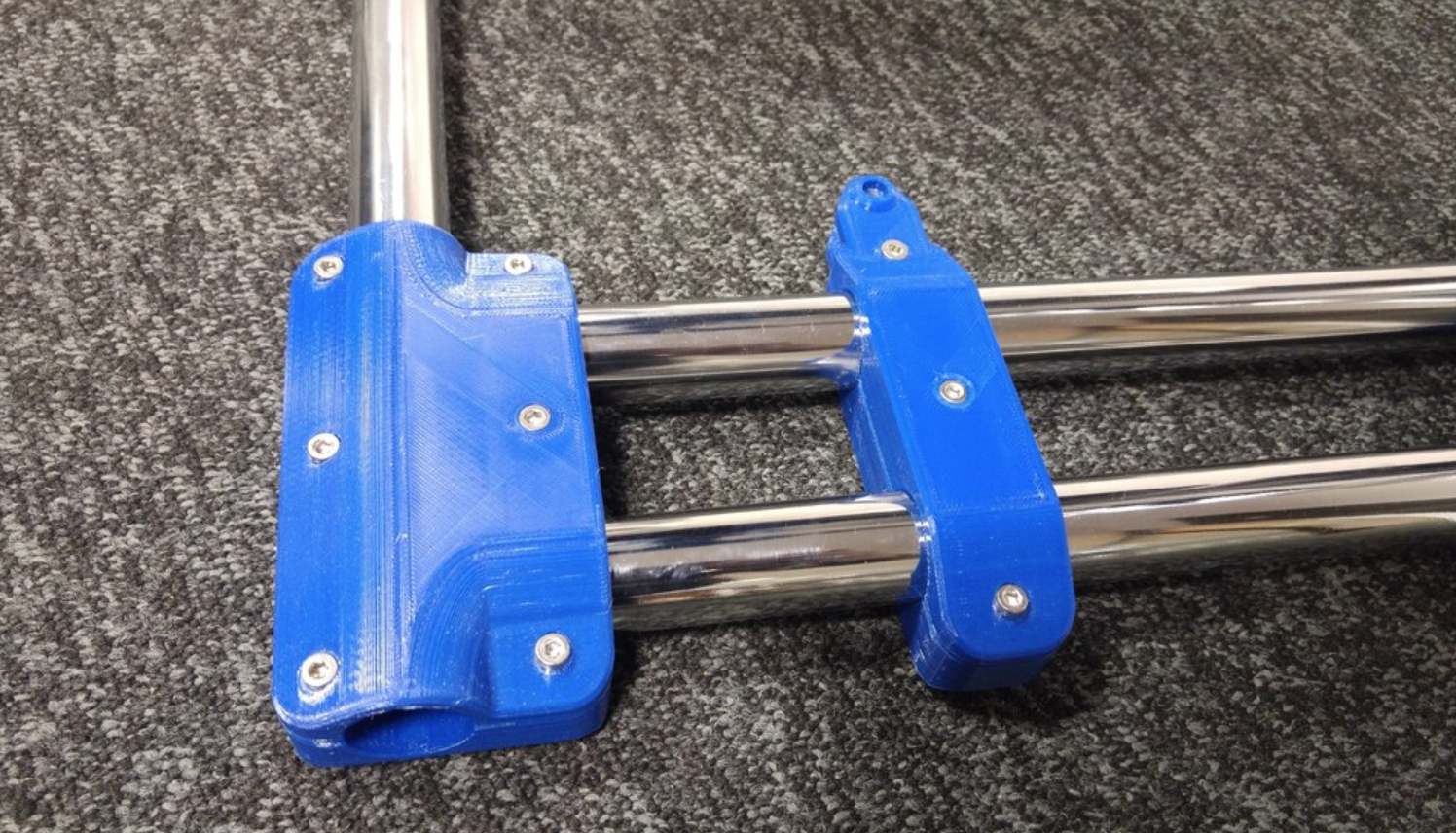

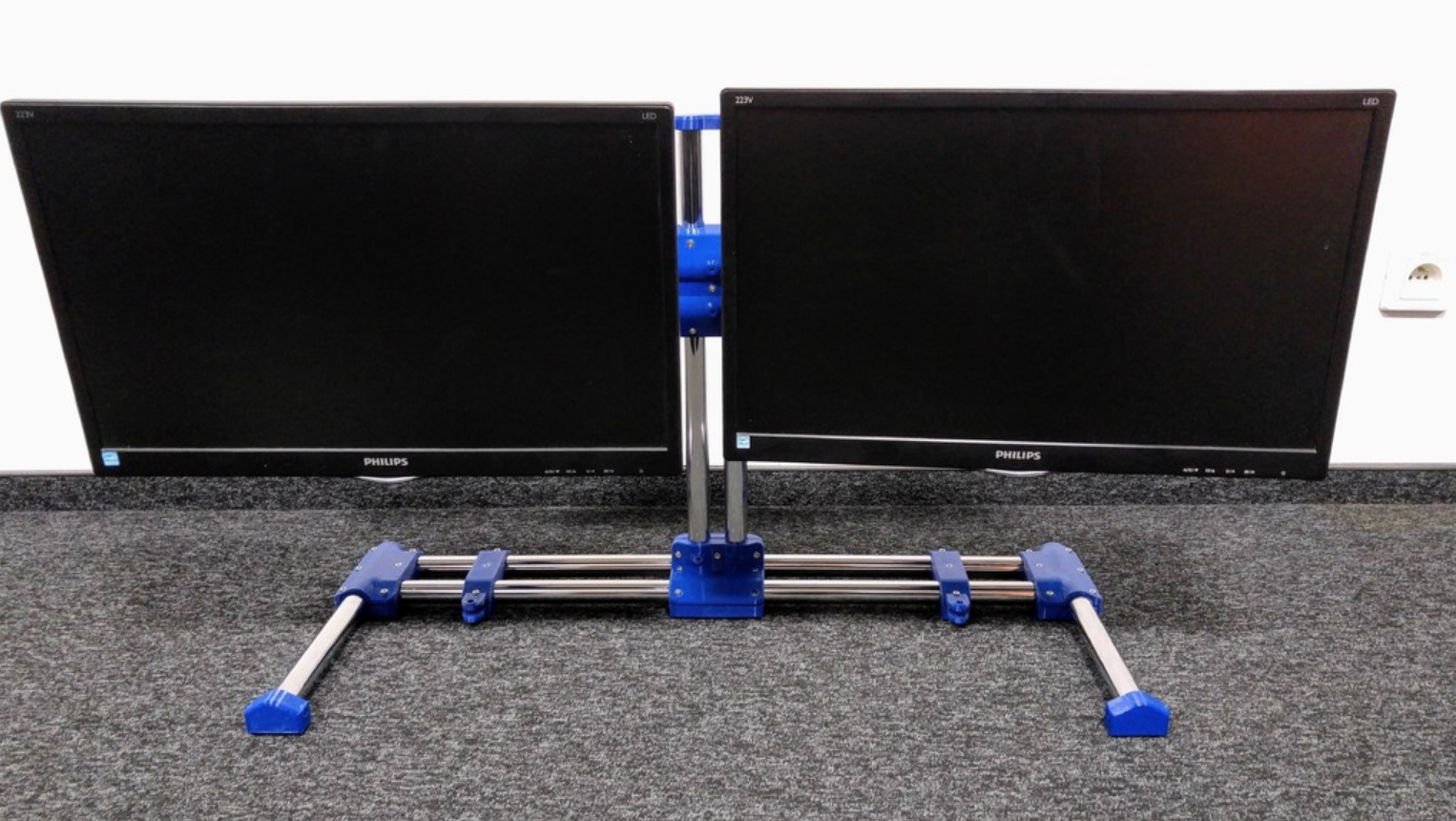

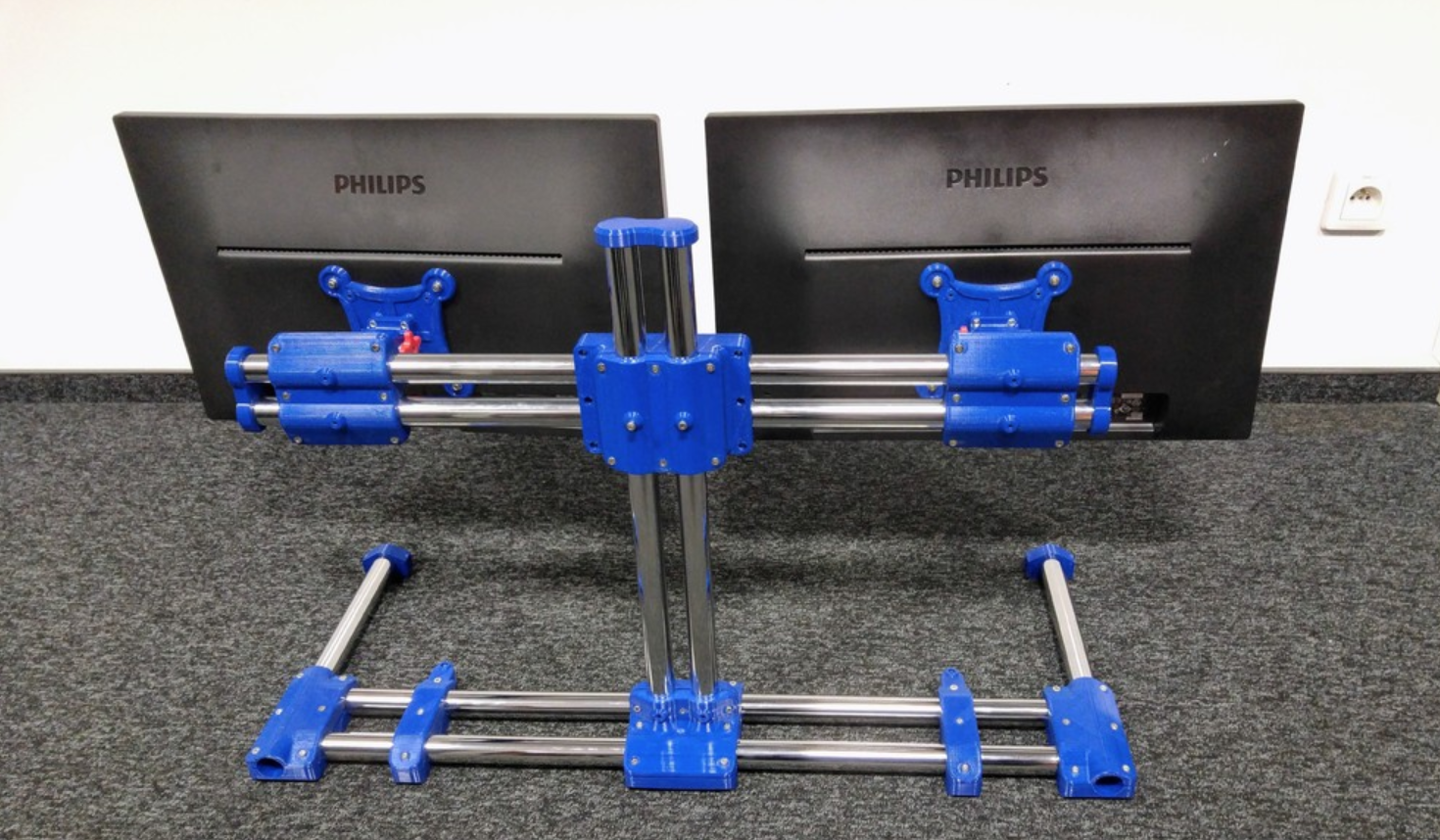

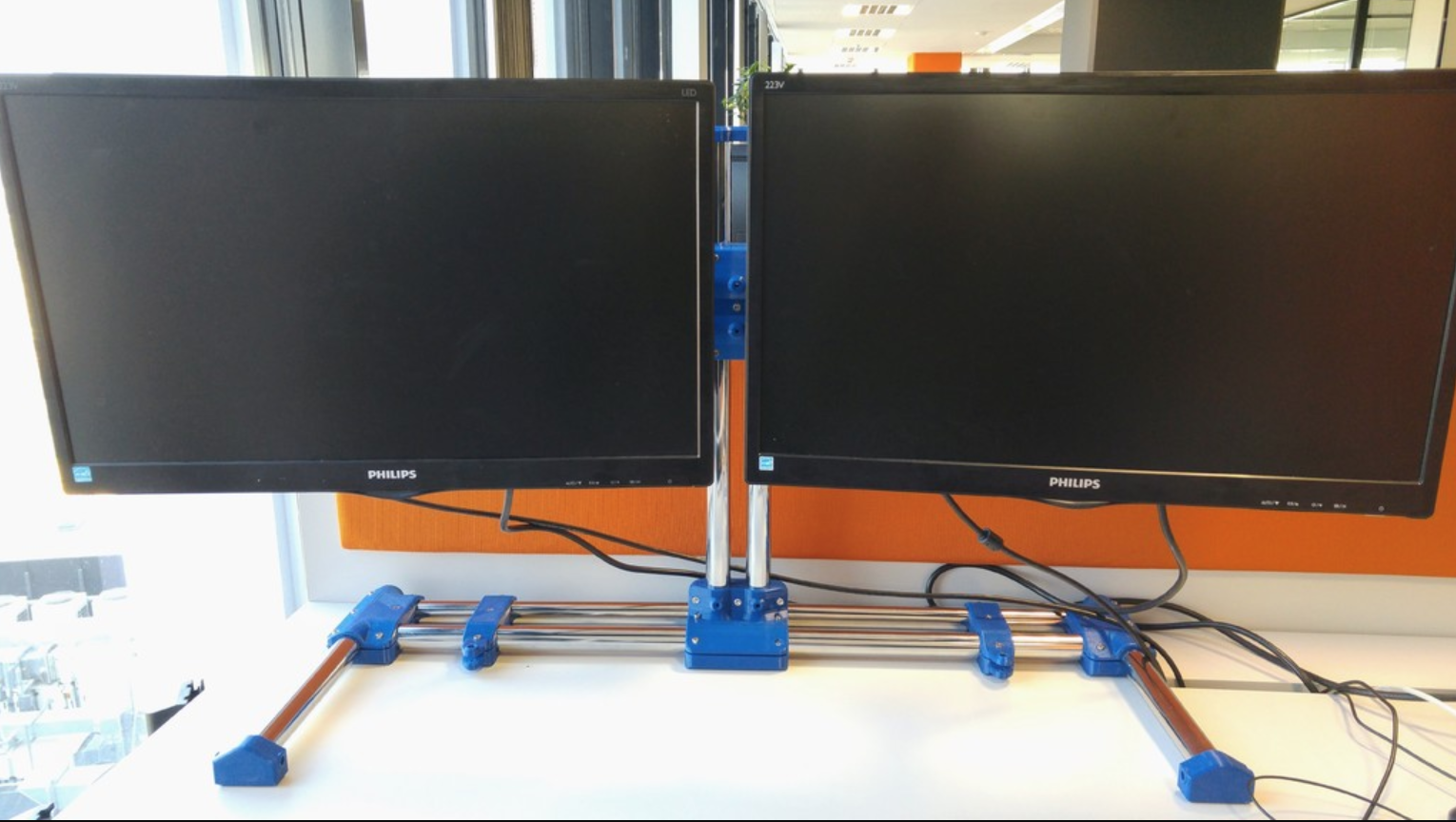

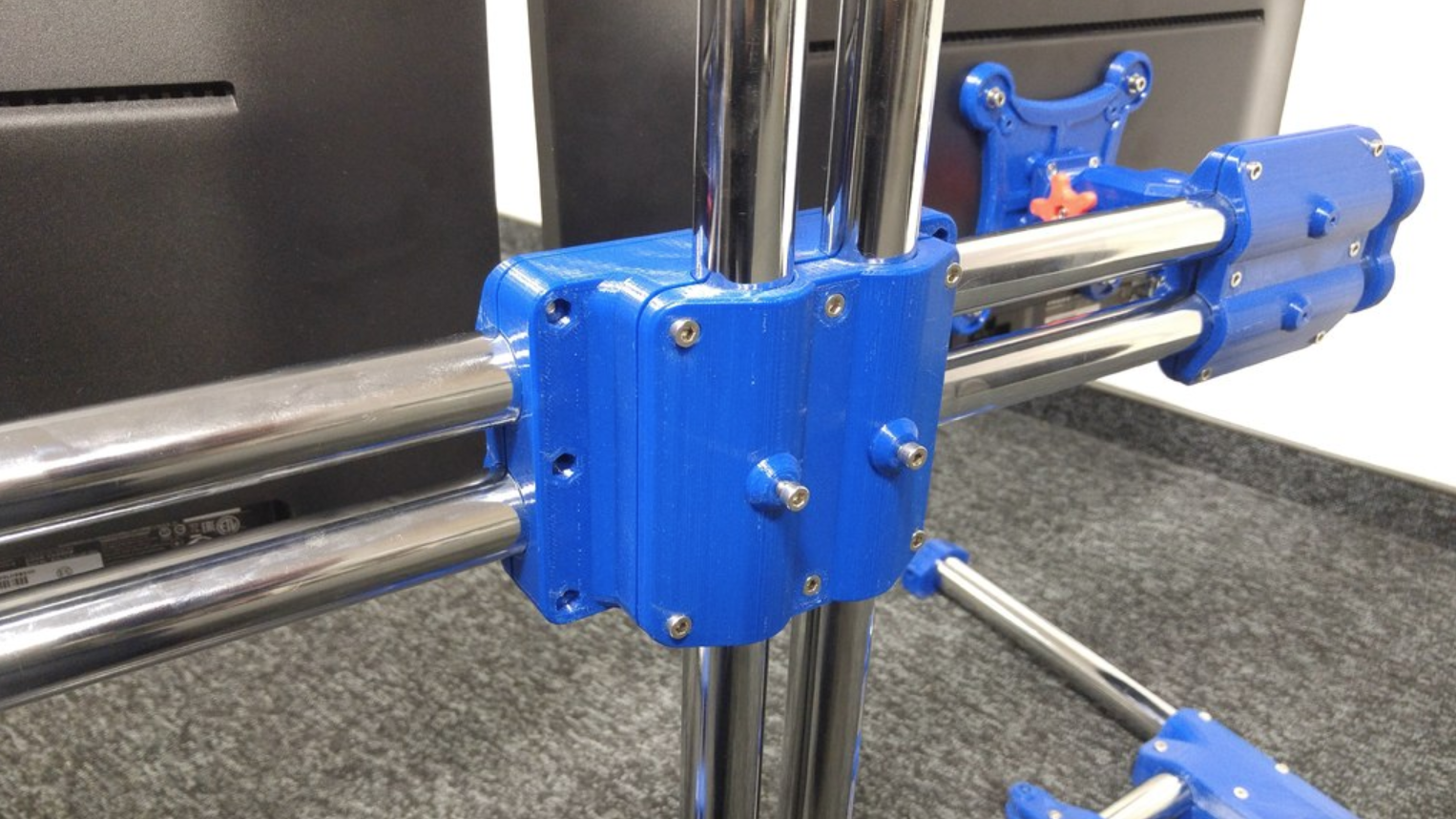

Modular dual monitor stand based on metallic tubes OD 25mm with vesa75/100 mount
Recommended length of tubes:
2x500mm vertical
2x300mm legs
4x700mm horizontal (or 800mm for monitors more than 23")
Length can vary, depends upon monitors you have.

Also, you need:

m4 bolts and m4 nuts. (will update quantity soon)
4xm5 hex bolts for axis regulation

3D printing settings

Notes:
For most parts support is not required. Some bolt/nut holes have 0.2mm wall to print in a horizontal position without support.
But for those, I recommend putting support :
monstand_p5.a.stl
monstand_p5.c.stl
monstand_p6.a.stl
monstand_p6.b.stl

Orient each part to print it durable.

Used 4 perimeters/top/bottom and 30% infill

  • 3D file format: STL
  • Publication date: 2018/01/17 at 15:32
