Modular Drawers 2.0

3D model description

As great as my HIVE - Stackable Hex Drawers are, they don't hold a whole lot in the drawers and the complex printing movements add a lot of time. I tried to fix this with my Modular Drawers. But these modules did not interlock. This is the interlocking version of my Modular Drawers 1.0

Modular Drawers 2.0 offers a sleek design free of complex print movements, decreasing print time while increasing storage volume. The dimensions are: 85 mm x 85 mm x 100 mm providing more than enough space to hold screws, capacitors, and other common small components.

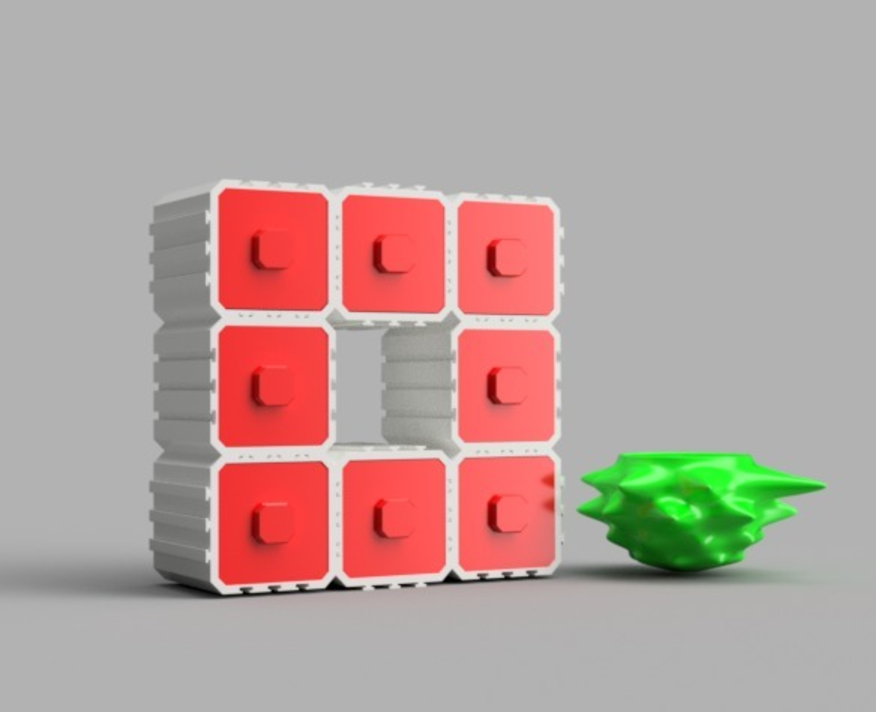

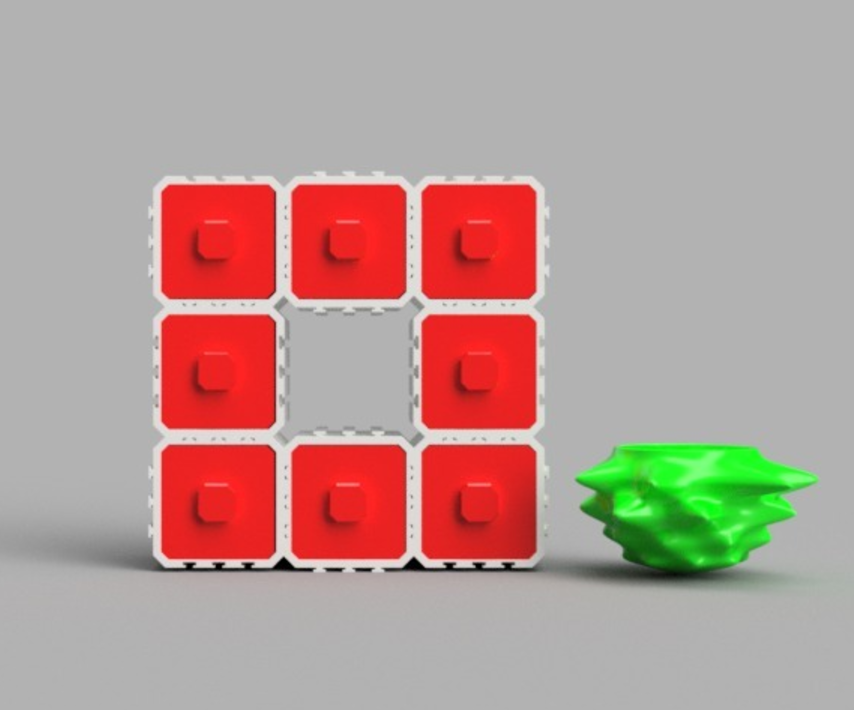

The pictures are renders but tolerances have been accounted for. The rails and slots were test printed.

Here is the Ferrofluid Vase from the renders

3D printing settings

Rafts:
No

Supports:
No

Resolution:
200-400

Infill:
0-5%

Notes:
The drawers should fit inside the modules as is. It doesn't hurt to scale the modules to 101% and drawers remain at 100% (or drawers to 99% and modules 100%)
Print speed can be increased
Lower resolutions will print faster but may affect fit between slots and rails. If you have a problem with fit at lower res please tell me and I will upload a low res high speed module
I recommend printing with 5% infill

  • 3D model format: STL

Tags

Creator

Followers Followings 2
Downloads 11228

I am Daniel O'Connell, a Maker from Philadelphia. My philosophy is that every model must be as useful as it is beautiful.

Follow me on Thingiverse and see my Shapeways shop, and customize my designs on Vectary!

I will be adding many more products in the coming weeks. As always, all of my designs are free to download and print. The products I sell can be downloaded from my designs page.

For business inquiries please contact o3dofficial@gmail.com

Interested in selling my designs? Contact me before listing on Etsy or other sites. I will have your listing taken down if I did not grant you permission.

Please consider supporting me on PayPal and Patreon

License

CC BY NC SA

Similar 3D files

Best sellers of the category Home


Add a comment

One comment

Hi! I just printed 2 moduls and they don't fit. Resolution was 300, infill 20%. Can you please upload the Low-resolution file so I can try if that works better? Thank you
