Micro Bubble Air Diffuser

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.5k views
  • 2 likes
  • 1 download

3D model description

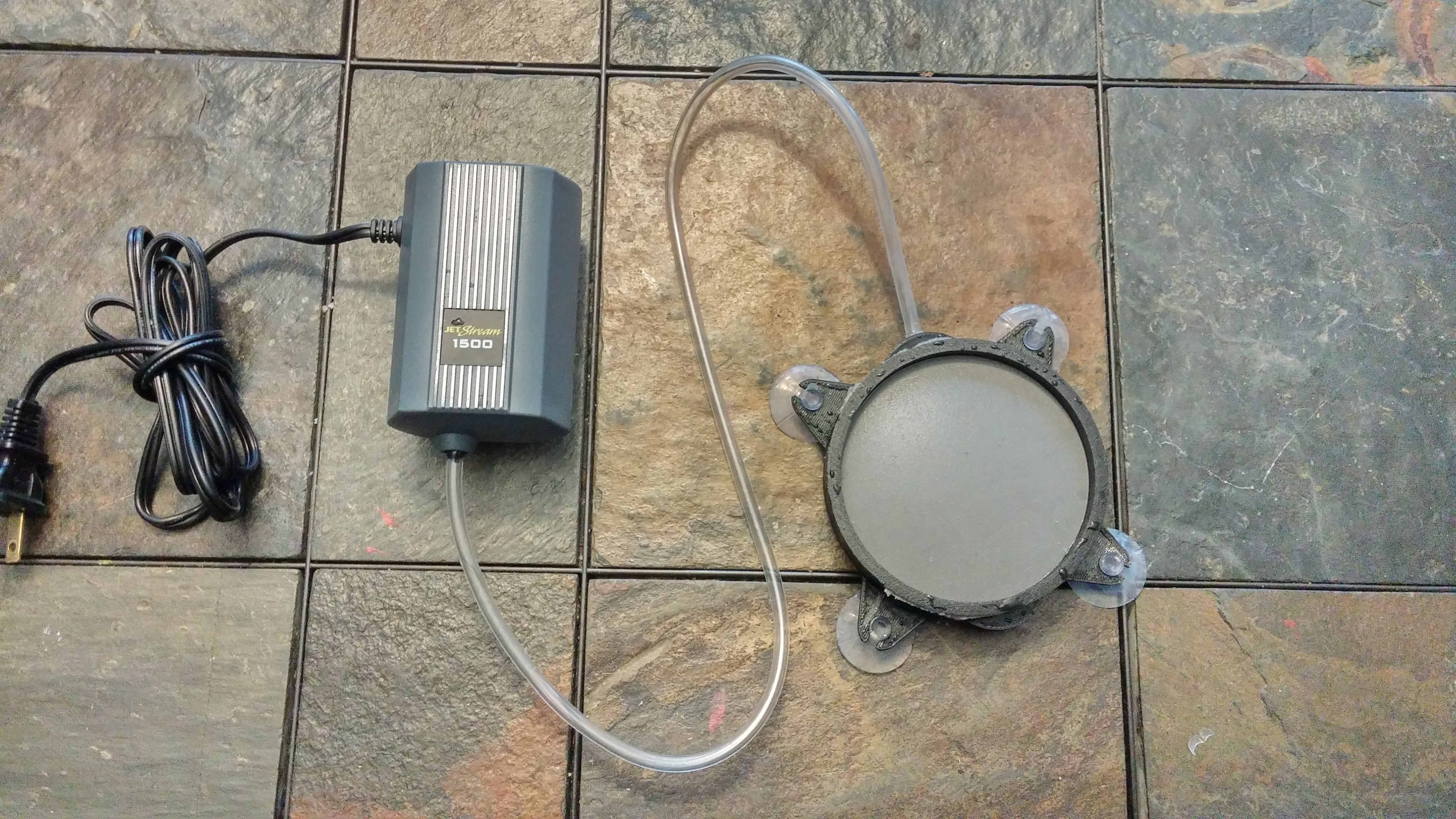

Build this low cost, high performance air diffuser for your aquarium, terrarium, display or hydroponic system from readily available items. It has a 4 point suction cup base and connects to a 1/4 inch (6mm) air hose.

A square piece 5 x 5 inches (125 x 125mm) of eyeglass quality microfiber cloth and 4 medium size suction cups is required. You can find the suction cups at the dollar store and the microfiber cloth at an optical store.


3D printing settings

Measures approximately 6 inches (152mm) in diameter by 1 inch (25mm) in height.

Print time is under 2 hours for both parts.

Rafts: No
Supports: No
Resolution: 0.25mm
Infill: 10%

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • 4_inch_micro_bubble_assembly_diagrams.zip
    • 4_inch_micro_bubble_disc.STL
    • 4_inch_micro_bubble_ring.STL

    Learn more about the formats

  • Last update: 2020/01/31 at 19:01
  • Publication date: 2015/12/01 at 17:24
