Minimal Shelf Bracket

151e78bfc8c14a3d4a29eb58f914e775_display_large.jpg Free STL file Minimal Shelf Bracket・3D printing model to download
dee03c423e31b463aba6ef2de733ffaf_display_large.JPG Free STL file Minimal Shelf Bracket・3D printing model to download
82ccb91388416d734504d9260e9b563e_display_large.jpg Free STL file Minimal Shelf Bracket・3D printing model to download

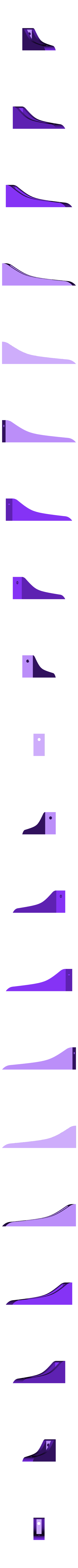

ShelfBracket.stl Free STL file Minimal Shelf Bracket・3D printing model to download
Share
Add to
Make
?
Creation quality: 4.5/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

roguemat

roguemat

3D model description

I designed these as an exercise to see how small I could make a bracket while still being strong enough for a large shelf.

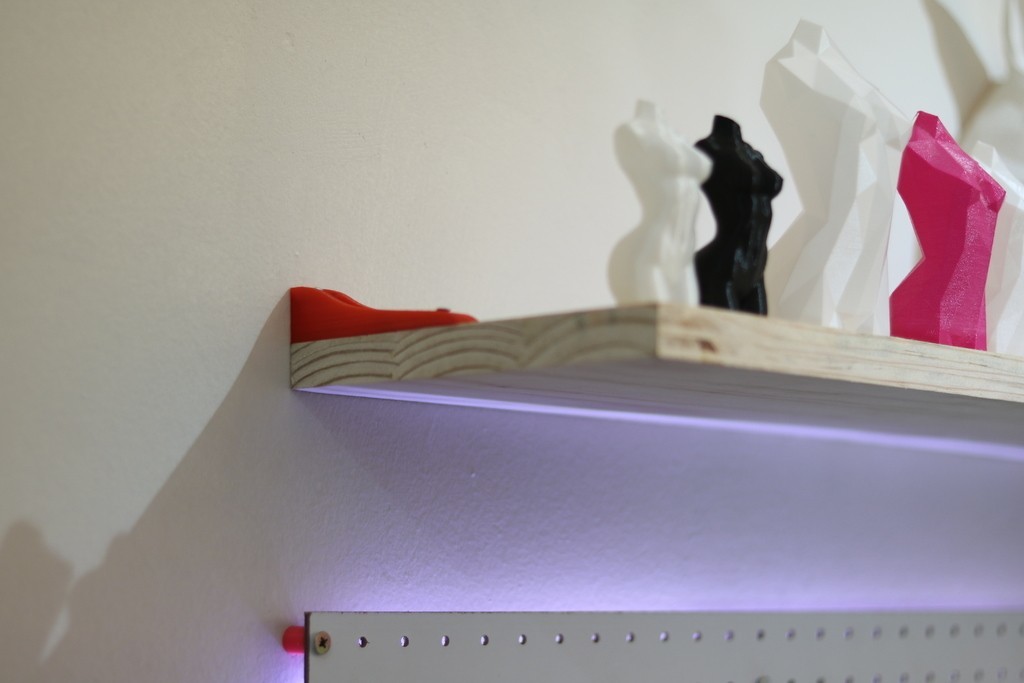

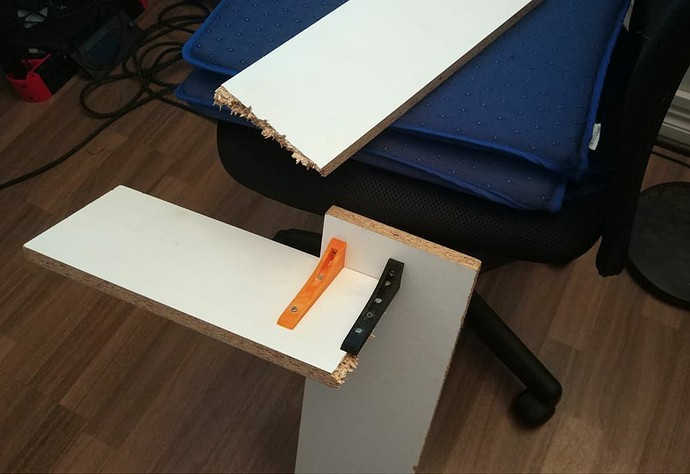

While I don't know the actual breaking point of these (the chipboard test I did broke), I put 15KG's on a 122cm x 20cm pine shelf with 2 brackets for a few days and can see no signs of stress.

Basically, for the size, these are extremely strong, just maybe don't put 30 rolls of filament on it.

The main single wall hole is 4mm across. The 3 holes into the shelf are 3mm across.

3D printer file information

  • 3D design format: STL Folder details Close
    • ShelfBracket.stl

    Learn more about the formats

  • Publication date: 2018-09-06 at 14:25
    ?
    Published to Thingiverse on: 2018-09-06 at 15:49

License

CC BY - Attribution
