Cubimobi modular furniture

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.1k views
  • 14 likes
  • 65 downloads

3D model description

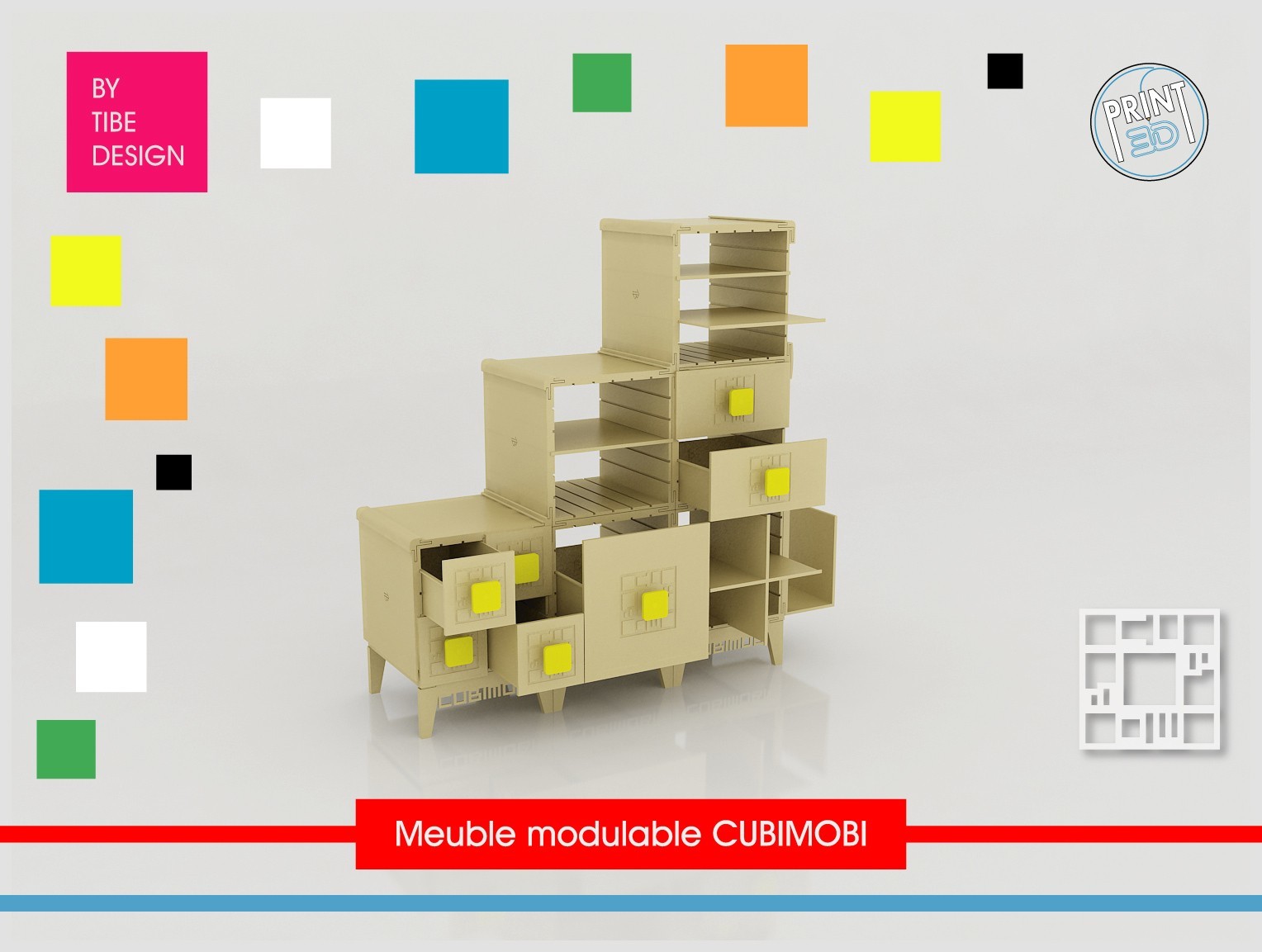

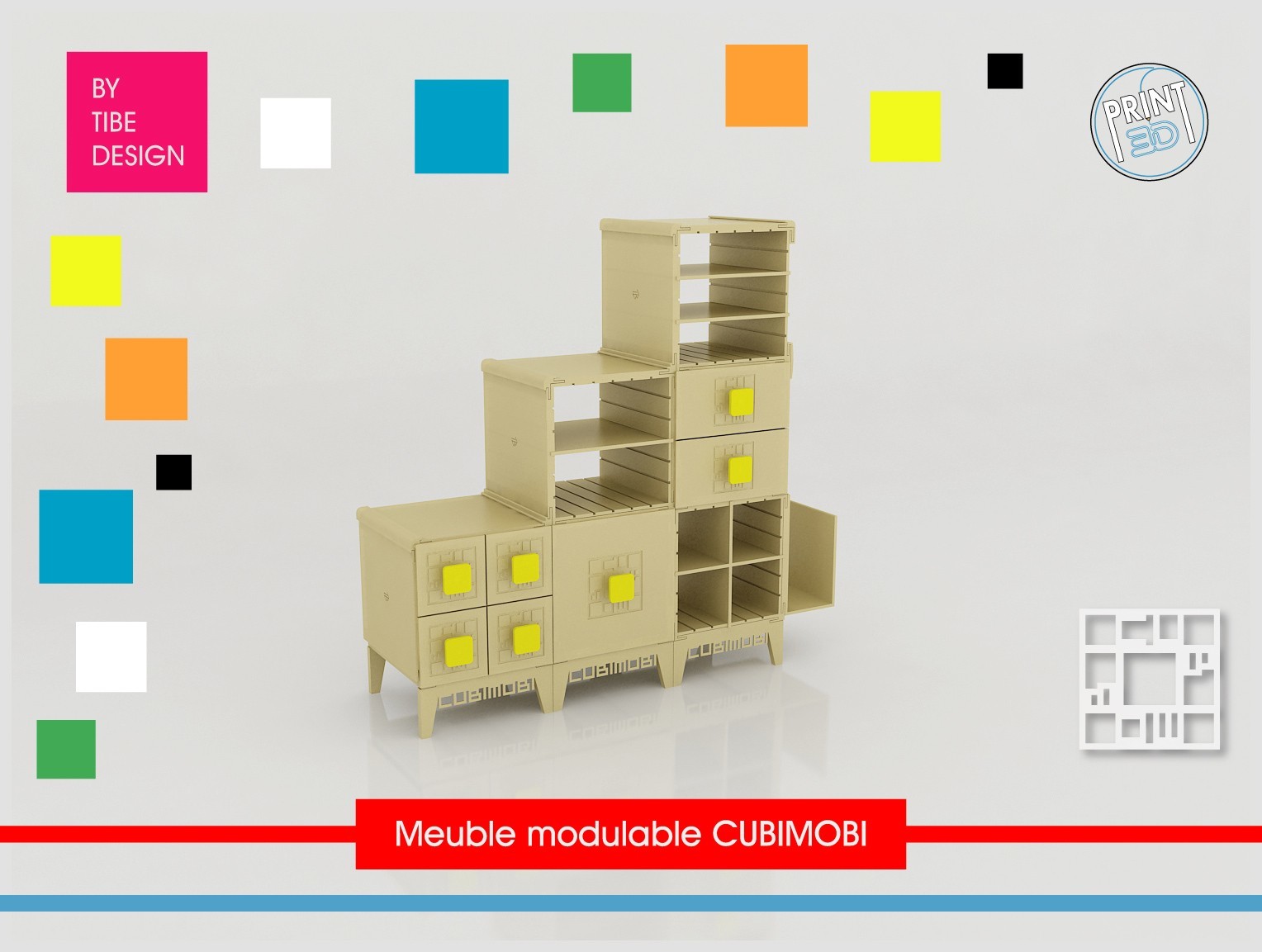

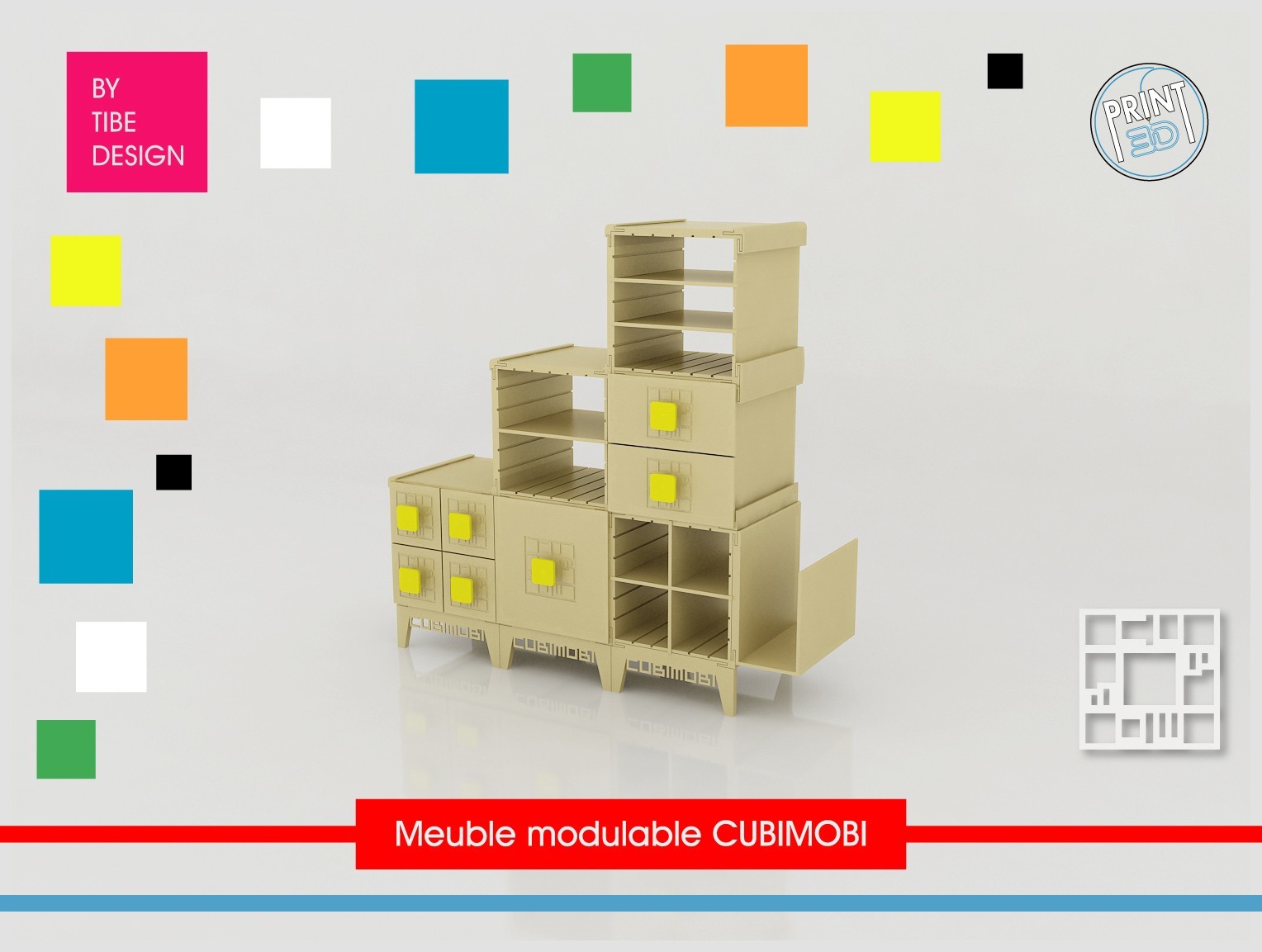

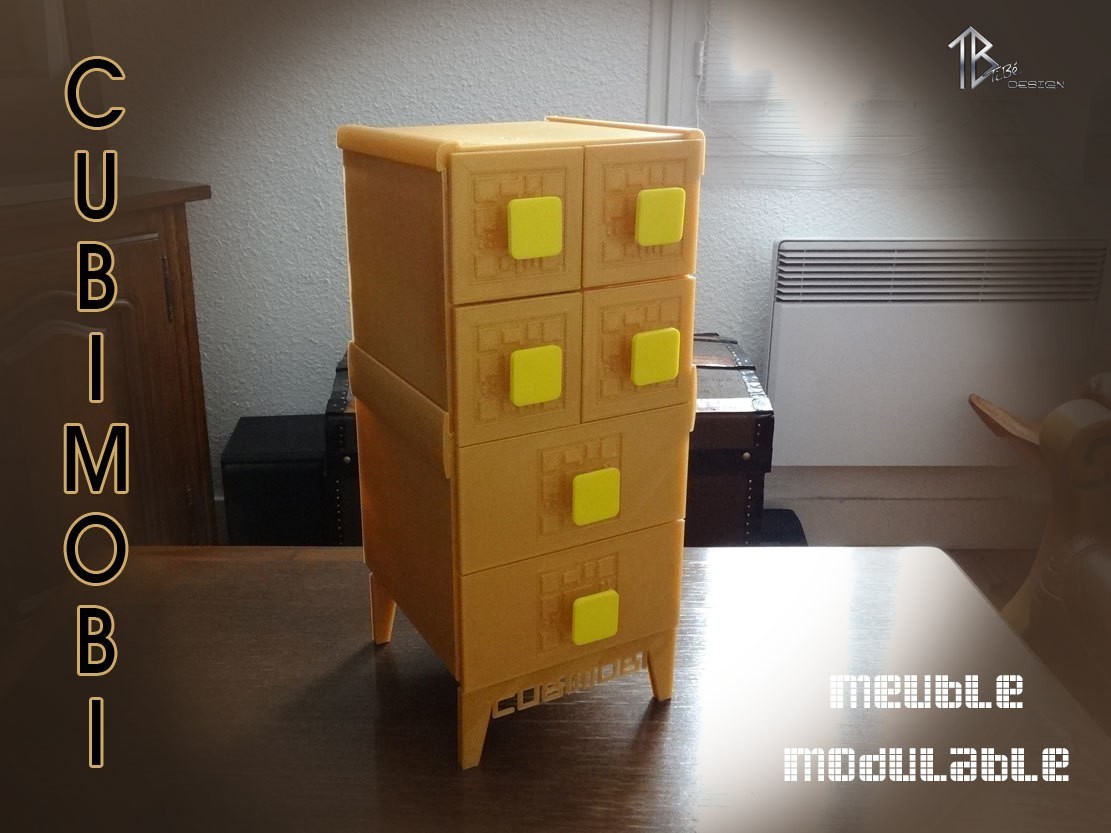

Cubimobi is a set of elements to constitute a piece of furniture according to its needs and tastes. If you have a solid 3D printer to print its modules (I used an Ultimaker 2+ Extended), then you can leisurely compose your furniture in the color of your choice to store your belongings (tooling, article desk, deco, collectibles, books, dvd, CD, figurines, etc.).

#DAGOCULTS


3D printing settings

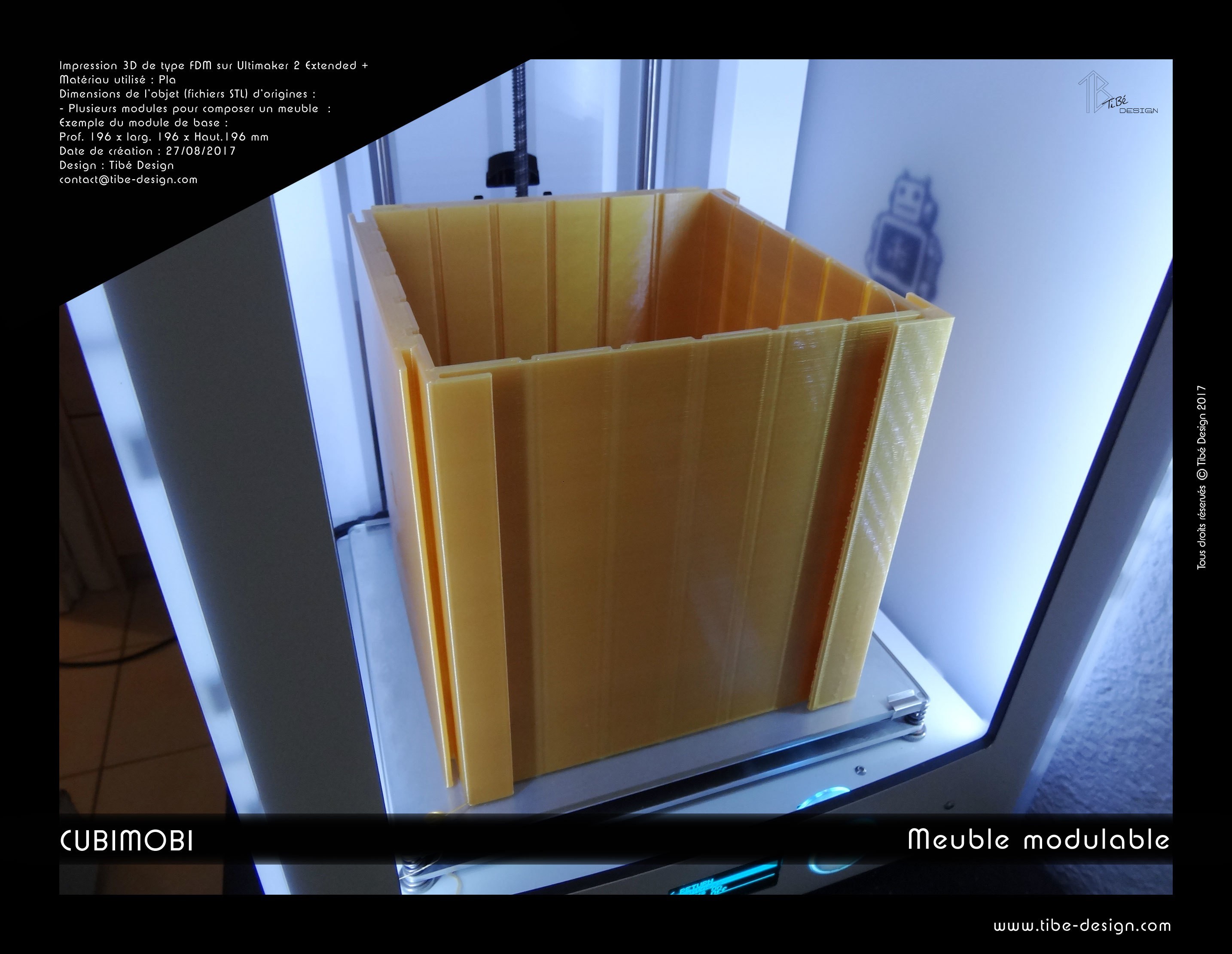

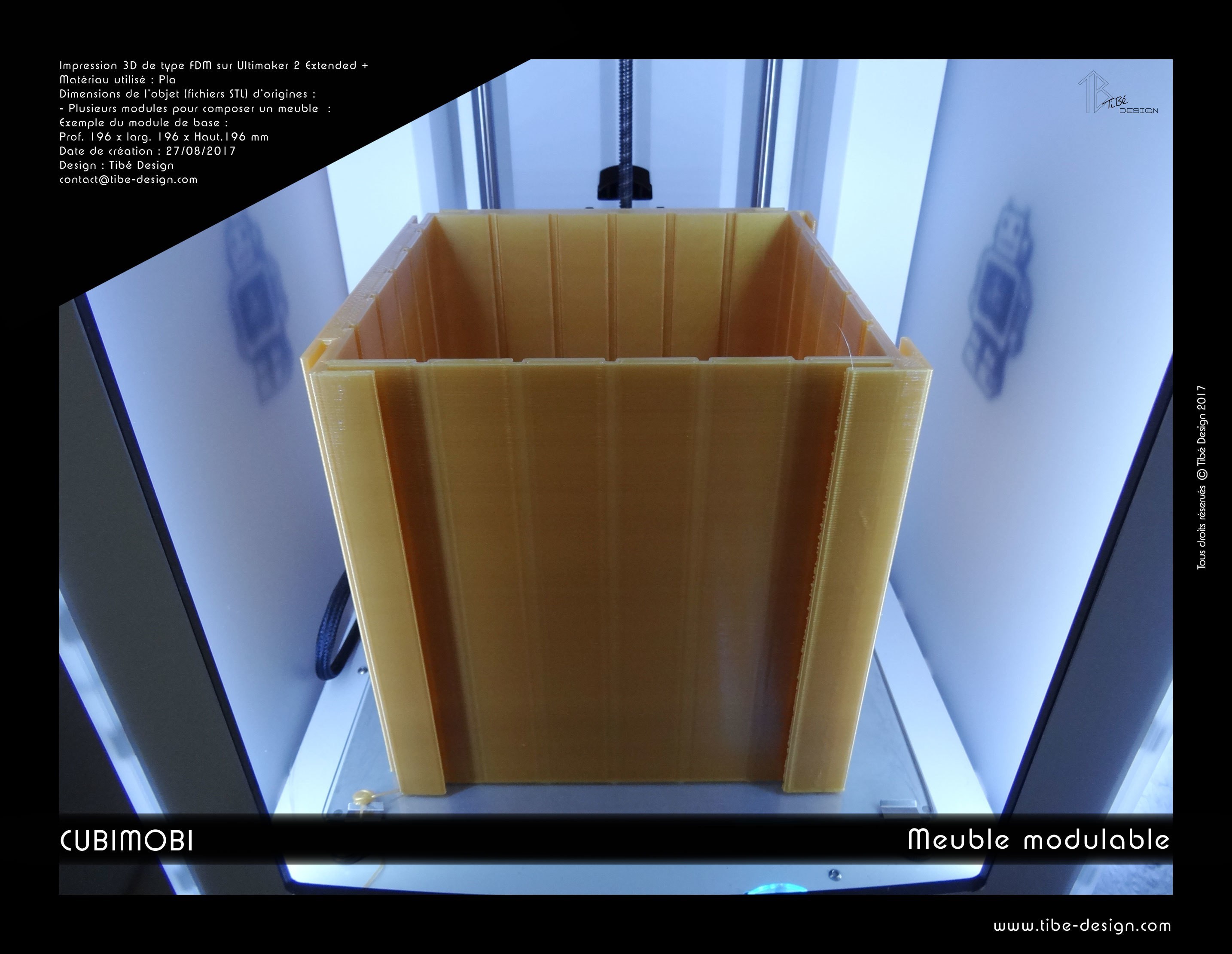

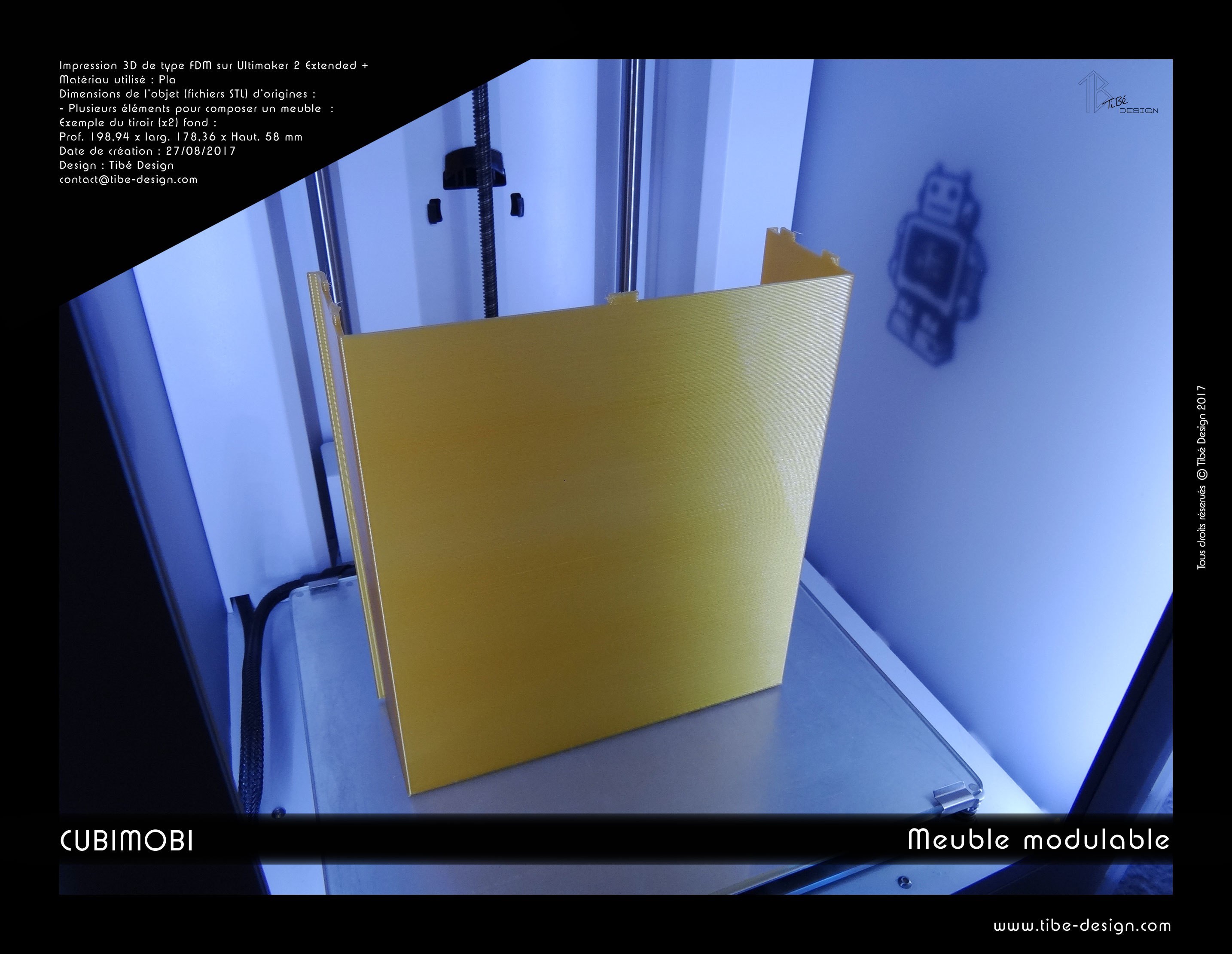

Example dimension of the Cubimobi body: 196 x 196 x 196 mm

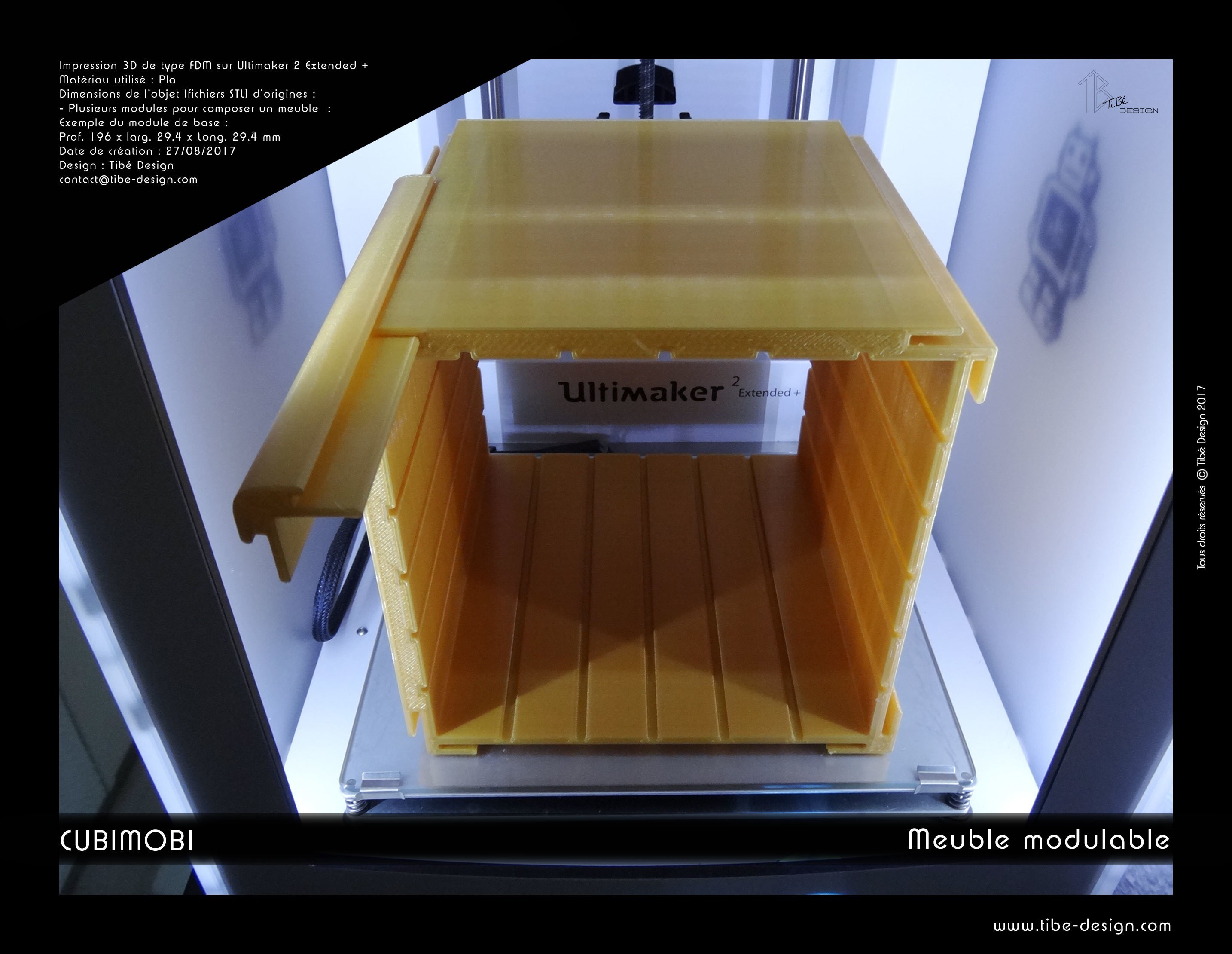

- Body: Ep. Shell 2 mm (or 1 mm minimum), layer thickness 0.5, fill rate. 0%, 1 mm nozzle (you can use finer nozzles for a better finish but with a longer time).
- Single and cross shelves: Ep. Shell 1 mm, layer thickness 0.5, fill rate. 0%, 1 mm nozzle

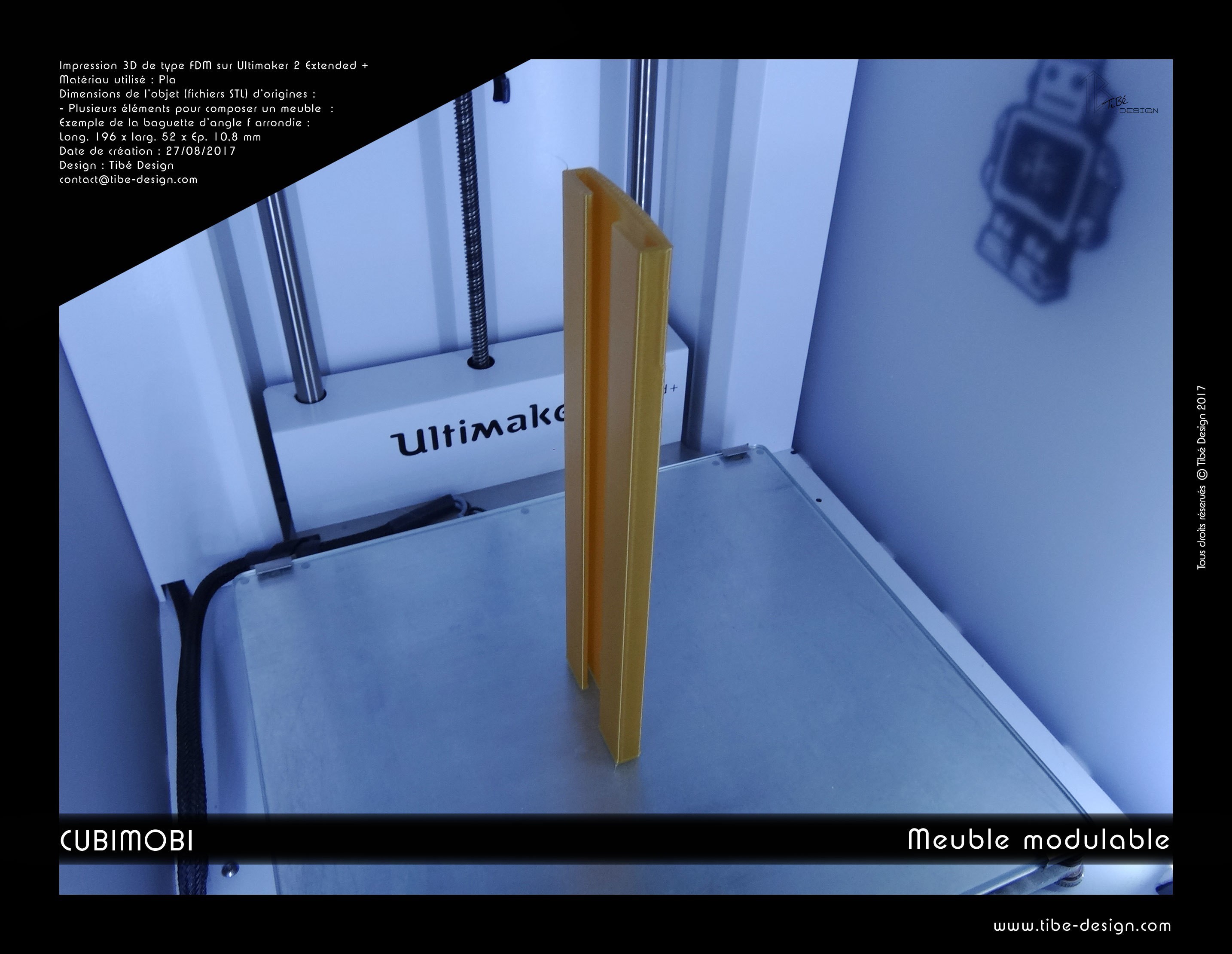

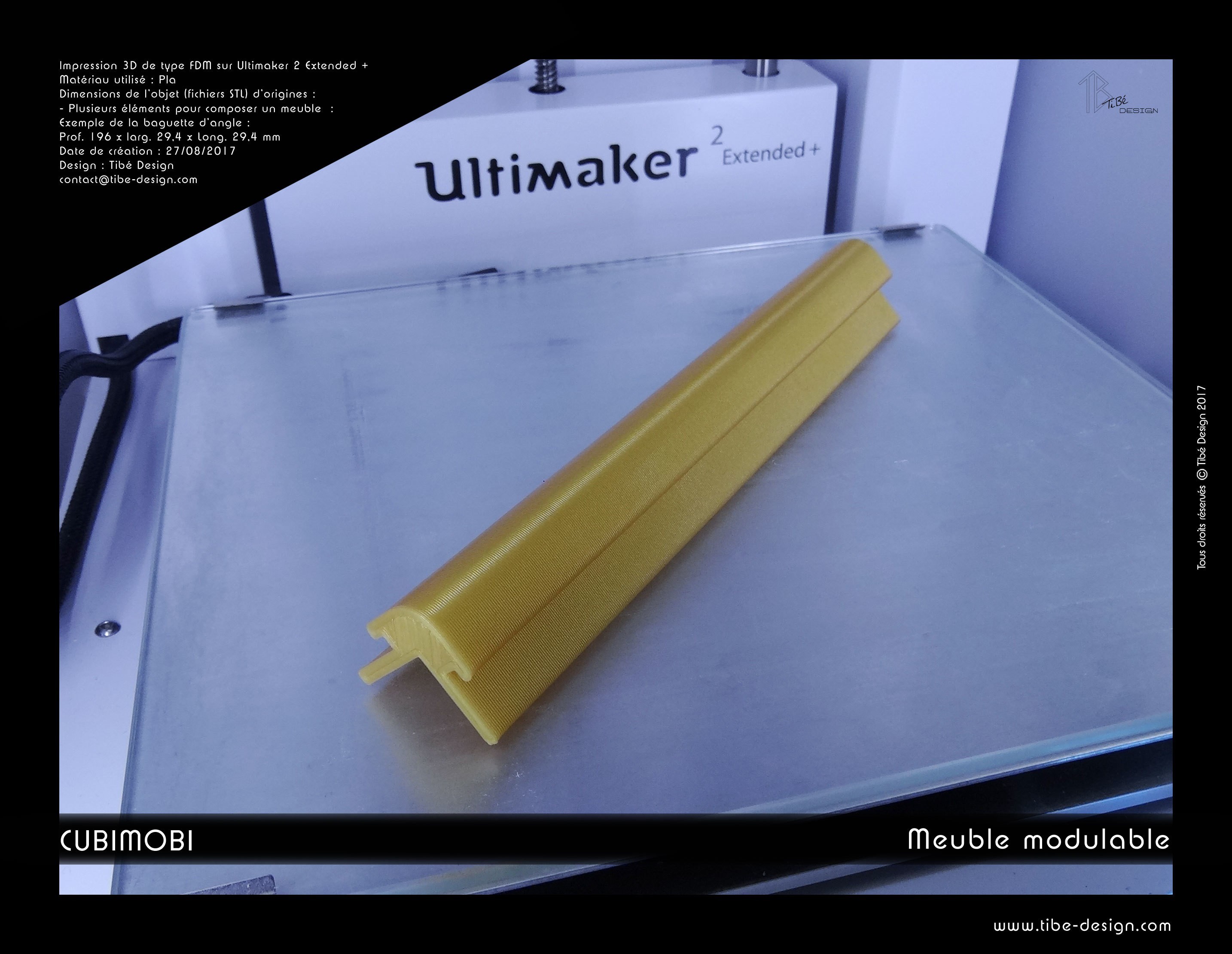

- The sticks (angle, male joint, female, etc ...) Ep. Shell 1 mm, layer thickness 0.5, fill rate. 0%, 1 mm nozzle

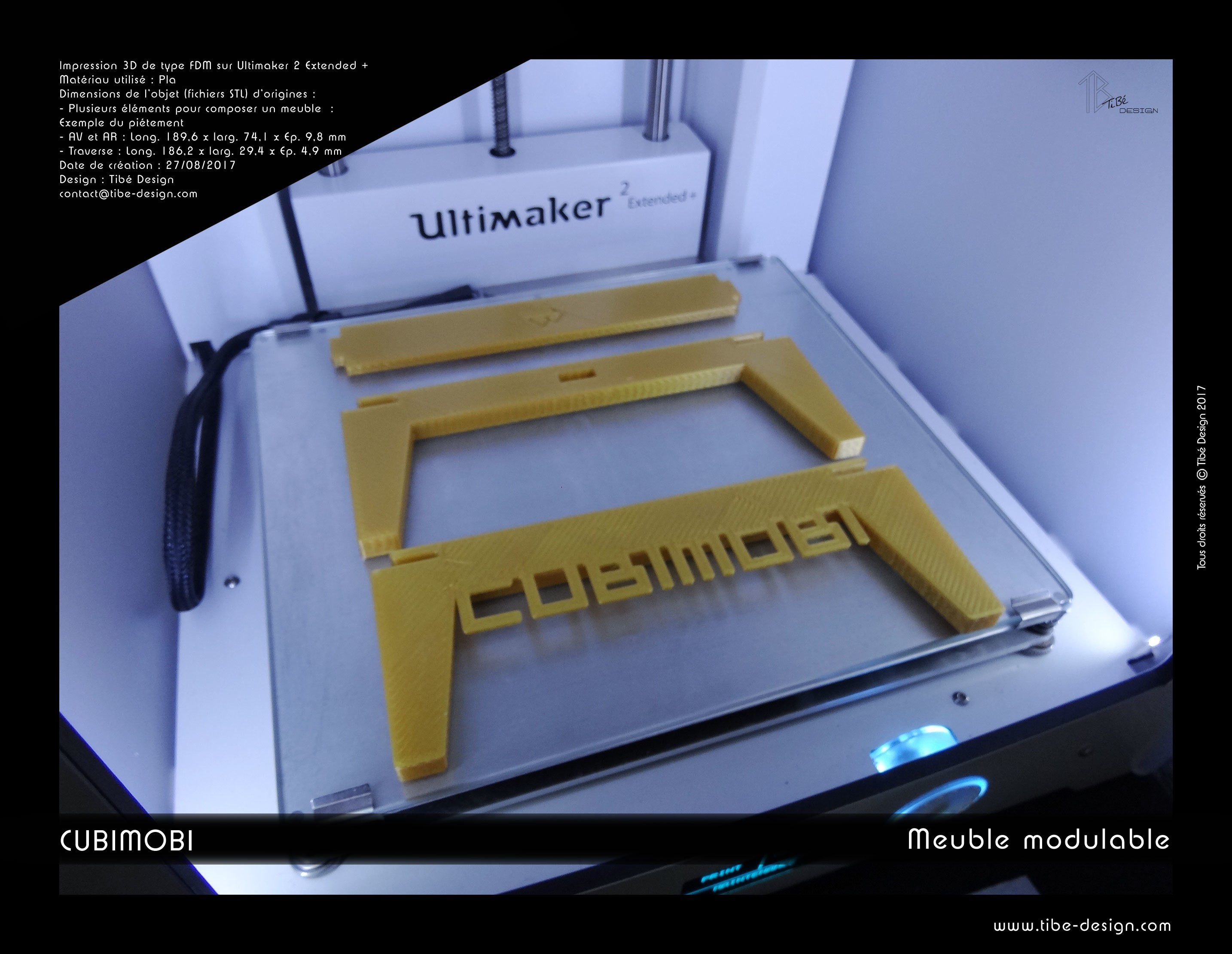

- The part of the frame (consisting of three pieces): Ep. Shell 1 mm, layer thickness 0.5, fill rate. 80%, 1 mm nozzle

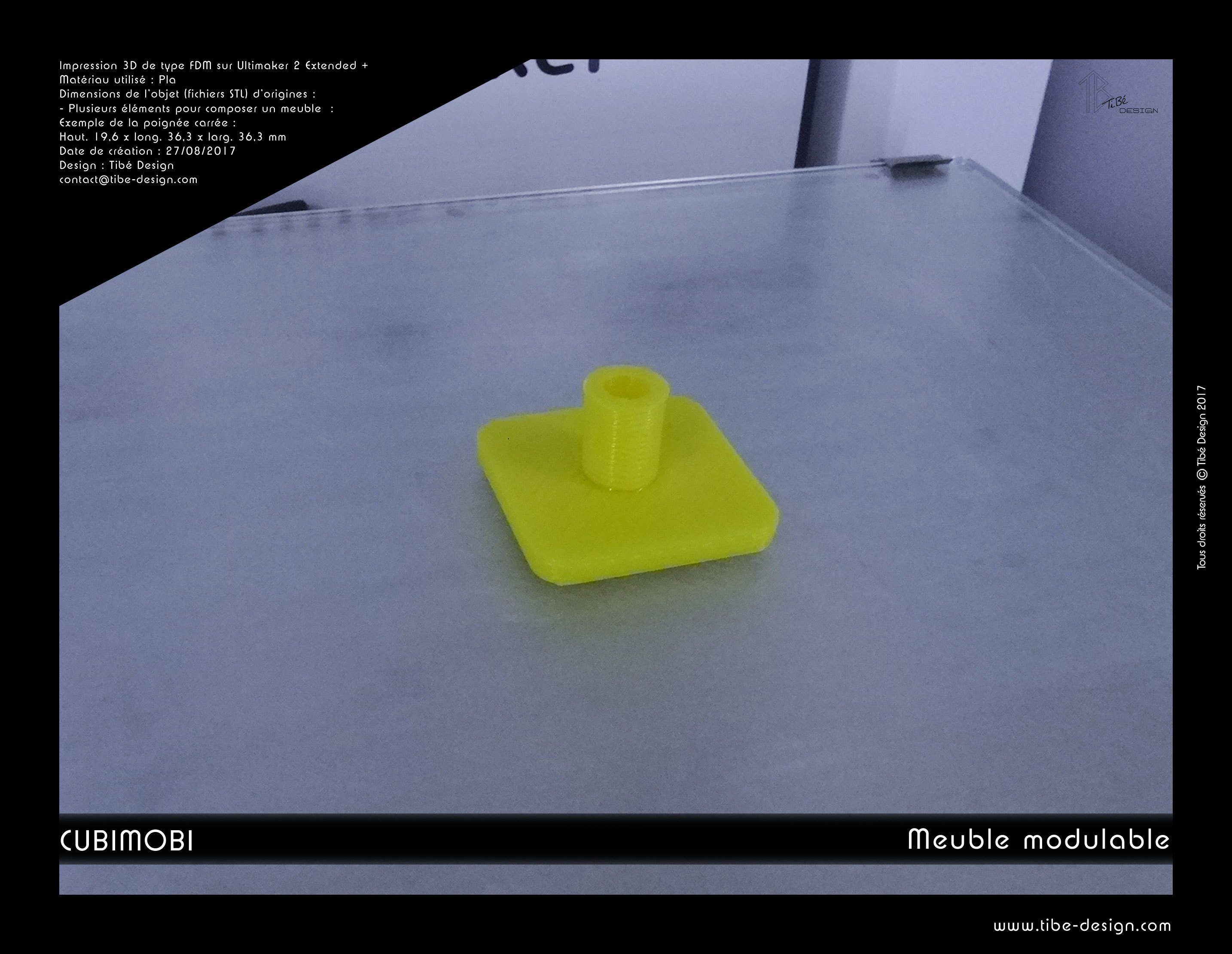

- Square handle: Hull 1.2 mm, Layer thickness 0.15, fill rate. 80%, 0.6 mm nozzle
- Document holder: Ep. Shell 1 mm, Layer thickness 0.5, fill rate. 0%, 1 mm nozzle
- Drawers (x2 and x4) bottom: Ep. Shell 1 mm, layer thickness 0.5, fill rate. 80%, 1 mm nozzle
- Drawers (x2 and x4) face: Ep. Shell 1 mm, layer thickness 0.5, fill rate. 50%, 1 mm nozzle

3D printer file information

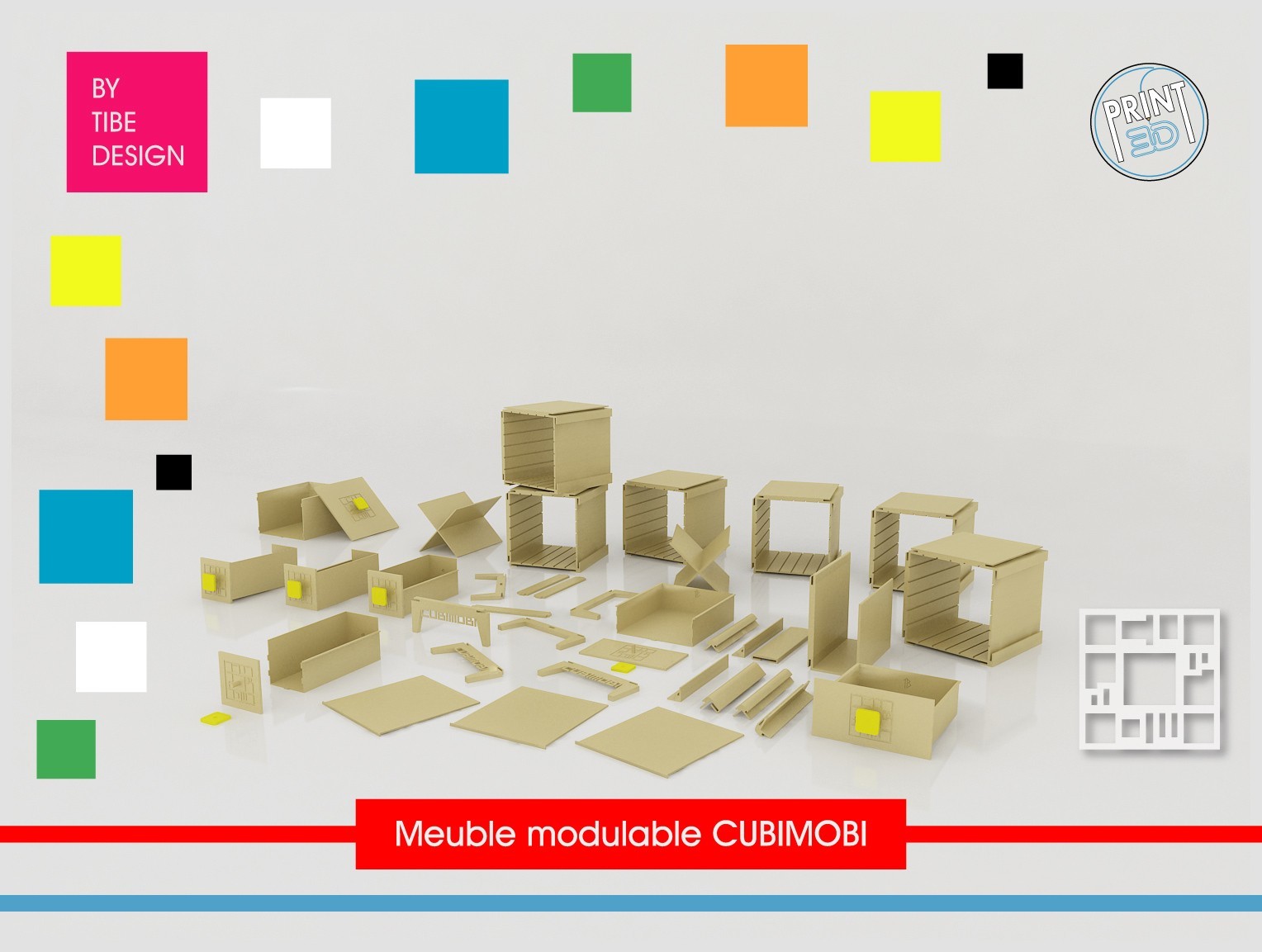

  • 3D design format: STL Folder details Close
    • cubimobi_corps01.STL
    • cubimobi_etagere01.STL
    • cubimobi_etagere_croix01.STL
    • cubimobi_joint_angle_ext_m-f_arrondi01.STL
    • cubimobi_joint_angle_ext_male_arrondi01.STL
    • cubimobi_joint_femelle_arrondi01.STL
    • cubimobi_joint_int_angle01.STL
    • cubimobi_joint_male_arrondi01.STL
    • cubimobi_joint_male_droit01.STL
    • cubimobi_pied_ar01.STL
    • cubimobi_pied_av01.STL
    • cubimobi_pied_traverse01.STL
    • cubimobi_poignee_carree01.STL
    • cubimobi_porte_doc01.STL
    • cubimobi_tiroir_x1-01.STL
    • cubimobi_tiroir_x1_face01.STL
    • cubimobi_tiroir_x2_b01.STL
    • cubimobi_tiroir_x2_face_b01.STL
    • cubimobi_tiroir_x2_face_h01.STL
    • cubimobi_tiroir_x2_h01.STL
    • cubimobi_tiroir_x4_b_d01.STL
    • cubimobi_tiroir_x4_b_g01.STL
    • cubimobi_tiroir_x4_croix01.STL
    • cubimobi_tiroir_x4_face_b_d01.STL
    • cubimobi_tiroir_x4_face_b_g01.STL
    • cubimobi_tiroir_x4_face_h_d01.STL
    • cubimobi_tiroir_x4_face_h_g01.STL
    • cubimobi_tiroir_x4_h_d01.STL
    • cubimobi_tiroir_x4_h_g01.STL
  • Last update: 2017/09/14 at 01:05
  • Publication date: 2017/08/29 at 16:35
