Lotus Lamp #POLYMAKERCHALLENGE

?
Creation's quality: 4.8/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 4.7k views
  • 42 likes
  • 462 downloads

3D model description

Go for a newer presentation & better explanation about the LED's go to https://www.designuitinspiratie.nl/lotus-lamp/

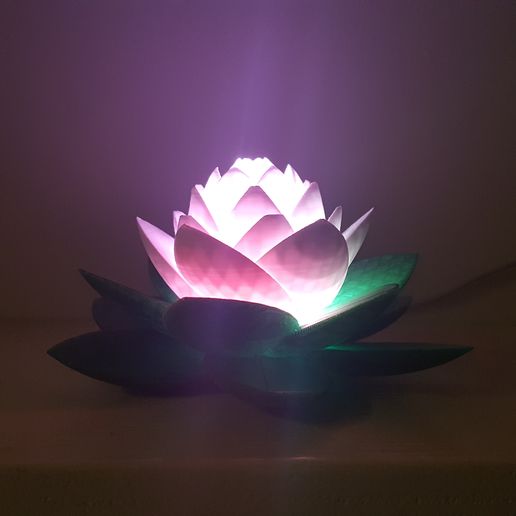

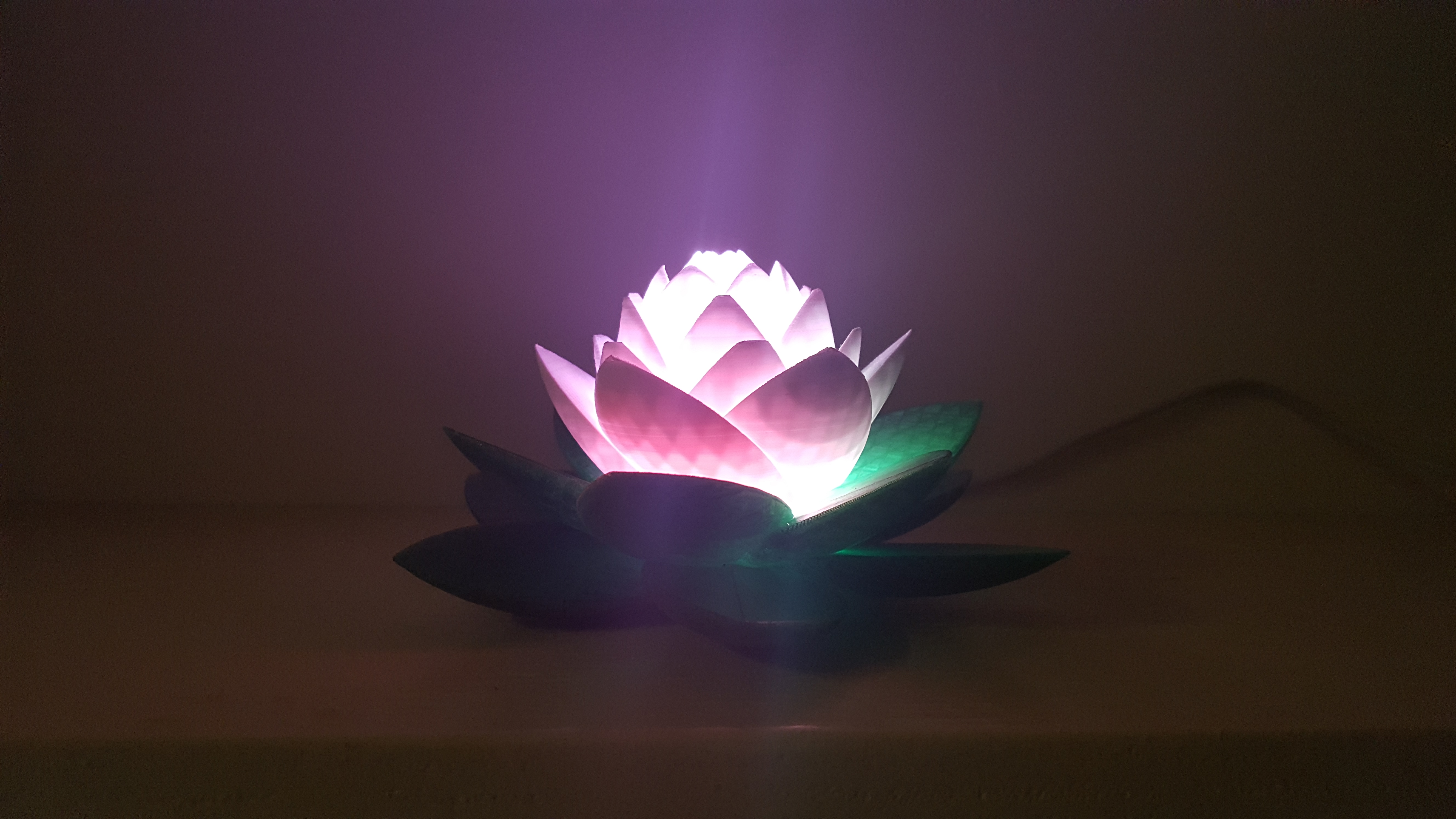

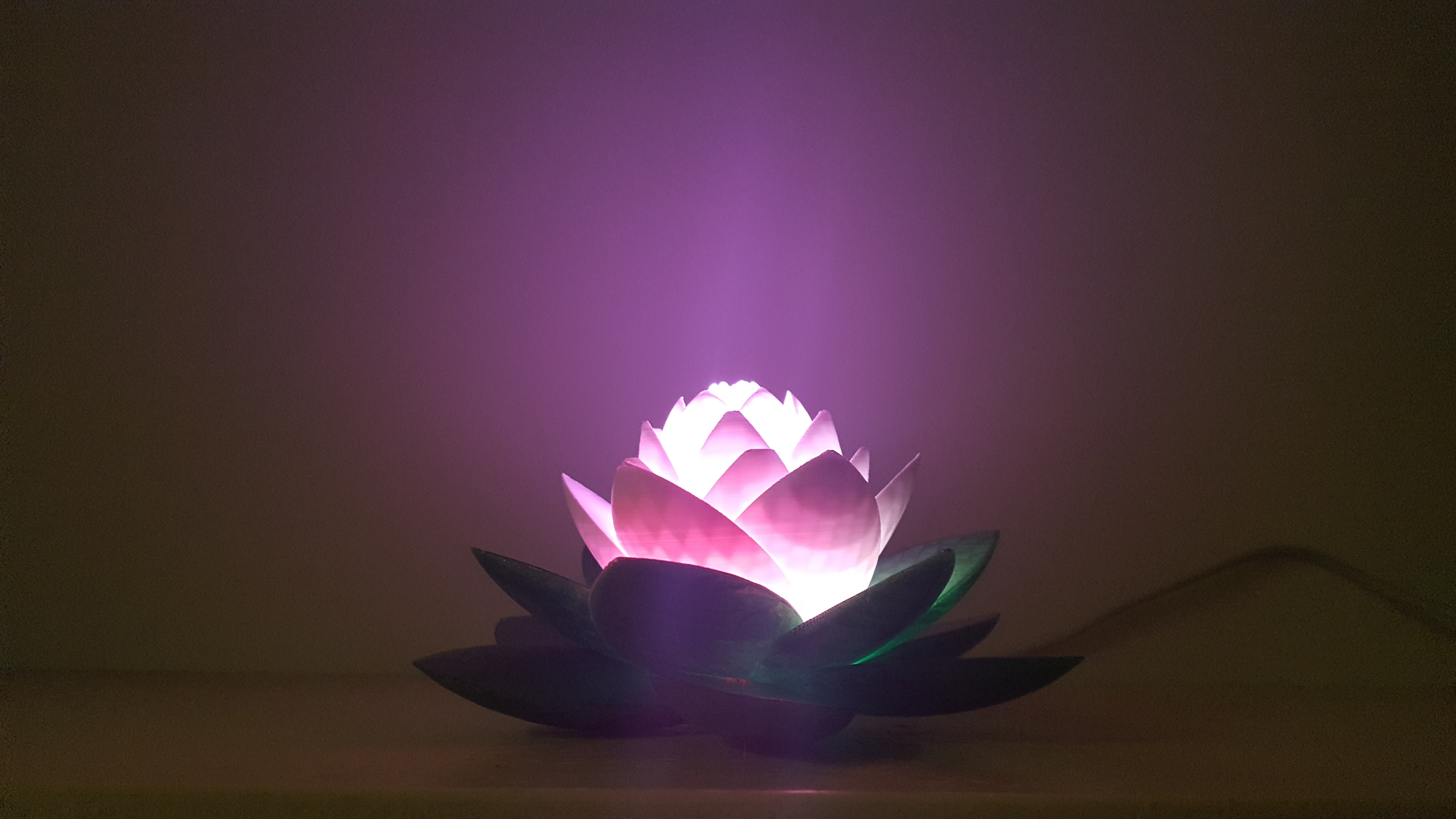

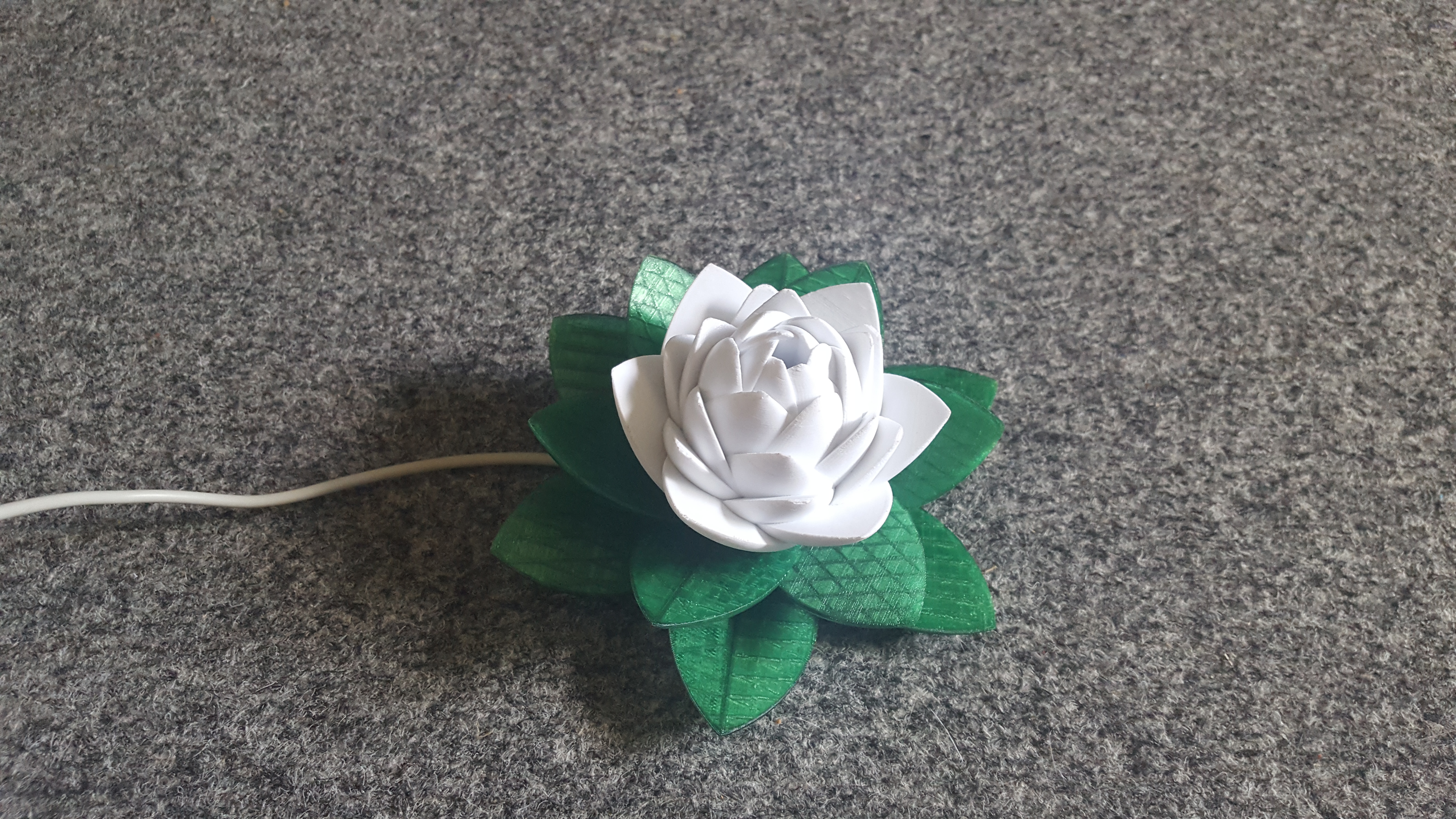

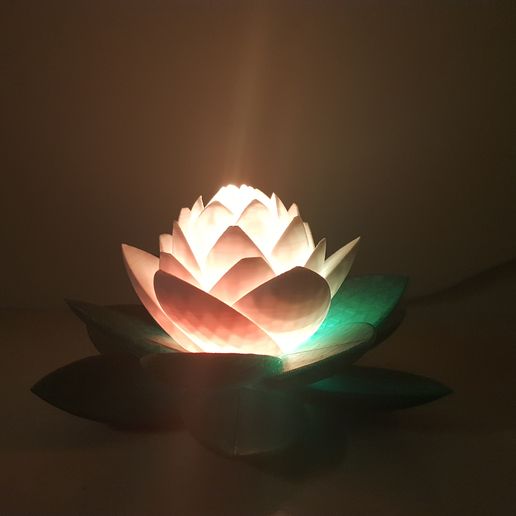

This Ambient Lamp is inspired by the Lotus Flower.

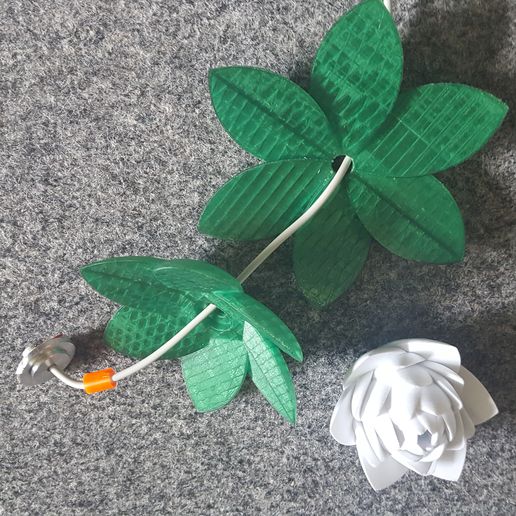

It consist out of 10 parts (mainly to make it FDM printing ready).

The mid & bottom parts are printed in translucent Green PET-G and the center was printed in White PLA. The PLA is translucent enough :-) with the settings listed below.

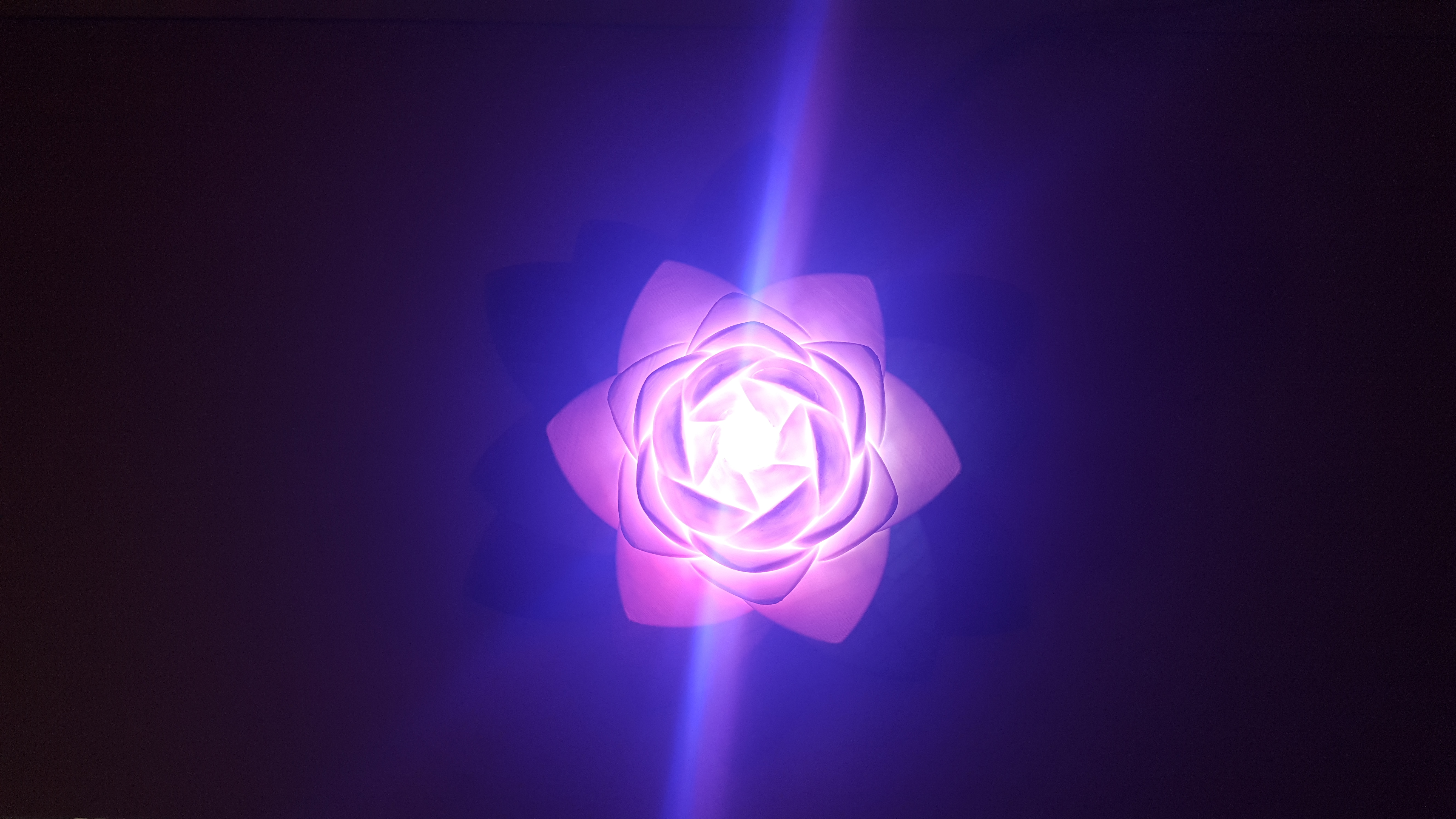

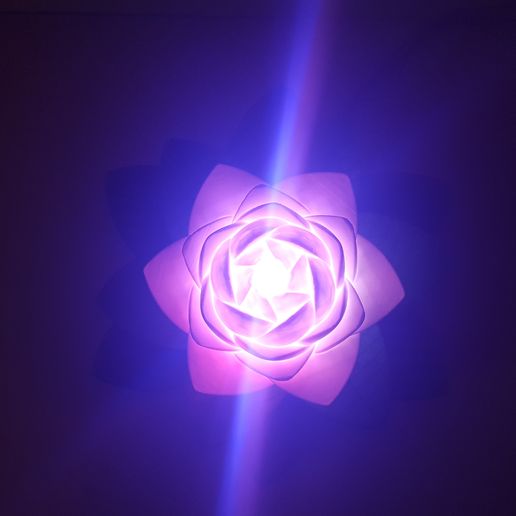

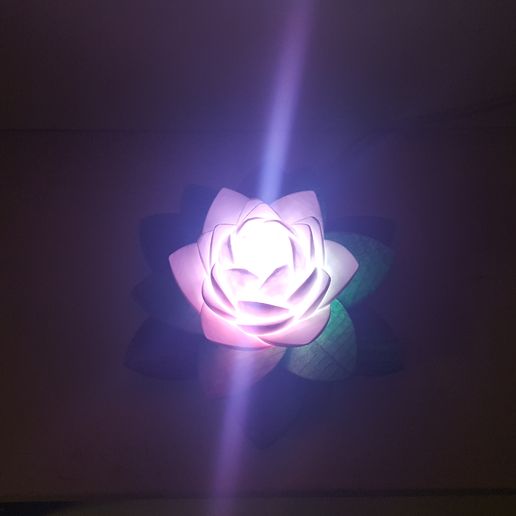

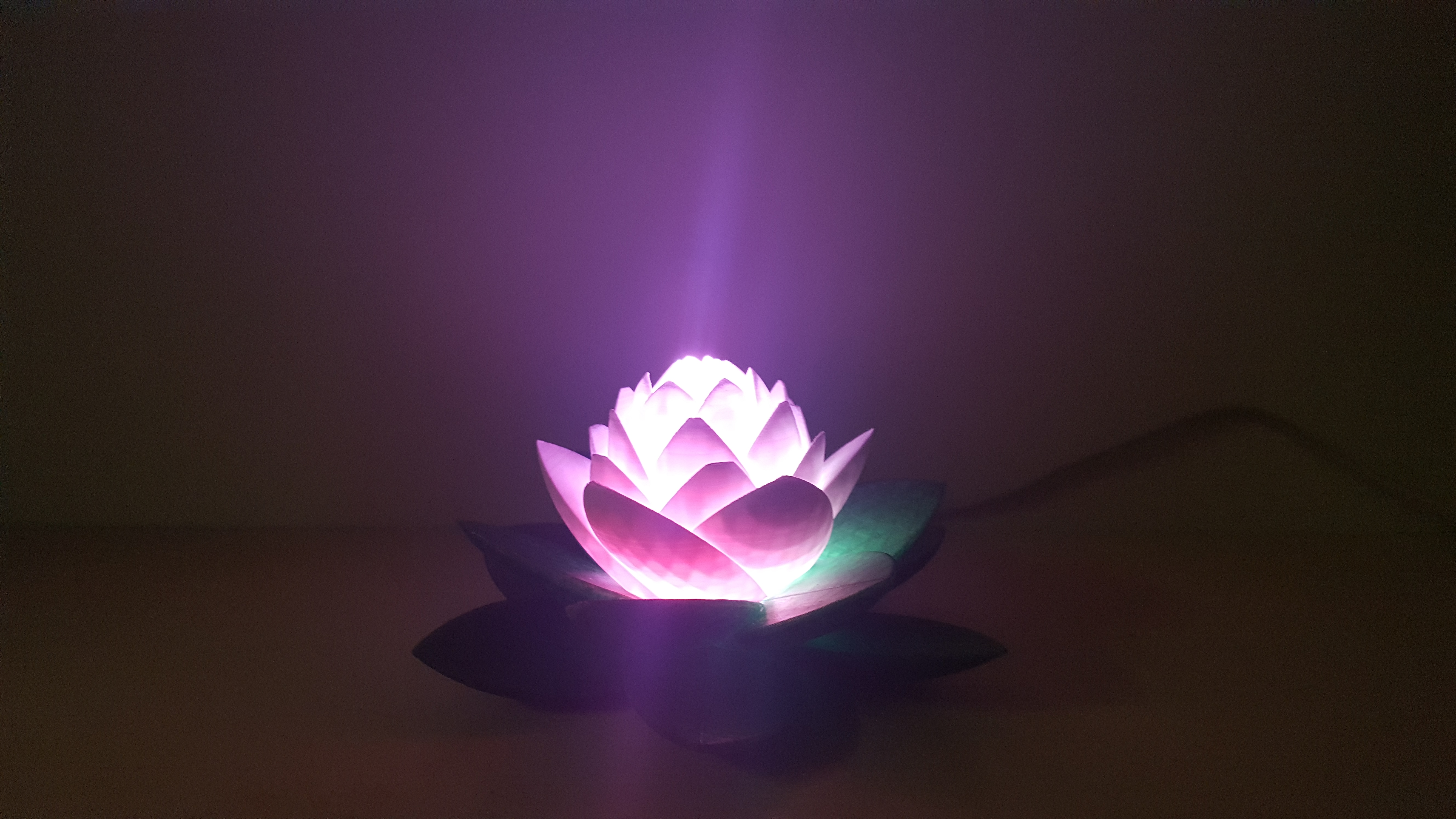

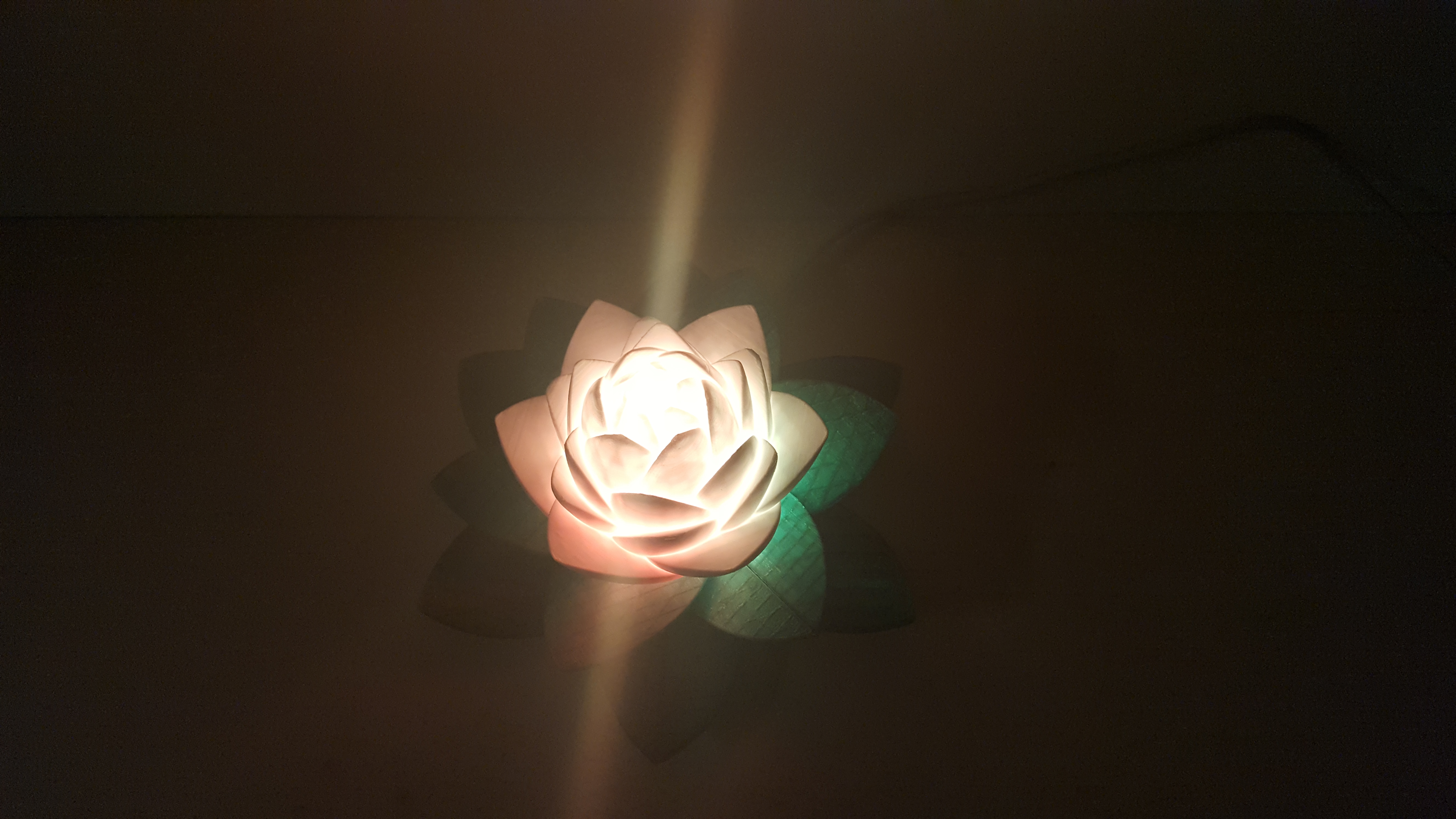

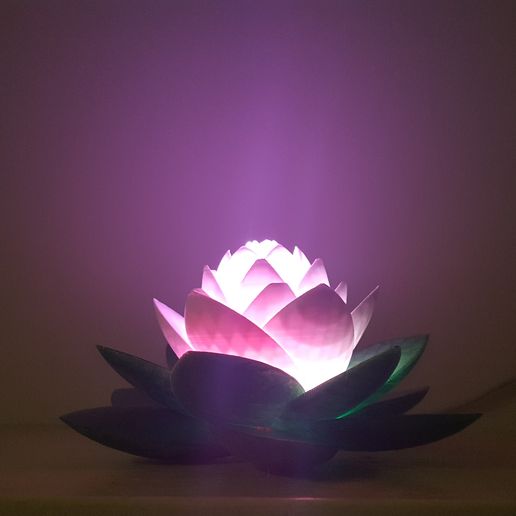

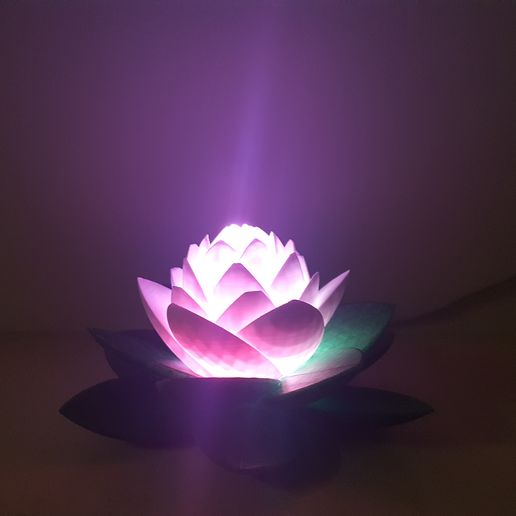

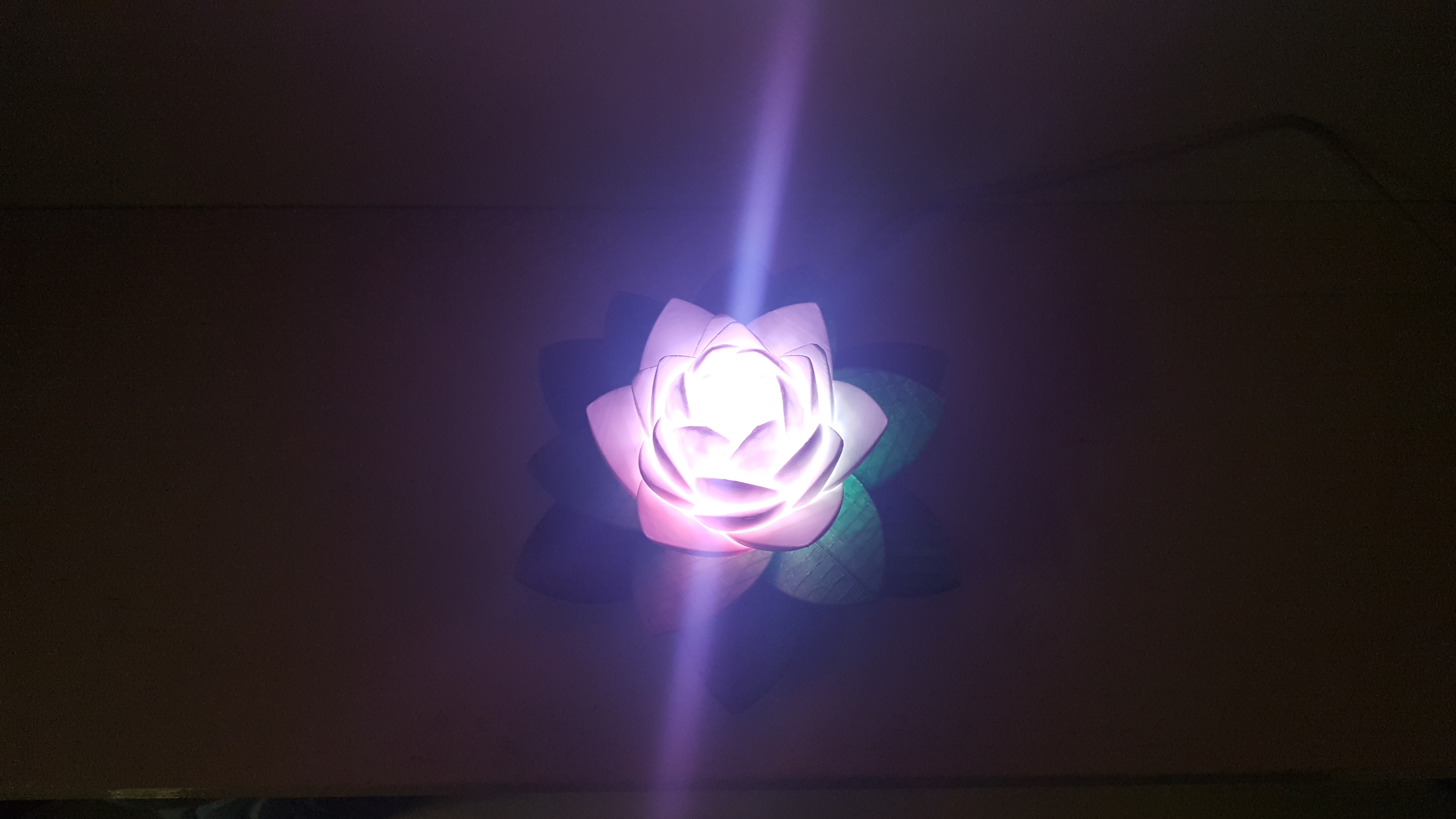

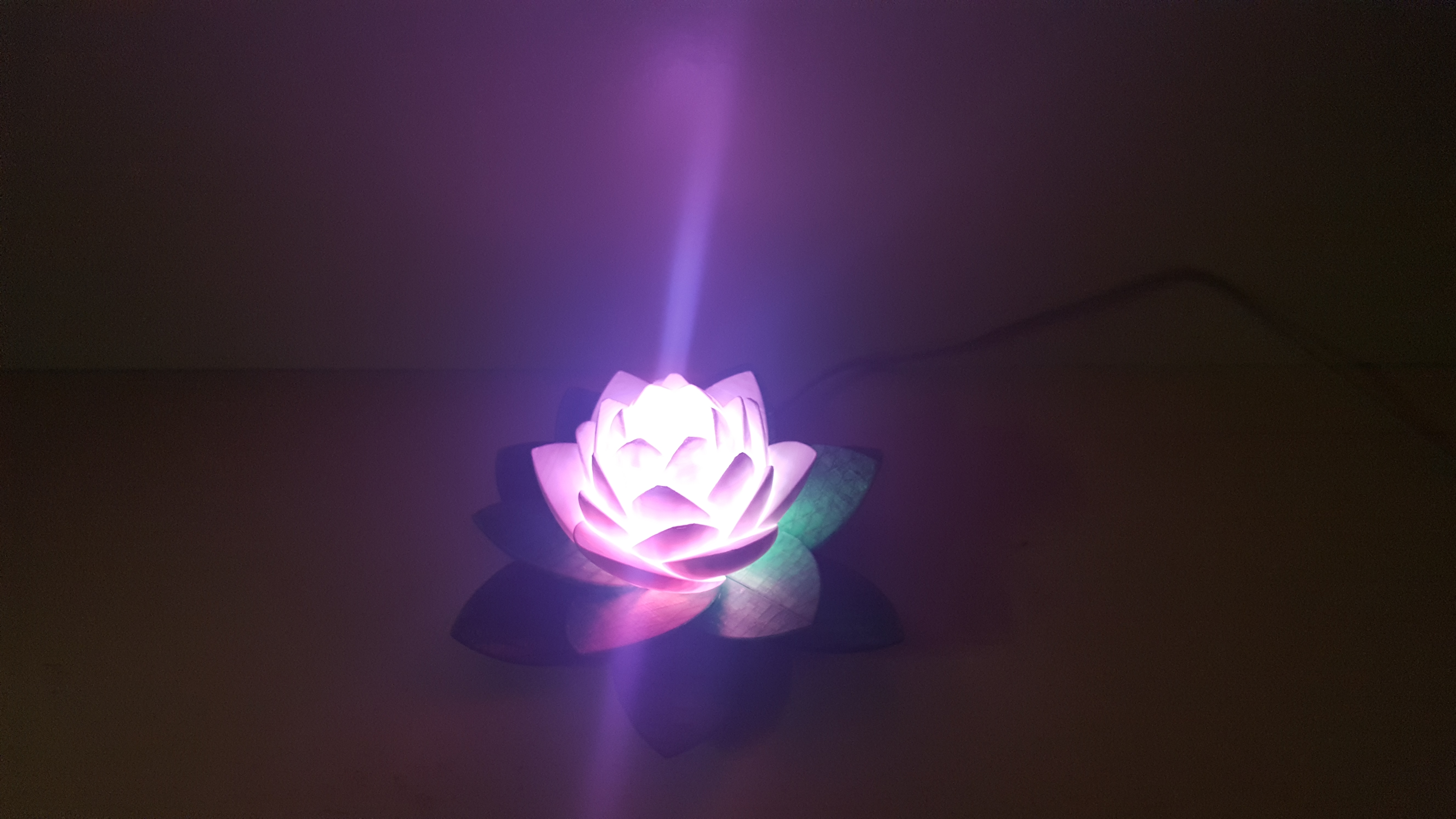

Inside this example are 1 Red, 1 Green and 1 Blue LED. The bending of the light in the center part makes a Rainbow at the top of the Lamp. I tried to photograph it and succeeded a little bit. You can see it on one of the Pictures :-)
Also the overall color of the lamp can change by dimming the LEDs individually.

Of course the Light sources can be used as long as it fits :-) The hole for the Light source (in the center part) has a radius of around 32mm (inside is egg shaped).

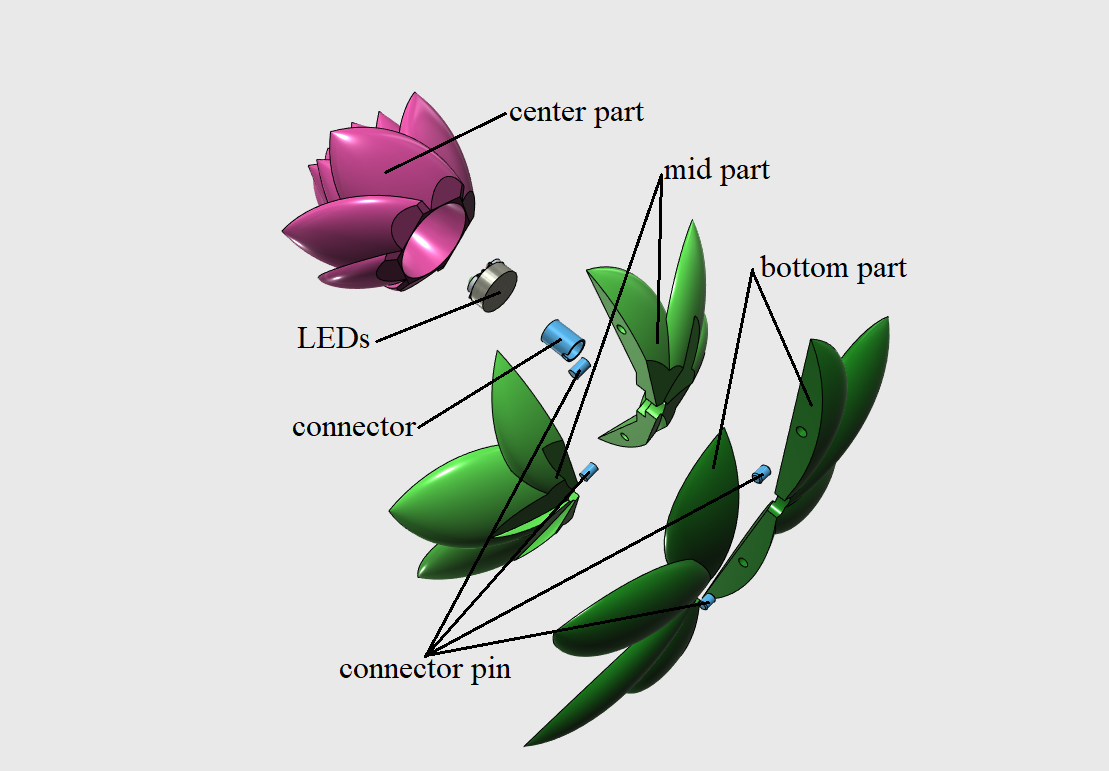

Also included is a exploded view of the Lamp. This makes it easier to see how it all comes together.

If you have questions, feel free to ask :-)

3D printing settings

Print support is necessary for the “center.stl”, “mid.stl” & the “bottom.stl” parts.
If you have a 0.4mm Nozzle: 0.2mm layer hight, 0.8mm top/bottom thickness, 0.8mm wall thickness & 20% infill.

The dimensions of this Lamp Assembled are 142,16mm x 146,257mm and 72.18mm high.

  • 3D file format: ZIP
  • Last update: 2020/05/30 at 15:06
  • Publication date: 2019/07/03 at 16:56

Tags

Creator

Designs 138
Downloads 18.6k
Sales US$212
Followers 181

Hi! I started my own website now. All new models I make will be posted there first from now on. I may post some in the future, but only when I have time. To see all my new work, go to: https://www.designuitinspiratie.nl/. Yes it's in dutch, but you can set it to the language you want. It's on the top right corner of every page :-). With the exception of payment models. If I have new ones, I will still offer them here :-)

You can support me : PayPal.me/jobsmolders

License

CC BY NC SA


Best sellers of the category Home


Add a comment

4 comments

Gracias por encontrar otra opción! Tengo curiosidad por la foto!

Hola,
Gracias por contestar, al final edite el modelo y puse 6 led de tira a 12v. Ha quedado muy bonito. Intentaré poner alguna foto.
Bendito Google translate. Jejejeje
Saludos y gracias

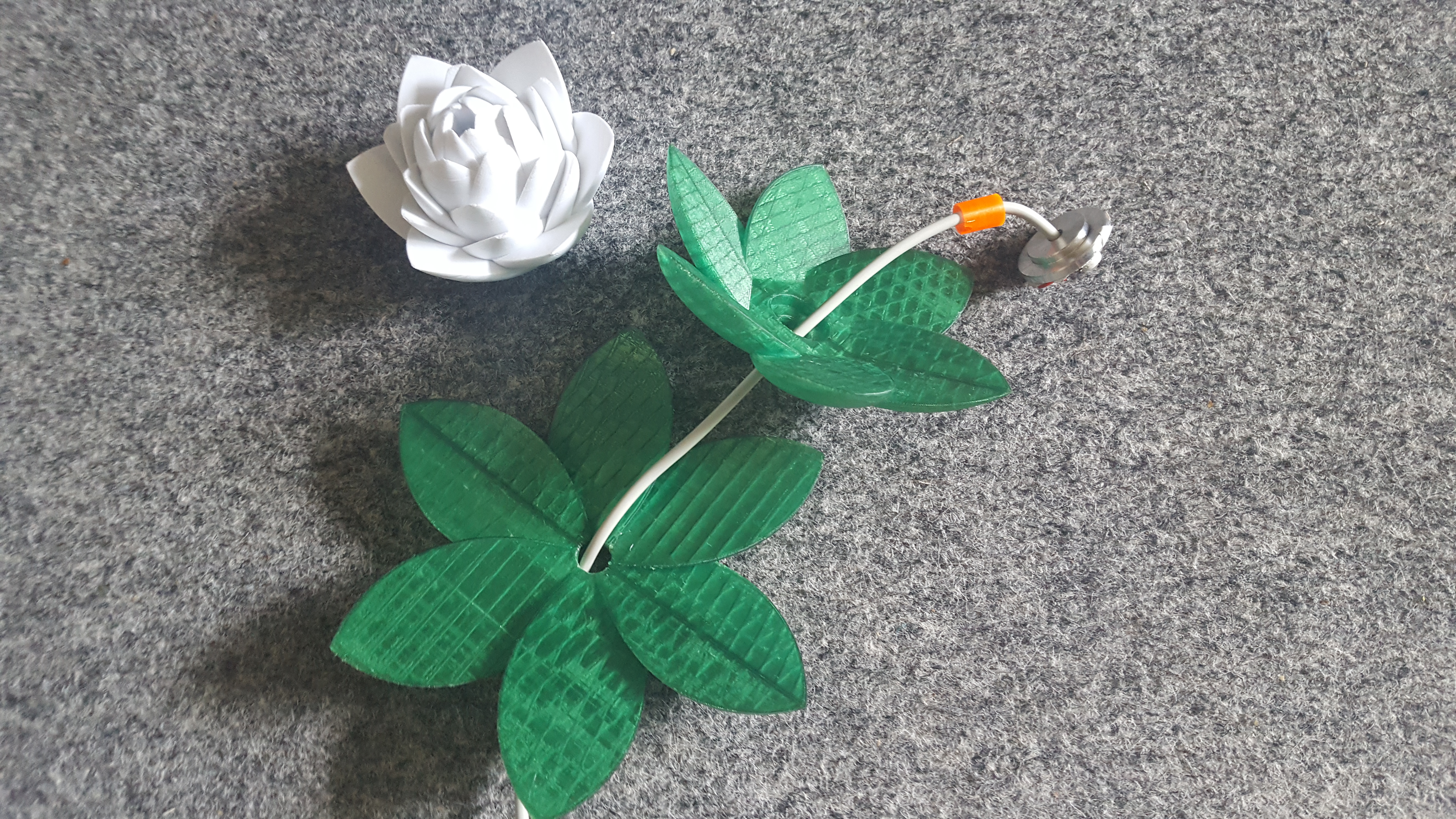

hola :-) no puedo hablar español, así que este es el traductor de google :-). He agregado 2 fotos de los LED. Ojalá esto dé más claridad. de lo contrario, hágamelo saber. saludos cordiales trabajo

Hola,
Buen trabajo, podrías poner una foto de los led para ver como son?
Tengo dudas si los leds no se calentarán demasiado.
Muchas gracias port tu aporte. Muy buen diseño.
Saludos
