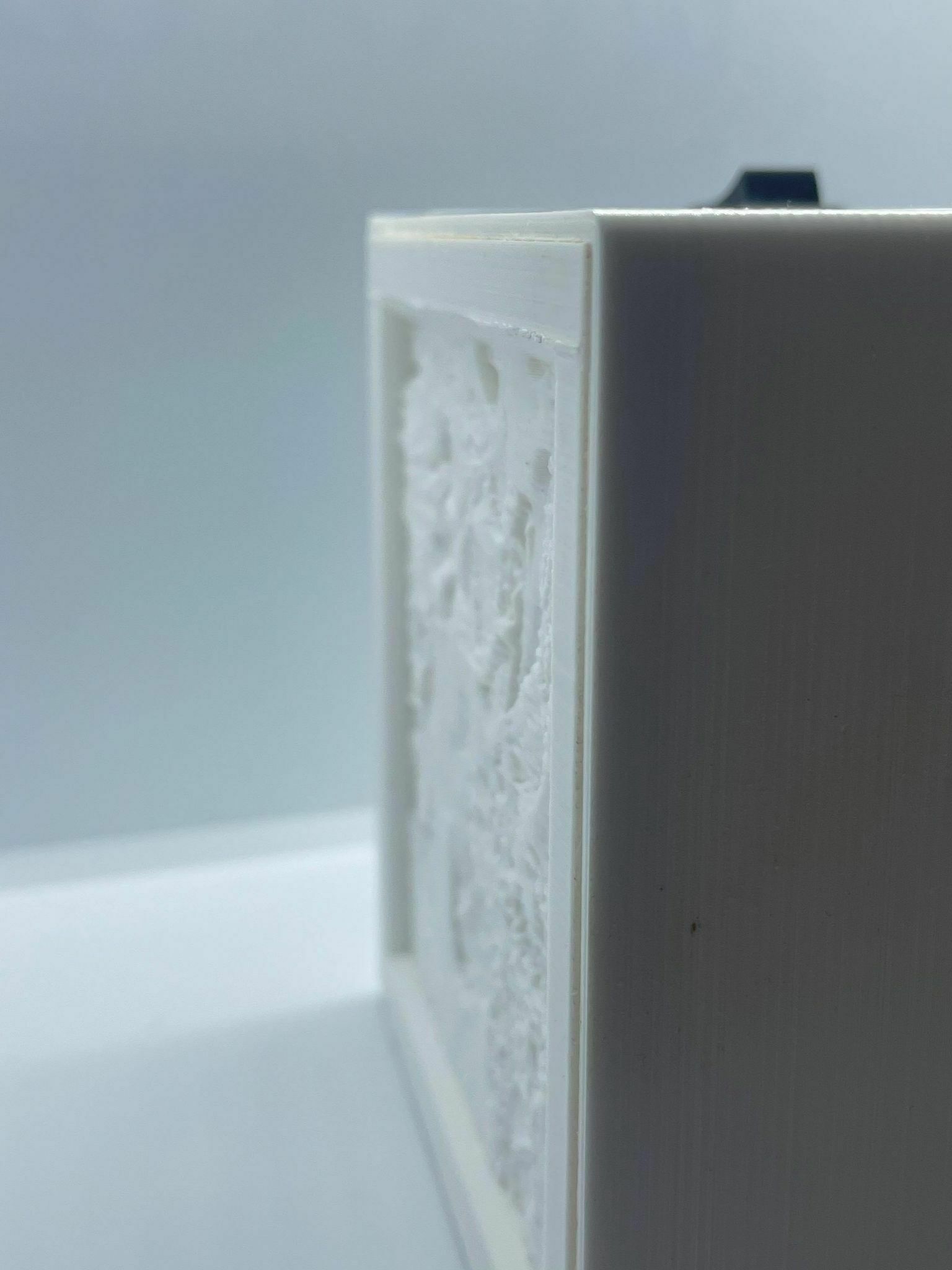

135142700_729201658025011_3158639689096320417_n.jpg Lithophane LED light box
135186976_669009993775430_8557247866838495182_n.jpg Lithophane LED light box
135189363_961273597736517_2339826873816759463_n.jpg Lithophane LED light box
135195584_398675198024985_5994987774374560493_n.jpg Lithophane LED light box
135203019_676997382980257_7483449836870922579_n.jpg Lithophane LED light box
135249776_447662696642474_136846022044896555_n.jpg Lithophane LED light box
135301130_245134840361227_7844439439230672429_n.jpg Lithophane LED light box
Lithophane battery pack cover.stl Lithophane LED light box
100mm x 100mm lithophane light box.stl Lithophane LED light box
Lithophane battery pack enclosure.stl Lithophane LED light box
Lithophane switch enclosure.stl Lithophane LED light box
Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.6k views
  • 1 like
  • 22 downloads
Licence CC BY-NC
Last update 2021-03-21 at 20:50
Publication date 2021-01-03 at 20:17
Design number 257214
3D design format
STL Folder details Close
  • 100mm x 100mm lithophane light box.stl
  • Lithophane battery pack cover.stl
  • Lithophane battery pack enclosure.stl
  • Lithophane switch enclosure.stl

Learn more about the formats
Onestopprintshop

Onestopprintshop

3D printer file info

3D model description

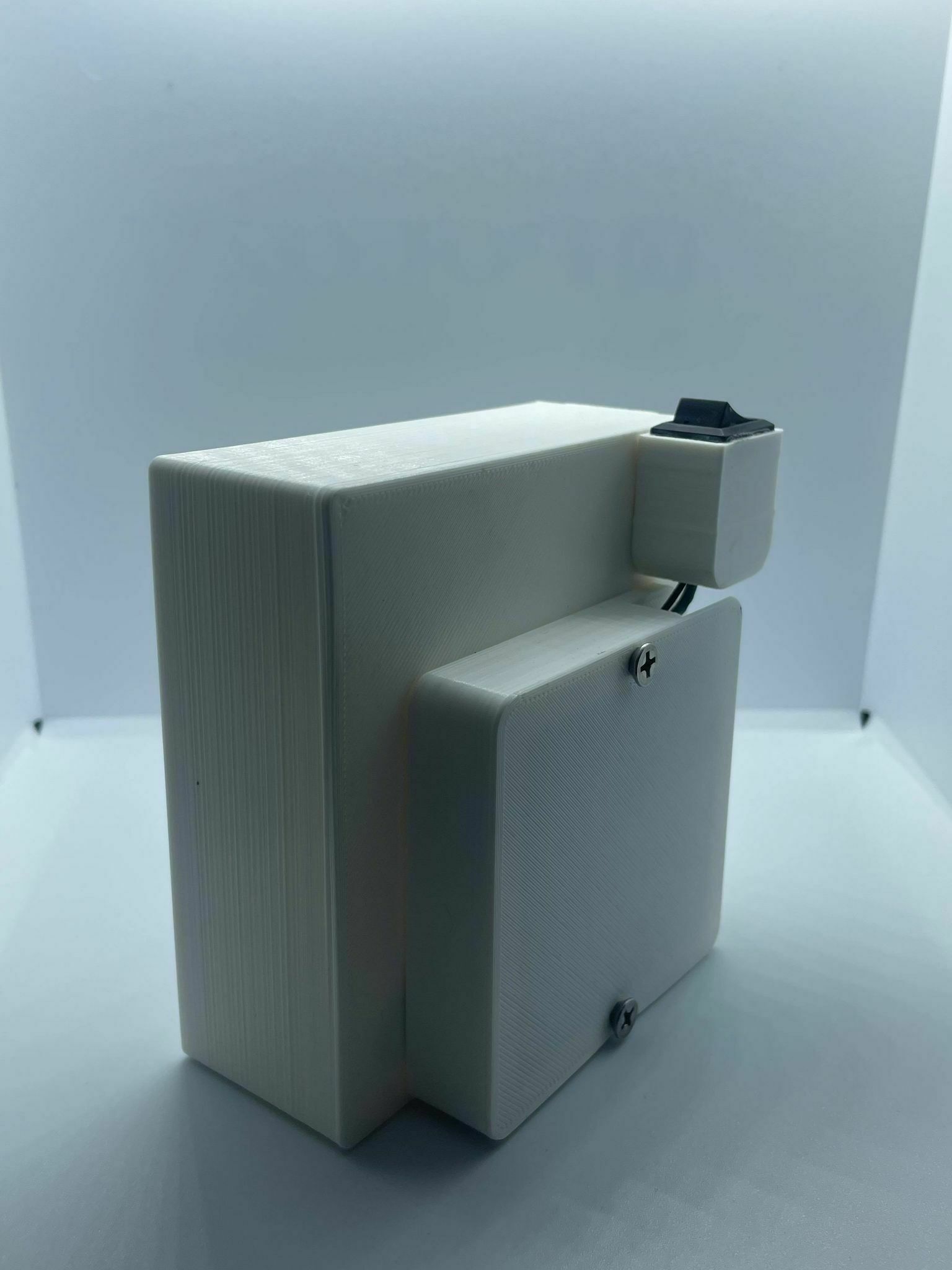

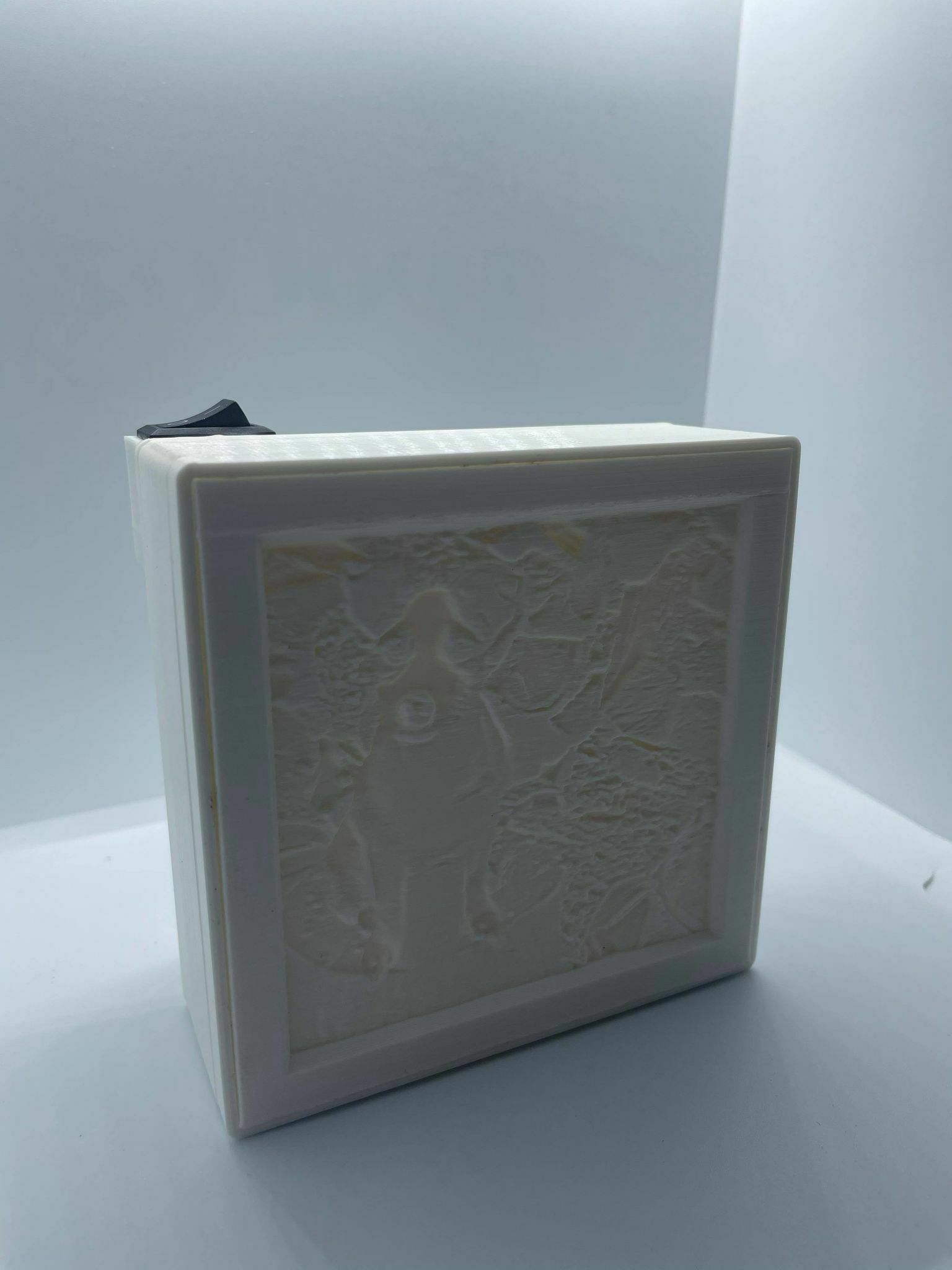

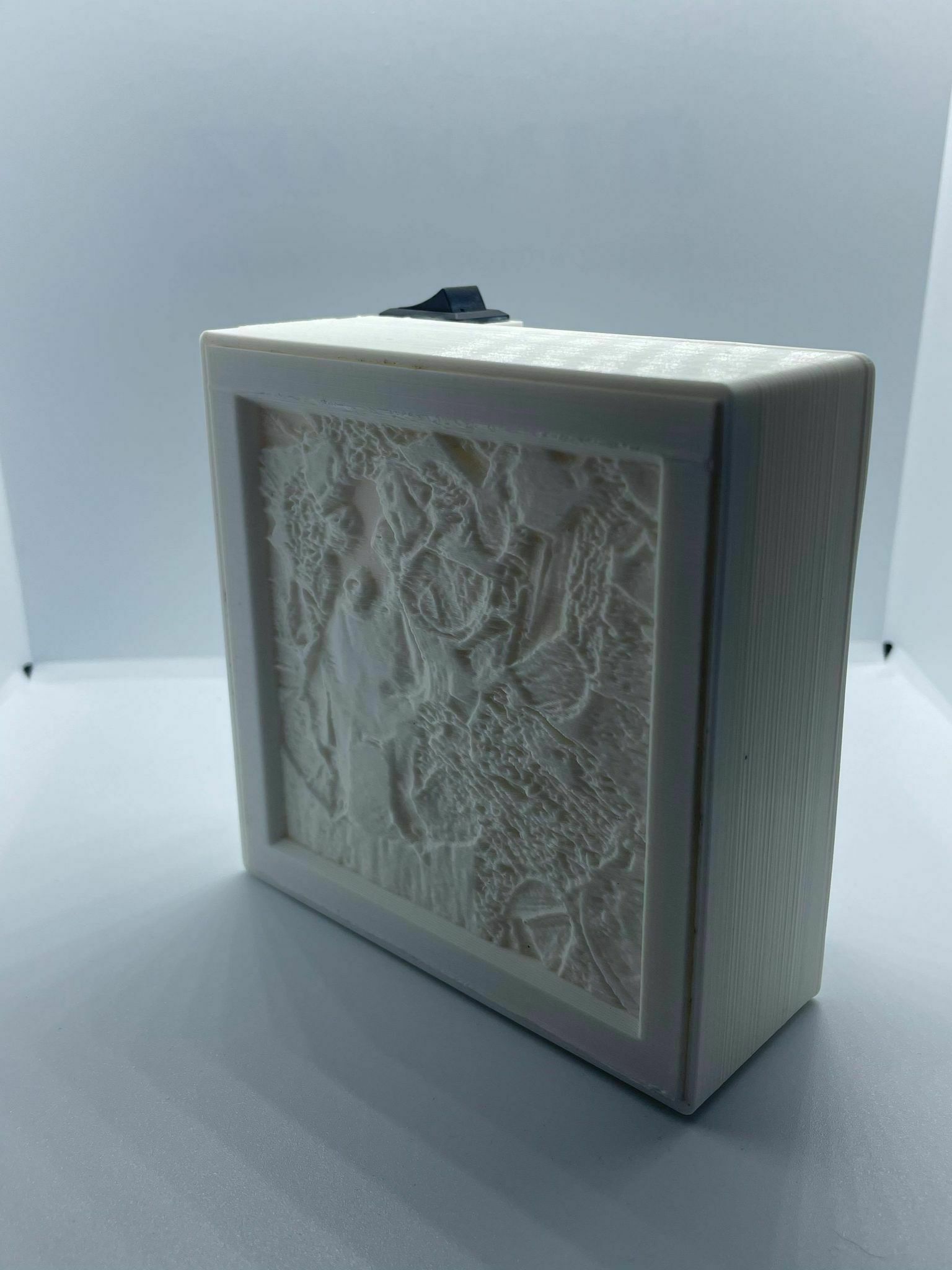

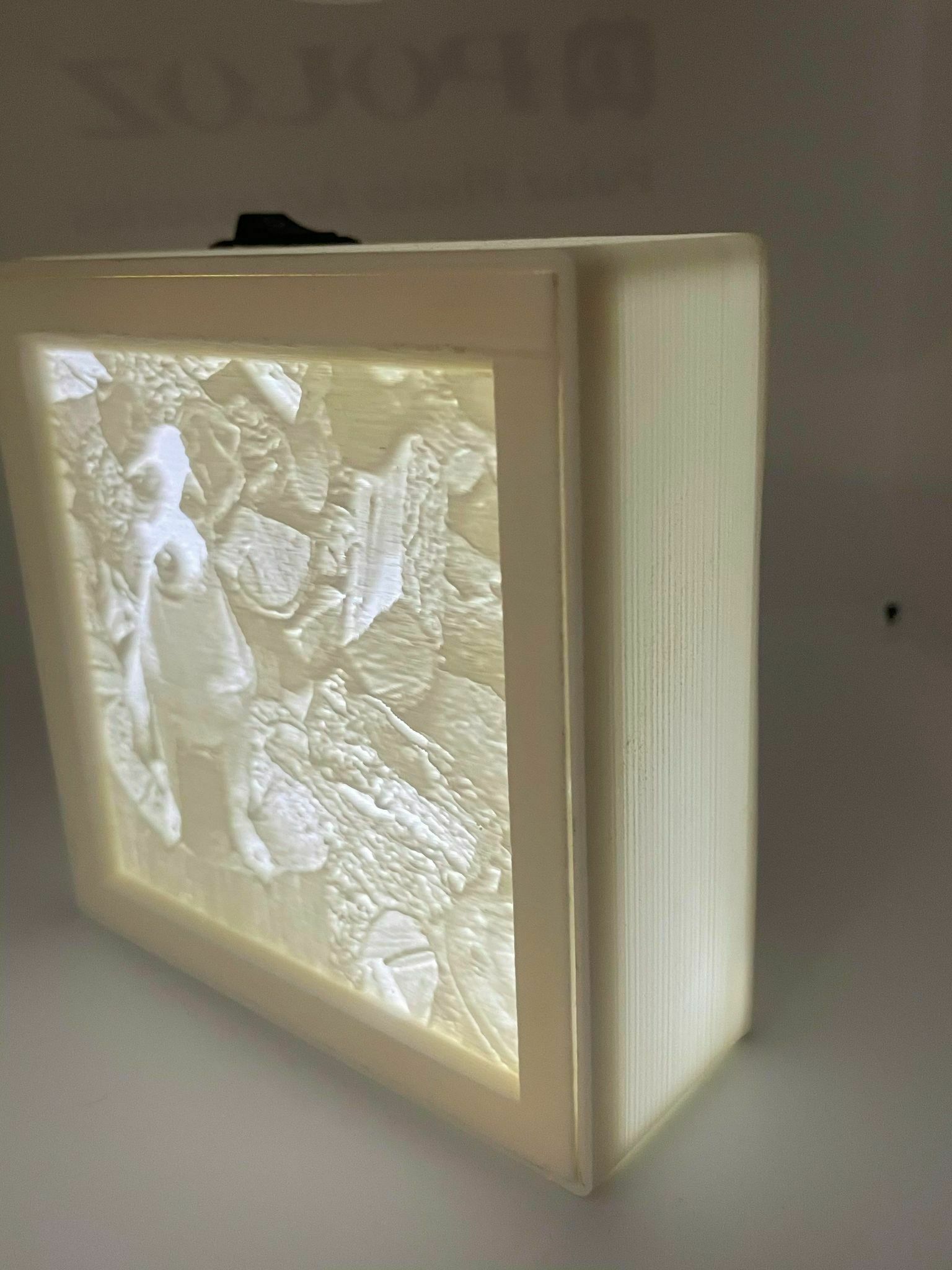

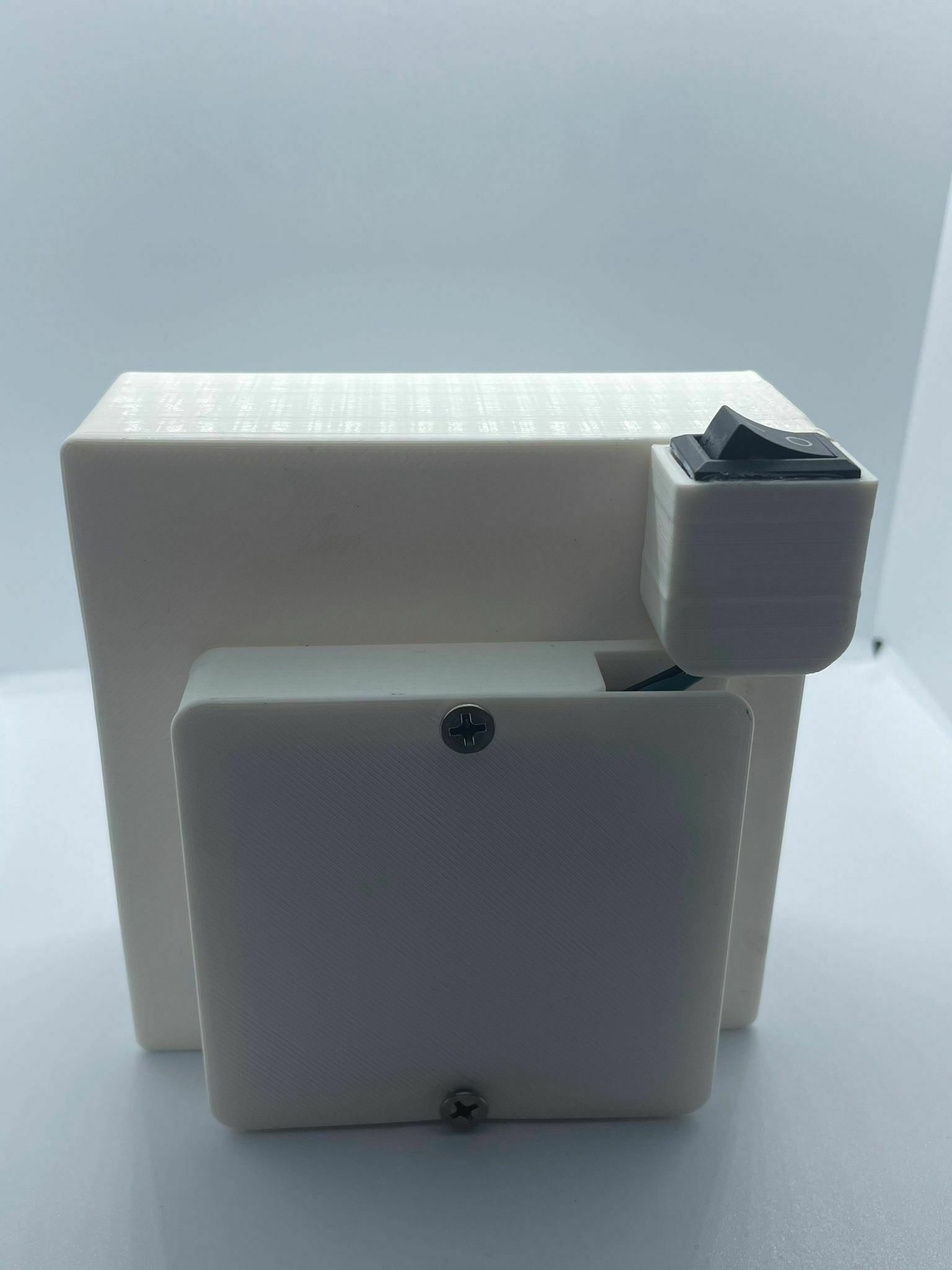

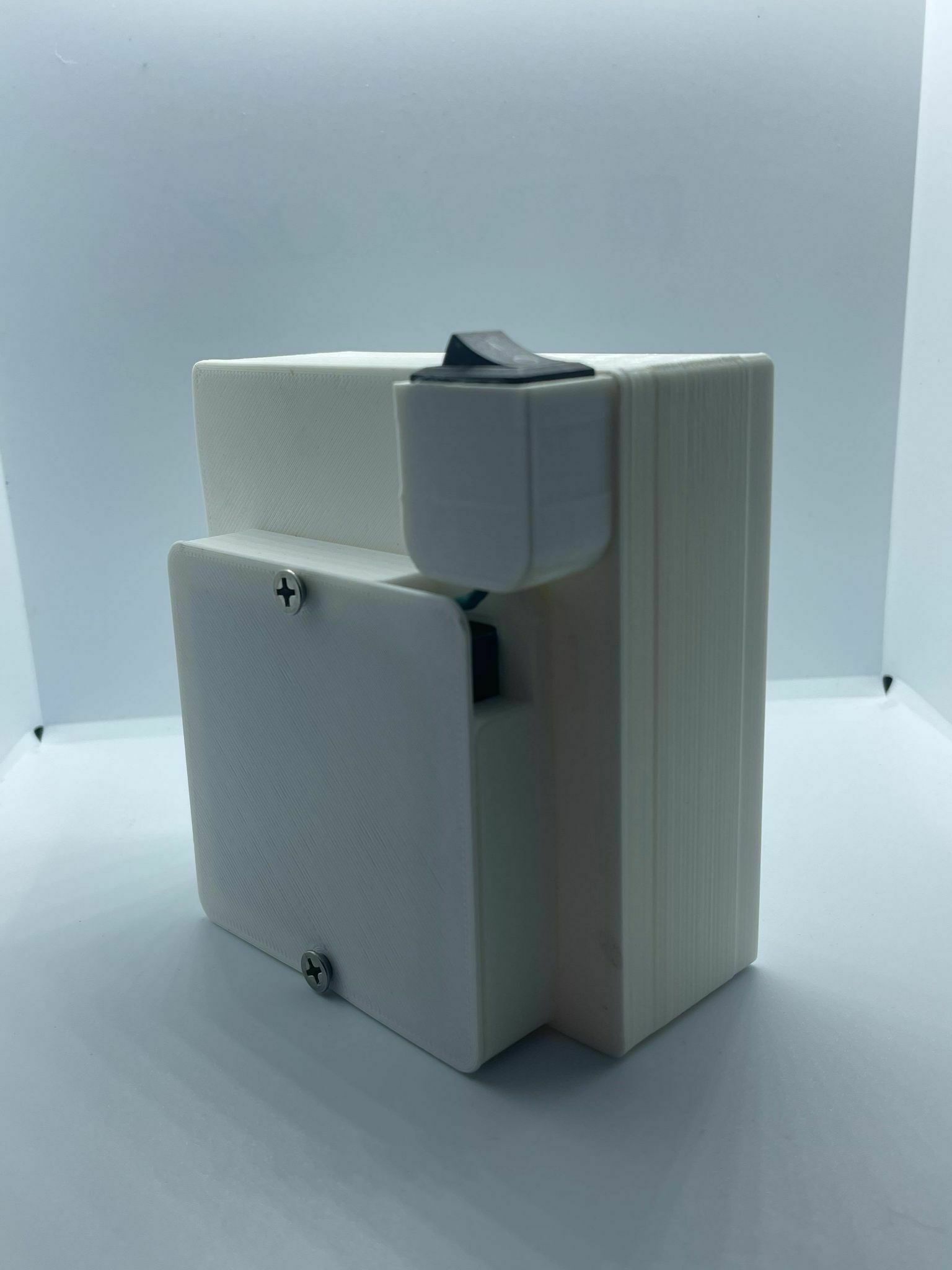

I’ve designed this lithophane to have user friendly features such as the switch on top and a secured battery pack on the back with a cover and threaded screw holes. My idea was to make a light box that is secure and enclosed to keep it long lasting and efficient.

You can make your own lithophanes here
https://lithophanemaker.com/
And this model fits a 100mm by 100mm lithophane.

You can find all the materials here for the perfect fit!

Battery Powered Led Strip Lights:
https://www.amazon.com/gp/product/B01IN4ZH16/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1

Battery Case Holder Box 4 x 1.5V AA:
https://www.amazon.com/gp/product/B07GGJG1JZ/ref=ppx_yo_dt_b_asin_title_o06_s01?ie=UTF8&psc=1

On/Off switch :
https://www.amazon.com/gp/product/B07FTXKKZ4/ref=ppx_yo_dt_b_asin_title_o06_s00?ie=UTF8&psc=1

#8-32 X 3/8" Stainless Phillips Round Head Machine Screw:
https://www.amazon.com/gp/product/B07D1L7QJR/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1

3D printing settings

Very easy to print! Place 5-10% supports under the switch holder.
Print the picture with 100% infill vertical with a raft or brim.
