Lithophane Box

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.6k views
  • 24 likes
  • 170 downloads

3D model description

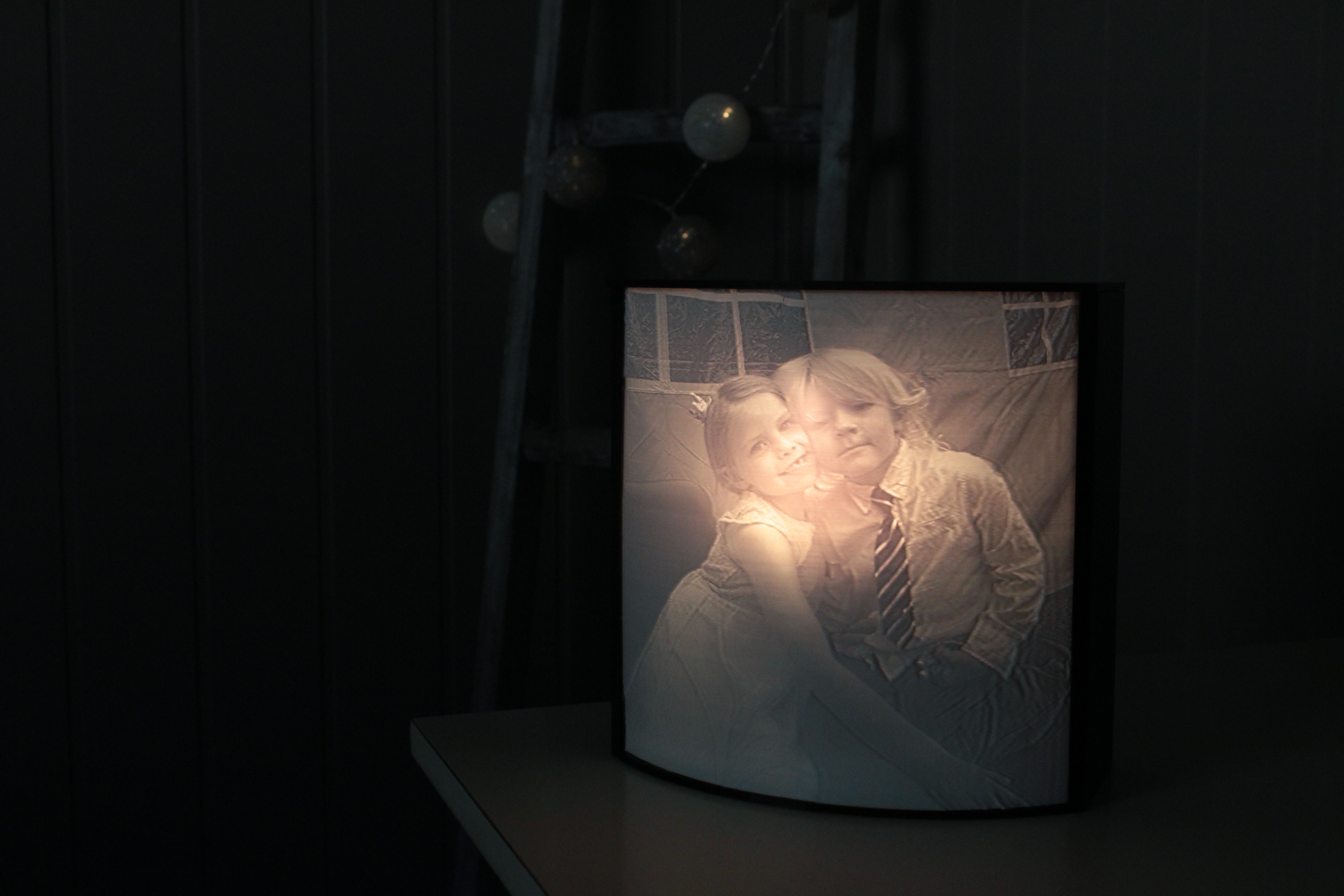

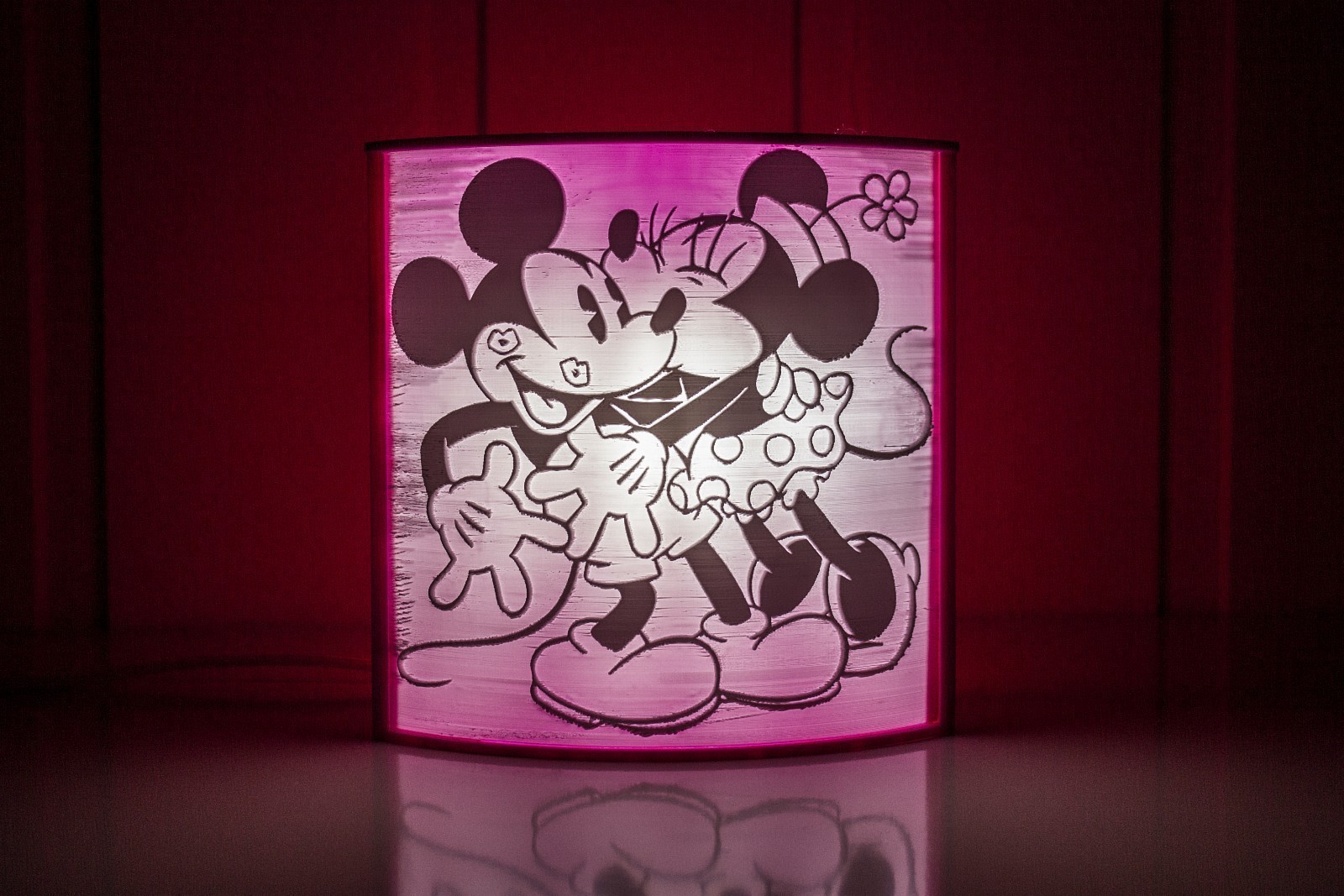

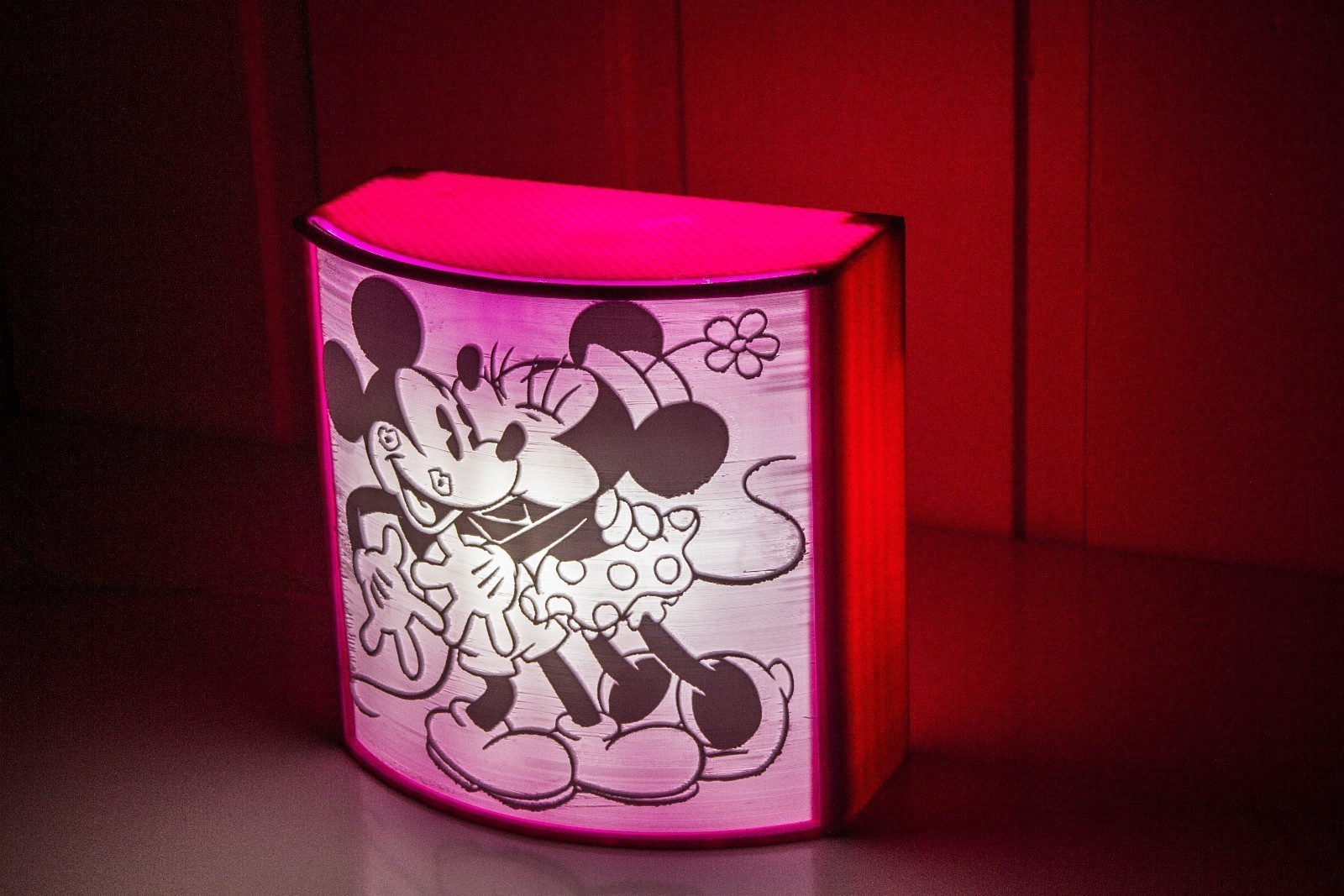

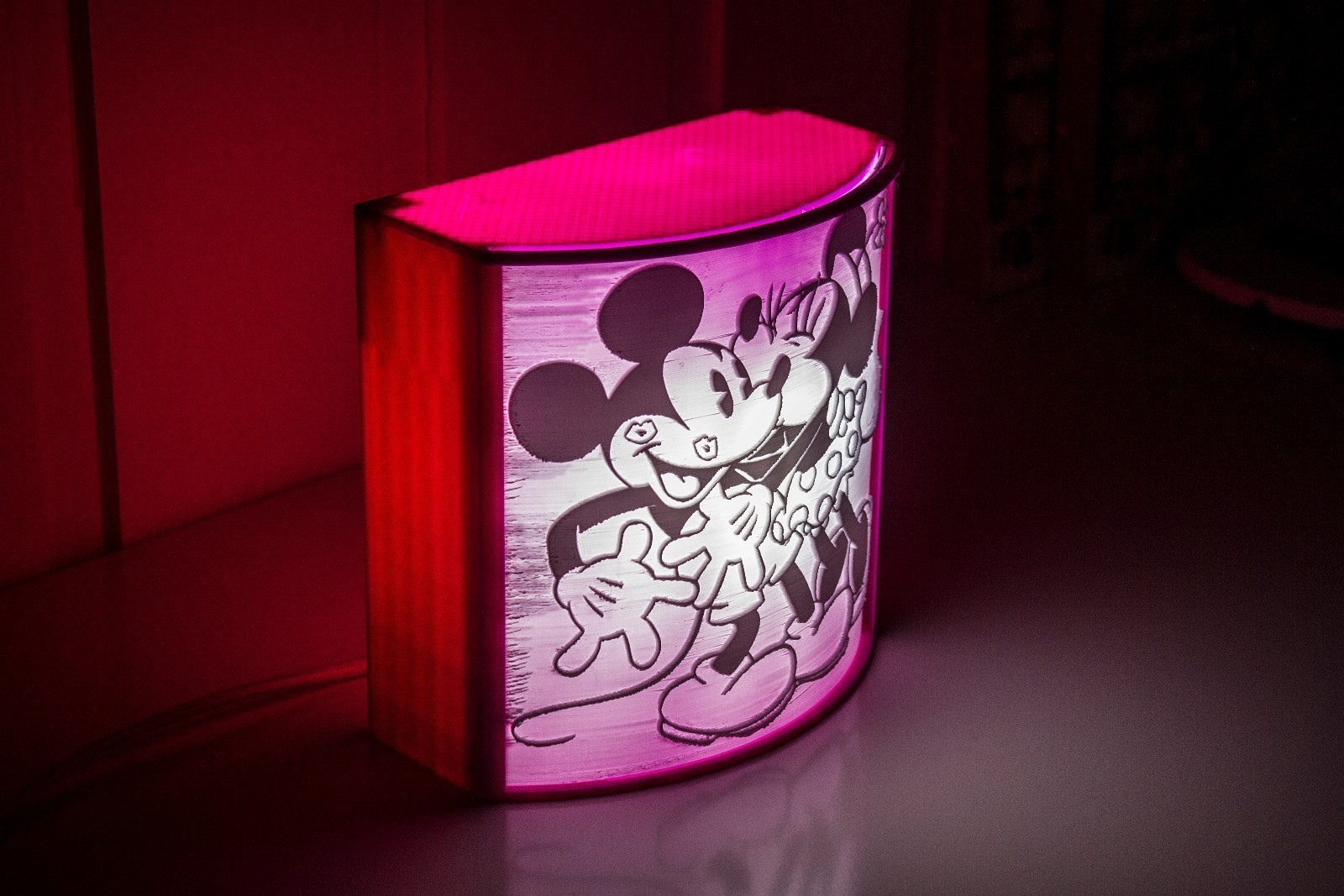

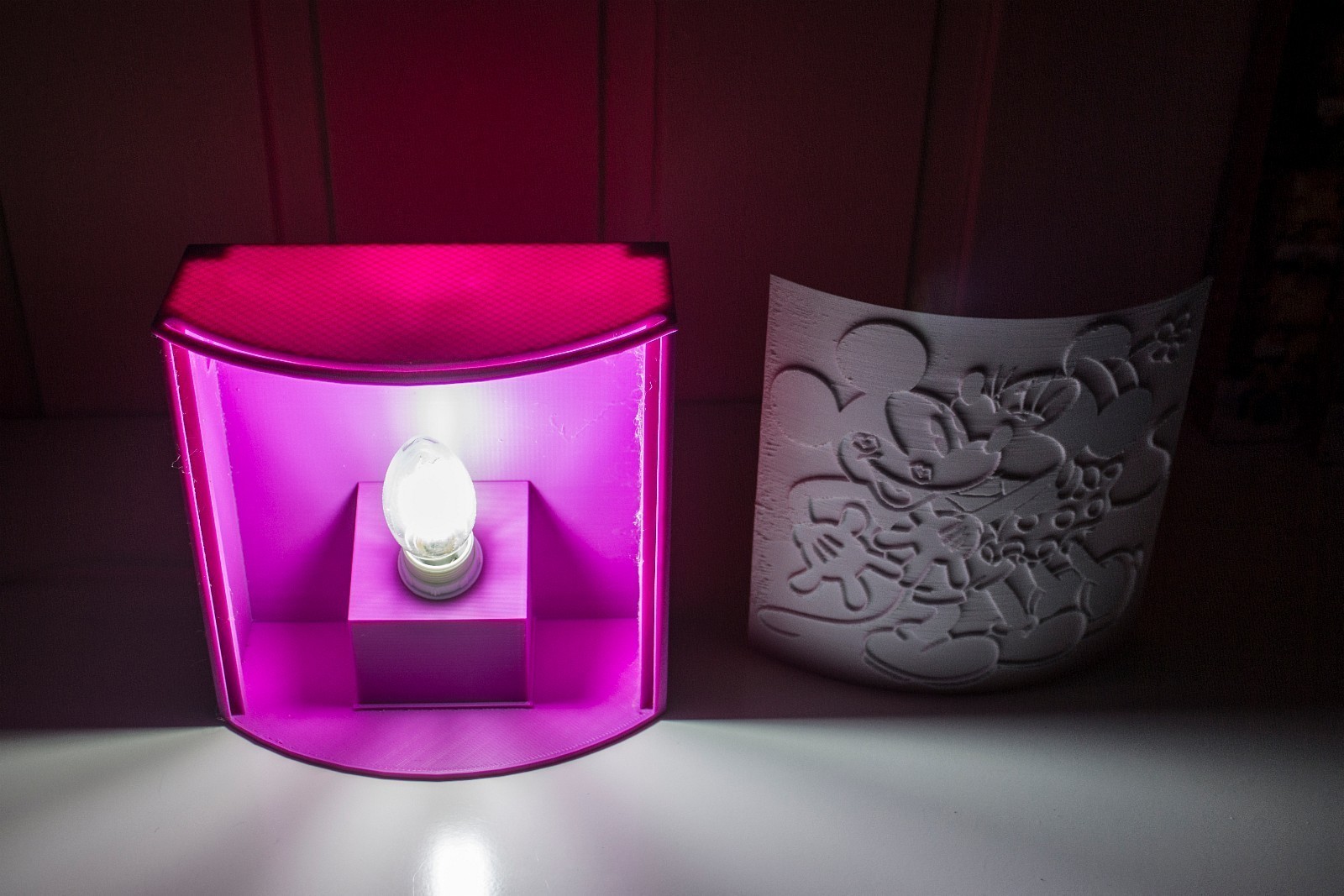

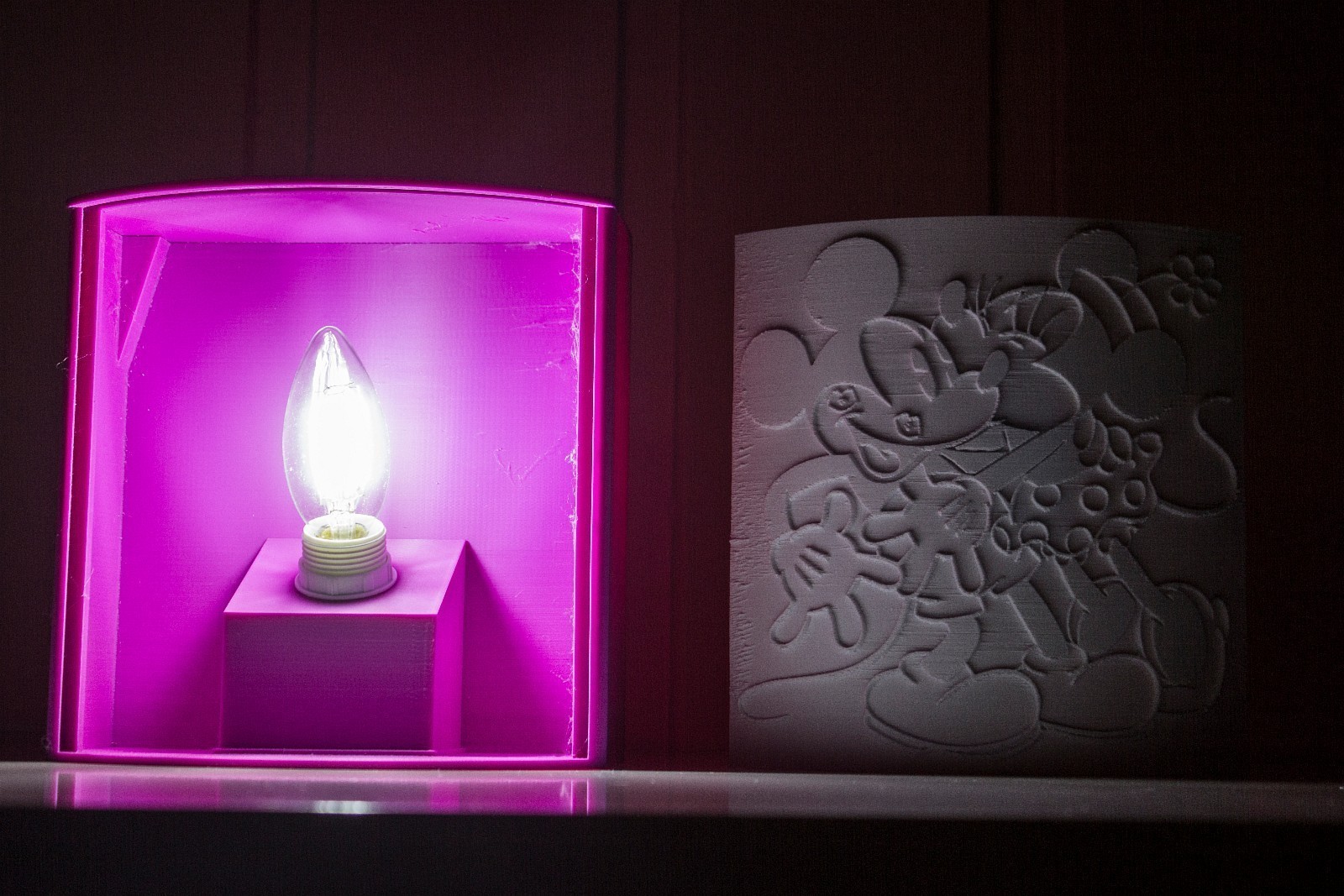

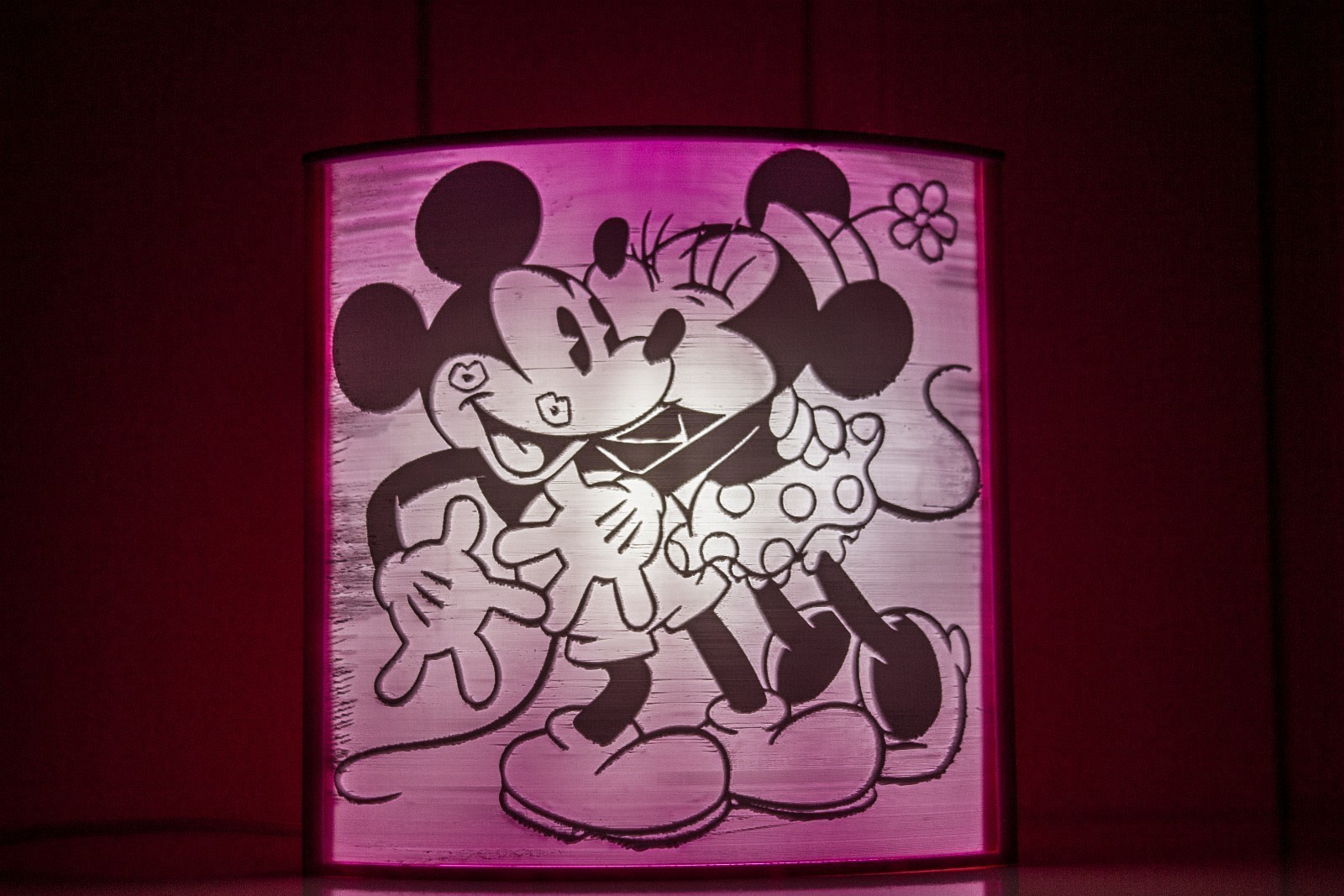

Lithophane Box.

You will need

Lightbulb socket http://www.ikea.com/no/no/catalog/products/10332527/?query=103.325.27

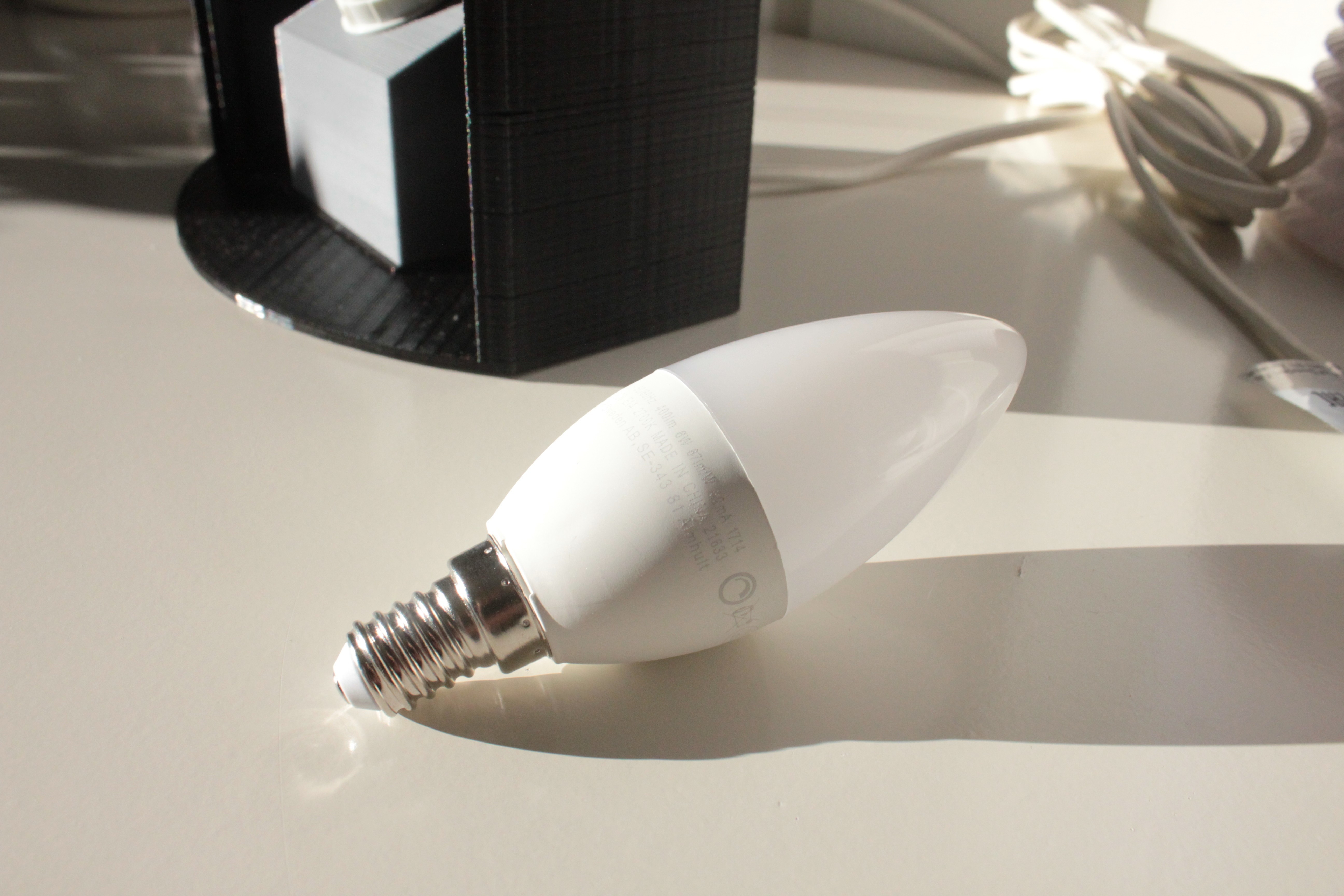

Lightbulb http://www.ikea.com/no/no/catalog/products/10266754/?query=102.667.54

Superglue

It is important that you use a led lightbulb

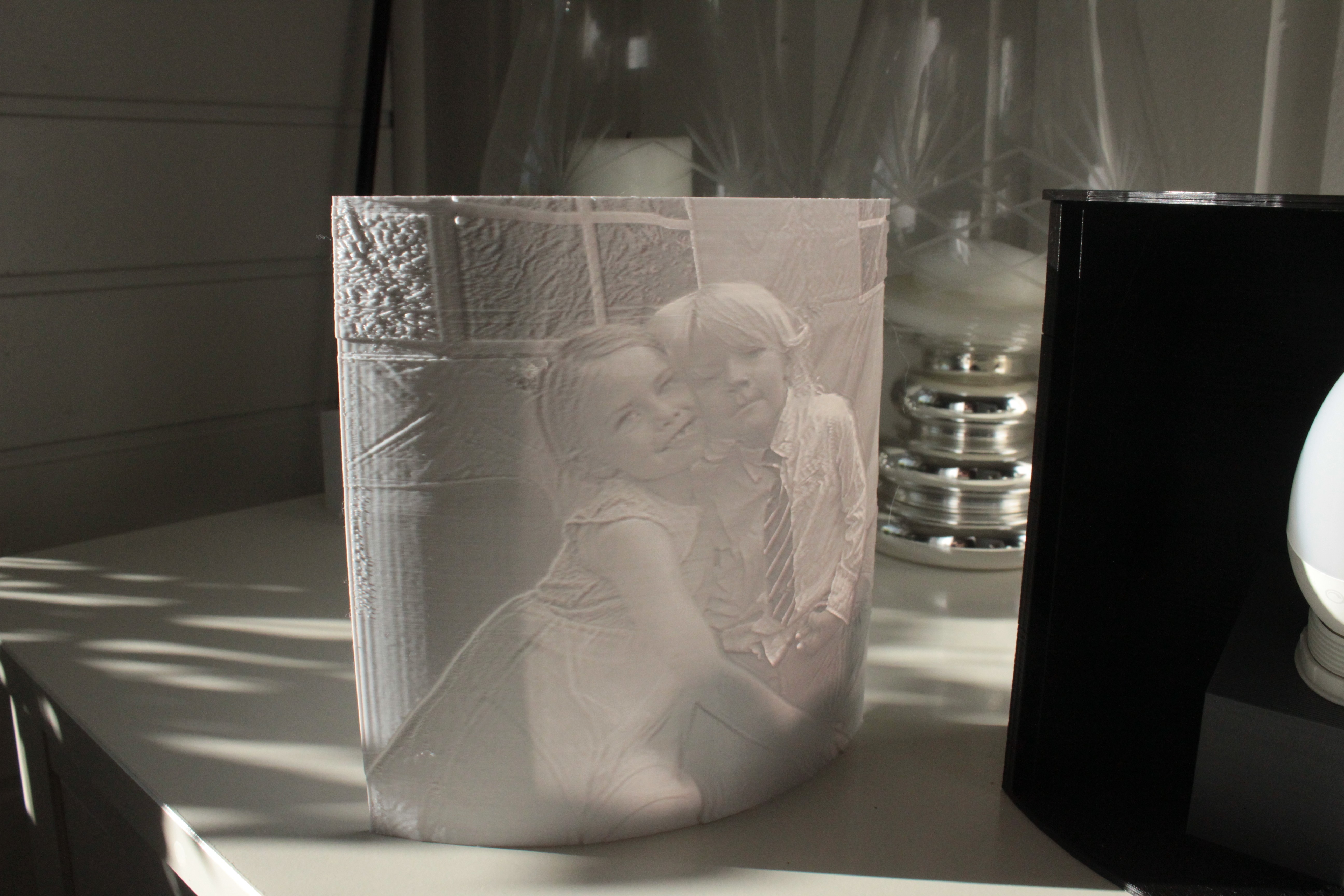

Image to lithophane site: http://3dp.rocks/lithophane/

Video of printing and assembly: https://youtu.be/pvorH0vuG_o


3D printing settings

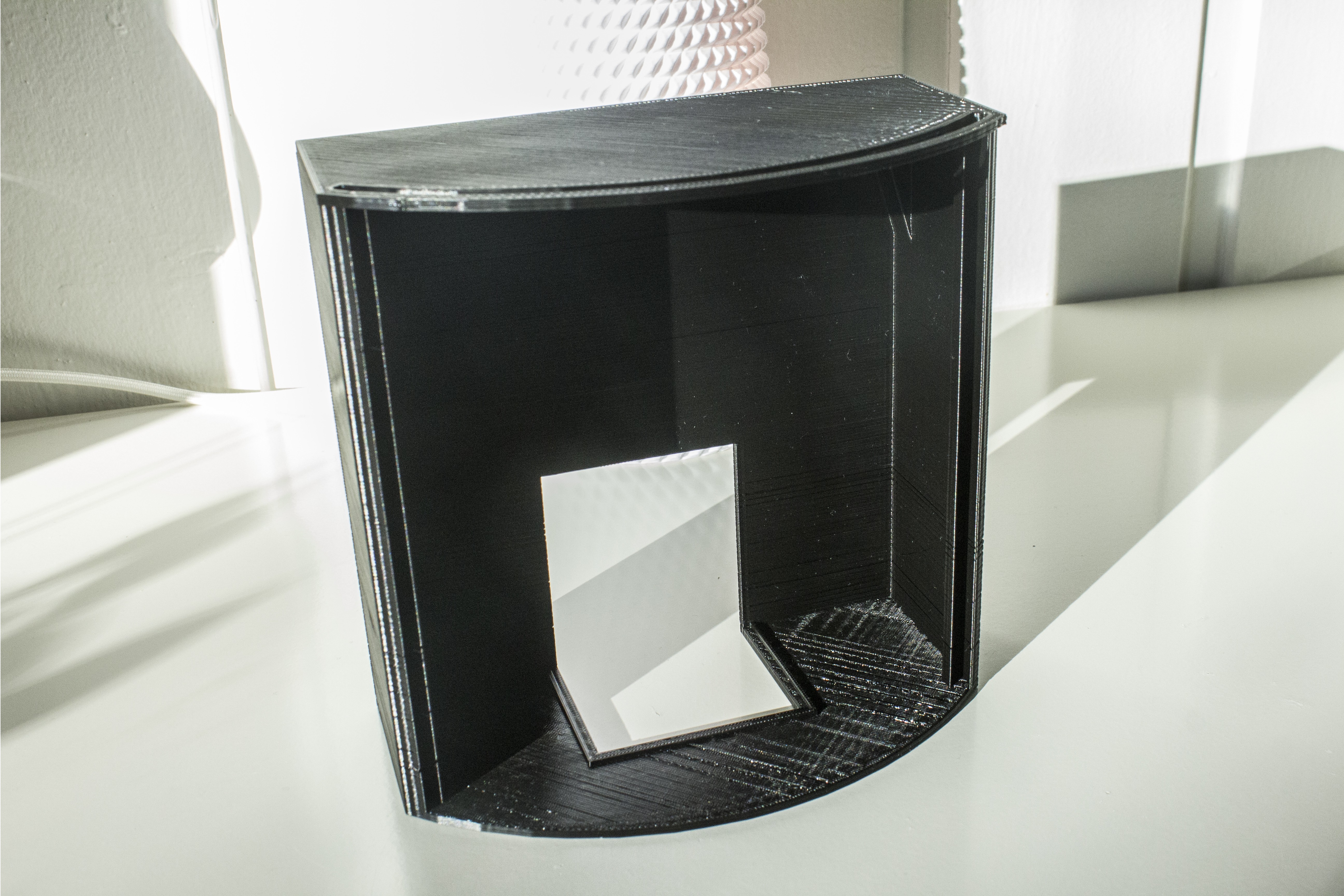

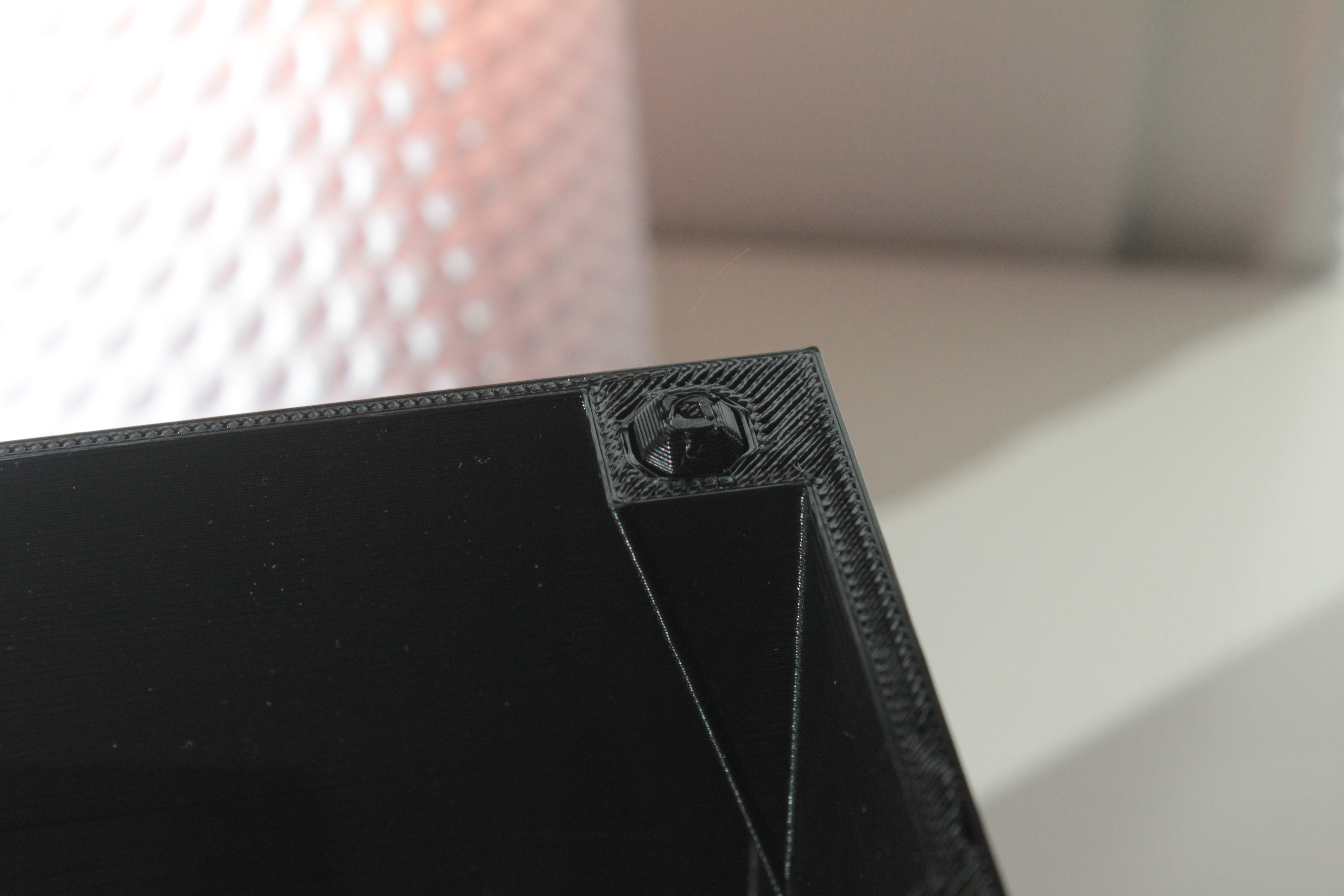

Box process 1
Nozzle diameter: 0.40mm
Extrusion Multiplier: 0,96
Extrusion width: 0,40mm
Layer height: 0.2000mm
Top solid layers: 3
Bottom solid layers: 3
Outline shells: 2
Skirt: No
Raft: No
Infill: 50%
Support: No
Extruder temp: 210
Heated bed temp: 60ºC
Print speed: 60mm/s
Start printing at height: 0,00mm
Stop printing at height: 3.60mm

Box process 2
Nozzle diameter: 0.40mm
Extrusion Multiplier: 0,96
Extrusion width: 0,40mm
Layer height: 0.2000mm
Top solid layers: 3
Bottom solid layers: 3
Outline shells: 2
Skirt: No
Raft: No
Infill: 10%
Support: No
Extruder temp: 210
Heated bed temp: 60ºC
Print speed: 60mm/s
Start printing at height: 3.60mm
Stop printing at height: -

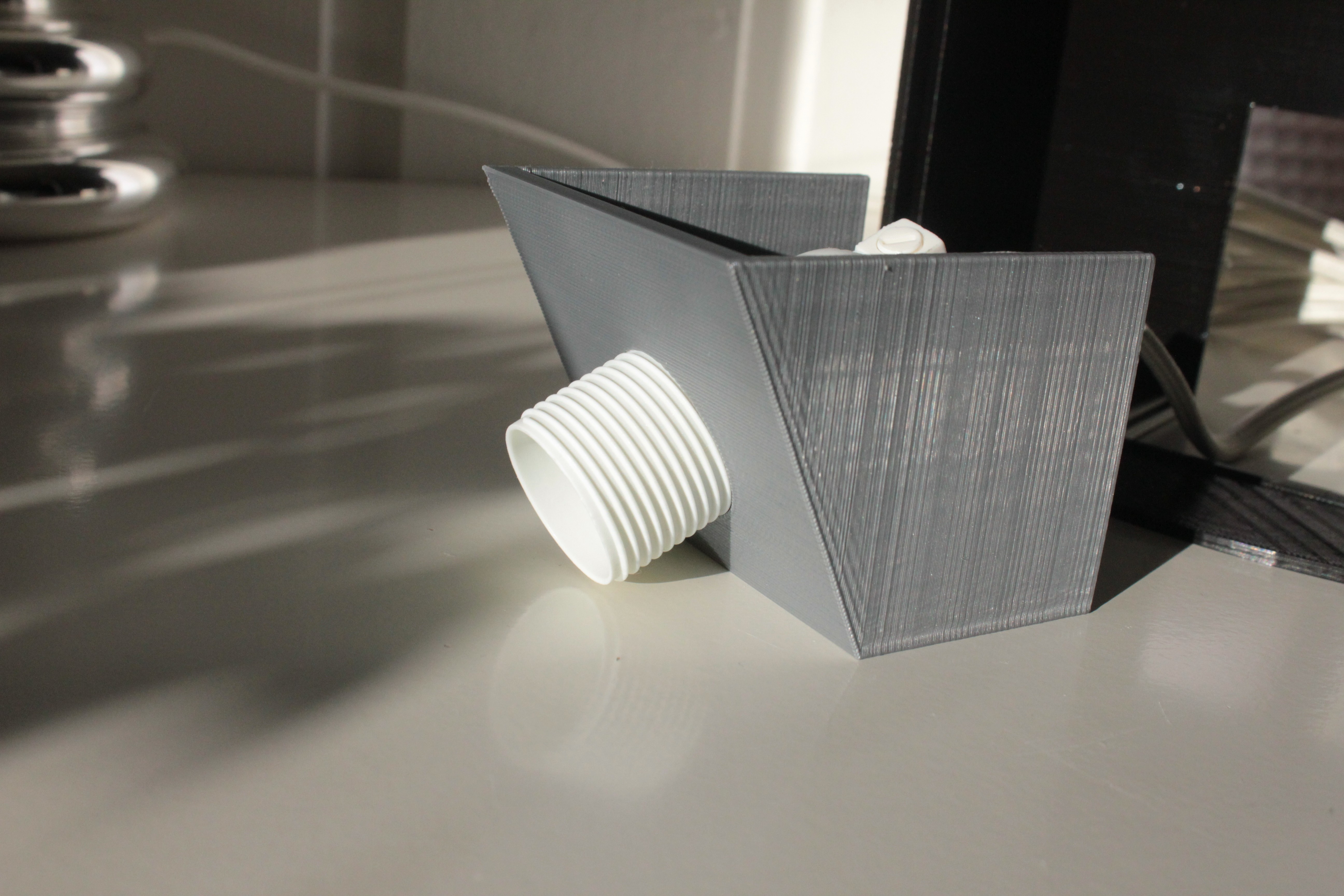

Socket attachment
Nozzle diameter: 0.40mm
Extrusion Multiplier: 0,96
Extrusion width: 0,40mm
Layer height: 0.2000mm
Top solid layers: 3
Bottom solid layers: 3
Outline shells: 2
Skirt: No
Raft: No
Infill: 25%
Support: No
Extruder temp: 210
Heated bed temp: 60ºC
Print speed: 60mm/s
Start printing at height: -
Stop printing at height: -

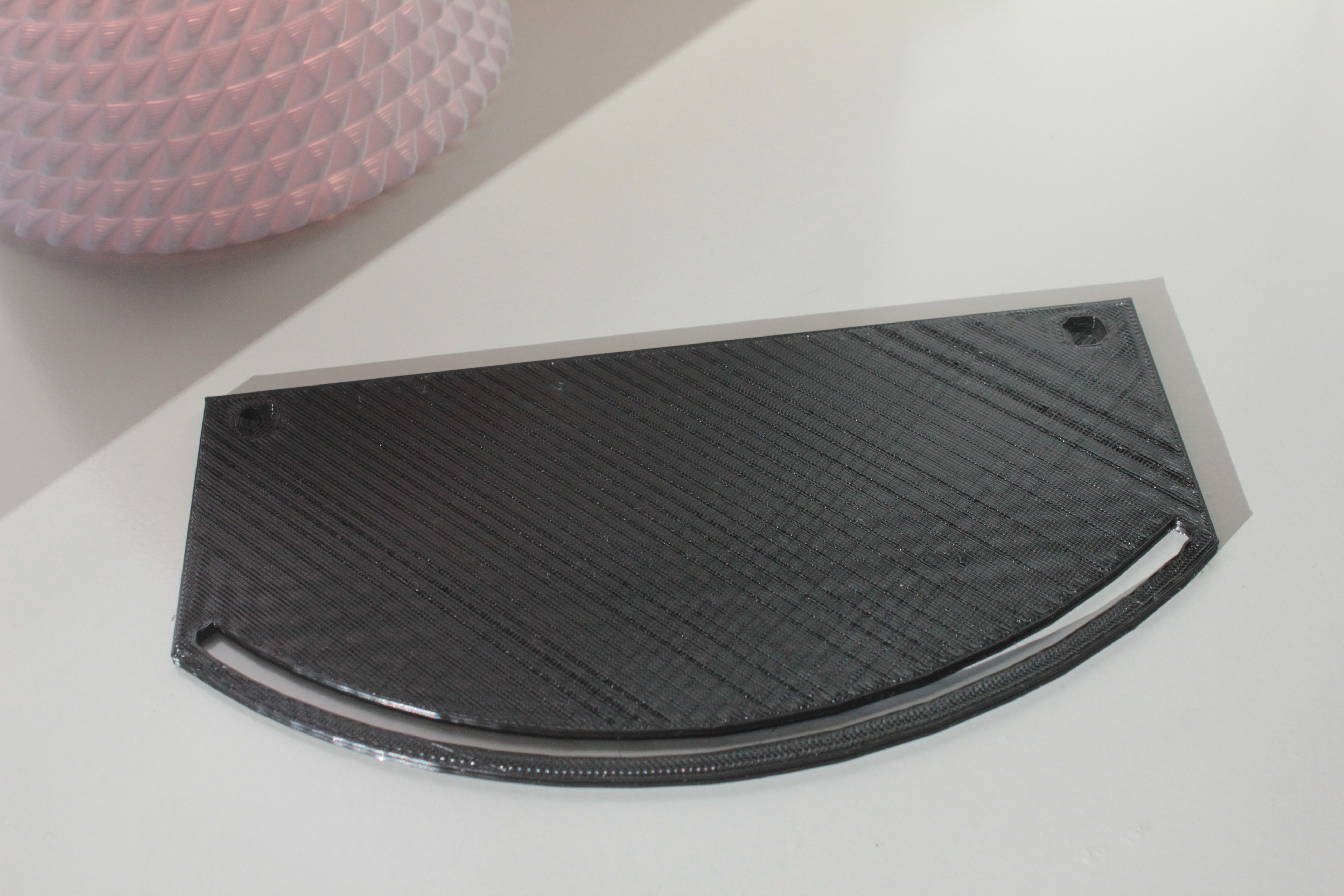

Roof
Nozzle diameter: 0.40mm
Extrusion Multiplier: 0,96
Extrusion width: 0,40mm
Layer height: 0.2000mm
Top solid layers: 3
Bottom solid layers: 3
Outline shells: 2
Skirt: No
Raft: No
Infill: 100%
Support: No
Extruder temp: 210
Heated bed temp: 60ºC
Print speed: 60mm/s
Start printing at height: -
Stop printing at height: -

Roof attachment
Nozzle diameter: 0.40mm
Extrusion Multiplier: 0,96
Extrusion width: 0,40mm
Layer height: 0.2000mm
Top solid layers: 3
Bottom solid layers: 3
Outline shells: 2
Skirt: No
Raft: No
Infill: 100%
Support: No
Extruder temp: 210
Heated bed temp: 60ºC
Print speed: 60mm/s
Start printing at height: -
Stop printing at height: -

Nozzle diameter: 0.40mm
Extrusion Multiplier: 0,96
Extrusion width: 0,40mm
Layer height: 0.1500mm
Top solid layers: 2
Bottom solid layers: 2
Outline shells: 4
Skirt: 7
Raft: No
Infill: 0%
Support: No
Extruder temp: 200
Heated bed temp: 70ºC
Print speed: 50mm/s
Start printing at height: -
Stop printing at height: -

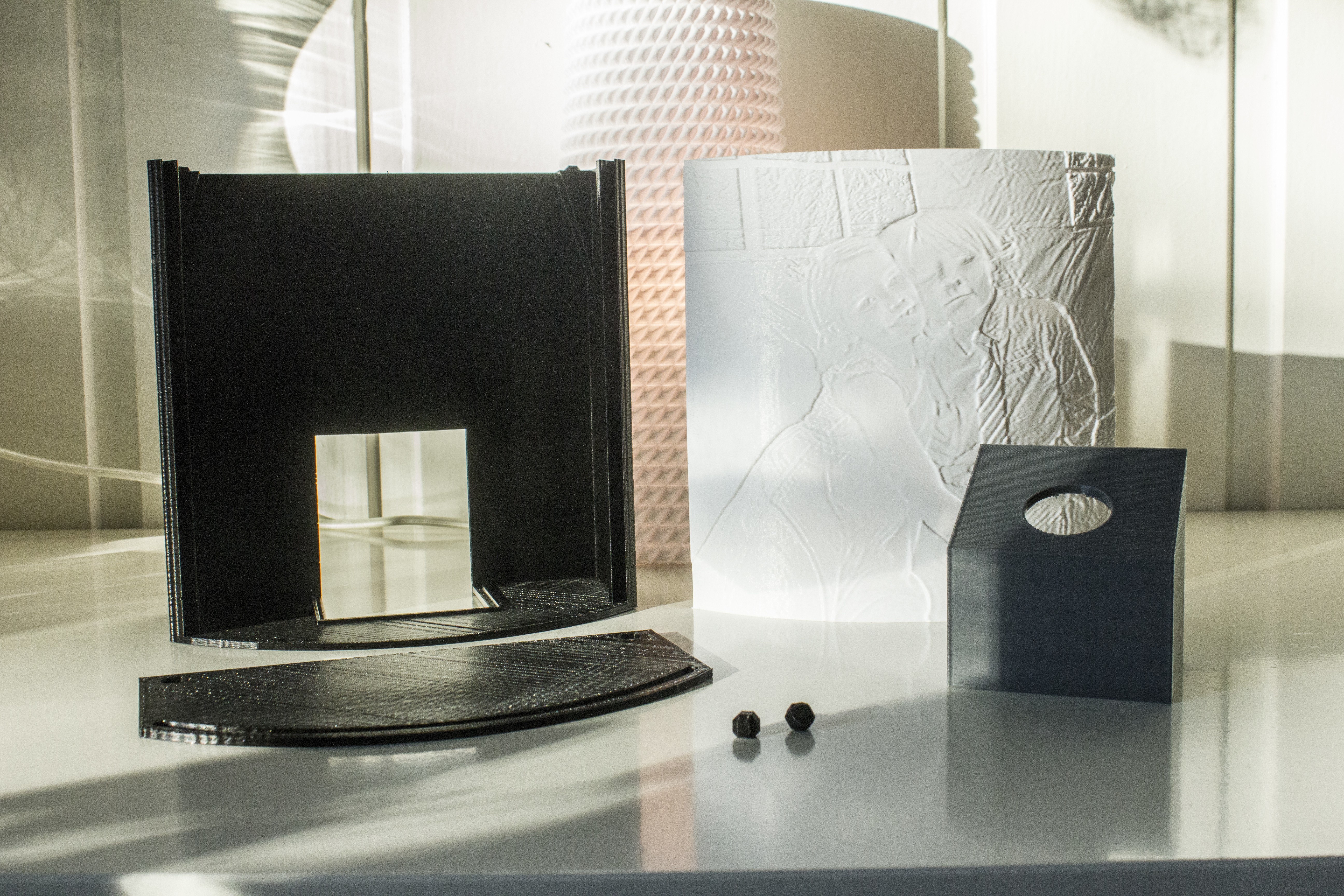

3D printer file information

  • 3D design format: STL Folder details Close
    • Box.stl
    • Eiffel tower.stl
    • Roof attachment.stl
    • Roof.stl
    • Socket attachment.stl

    Learn more about the formats

  • Last update: 2018/11/27 at 09:29
  • Publication date: 2017/09/16 at 20:46

License

CC BY NC SA

Tags

Creator

Issue with this design? Report a problem

Best sellers of the category Home


Add a comment

One comment

I would assume this fits a certain size. What size is that. I assume as well that it is the curved version?
