Led Strips Bulb

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.8k views
  • 6 likes

3D model description

I created a light bulb on an Artichoke Lamp Shade print (https://cults3d.com/en/3d-model/home/artichoke-lamp-shade) . When I printed the lamp from PLA material, I did not want to use a light bulb as a light source to melt the plastic.
Basic description:
Dimensions in the picture.
Number and size of Led Strips: 6x 6x1cm
Power supply: Adapter, selected according to the type of LED strip (12V / 24V). I used an adapter: 12V / 1A
It is better to reckon with a 20% reserve of 100% of the power of the adapter.
Assembly:

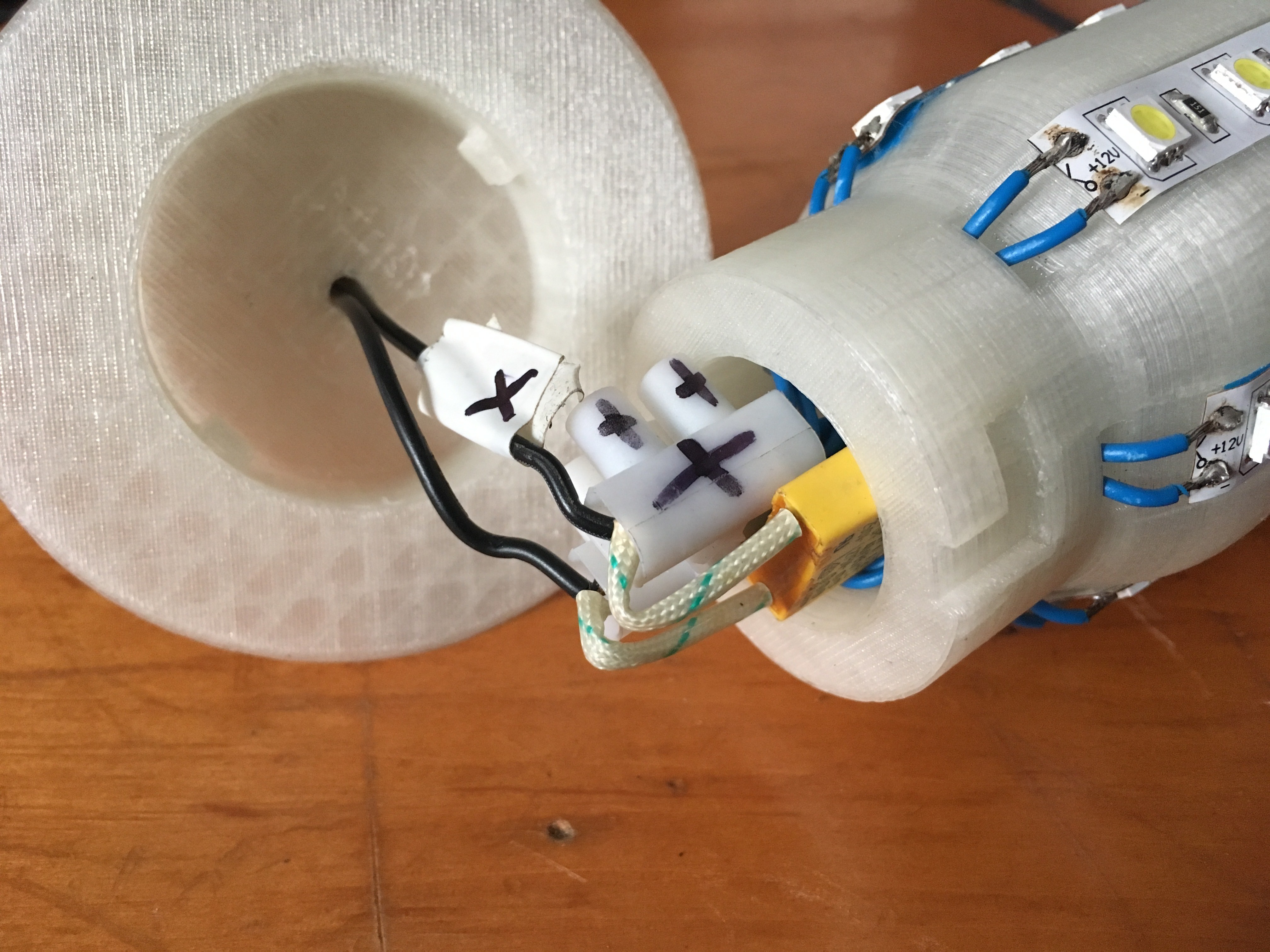

It is important to know how great a voltage the led light bulb illuminates. Do not dispose of a high voltage adapter. (C = 1uF / 250V) is connected to the ends of the two strands formed by joining all the wires leading from the Led Stripes (+/-) to which the Adapter is connected.

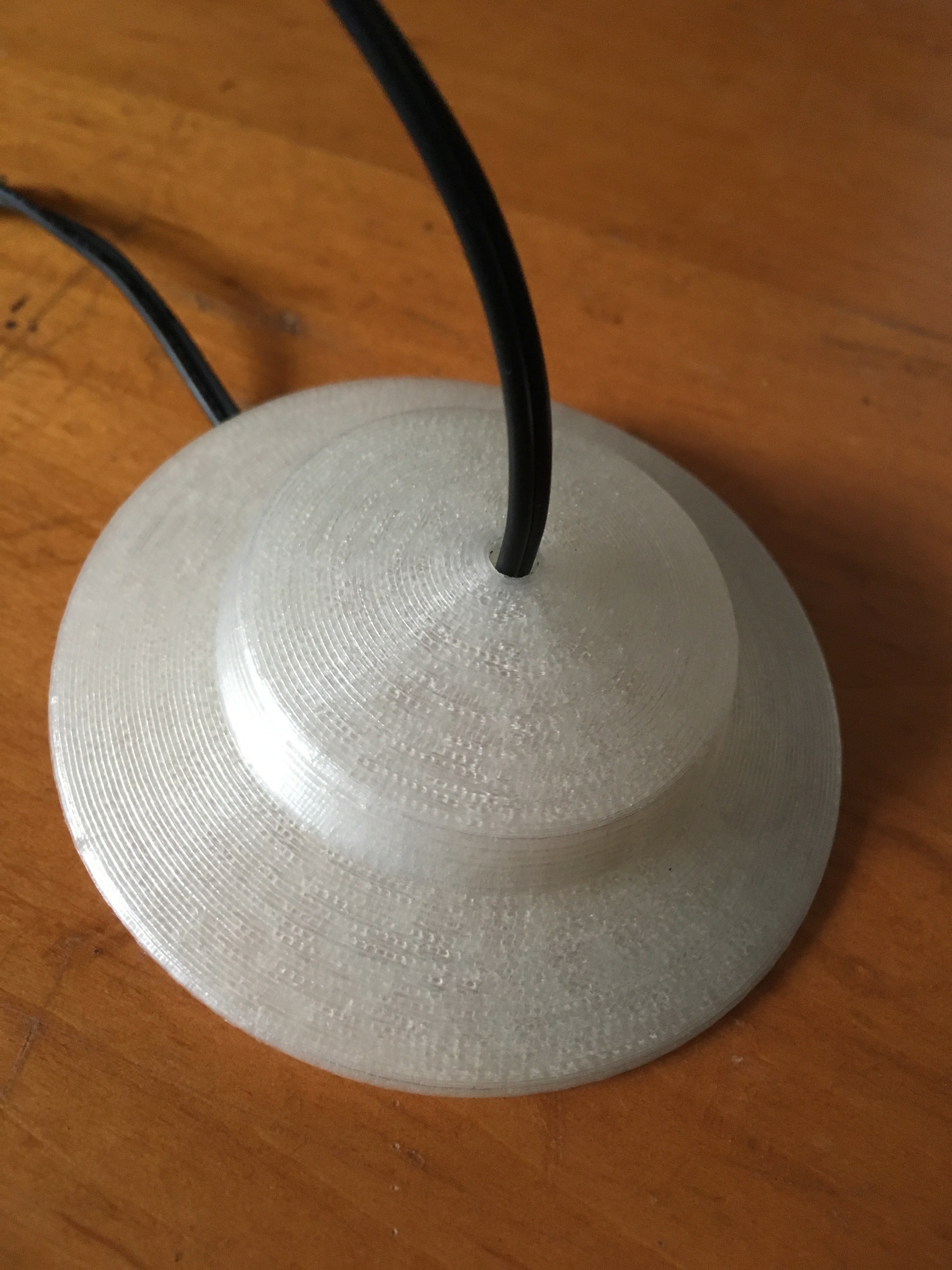

Applying Light Bulb Covers is simple. By sliding the projections into the tracks made on the inside of the bulb and turning it, the lid with the safety bulb will lock.
All information found on https://tomshik3d.wixsite.com/tomshik3d

3D printing settings

Print Time: Bulb = 4h Cap = 1.5h
Printing speed: 50mm / s
Layer height / nozzle used: 0.2 / 0.4mm
Filling: 20%
Support: no

  • 3D file format: STL
  • Last update: 2020/07/03 at 19:46
  • Publication date: 2018/05/22 at 20:41

Creator

3D modeling and 3D printing with Rebel 2/AnetA6
