Le Tabouret Simple (simple stool) cnc

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.8k views
  • 7 likes
  • 223 downloads

3D model description

Kids love to help in the kitchen. When they grow up a little, a regular chair or a full-sized step stool might be to high for them to reach the work surface. Additionally, a chair will be in the way in a kitchen most times and it takes two hands to move it. I designed this little stool to have a hight less than 20 cm, allowing the cupboard doors to open and swing over it, while giving a child (age 5 - 9) enough hight to reach to kitchen top. It's light enough to be pushed in place with one foot.

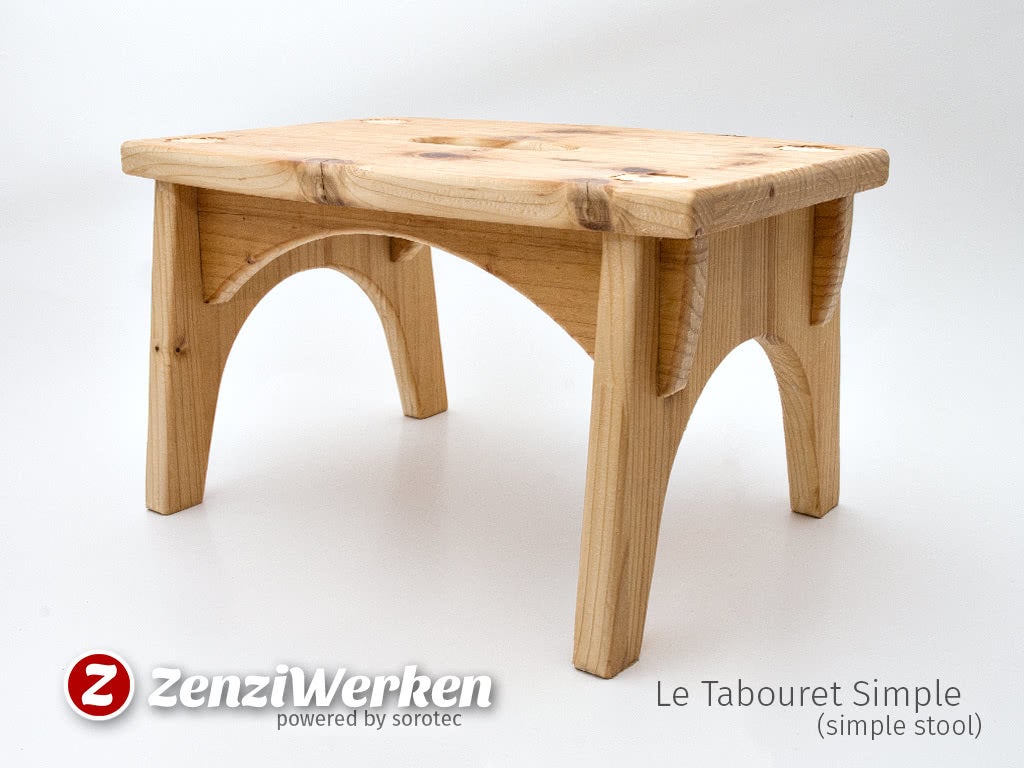

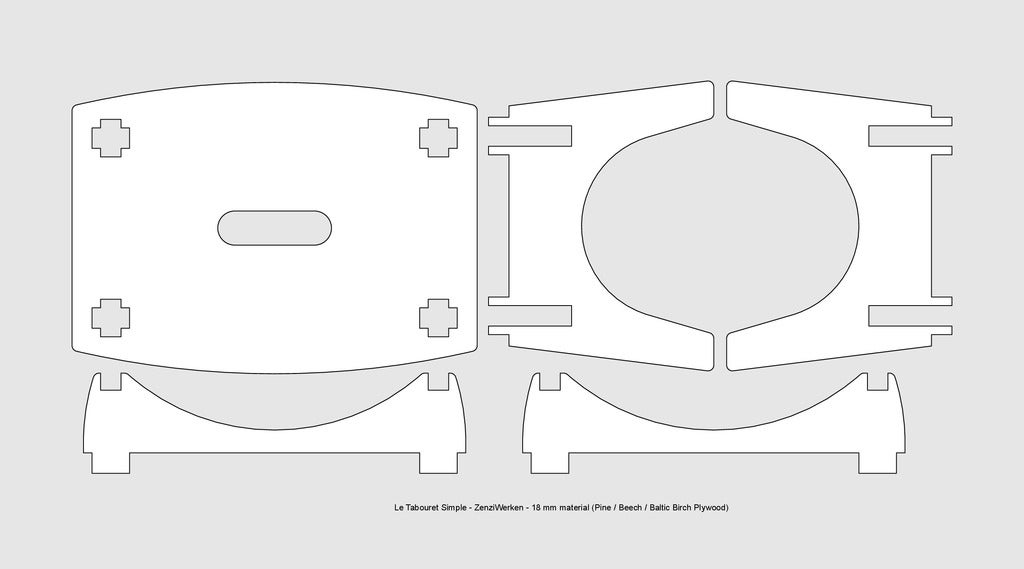

I used a 4 mm upcut single flute endmill to cute 18 mm pine wood. Actually, the board was rather scrap wood and I am no big fan of the rustic style but refraining from plywood I learned an important lesson: grain direction is crucial when using this kind of material. My first build broke apart right away. The second try – honoring the direction – is really solid. To increase the rigidity even more I glued the parts. I rounded the edges with a round over bit on a little handheld router and finished it with mineral oil to intensify the wood grain and protect the surface against dirt and moisture.

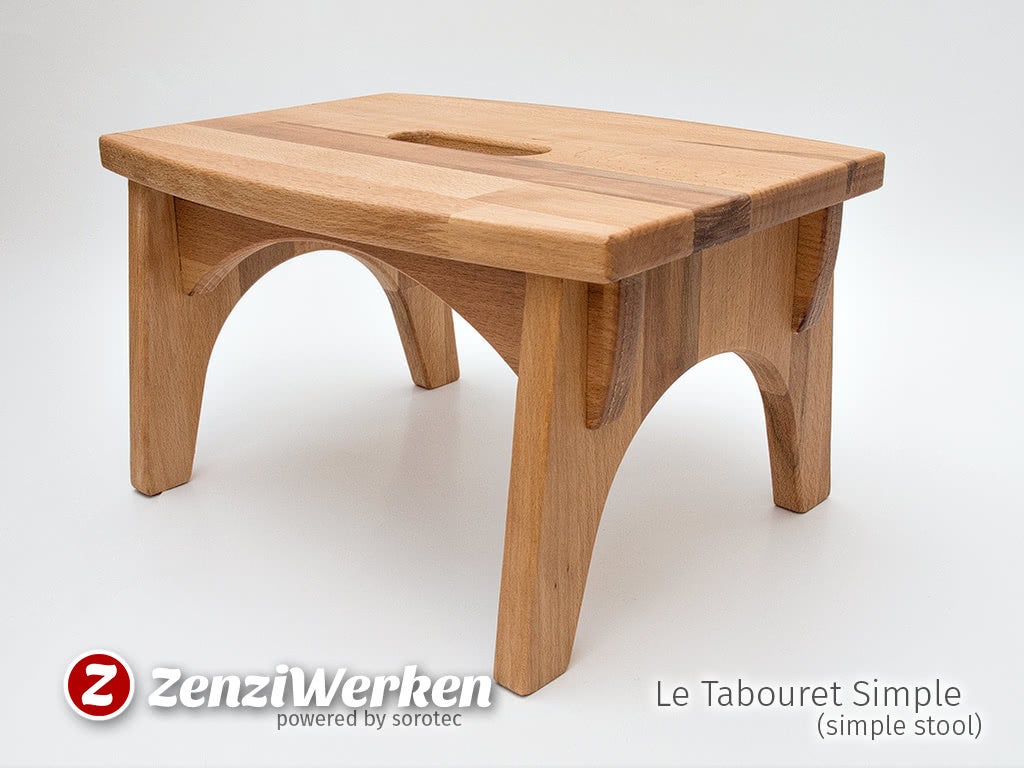

UPDATE: I made another version out of beech I did like better from the view. It's much heavier so it has to prove itself in daily usage.

Sorry that the stl is not suitable for a 3-d-printer. But I suppose the design is to large and it requires to much material to be printed.

Visit https://www.zenziwerken.de/en/ for more interesting designs.

  • 3D file format: STL
  • Publication date: 2019/07/09 at 16:08

Tags

Creator

Designs 154
Downloads 21.6k
Followers 164

I am using a rigid hobby cnc-machine to create useful and/or beautiful things. My main intend is the search on interesting designs that make the most out of a given material while taking short machine-time.

License

CC BY NC SA
