Le Tabouret Plus Stable (simple stool enhanced) cnc

?
Creation's quality: 4.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 2 likes
  • 111 downloads

3D model description

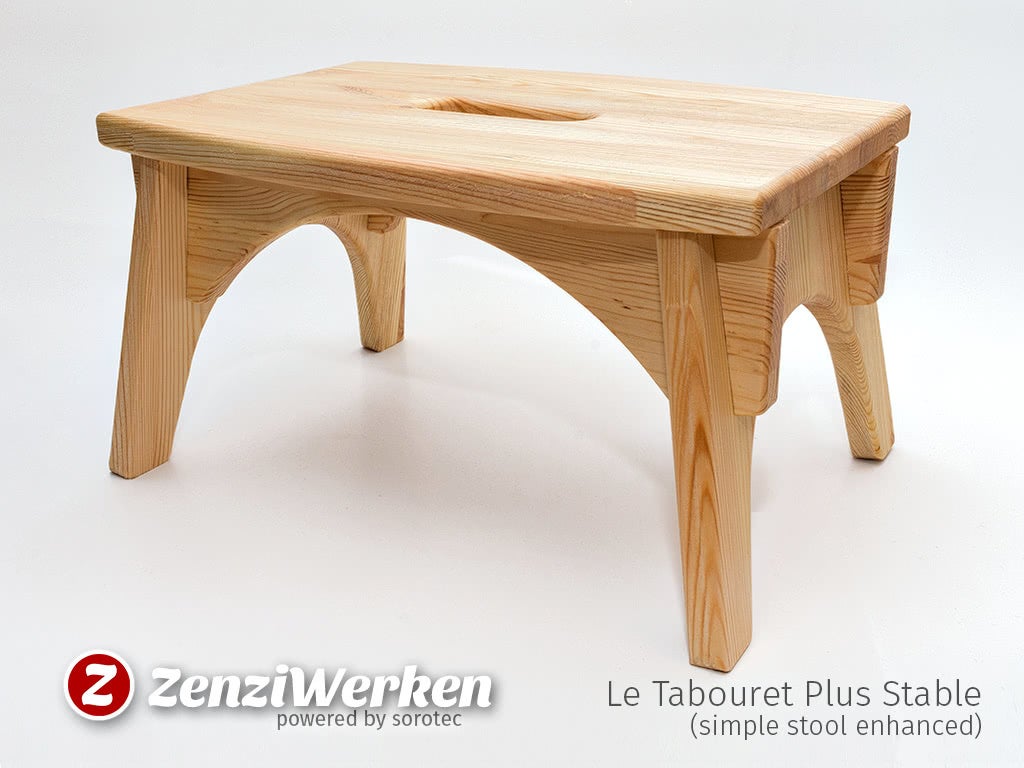

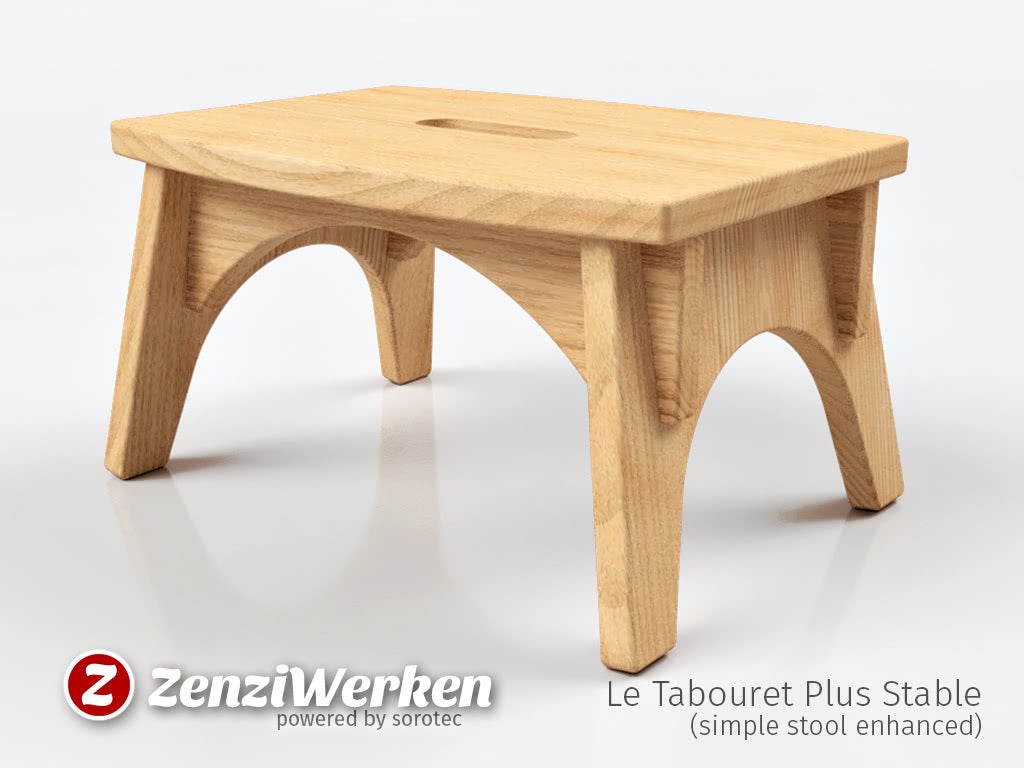

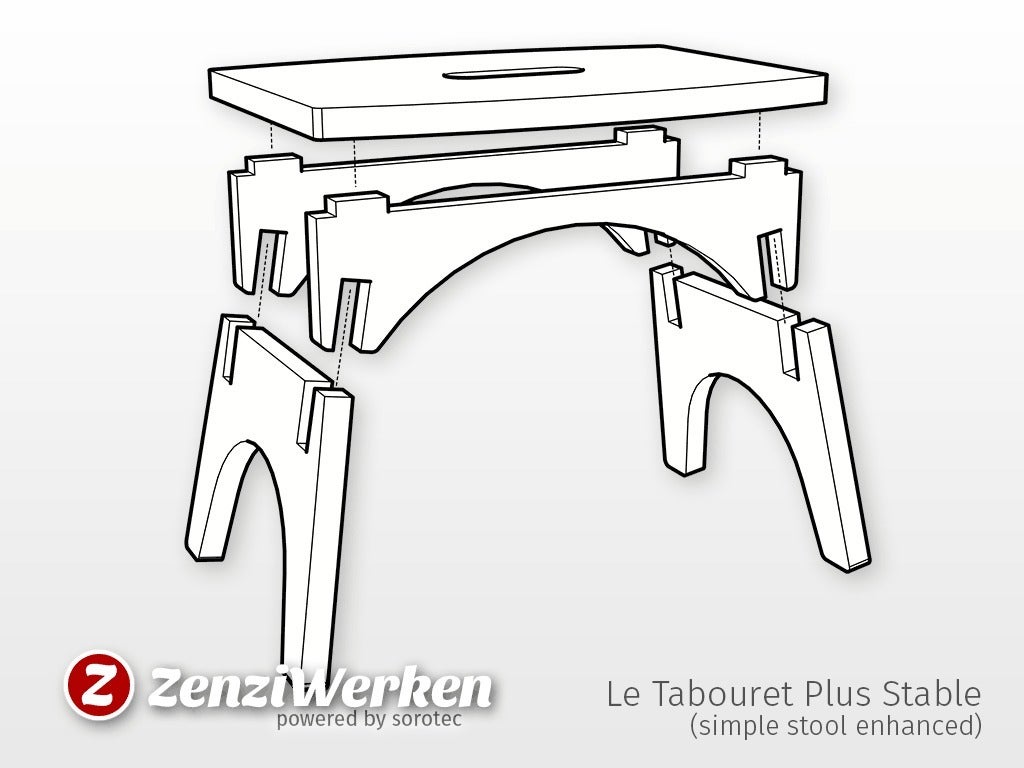

I created my first simple stool with maximum rigidity and the most simple construction in mind, but a few members of my family prove that it still could topple if you stand on the absolute edge. So I enhanced the design with tilted feet so the base is greater that the top board, loosing a little rigidity in the construction. Still this version is able to support a jumping dad, so everything's fine.

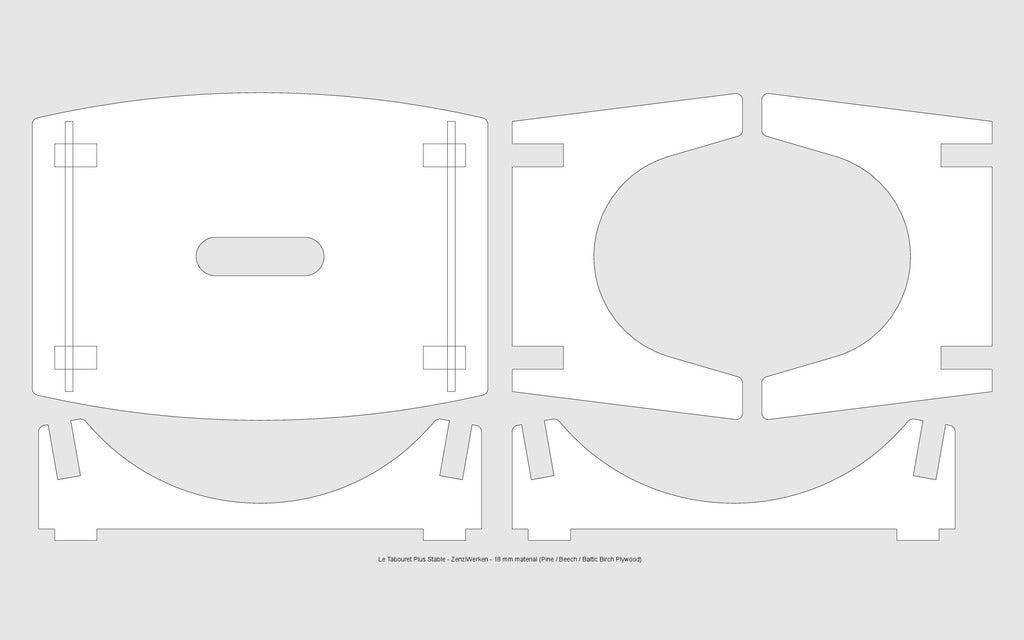

Like the last time I used a 4 mm single flute endmill, cutting through 18 mm pine with 9 mm depth per cut at 2800 mm/min. I didn't need tabs as the compressed sawdust is able to hold the pieces in place. I glued the supports to the step board on the whole to enshure maximum stability. The handheld router helped with a nice round over and mineral oil finished the surface.

Visit https://www.zenziwerken.de/en/ for more interesting designs.

  • 3D file format: STL
  • Publication date: 2019/07/09 at 16:09

Tags

Creator

Designs 154
Downloads 21.6k
Followers 164

I am using a rigid hobby cnc-machine to create useful and/or beautiful things. My main intend is the search on interesting designs that make the most out of a given material while taking short machine-time.

License

CC BY NC SA
