Glass vase lamp

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 370 views
  • 4 downloads

3D model description

Kit for adapting cylindrical glass vases into lamps.

The glass vase has a diameter of 15cm and is available in most decoration shops. It was drilled with a concrete drill, a drill WITHOUT percussion, water to cool it down and a lot of patience.

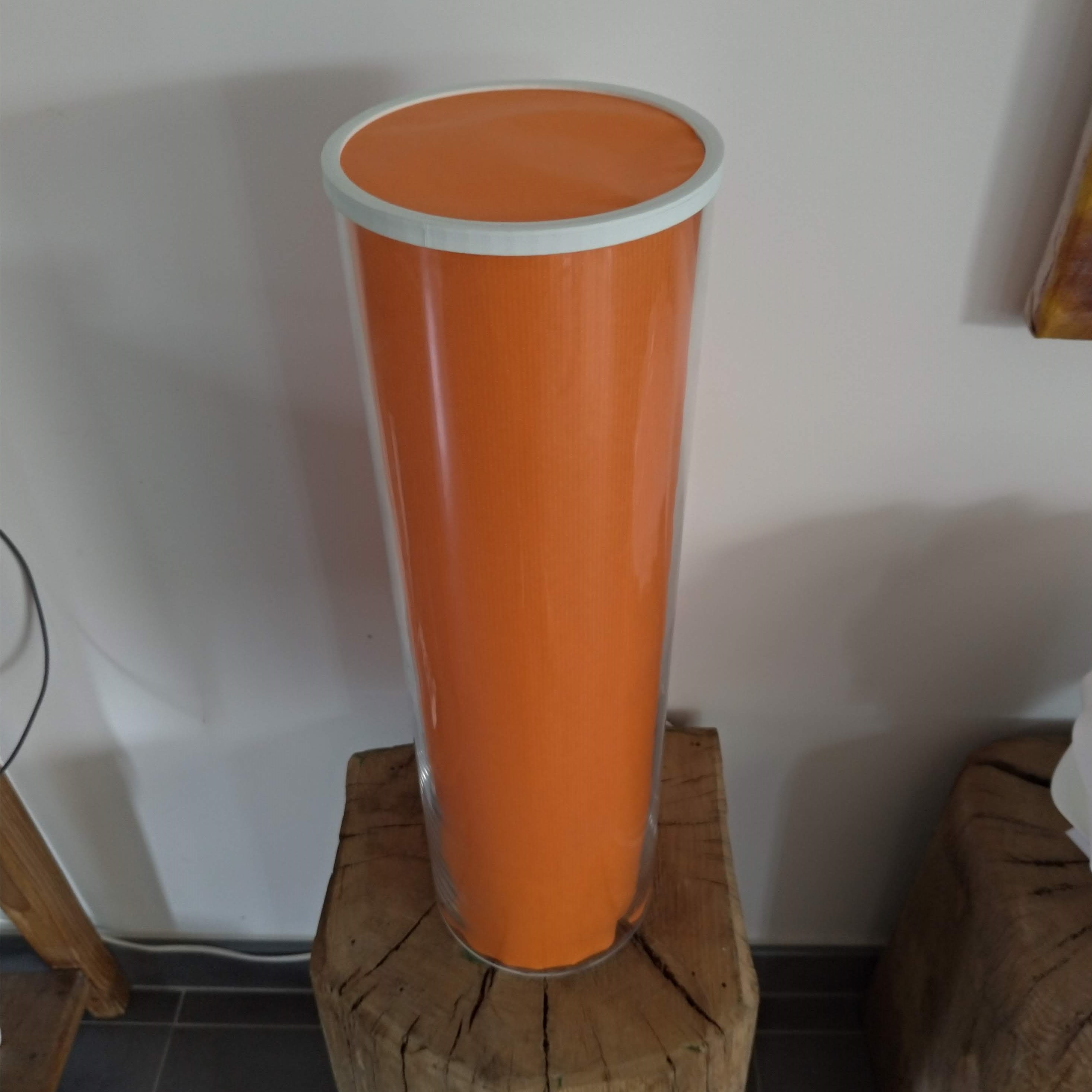

The lining on the inside is made of paper, like gift wrap paper. It is composed of 2 parts: a rectangle (45.5 x h cm) and a disc with a diameter of 14.8 cm.

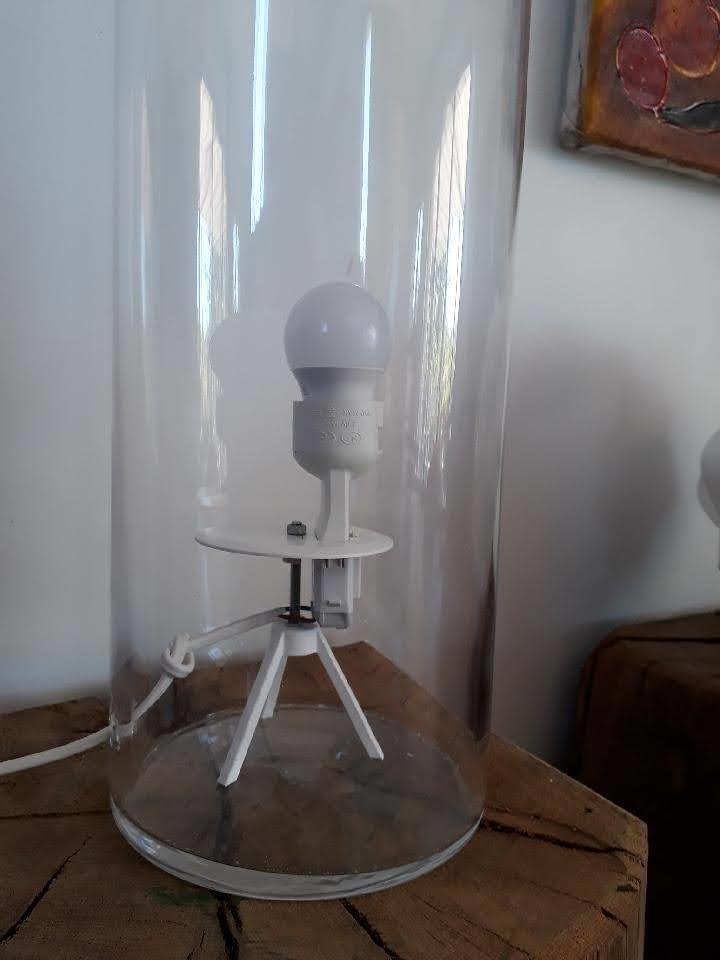

Use an LED light bulb to prevent overheating. In this case, the bulb holder is an E27 site socket with its ceiling cover. It is possible to simply place a lamp in the tube.

PS: the lower support is E14 shade size and can be used for this purpose.

3D printing settings

Media should be printed with a border (brim) to avoid warping.

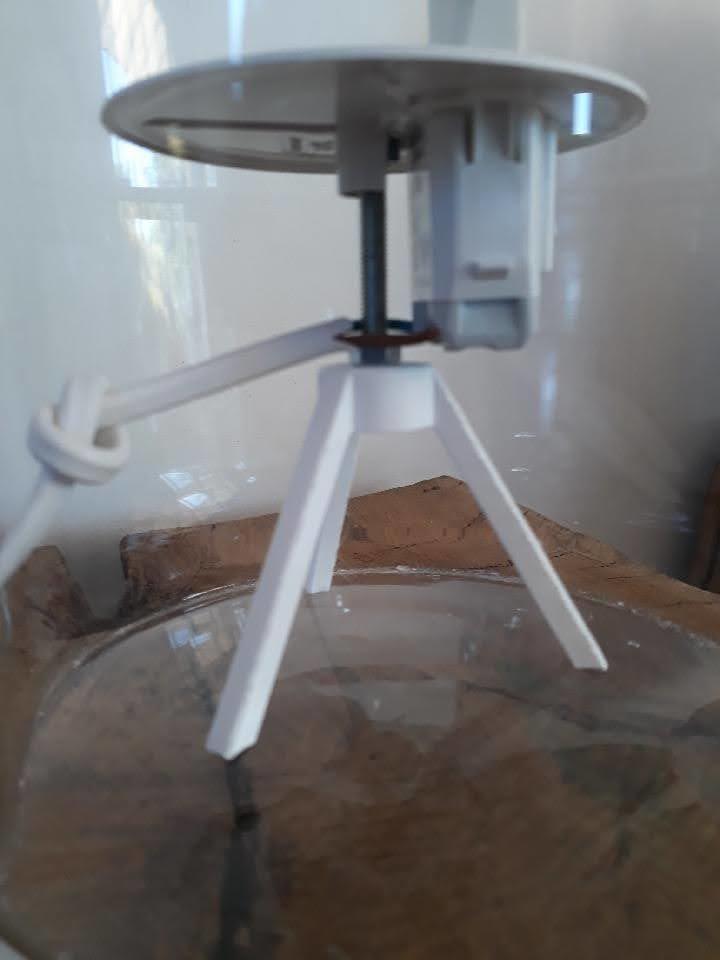

The tripod is to be printed feet in the air. It is possible to make concessions on its filling up to 20%.

Make sure you have a tray that is large and level enough to accommodate the top bracket and its edge!

  • 3D file format: STL
  • Publication date: 2020/07/22 at 19:42
