Desk lamp

?
Creation's quality: 4.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.8k views
  • 10 likes
  • 118 downloads

3D model description

Hello,

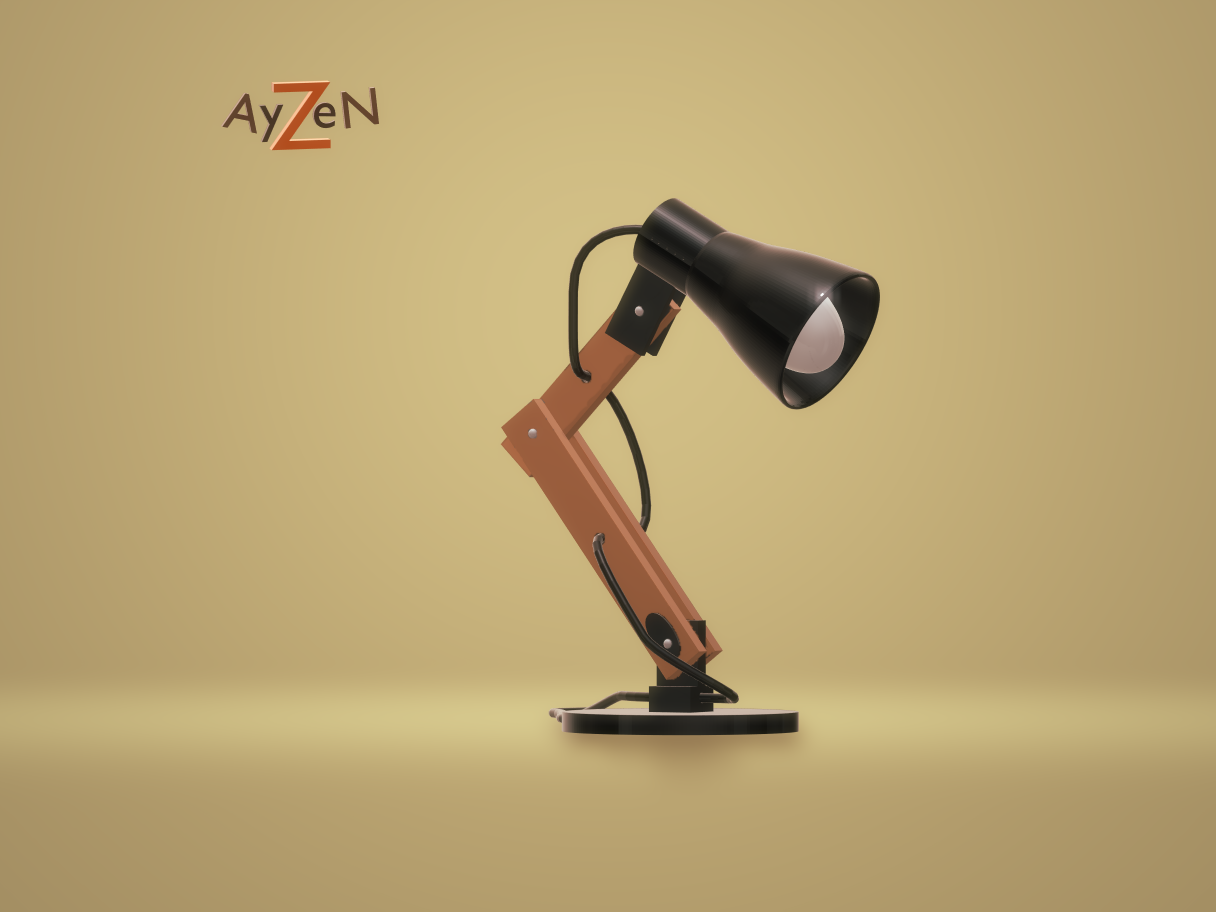

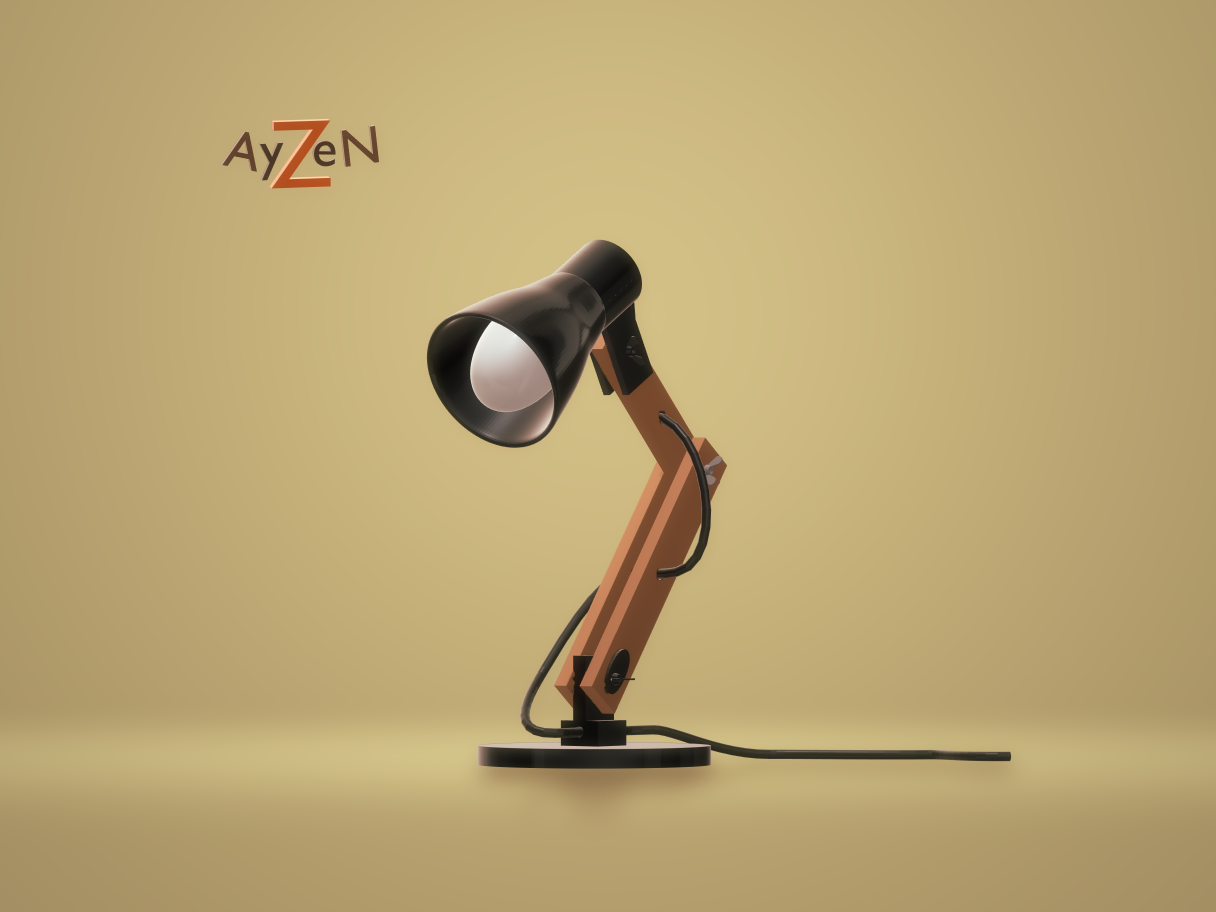

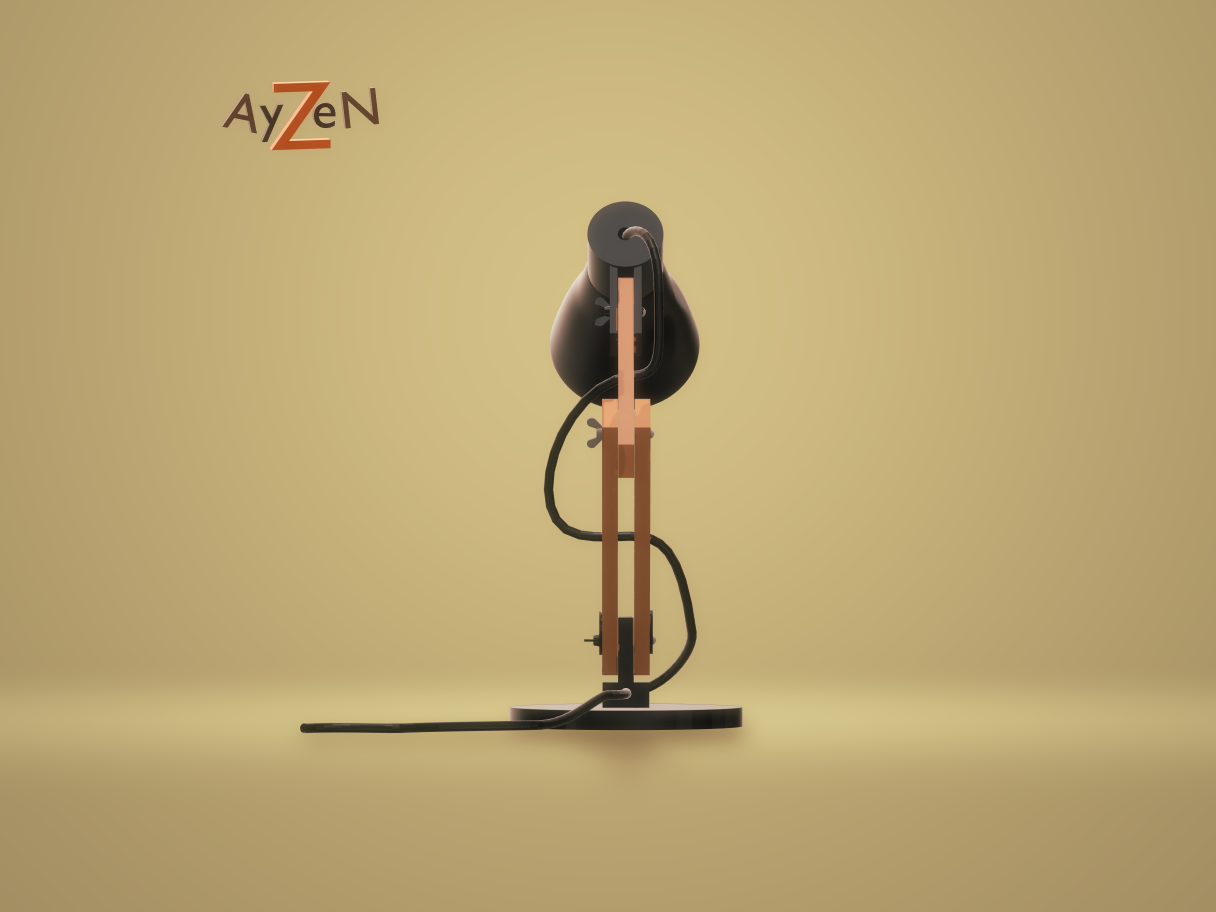

I offer you my desk lamp:

  • Lamp base width 15cm

  • Height of the lamp unfolded to the bottom 52cm

In the folder you will have the screws, wing nuts and washers.

You will therefore have to print or buy:

  • two 4x5mm screws

  • one of 2.5x5mm for the lampshade

  • three M5 washers (not required)

  • three M5 wing nuts

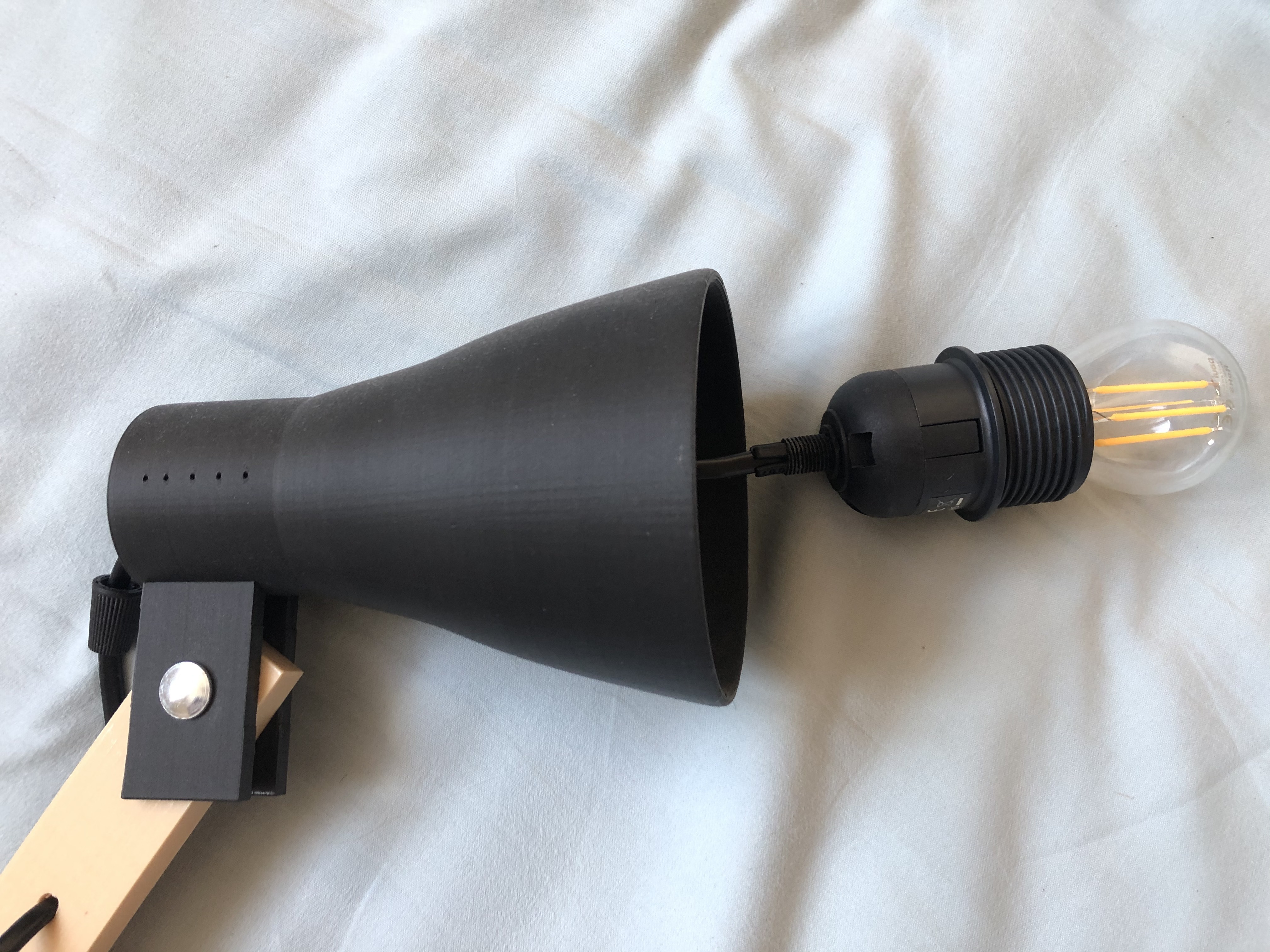

Then buy in addition a socket holder for the bulb with cable, plug and switch.

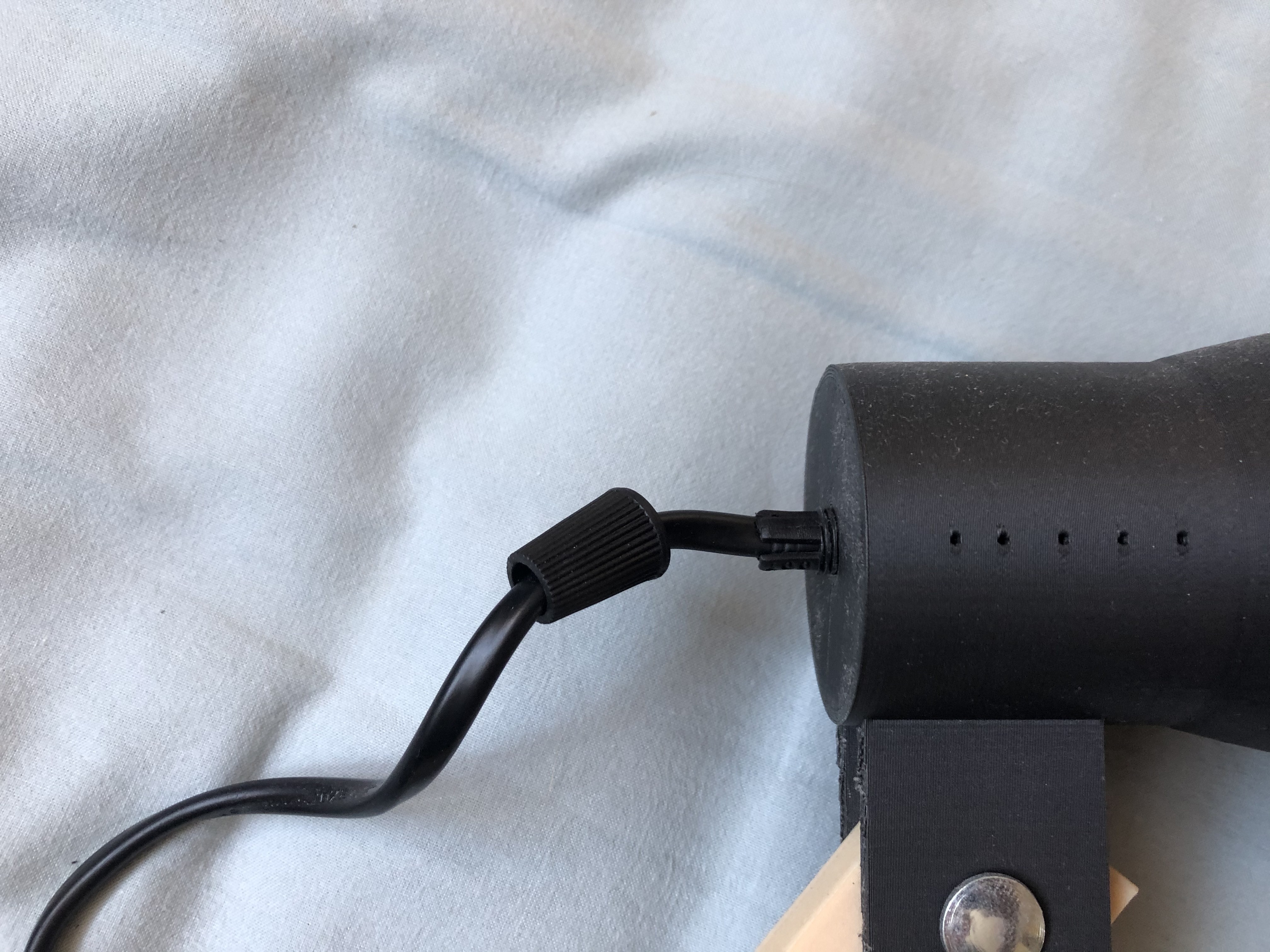

I took the one where I had to cut the wire to pass it through the lamp and solder the switch closer to the lamp: https://www.amazon.fr/gp/product/B07GJNQFTV/ref=ppx_yo_dt_b_asin_title_o00_s01?ie=UTF8&psc=1

And of course a light bulb.

I printed it the same color as the matte black PLA images from Dailyfil:

https://www.filimprimante3d.fr/filament-pla-mat/2506-bobine-pla-noir-rendu-mat-175-mm-dailyfil-500g.html

And the sticks with PLA Wood from Sunlu:

https://www.amazon.fr/SUNLU-Wood-Filament-Dimensional-Filaments/dp/B01M1EATN5/ref=pd_cp_328_2/262-2323381-8542001?_encoding=UTF8&pd_rd_i=B01M1EATN5&pd_rd_r=418cd38f-65c4-4f94-84bf-a53061dc993b&pd_rd_w=P9Njx&pd_rd_wg=RvrnE&pf_rd_p=88d90214-9307-47b1-9c5f-3bc89ec73aea&pf_rd_r=PC5887MDZC27ZFT19KRZ&psc=1&refRID=PC5887MDZC27ZFT19KRZ

I hope you like it!

If you have any questions, don't hesitate!

3D printing settings

Rafts:

No

Brackets:

No except for the lampshade and the screws.

Resolution:

0.2

Infill:

15%

  • 3D file format: STL
  • Last update: 2020/09/06 at 11:13
  • Publication date: 2019/10/14 at 01:48

Tags

Creator

Designs 18
Downloads 1.5k
Followers 9

Page translated by automatic translation. See the original version.


Best sellers of the category Home


Add a comment

One comment

bonjour
je suis en train d'imprimer votre lampe de bureau pour ma fille et je voulai savoir comment vous fixer la douille a l'interieur?
merci pour votre partage de fichier
