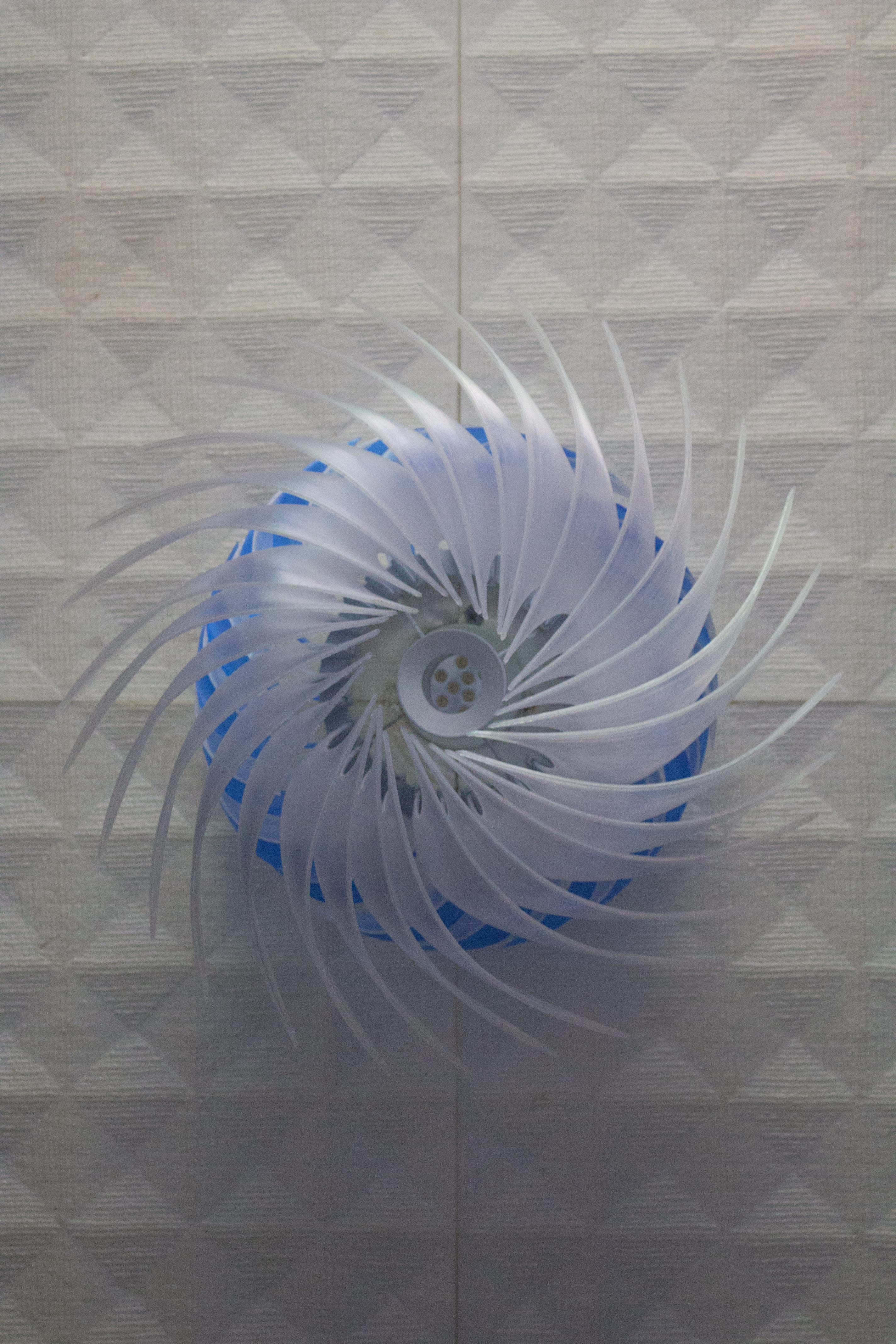

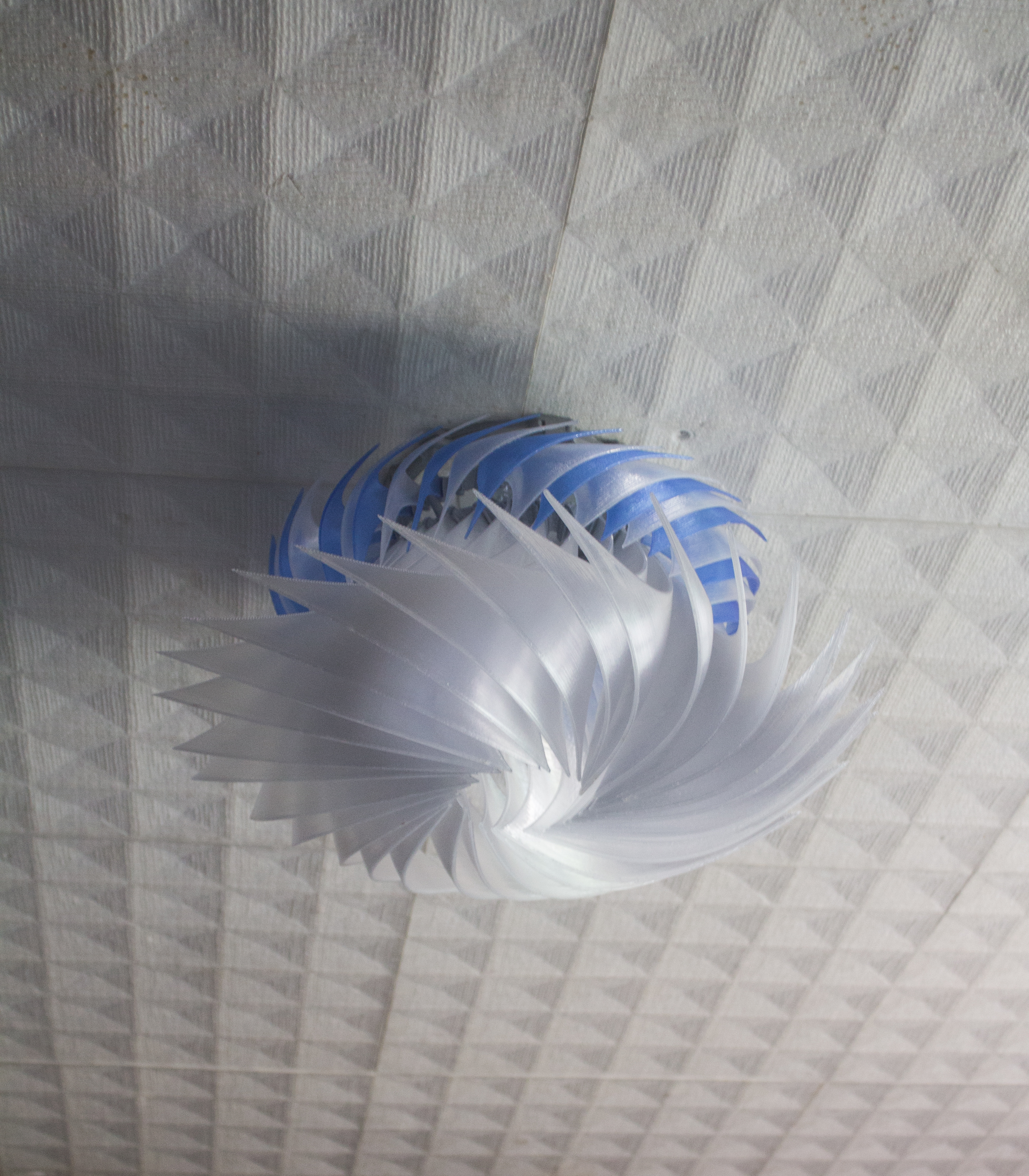

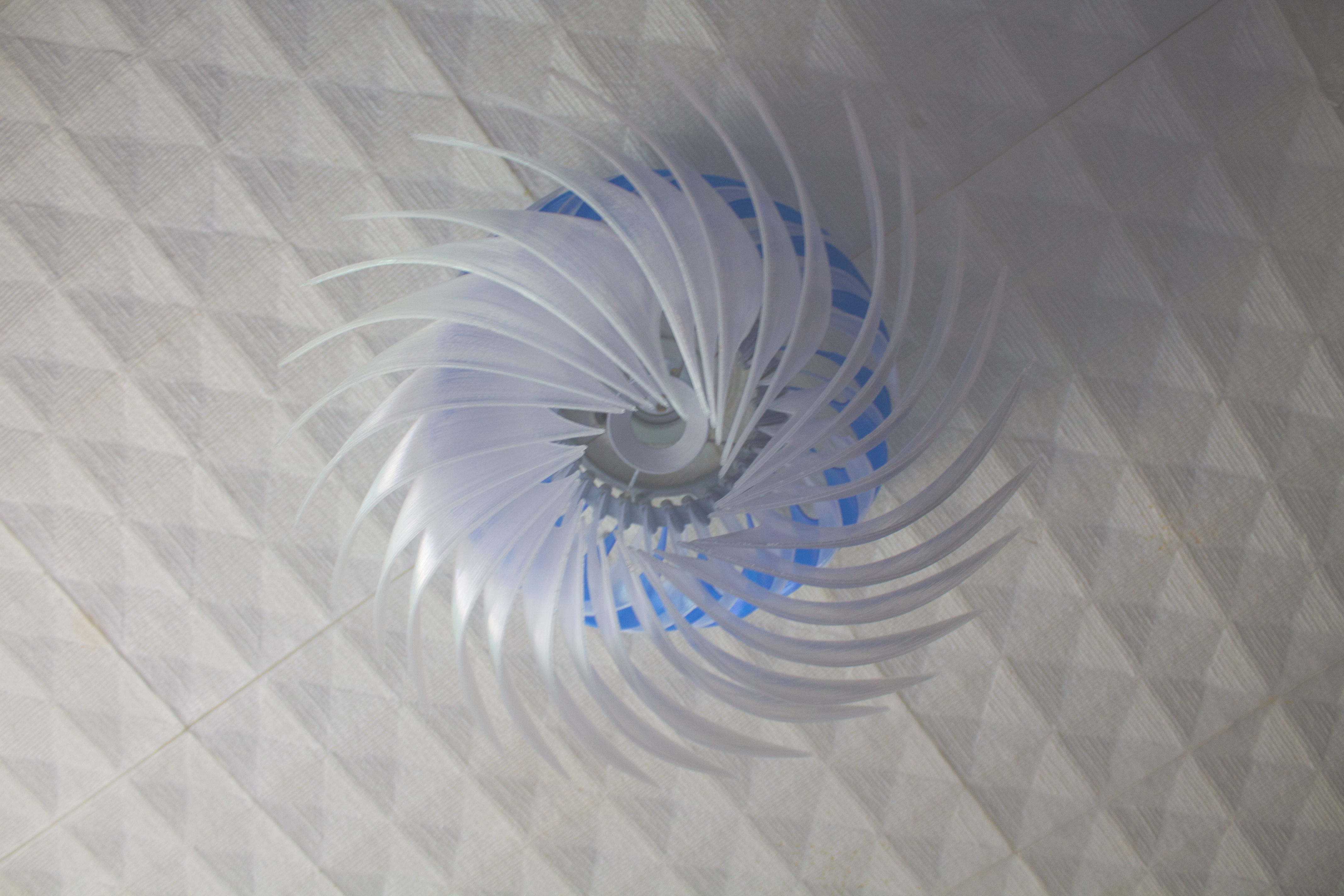

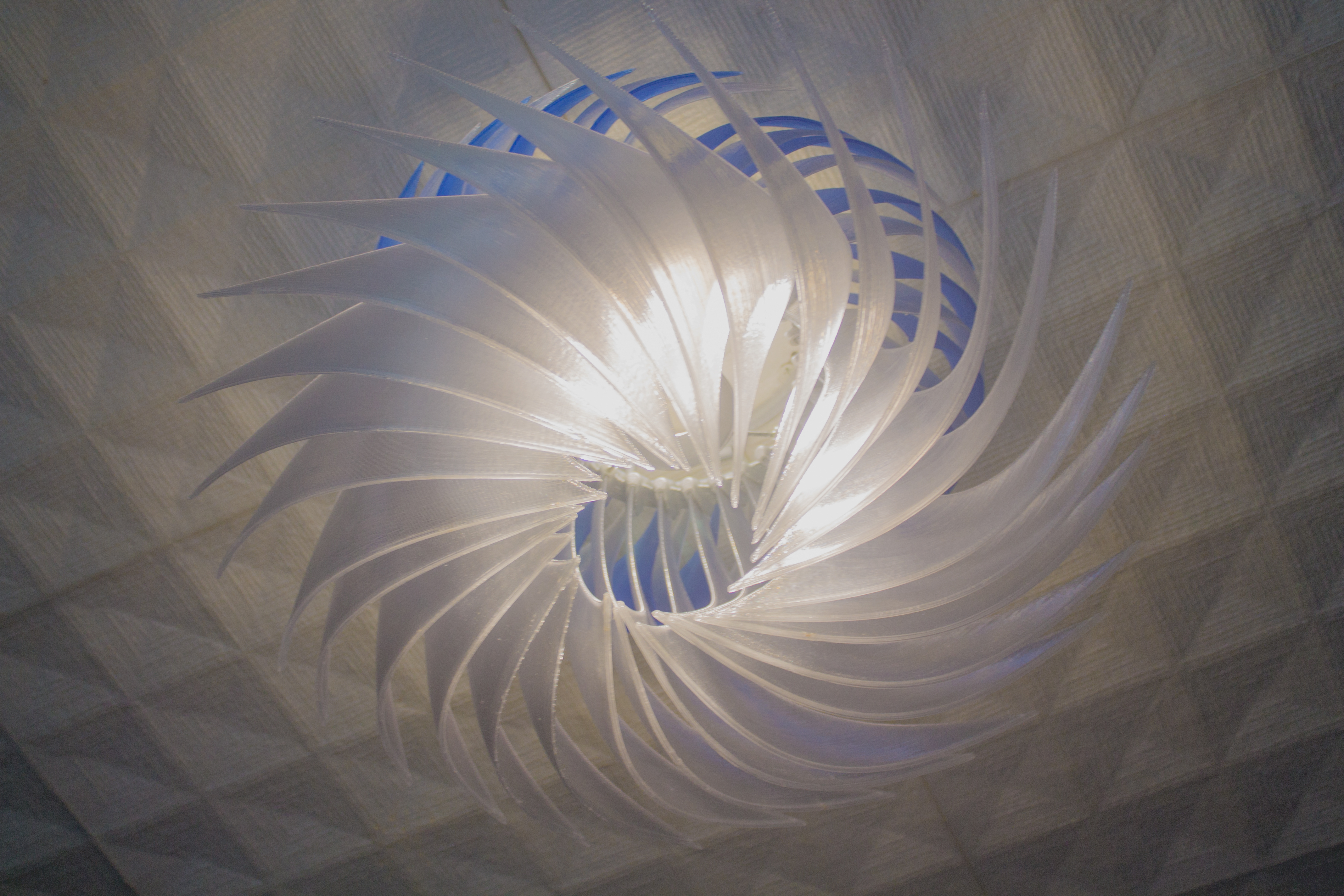

A racy look, inspired by an aeronautical turbine.
Worked at the base to diffuse the light of a sport LED which illuminated way too directional, I decided later to go further and work on the rhythm and the impression of movement.
This is a lot of time to print, but I hope that those who are seduced will take up the challenge and propose makes with tons of variations.

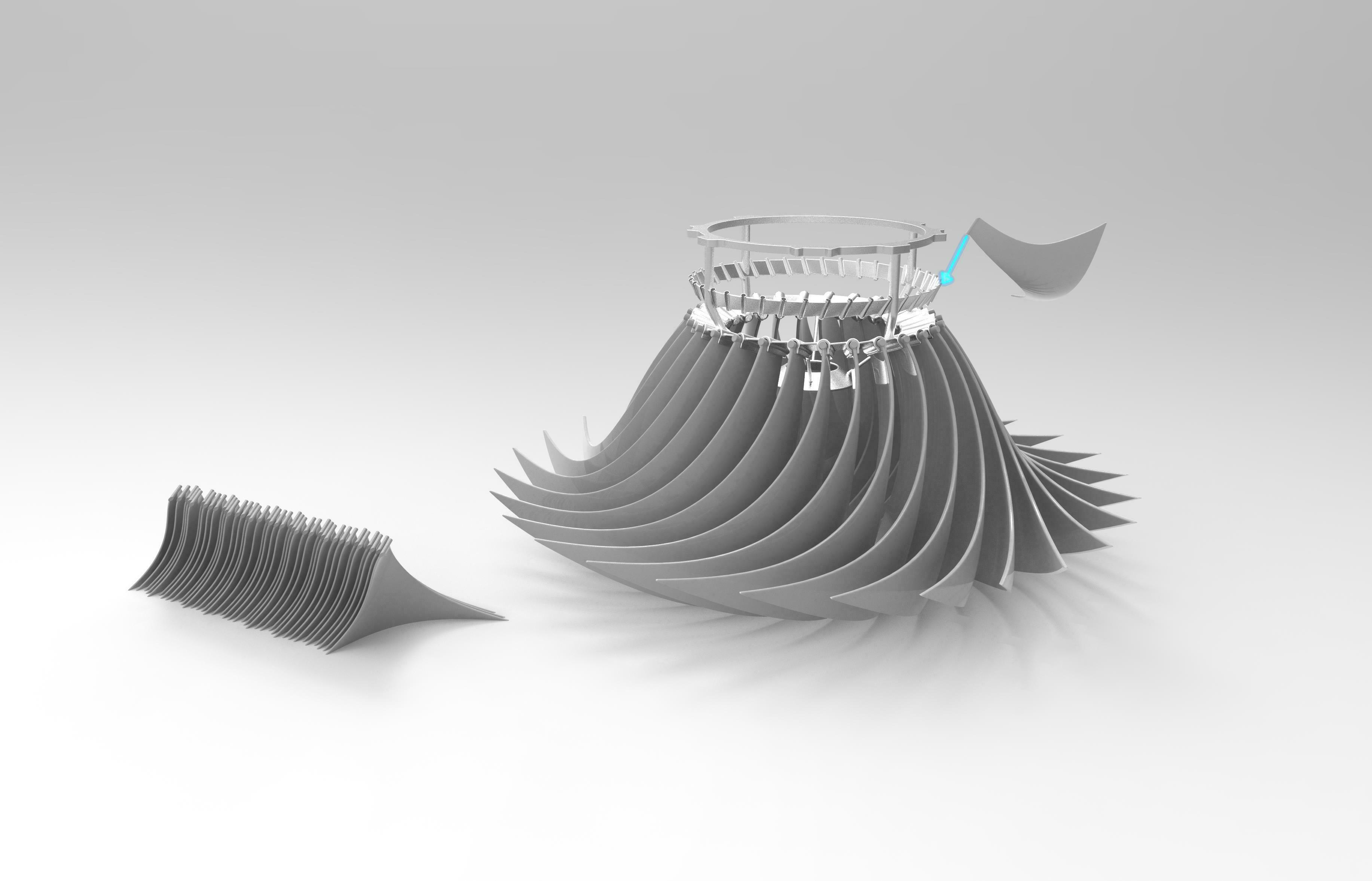

In addition the blade system can be used under different uses, shapes and colors that I would be more proud to see!
Soon I will be able to show you the one I am preparing right now.
You will need to print 28 large blades and 38 small ones for this version.
Do not hesitate to ask me the nurbs files if you want to redo that to your sauce I would be happy to send you this provided you show me the result :)
For the central parts printing conventional, no particular difficulty except that it is better to take it upside down to save around 100g plastoc!
For the blades this is complicated, I have done dozens of tests and the best seems to be to print these parts in PETG for transparency.
I printed the big ones with a nozzle of 0.8 and 0.6mm layers, for the small ones the best and to pass on a nozzle in 0.6 and layers of 0.4mm.
