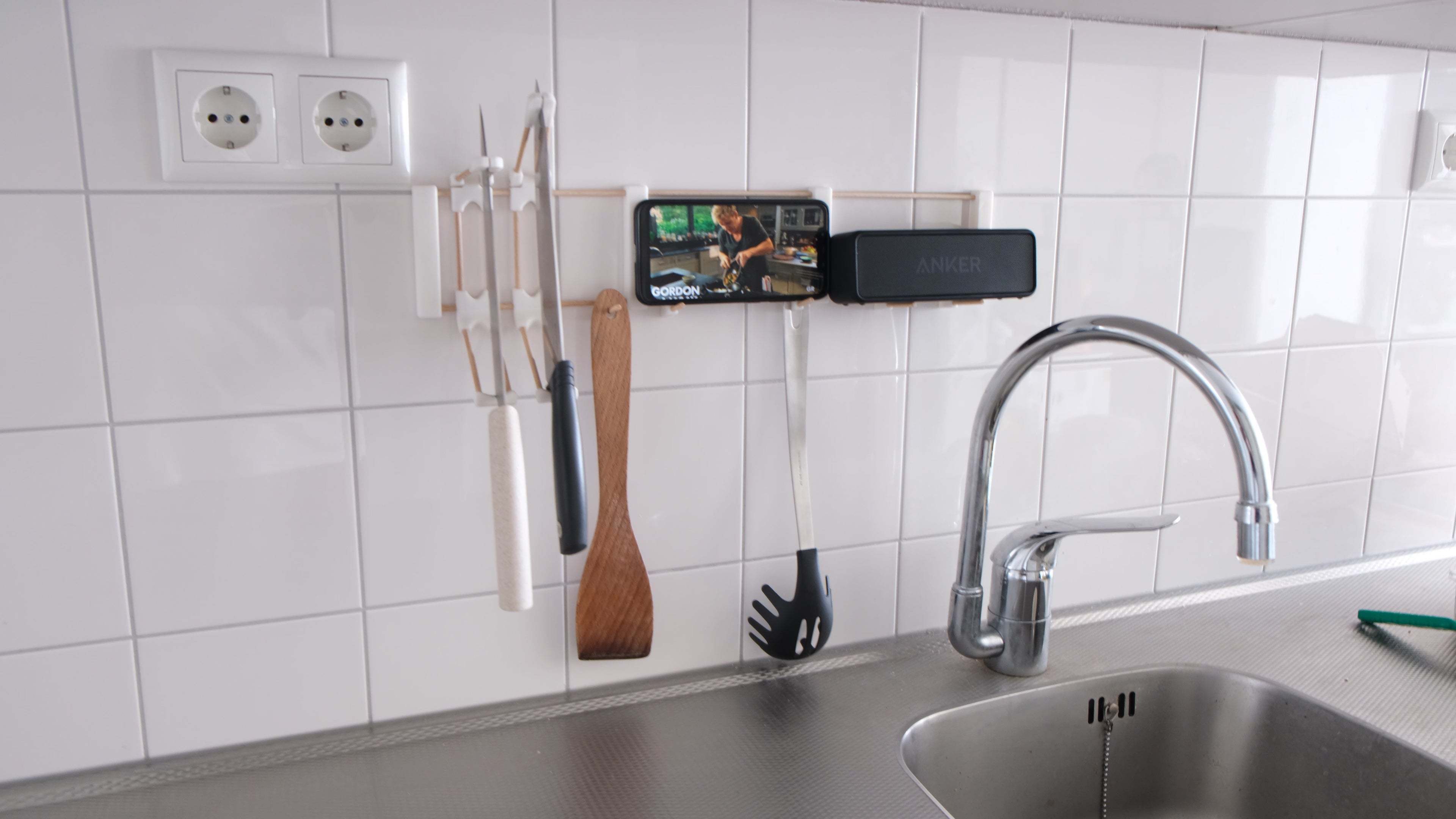

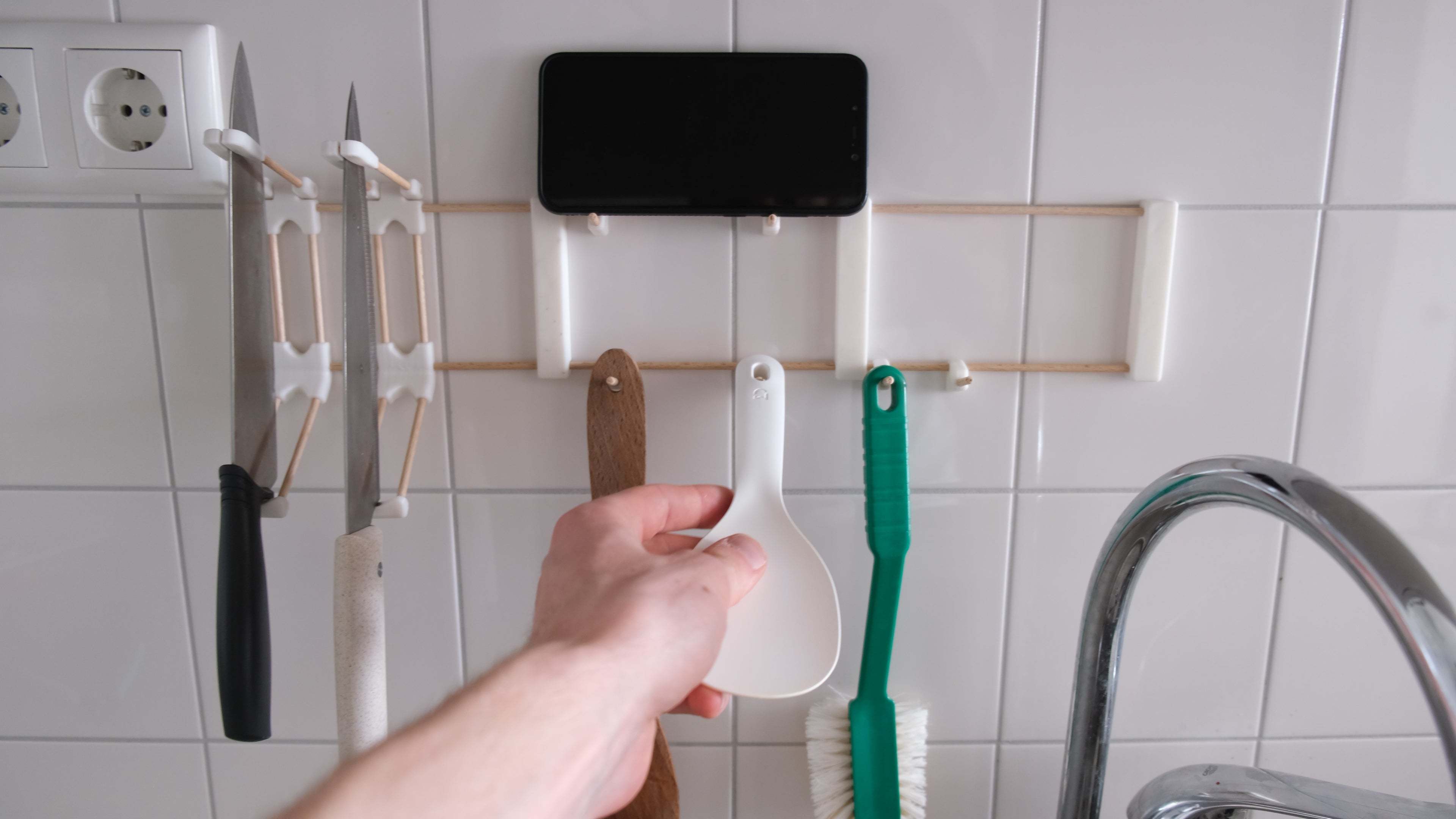

Kitchen Rail
:still():format(webp)/https://files.cults3d.com/uploaders/13593235/illustration-file/c3d77d23-3384-4ca8-920f-2bf34f18ad86/DSCF4047.MOV.15_49_17_06.Still001.jpg)
/https://preview3d-images.cults3d.com/variants/u3xws1fwgufkaeybc4uxheu913ta/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/9sfvr9xaomwa77zl77xnu6i5t6he/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/70odgs106gez2ba9538ratgb1157/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/zp111hec8hopgx5upt0ocng0ou8e/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/beuodp8lo5adkfqemv587r4q5lyu/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/7aslmgyxkcz44pm1u983uvpec4yd/2c25dfac9c0c4b3fee1a07527bd1c6bb2fb599b319b4e1ae3ef1d256f7781447)
/https://preview3d-images.cults3d.com/variants/cysfgxvqn1lgx8tirzqfiv0vch7b/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/v534u6otd6zc3o8gzochzugp44aw/2c25dfac9c0c4b3fee1a07527bd1c6bb2fb599b319b4e1ae3ef1d256f7781447)
/https://preview3d-images.cults3d.com/variants/lvgc88yopieajnvrmzsd69a3cxgw/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
/https://preview3d-images.cults3d.com/variants/mv9i75ff06s2g2k8ts8etnwt6m2n/2c25dfac9c0c4b3fee1a07527bd1c6bb2fb599b319b4e1ae3ef1d256f7781447)
/https://preview3d-images.cults3d.com/variants/7udo2vjsjvoiegn6kpf6eks6hxou/9ce1a1278a90847fe525f7bdea66ae6081035e320afa813bf6efbbbe4c5d9f85)
?
Creation quality:
5.0/5
(2 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 4k views
- 20 likes
- 63 downloads
- <span class="text--light">0</span> comments
- <span class="text--light">0</span> makes
Designer
3D model description
https://www.youtube.com/watch?v=UAJVKKDuXMw

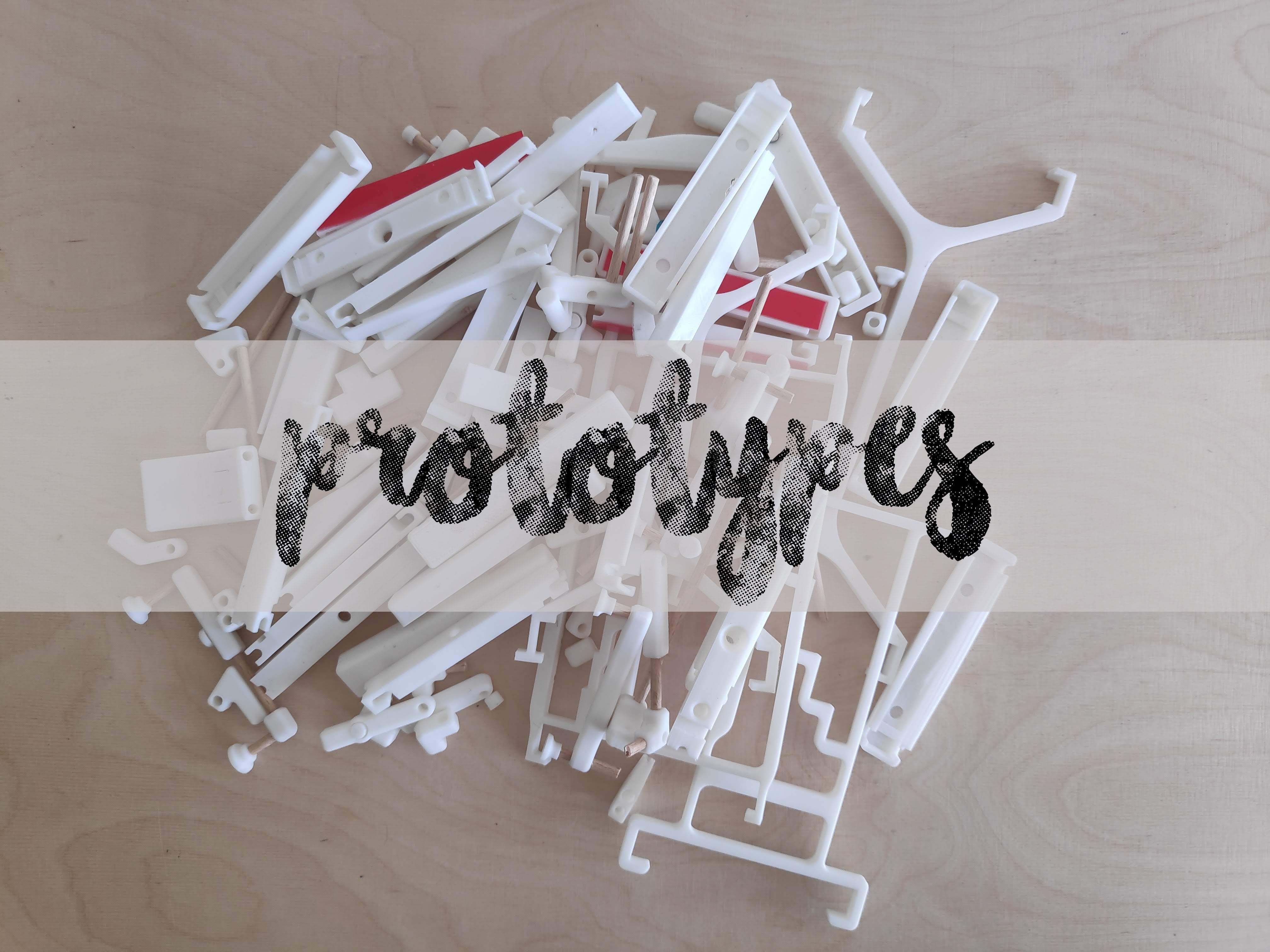

I poured a huge amount of time into simplifying as well as improving every detail of this design. If anything is unclear please let me know !
The helper tool is just a supportive tool when assembling the design as well as mounting the parts on the wall.
How to print it:
20% infill, 3 Parameters, no supports
What you need to build this:
neodymium magnets (diameter = 5mm, height 2.5mm)
strong doublesided tape like 3M tape or doublesided waterproof clear tape that you get on aliexpress. otherwise you can also screw the rail mounts into the wall.
wood rods (4mm diameter)
Lengths of wood rods for knife holder:
14mm
28mm
55mm x2
72mm x2
85mm x2
The lengh of the hook depends on the usage, so does the lenght of the two main rail rods.
Thanks Cedric for great help in this project!
3D printer file information
- Design number: 137117
-
3D design format: STL Folder details Close
- Arm_Hinge_knife_mount.stl
- Arm_No_Magnet_knife_mount.stl
- Arm_With_Magnet_knife_mount.stl
- ENTIRE_KNIFE_MOUNT.stl
- HELPER.stl
- HOOK.stl
- Lower_arm_knife_mount.stl
- Main_Lower_Part_knife_mount.stl
- Main_Upper_Part_knife_mount.stl
- WALL_MOUNT.stl
- WALL_MOUNT_COVER.stl
- Last update: 2020-04-27 at 10:46
-
Publication date:
2020-04-20 at 13:31
?
Published to Thingiverse on: 2020-04-19 at 12:52
