Khinkalimaker

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.5k views
  • 5 likes
  • 7 downloads

3D model description

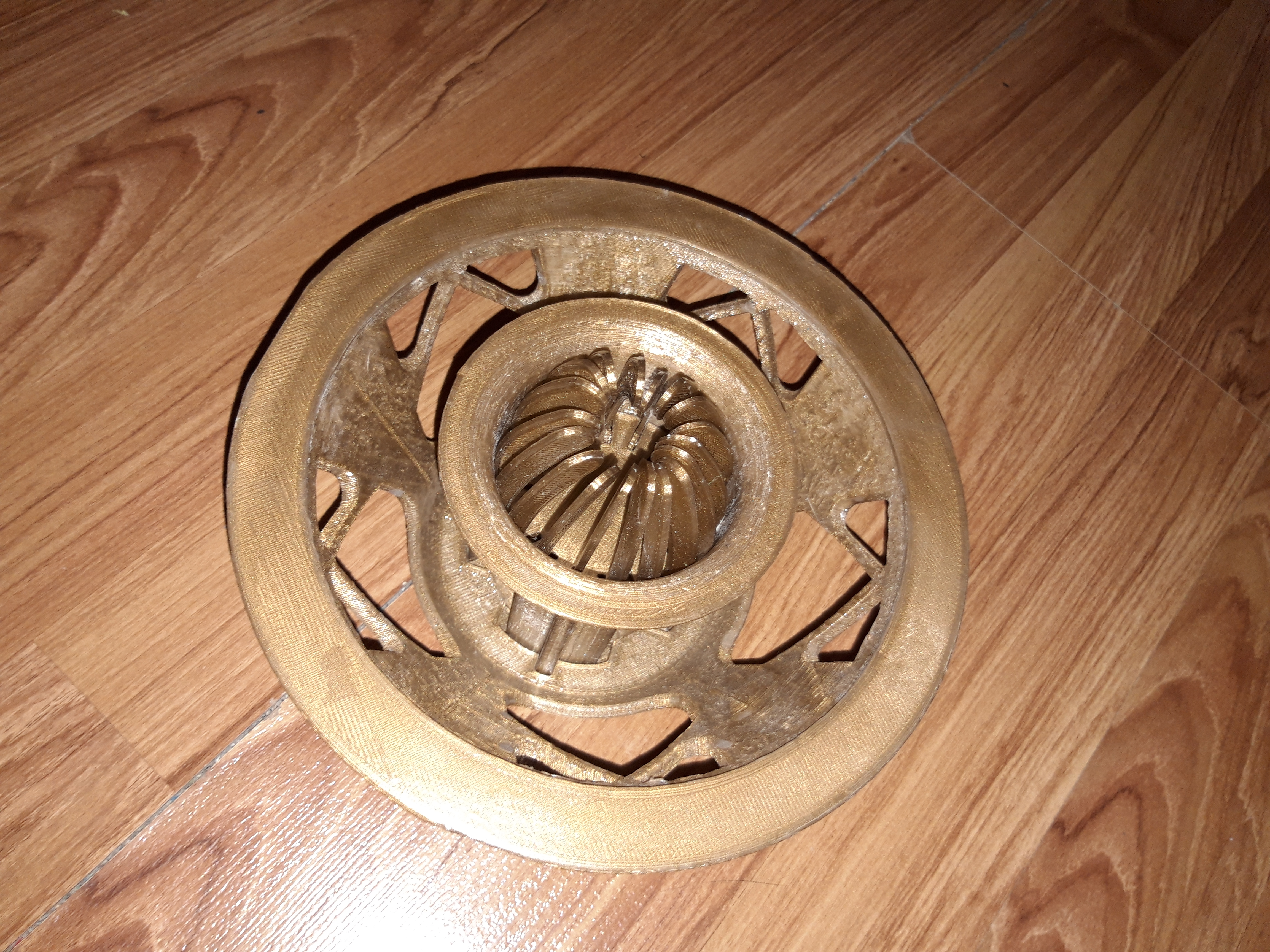

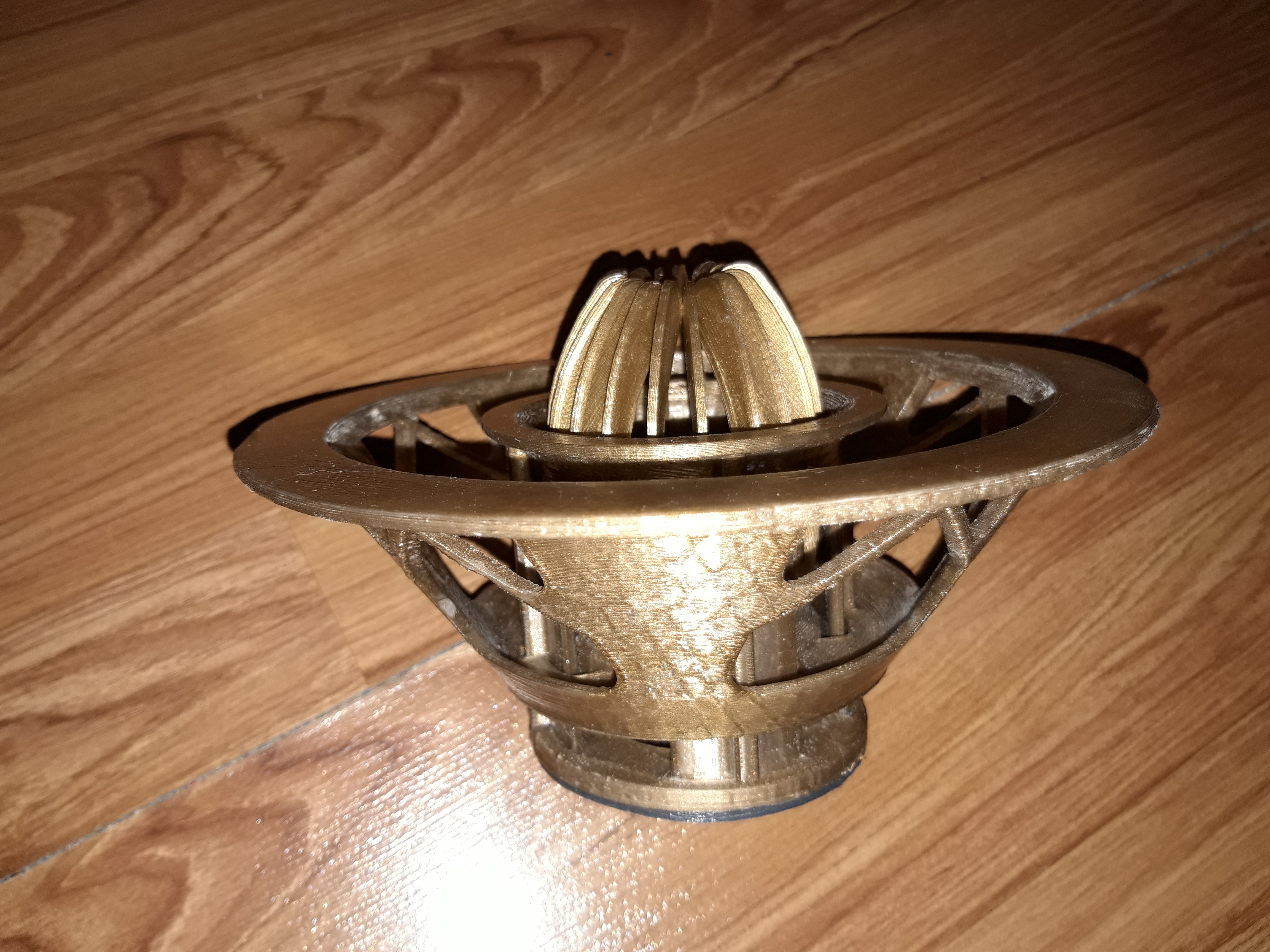

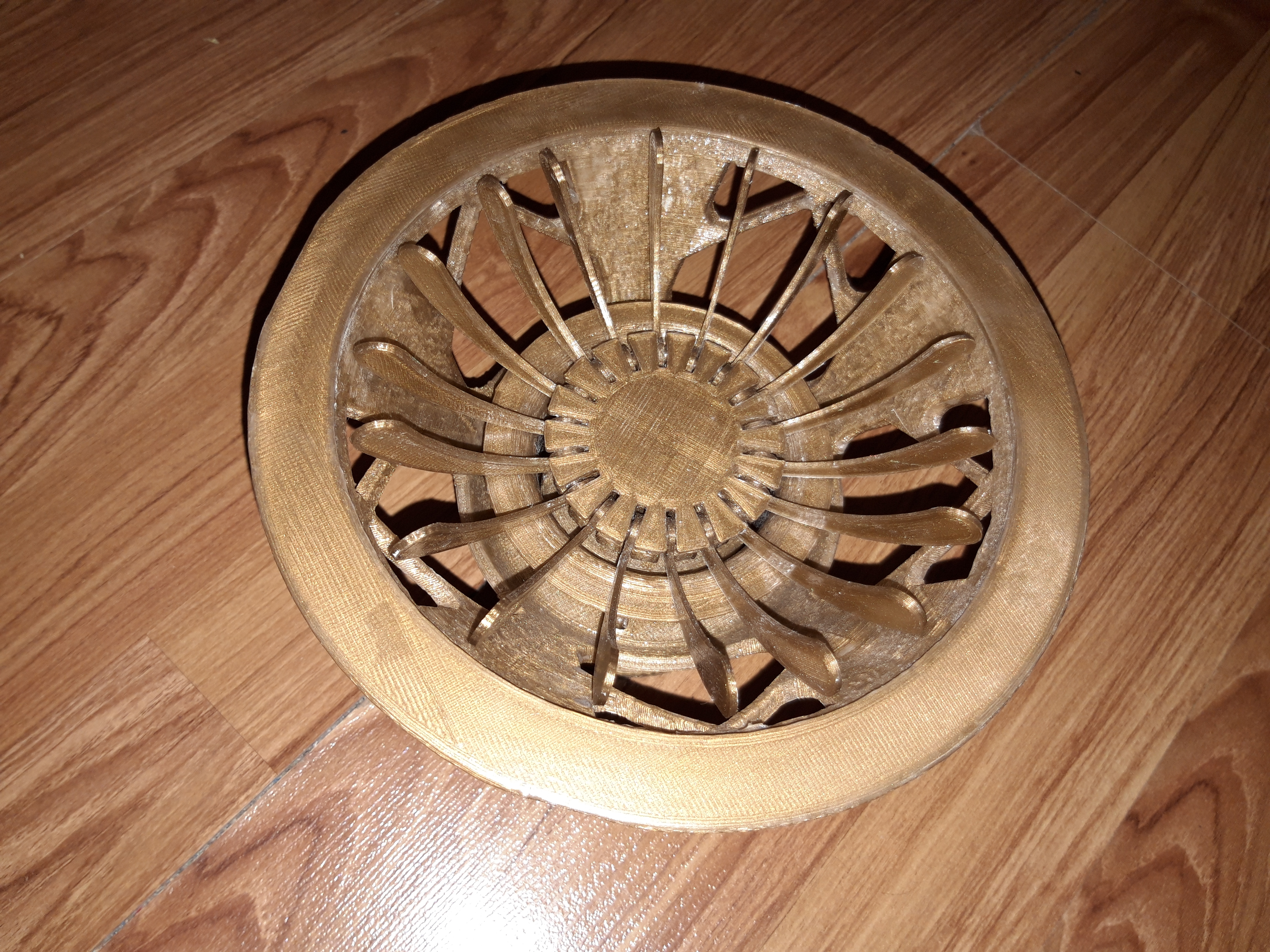

Device for making khinkali It allows you to speed up the cooking process.

Assembly:
1 connect "Noj1" and "Axis"
2 Collect all "Noj1" around "Center" and connect with a rubber ring.
3 Paste "Press" into "Base"
4 Stick the "Bottom" to the "Press" in the corresponding grooves.
5 Stick "Disk" to "Base"
6 Insert the nut M5 in the hole "Center"
7 Connect the "Center" with the "Press" using an M2x25 bolt and washer
8 Paste on "Bottom" "Prokladka" (optional step)

"Prokladka" print from a rubber-like thread. It is not required.

Cooking khinkali:
Raise "Base" up to reveal "Noj1"
Place a dough roll of 16–17 cm in diameter on top.
Put the stuffing in the center
Click on the edges of "Disk" to "Noj1" closed
Remove excess dough and pinch it.
Raise "Disk"
Khinkali is ready. You can cook :)

  • 3D file format: ZIP
  • Last update: 2020/05/28 at 19:45
  • Publication date: 2019/05/28 at 11:19

Tags

Creator

Designs 14
Downloads 223
Sales US$87
Followers 5

Copyright

©


Best sellers of the category Home


Add a comment

3 comments

I swiched it, didn’t see there a big detail that should stick to the disk. Maybe the disk itself needs to be reduced? Or increase the base itself?

If you switch to 3D mode, there will be 4 photos

Where is the "base" which is on photo?
