John Deere AM102487 Plug With Strap 425 445 etc

Download free STL file John Deere AM102487 Plug With Strap 425 445 etc • 3D printing model, mforryDownload free STL file John Deere AM102487 Plug With Strap 425 445 etc • 3D printing model, mforry
Download free STL file John Deere AM102487 Plug With Strap 425 445 etc • 3D printing model, mforry

Did you 3D print this model?

3D model description

PRINT IN TPU - this needs to be flexible.

I printed at .12 layer height, 30mms with 25% gyroid infill and it took about 1hr30min each using about 6g of filament.

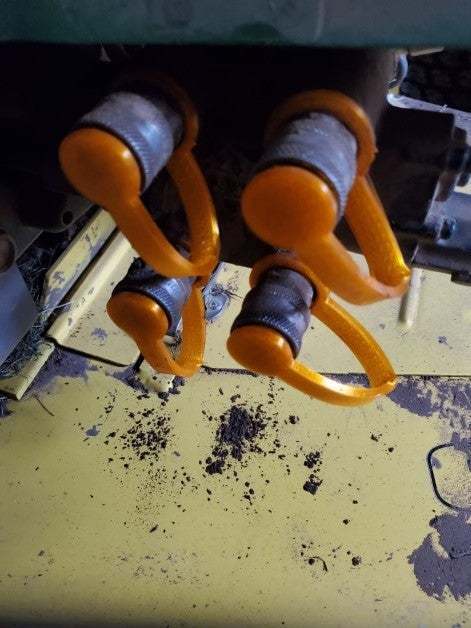

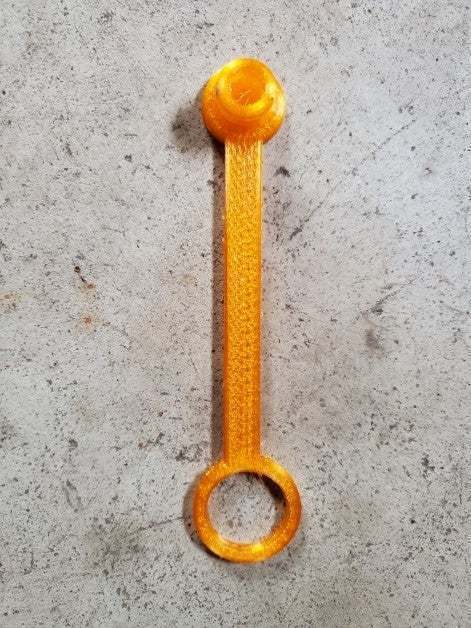

Just a remix to add the strap so if the plug comes out it will stay on the mower. I also resized the end a bit to make it fit better (at least on my 425). These fit the AM102487 hydraulic fitting on my 425 and should fit 445 and any others that use those fittings.

I may have been able to make the strap a bit shorter as it kinks a little but I have not noticed any problems so far. I fit the strap over the entire connector without removing the connector but you really have to force it. Decent TPU should be able to handle that no problem.

I would like to get the cap side done also in the future. I will post as a new thing rather than adding to this one to make sure any followers will see it.

Tips are really appreciated!

  • 3D file format: STL
  • 3D model size: X 152 × Y 33.3 × Z 15.8 mm
