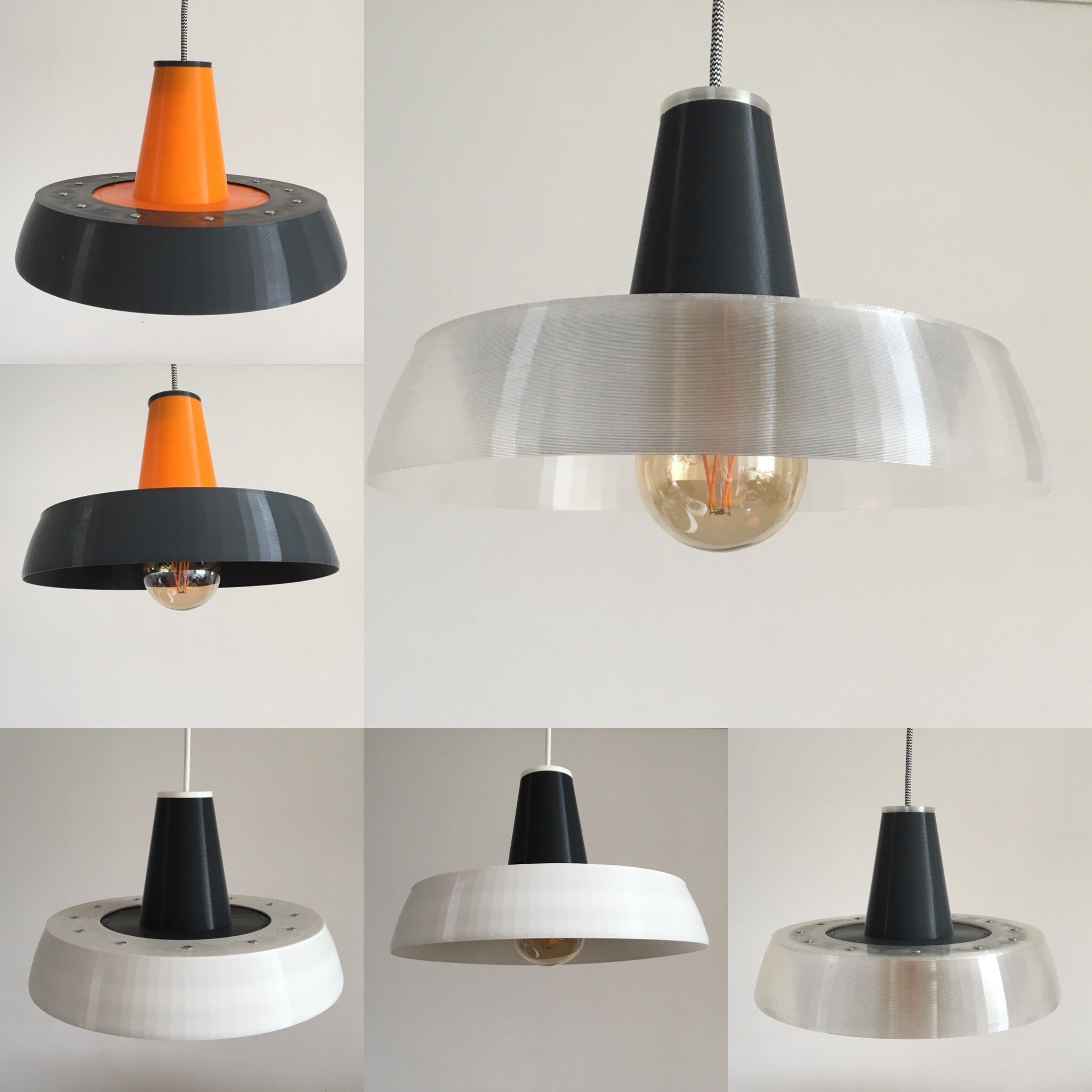

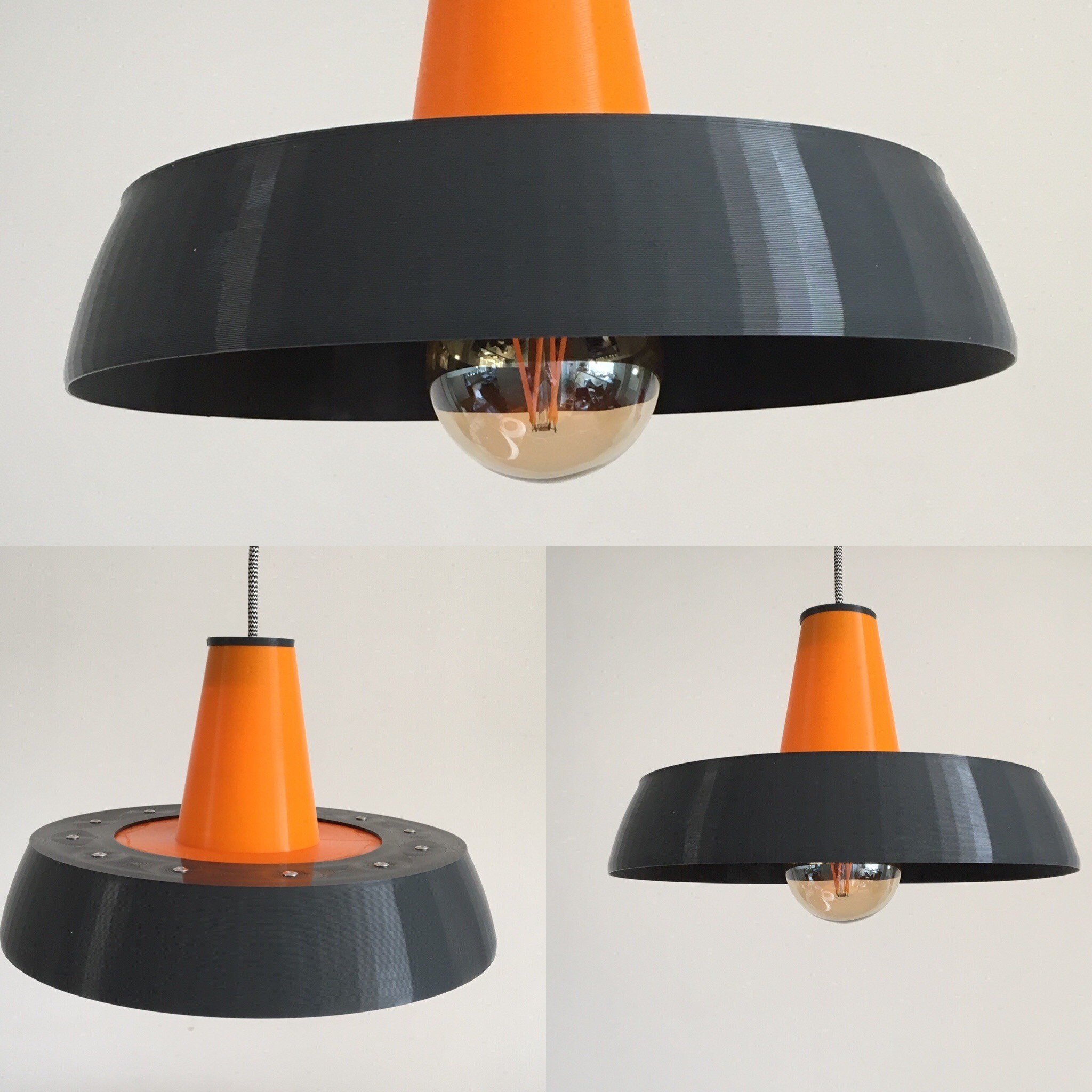

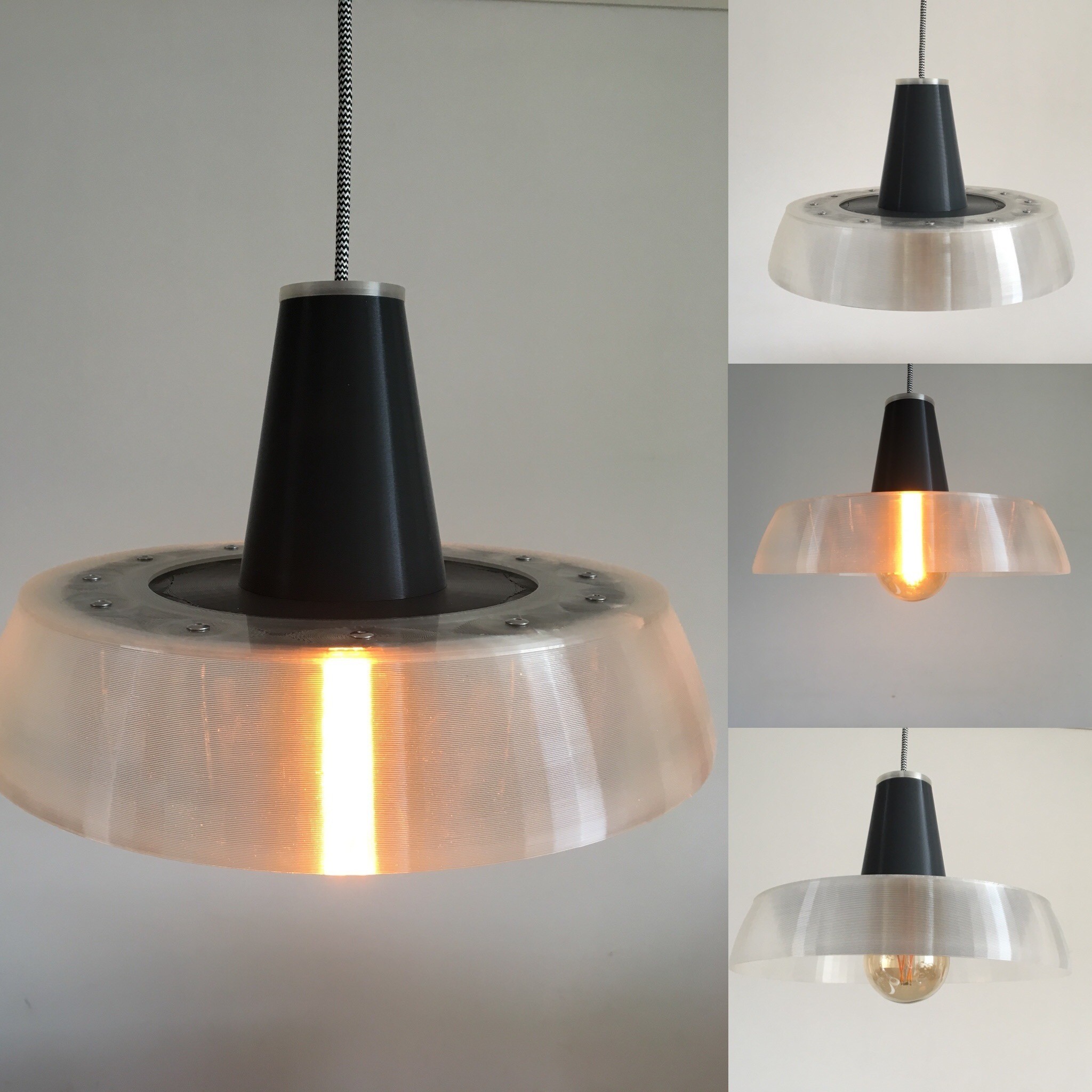

industrial lamp

industrial lamp

easy to print on a 400x400x400 printer

print and assemble it by using the printing detsails.

this is an design of by ctrl design and is protected by copyright

you can print it but not sell it.

​

Printsettings are based on a 400x400x400 print build.

With a nozlle of ,8 mm and a layer height of 0,6 mm

there are 4 parts to print. the parts 1 and 2 are conneted by pop rivets 4,8 length 8mm

settings:

part 1;

top layers 0

bottom layers 4

print it as an corkscrew or vace print.

part 2;

top layers 0

bottom layers 4

print it as an corkscrew or vace print.

part 3;

top layers 0

bottom layers 7

print it as an corkscrew or vace print.

part 4;

top layers 0

bottom layers 10

print it as an corkscrew or vace print.

part 1 and 2 are connected by pop rivets 4,8 length 8mm

part 3 holds the E27 fitting and slides in to part 1

part 4 is the cap on top

enjoy printing
​
