Ikea Tertial Lamp Headrest foot and phone mount adapter

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 527 views
  • 1 like
  • 5 downloads

3D model description

Design Goals:
I had an old Ikea Tertial lamp with dents and stuff AND
I wanted a way to watch youtube in my bed.
It had to be very sturdy too. The extended arm is actually a lever.
Approach:

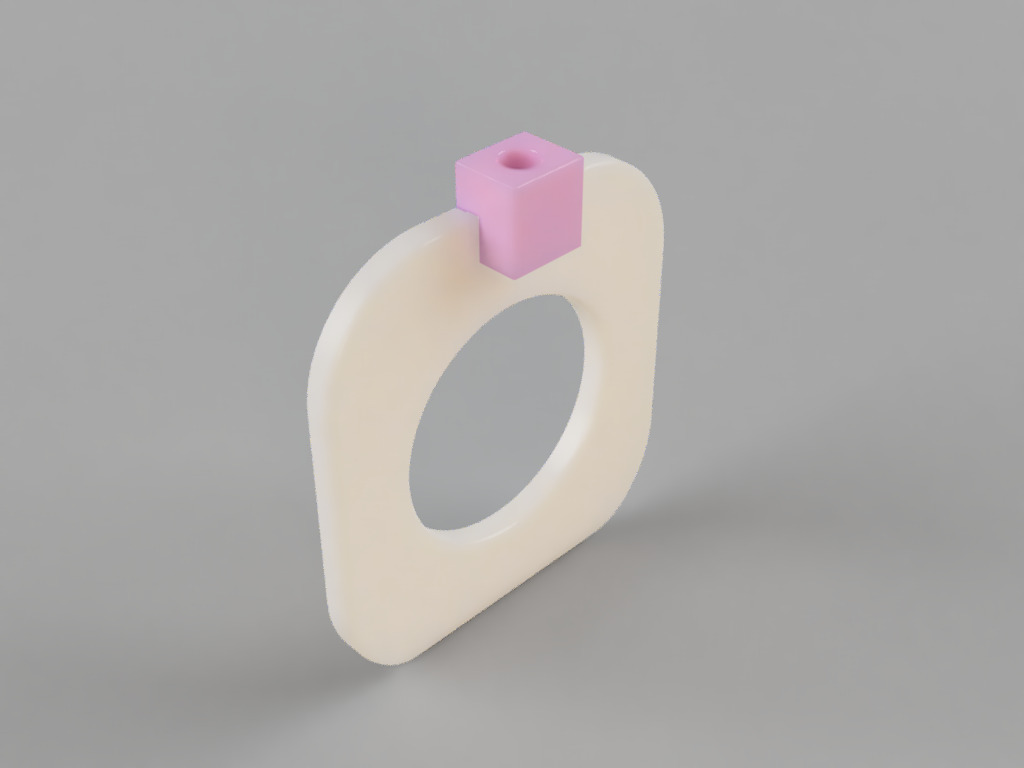

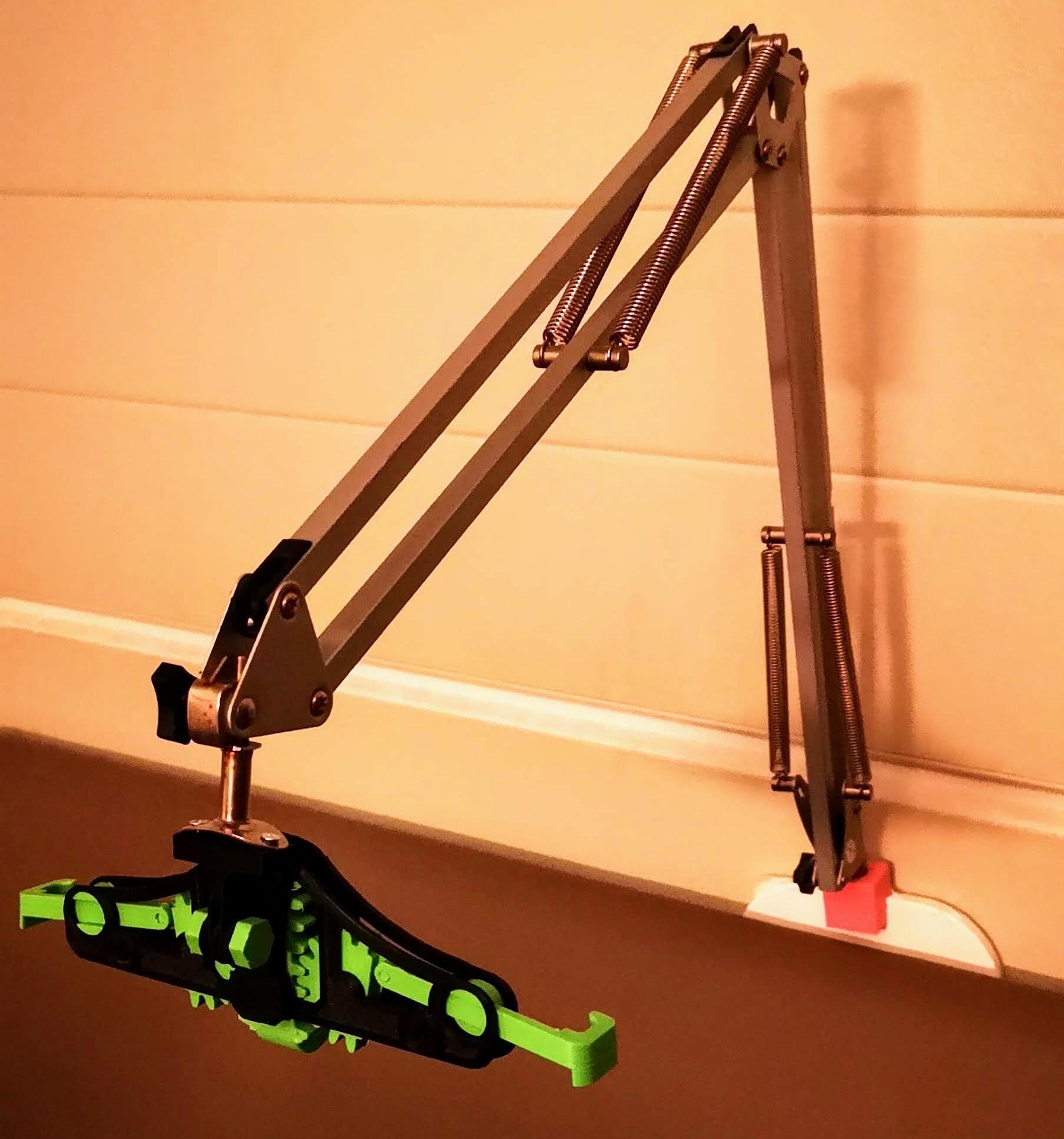

So, I designed a foot to jam between the headboard and the wall, with a block to put the lamp in.

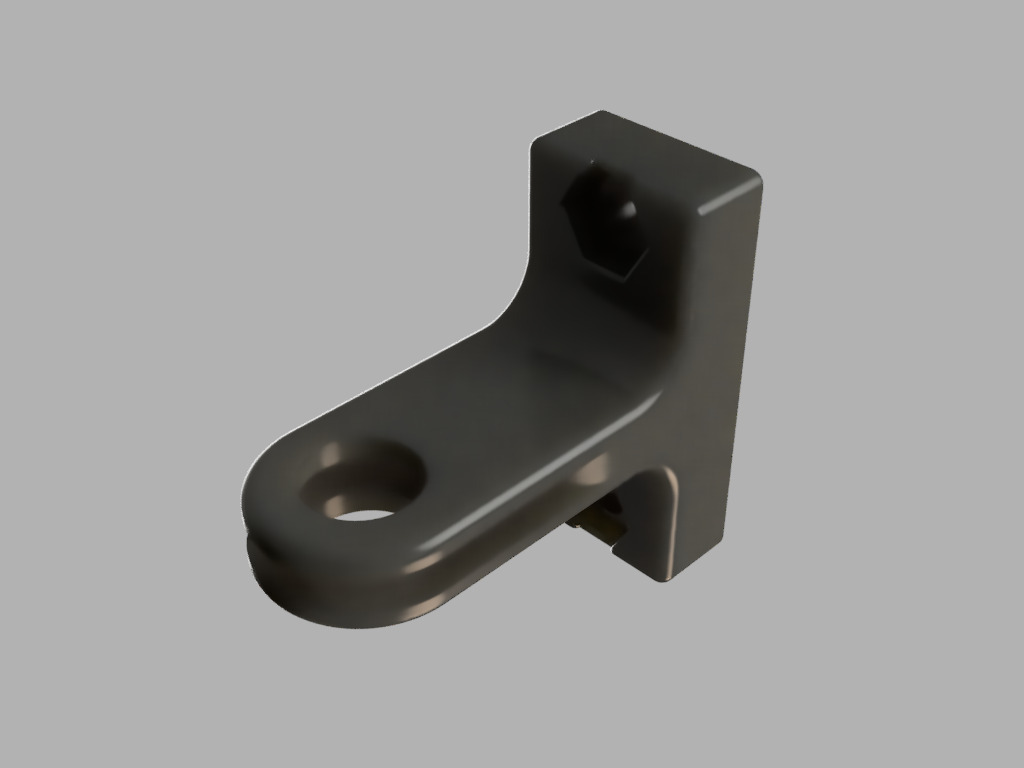

Then, I made a custom adapter for the phone stand by Arron_mollet22 to fit where the actual lampholder was.

Bring your own:
- An Ikea Tertial Lamp
- It uses 2 M3x16mm bolts and nuts.

This is a remix from https://www.thingiverse.com/thing:398515

Notes:

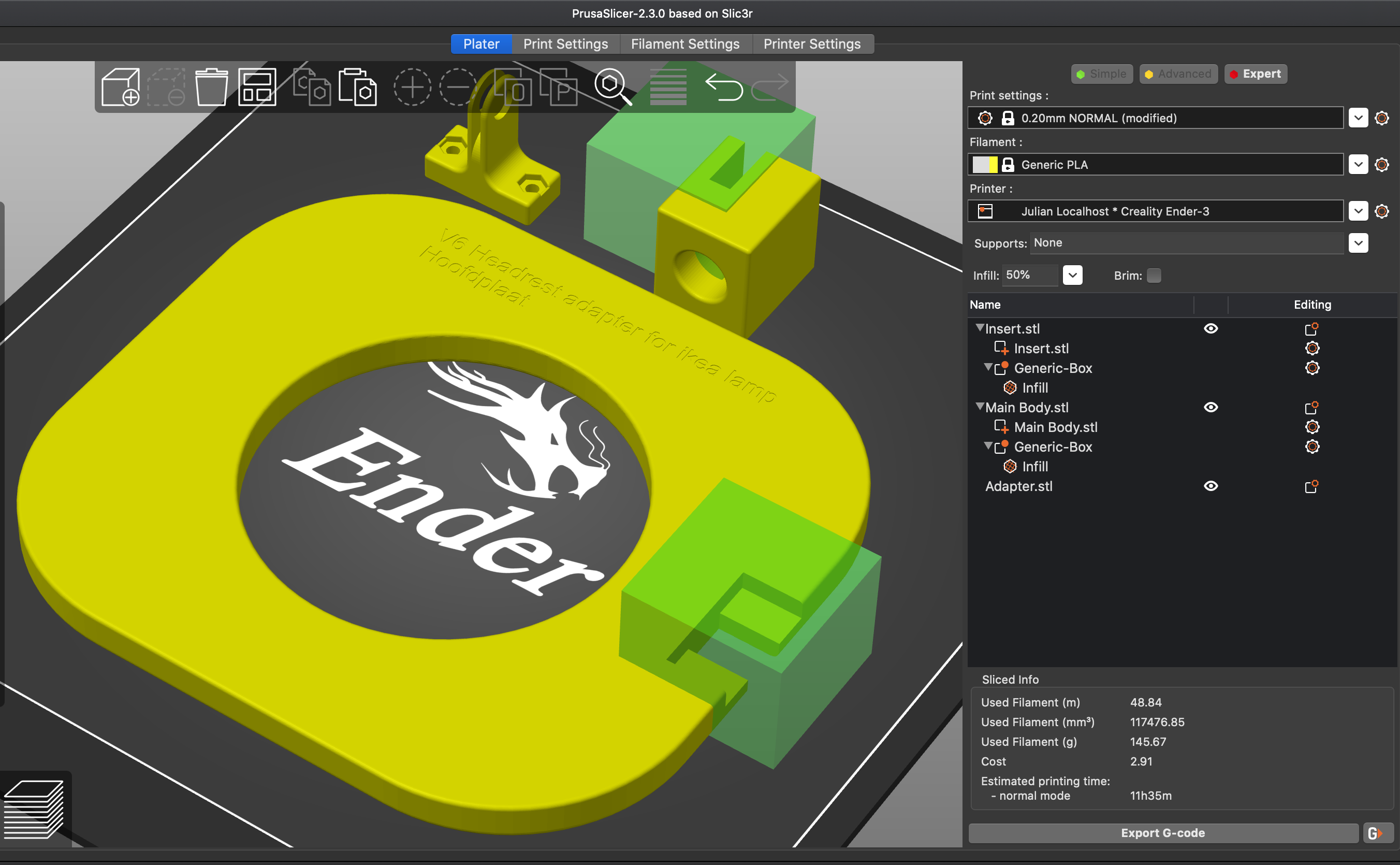

I used PrusaSlicer and put a modifier in it to make the key strain portions 100% infill. Look at the screenshot in the PDF file or open the .3MF file directly in PrusaSlicer.

Lay the insert block on the side for maximum strength. (See screenshot)

Discussion on Reddit:
https://www.reddit.com/r/3Dprinting/comments/l76rui/ikea_lamp_headrest_foot_and_phone_mount_adapter/


3D printing settings

Rafts:
No

Supports:
No

Resolution:
0.2

Infill:
50% + Modifiers blocks at 100%

Filament brand:
Prusament

Filament color:
Grey

Filament material:
PLA or PETG

3D printer file information

  • 3D design format: 3MF, PDF, and STL Folder details Close
    • Adapter.stl
    • All pieces with modifiers.3mf
    • Insert.stl
    • Main Body.stl
    • PrusaSlicer Screenshot.pdf

    Learn more about the formats

  • Last update: 2021/02/03 at 19:55
  • Publication date: 2021/02/02 at 12:00

License

CC BY NC
