ICOSALIGHT

?
Creation's quality: 4.9/5 (5 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 18.2k views
  • 139 likes
  • 12 downloads

3D model description

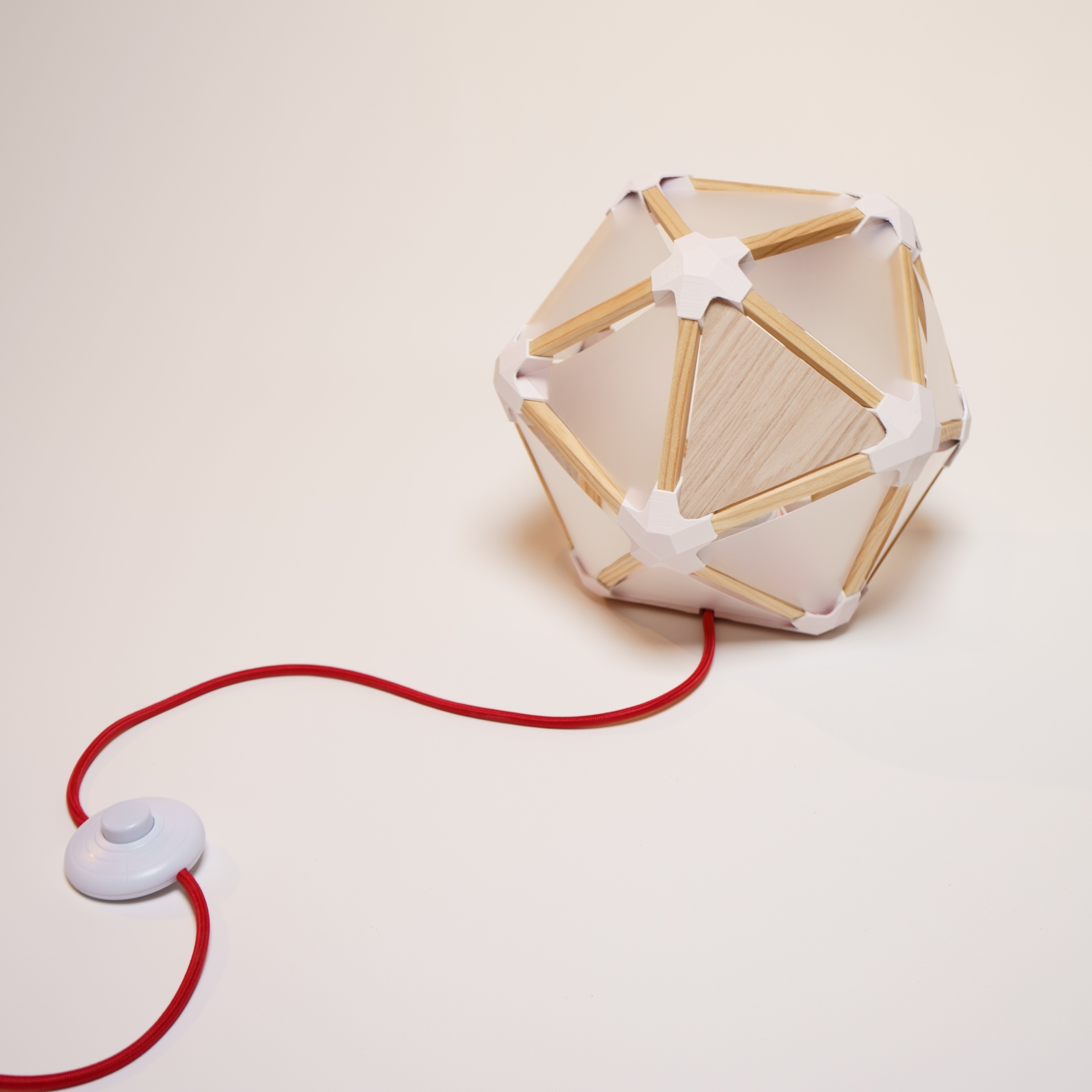

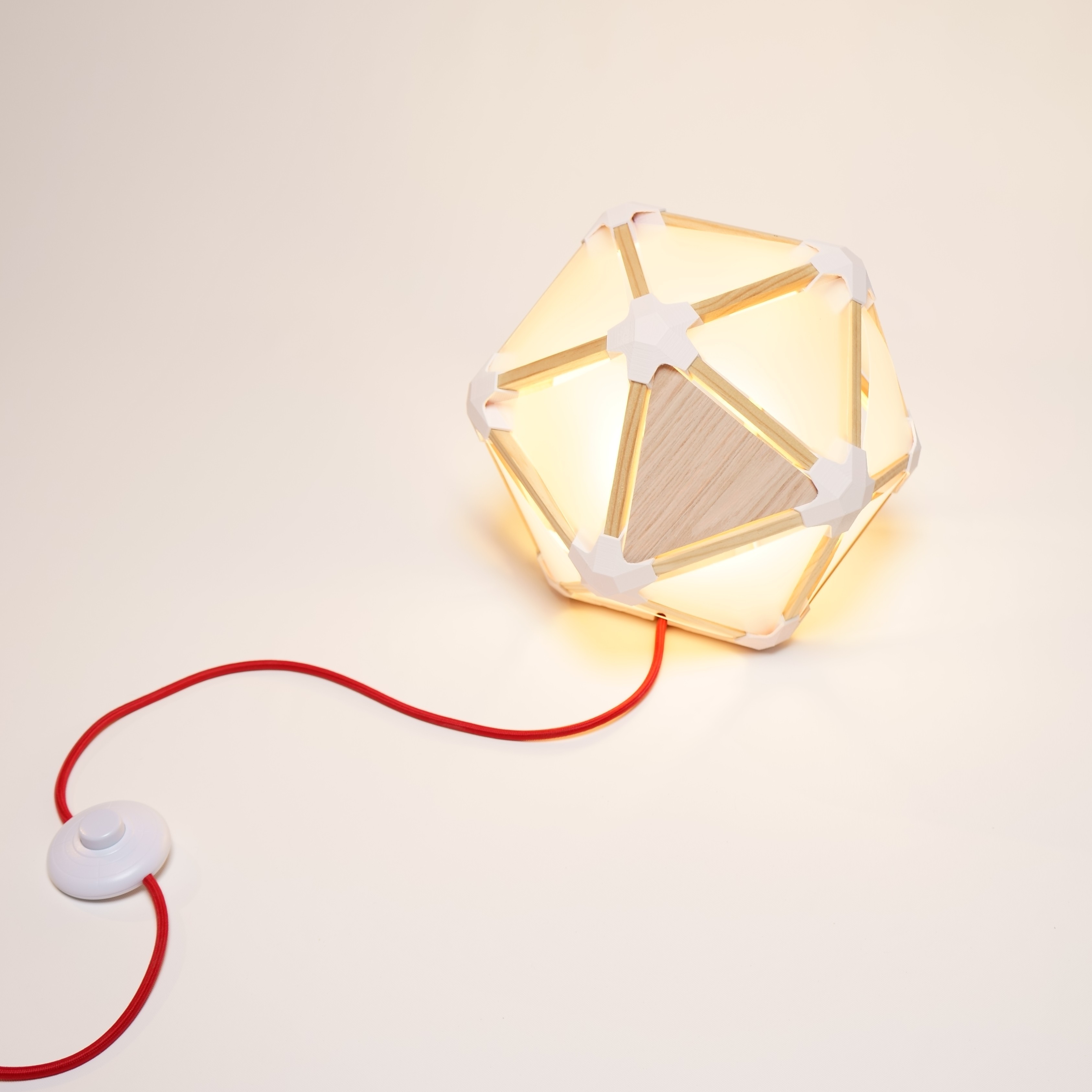

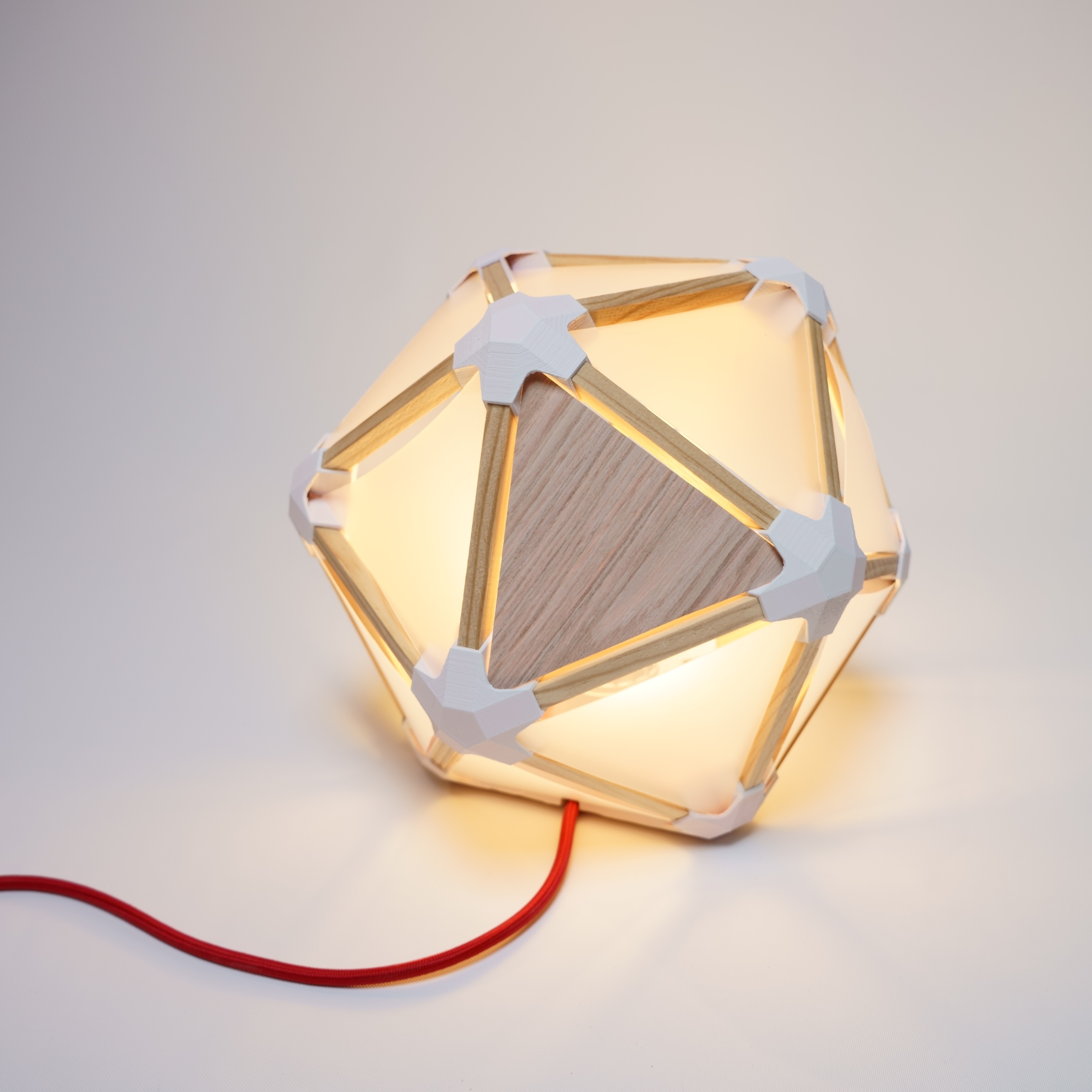

The ICOSALIGHT lamp is based on the geometry of an icosahedron. It is created from a base that directly integrates the socket holder, and connectors that allow the complete assembly of the lamp.

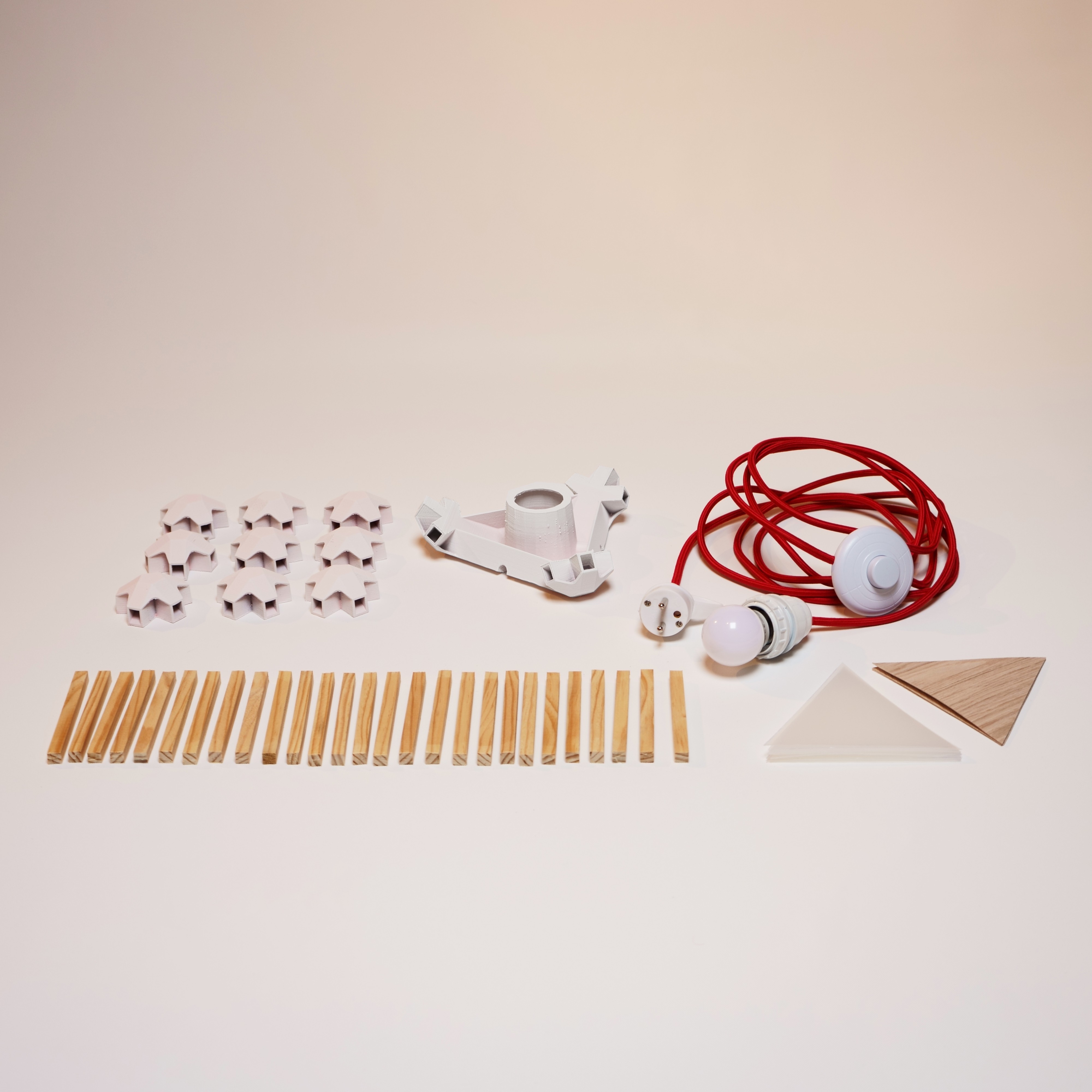

The complete assembly requires 27 strips of 9x9mm cross-section by 110mm long, 9 assembly connectors, a base, an E27 socket with clamping ring, an LED bulb, wire and an electrical socket.

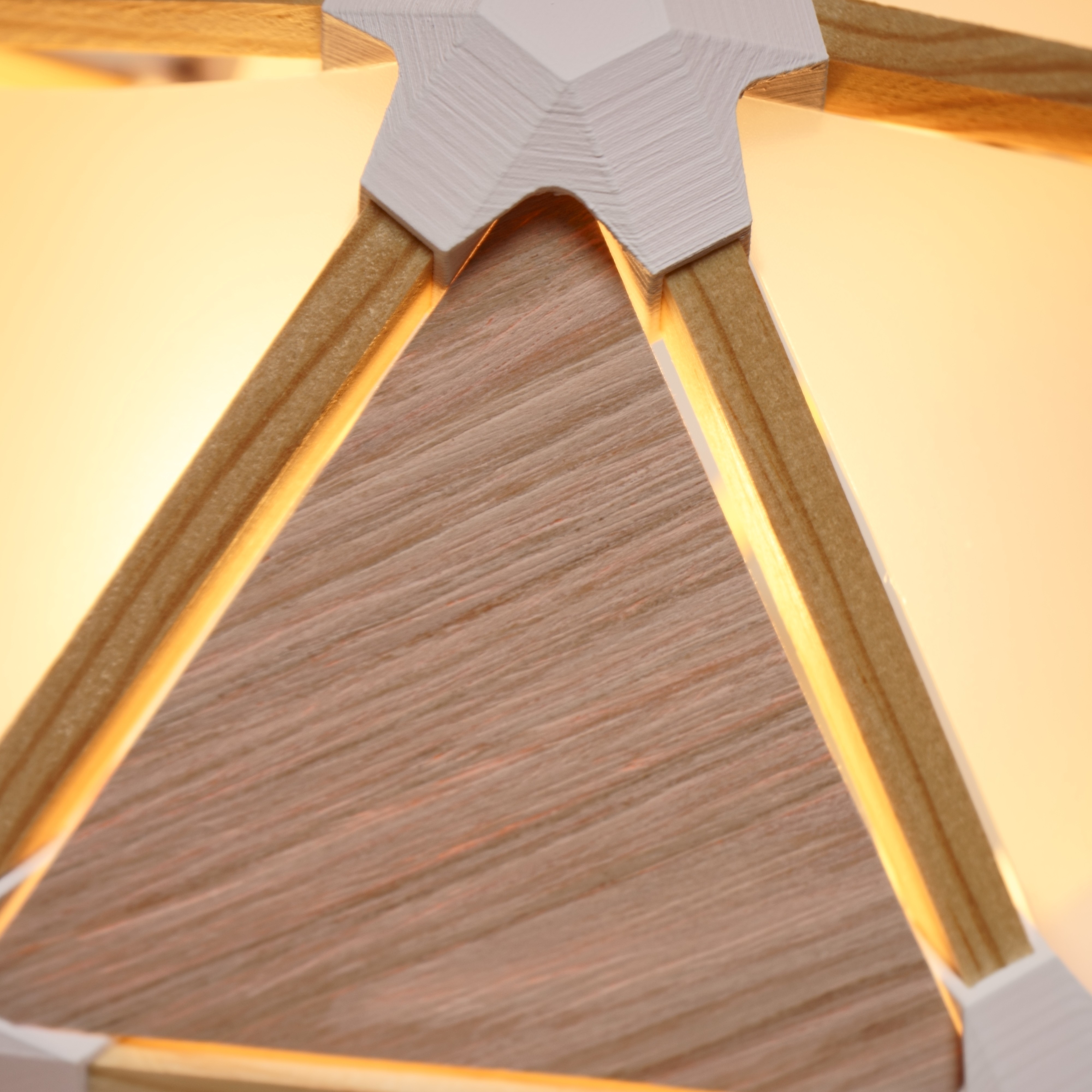

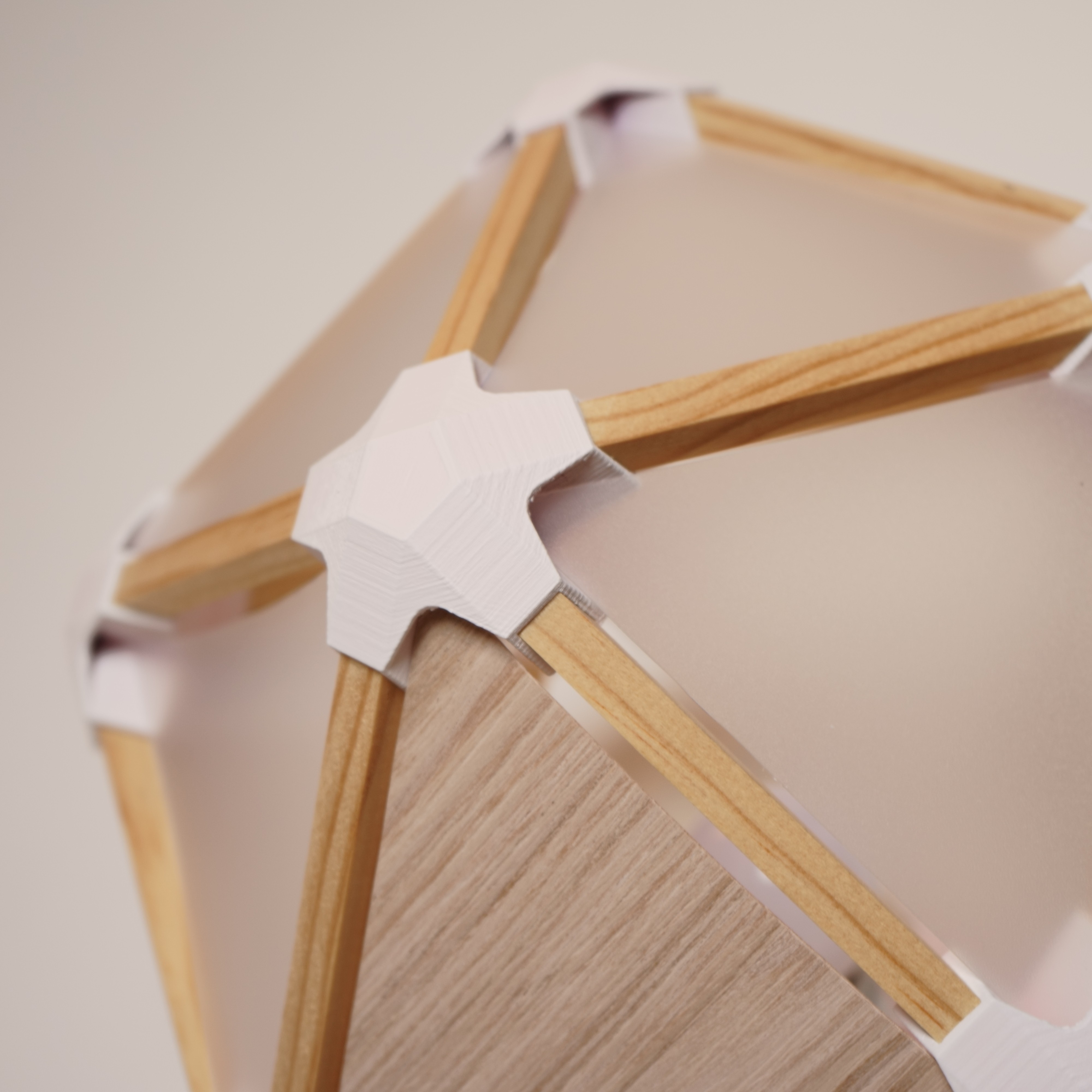

The lamp can remain naked or be covered with decorative triangles. For the example it is presented with 120mm equilateral triangles on each side made of polypropylene sheet and wood veneer.

3D printing settings

PLA printing.

T° : Extruder: 205°c Tray 0°c (not heated)

Accuracy: 0.15 mm

Filling: 20%.

Wall thickness: 2 mm

Provide media for printing

Dimensions : (values rounded to the whole).

Printing times are given as an indication and are rounded (depending on the cleaning of the part etc.)

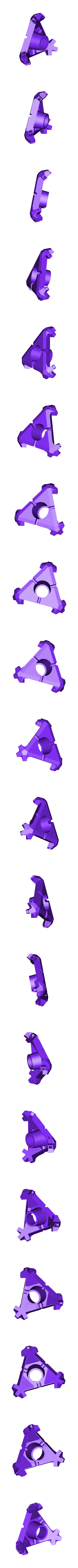

BASE: 170 X 170 X 170 X 51 mm - 8 H of printing

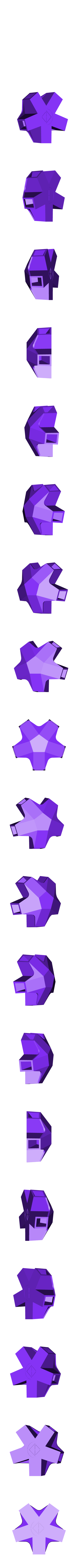

CONNECTOR (x9): 56 X 56 X 28 mm - 1 H 30 printing time

  • 3D file format: STL
  • Last update: 2019/03/31 at 22:39
  • Publication date: 2019/03/24 at 22:28

Copyright

©

Creator

Designs 9
Downloads 1.3k
Sales US$195
Followers 113

Ingénieur, Designer, Maker
Découvrez l'ensemble de mes créations sur : https://myoo-design.com

Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Best sellers of the category Home


Add a comment

4 comments

Hi, I'm afraid I cannot buy 9x9mm mouldings in my country. Are the holes in the connectors parametric by any chance? I can only get 12x12mm square, 8mm round or 10mm round here. Thanks!

Bonjour, super print je vais me lancer là dessus, par contre pour les supports vous pourriez m'en dire plus. Merci

Absolutely! Nevertheless you have to pay attention to the hole of the lamp socket to be sure that this one is at the right diameter. I can redesign some pieces if necessary to adjust the size of the lamp. Thanks a lot !

Is it possible to print it bigger ? I love it !!! Thanks.
