Hikvision Dome Camera mounts

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 142 views
  • 1 like

3D model description

Model for hikvision camera
Models for hikvision camera mounts

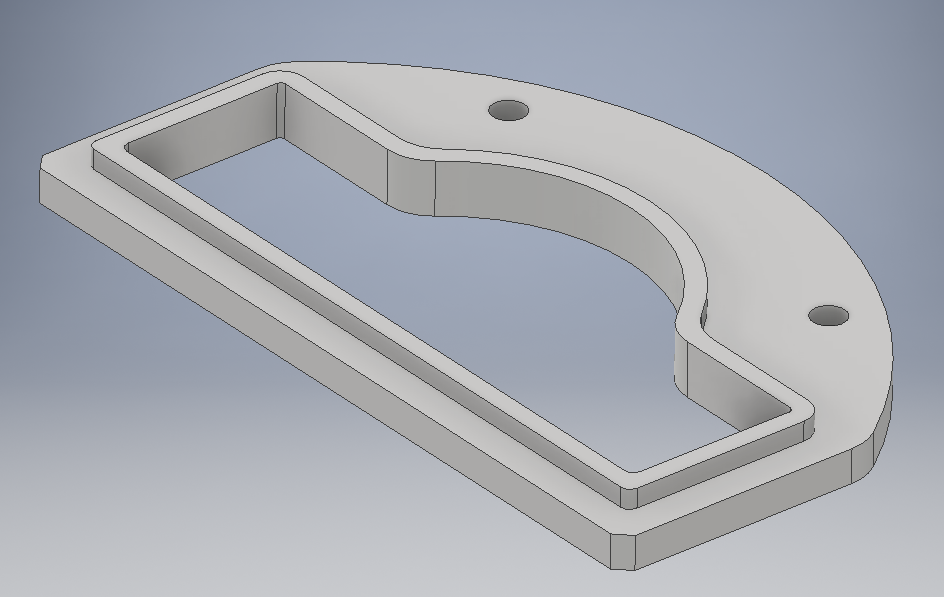

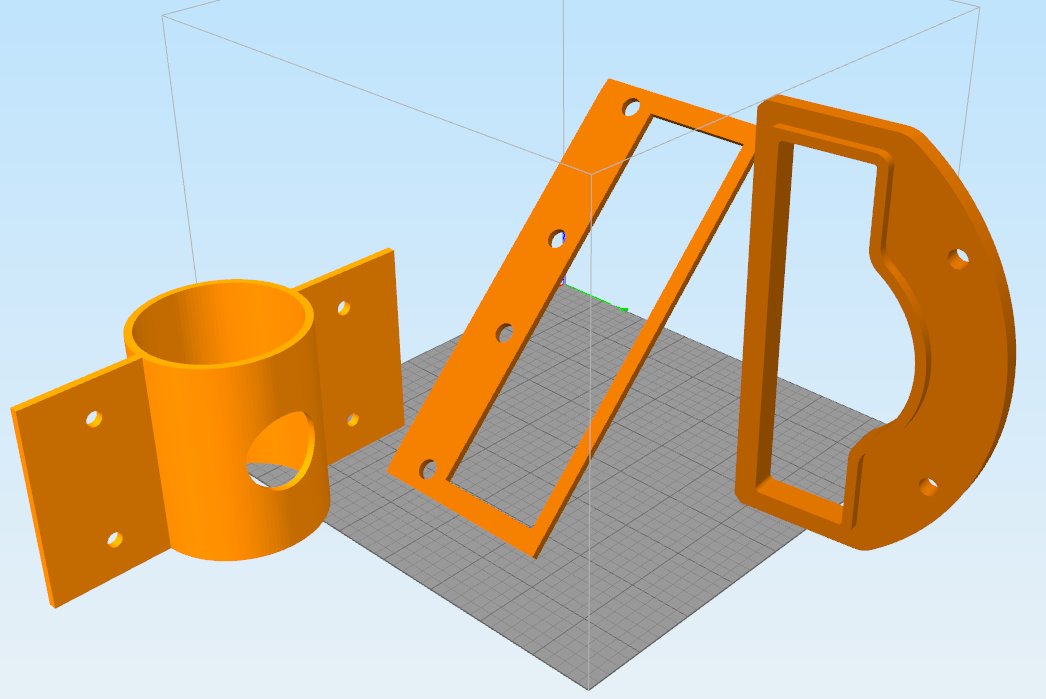

Models for rubber bases for camera mounting

All printable on 200x200x180 beds, with a little rotation and arrangement.

Mount your hikvision dome camera on a house or on a pole.

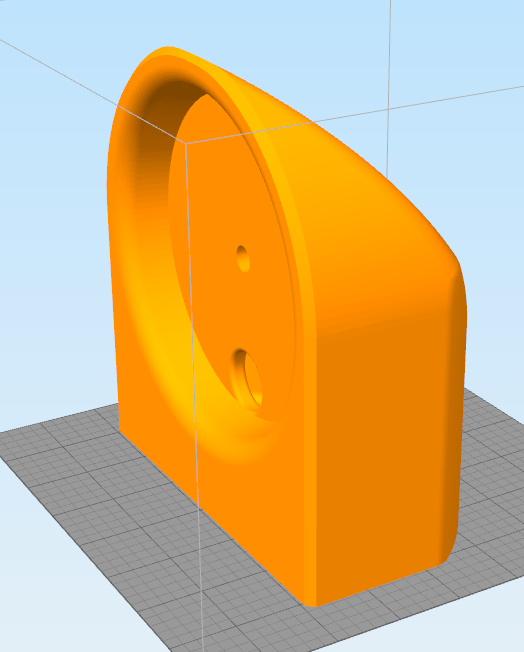

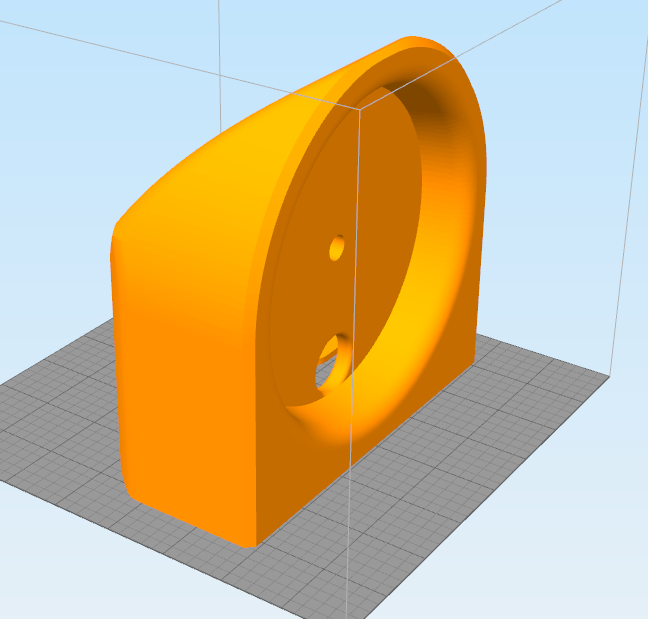

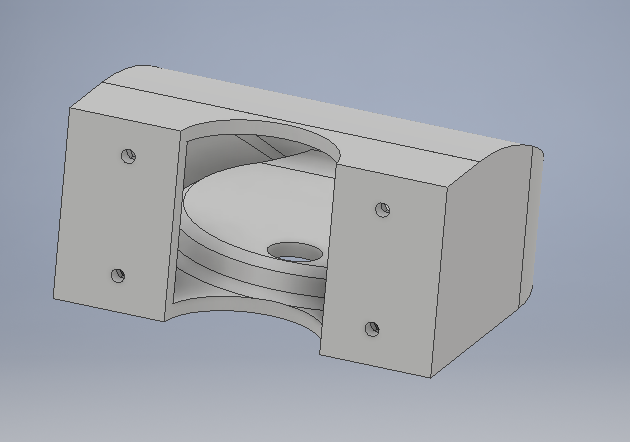

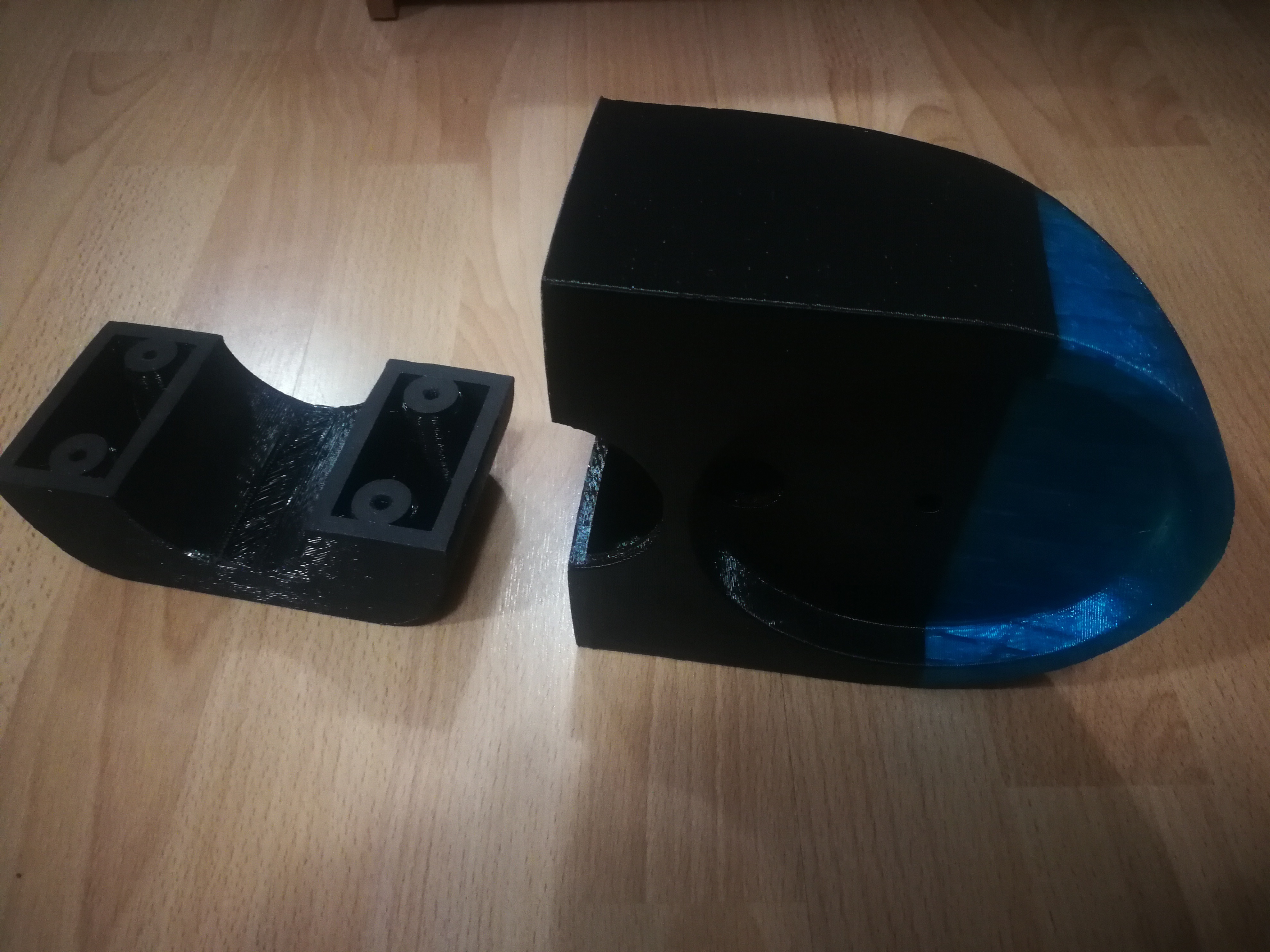

Angular mounting, straight mount and pole mount with 6cm pole external diameter.

for camera: DS-2DE2A404IW-DE3

Taking into consideration:
-Printbed size
-compact
-easy mounting
-cable management
-water flow when raining

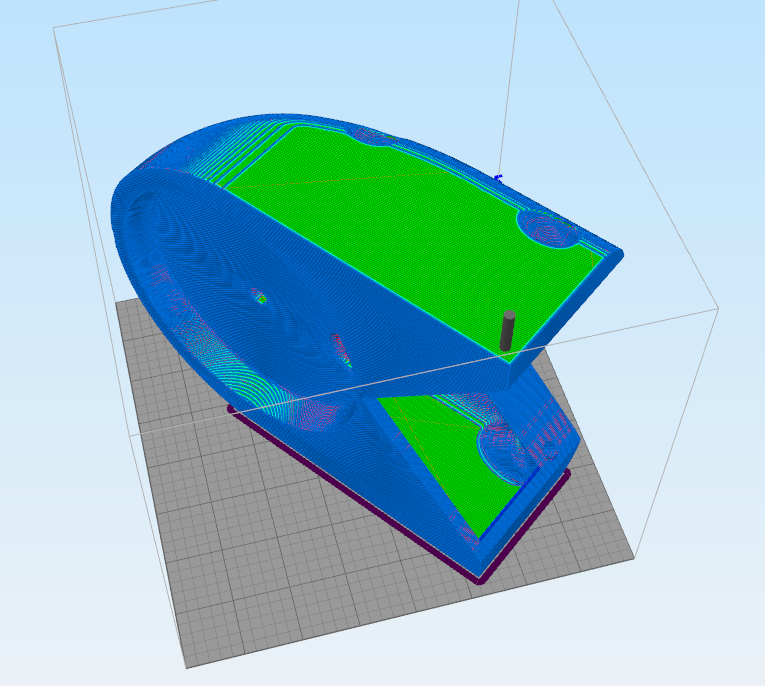

3D printing settings

nozzle: 0.8mm
layer: 0.3333mm
no supports needed
PETG and TPU for models in the weather conditions.

Additional material:
Straight: 2x wall mounting screws and plugs
Pole : 4x M5 nuts and bolts 30mm (insert nuts while printing, can also insert ang glue later, but this was easier)
Angle: 4x wall mounting screws and plugs

Camera inch screw for camera attachment, standard camera screw (pretty sure it does not come with the camera)
-1/4" 20mm

Finish up with 2 coats of plastidip/rubber spray.
Water tightness will depend on your print quality. But I prefer to finish it up with a few coats of plastidip spray in a color that blends it with the surrounding.

  • 3D file format: STL
  • Last update: 2020/12/15 at 20:49
  • Publication date: 2020/12/14 at 19:54
