High Power Garden Solar wall mount light 60x60mm panel

Download free 3D model High Power Garden Solar wall mount light 60x60mm panel, shermlugeDownload free 3D model High Power Garden Solar wall mount light 60x60mm panel, shermlugeDownload free 3D model High Power Garden Solar wall mount light 60x60mm panel, shermlugeDownload free 3D model High Power Garden Solar wall mount light 60x60mm panel, shermlugeDownload free 3D model High Power Garden Solar wall mount light 60x60mm panel, shermluge

Did you 3D print this model?

3D model description

UPDATE 9/12/19:
I recommend using 50x50mm light at https://www.thingiverse.com/thing:3653760 its the one I'm making mods for. https://www.thingiverse.com/thing:3653760

UPDATE 6/8/2019:
Improved STL files, tighter fit for 60x60mm panel and better lid fit and hole mounts.

UPDATE 5/25/2019:
I've designed a thinner version for the 50x50mm (because the 50mm panels are cheaper and easier to get).
https://www.thingiverse.com/thing:3653760

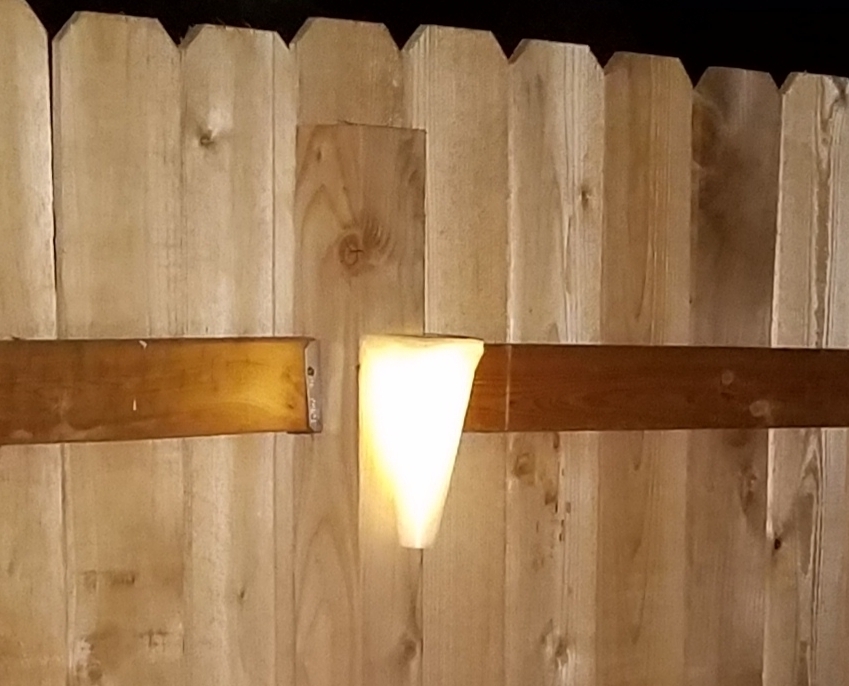

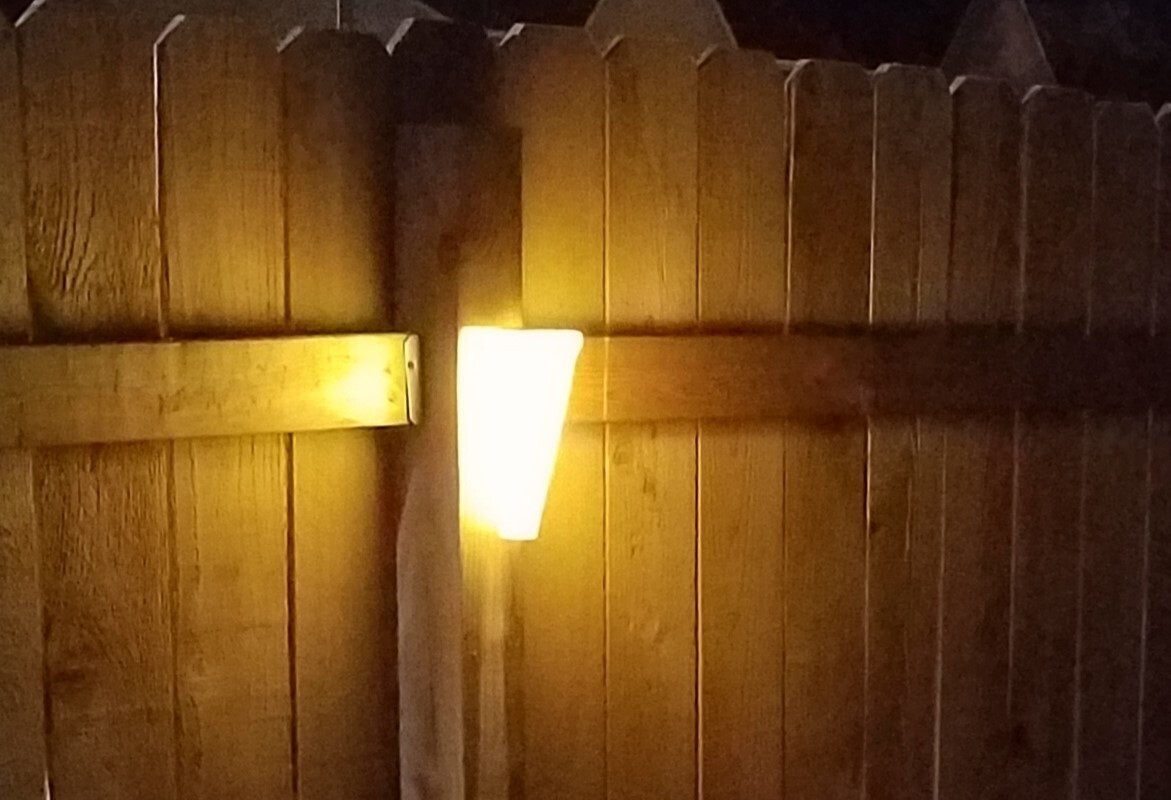

I needed some bright long life lights for an outdoor fence. This is one style I designed just for this purpose. After several tests and revisions, they work great.. Even at 4am I go out and they are still on. This is designed for 60x60mm 2v solar panel, very common on ebay or aliexpress.

Schematics for 1 Watt led solar light is here:
https://easyeda.com/shermluge/solar-joule-thief-chip

Parts:
1) yx805 solar light chip
1) 33uH inductor
1) 1 watt led (low enough ma so no heat sink needed)
1) (approx) 600-1800ma nicad battery
1) 60x60mm 2v solar cell

Print and build circuit given or one of your own.

Enjoy

Sherm

Other designs I've done:
https://www.thingiverse.com/shermluge/designs
