Gyro Watch Winder | Gimbal Watch Winder | Watch Winder with ESP32 and Wifi

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 6 likes
  • 3 downloads

3D model description

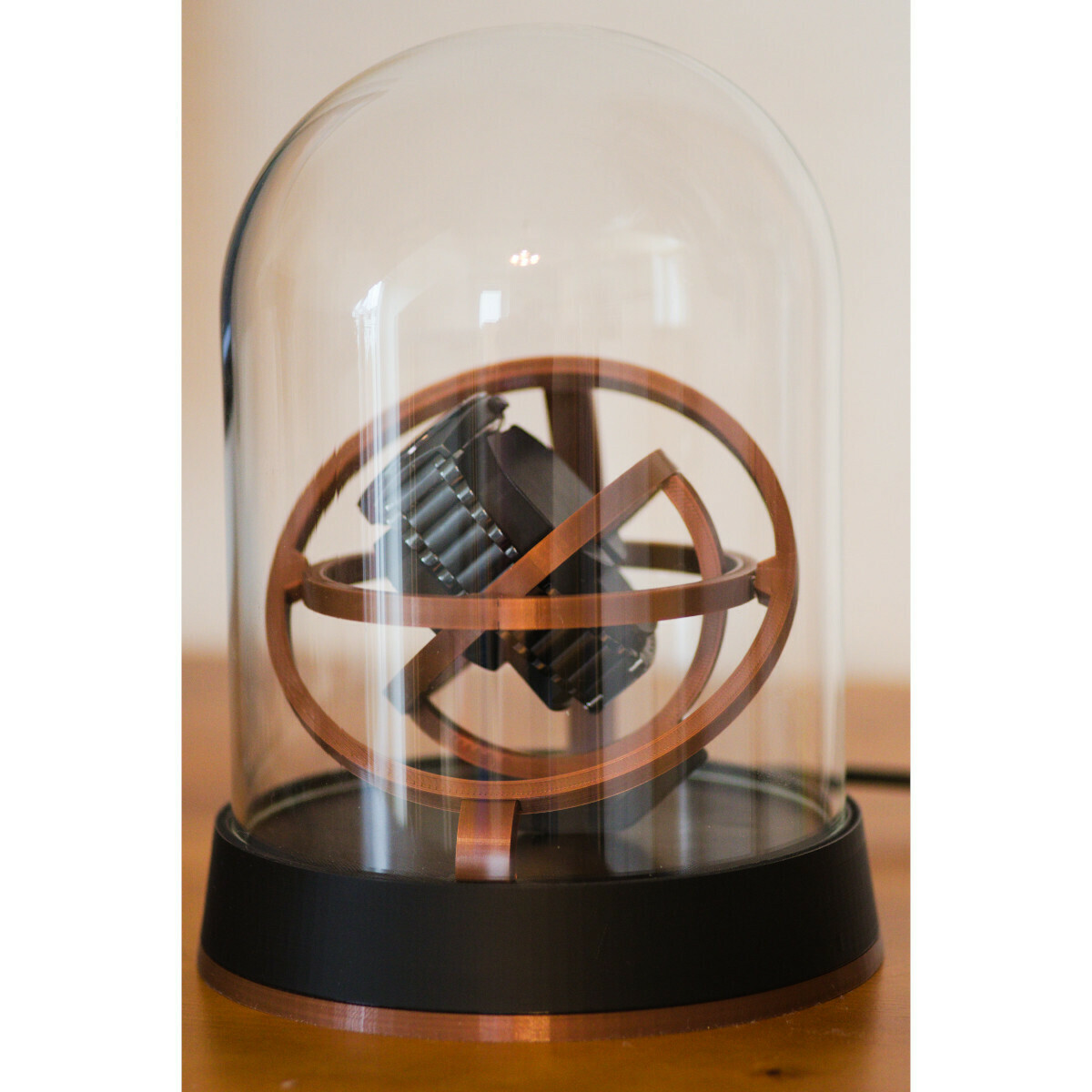

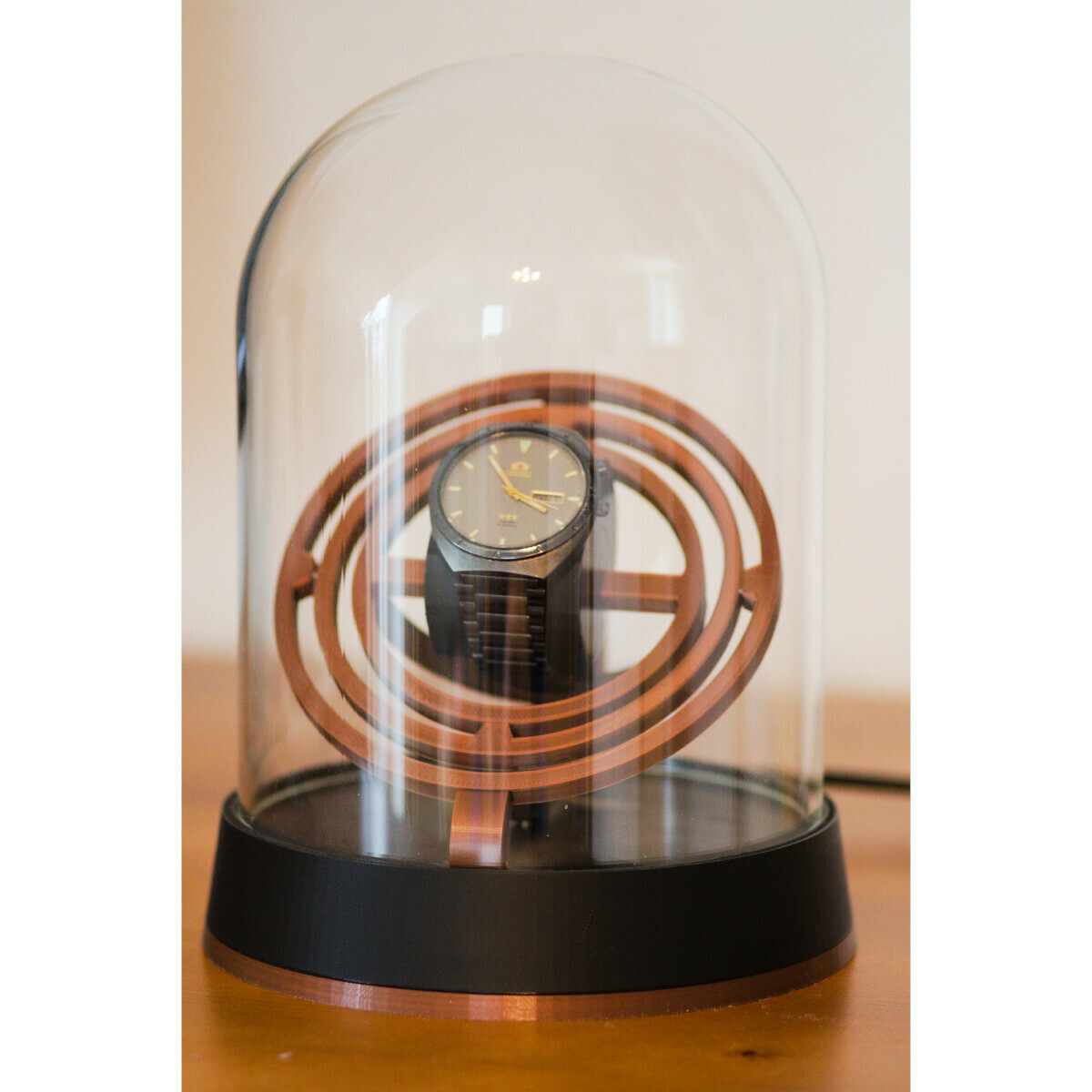

ESP32 powered Gimbal Watch Winder with Wifi

https://youtu.be/lZQdWobRM0A

Main Features:
- Minimalistic and elegant Design

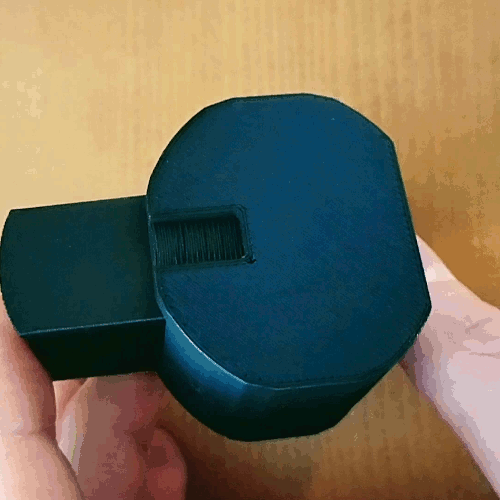

- Quick Change System for different watch sizes
- Powered by ESP32
- Contactless operation via Wifi
- Integrated Interval Timer

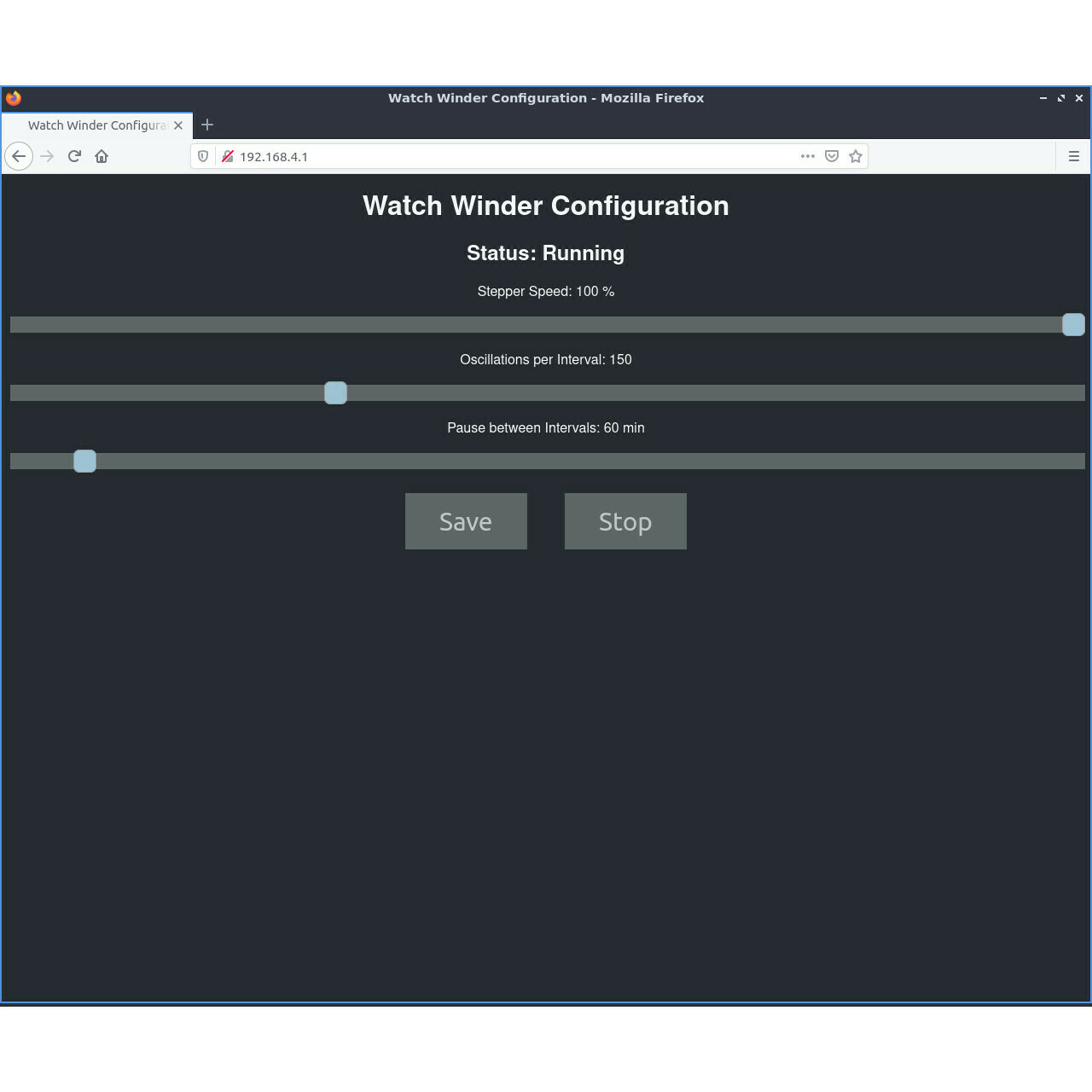

- Easy To Use: Configure Motor Speed, Oszillations and Intervals and store the setting via Smartphone. No program changes needed

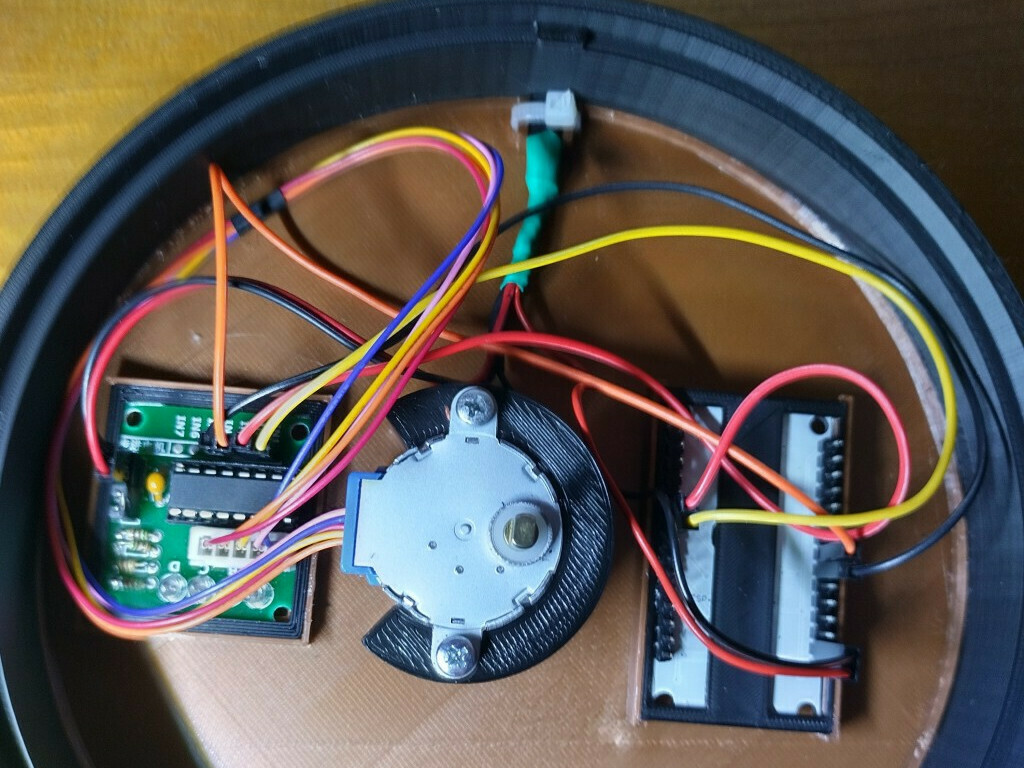

- 28BYJ-48 Stepper with ULN2003 Driver board
- No supports needed

Additional parts needed:
- 5 x ISO 2338 cylindrical pin (3 mm x 10 mm)
- 1 x ESP32 Board
- 1 x 5V Stepper Motor 28BYJ-48 with ULN2003 Motor Driver
- 7 x M3x10 mm Flat Headed Screw
- 5 x M3 Washers
- 2 x Spring from a pen
- 1 x Zip Tie
- 1 x 5 V Power Supply
- 1 x Glass Dome with max. 150 mm outer diameter and min. 140 mm inner diameter (optional)

Included:
- STL Files
- ESP32 Sketch
- Assembly Instructions

3D printing settings

  • PLA
  • 0.2 mm Layer Height
  • 60 % Infill
  • 3D file format: ZIP
  • Last update: 2021/04/21 at 19:11
  • Publication date: 2021/04/01 at 19:49
