Grid Clock v2

Download free 3D printing models Grid Clock v2, parallyzeDownload free 3D printing models Grid Clock v2, parallyzeDownload free 3D printing models Grid Clock v2, parallyzeDownload free 3D printing models Grid Clock v2, parallyzeDownload free 3D printing models Grid Clock v2, parallyze

Makes created by the community

Did you 3D print this model?

3D model description

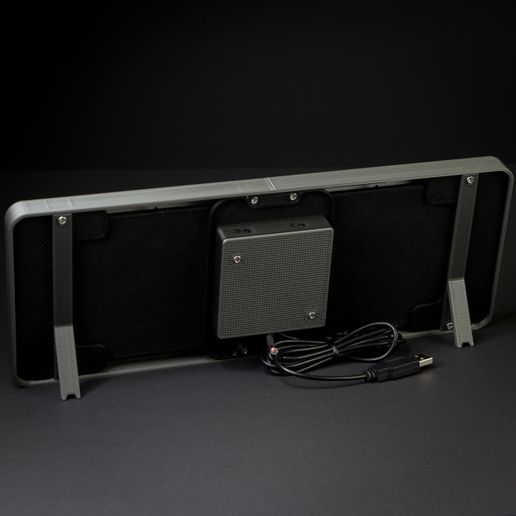

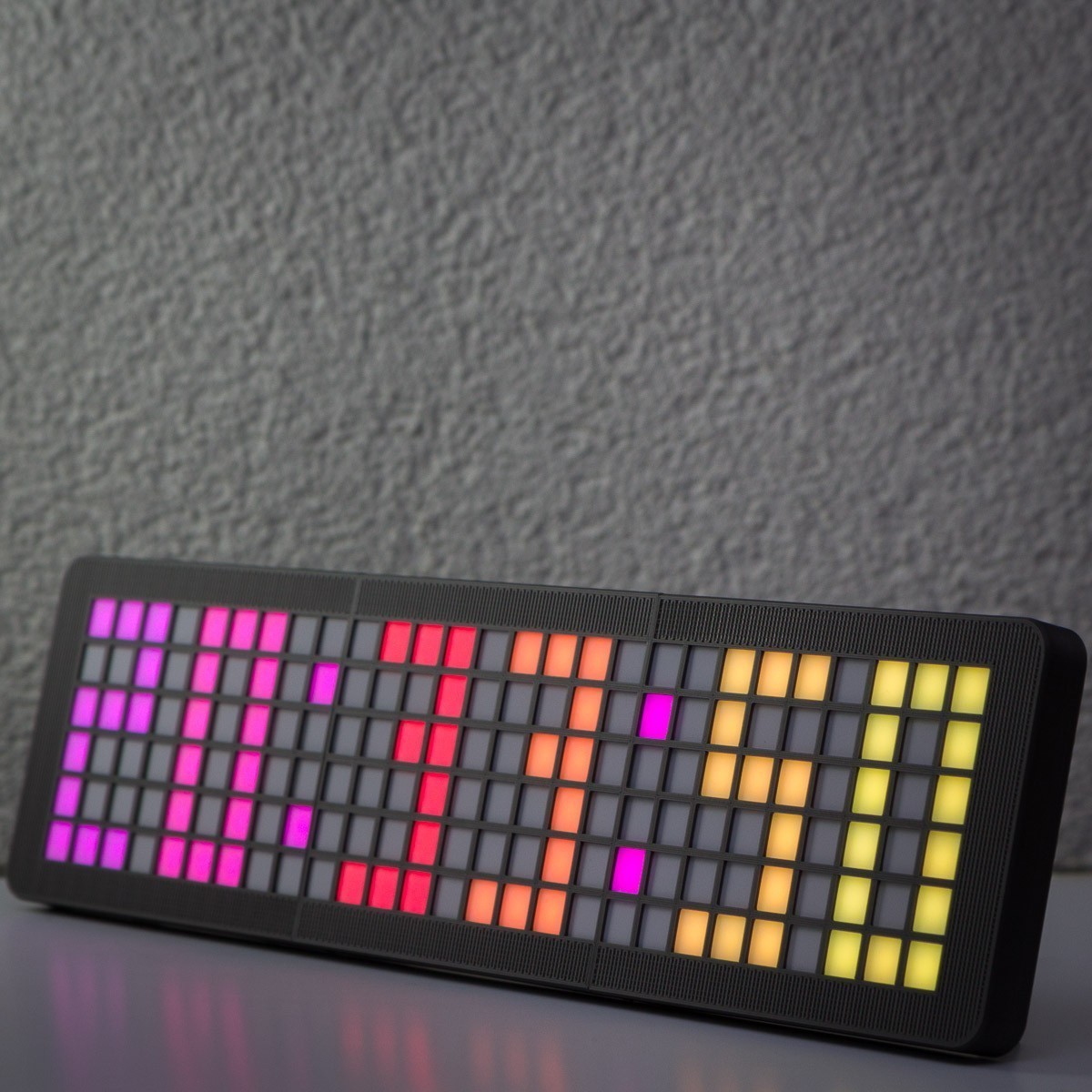

This is a Grid for led strips with 60 leds/meter. It can be built in a 18x6 or 27x6 configuration. Of course one could build it as 36x6 or even bigger but that's soon getting out of reach for most Arduinos.

Supplied sketches/instructions are for Arduino Pro Mini/Nano, DS3231 RTC modules and WS2812B LEDs.

Instructions and printing tips (video) can be found here.

Features:
- 12/24h format selectable
- Different color palettes/modes
- LDR support (automatic brightness reduction, sample code for gl5516 included in sketch v4)
- Settings stored to eeprom (once set using the buttons)

Sketches:
Basics_v1
This one shows the basics of how to use the grid. It's a regular "horizontal zig zag" starting with data in at the bottom left corner (x/y 0,0).

Sketch_v4

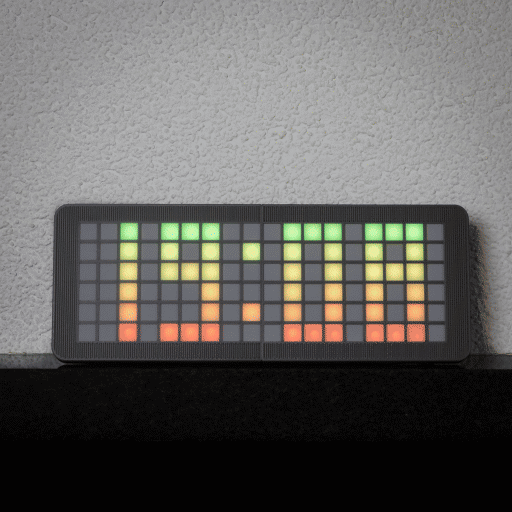

The clock sketch as it can be seen in the pictures. Sketch_v4 supports 18x6 and 27x6 grids. Adjust RESX/RESY inside the INO sketch accordingly.

Sketch_v4 is based on the Retro 7 Segment Clock, further informations can be found there.

Usage instructions:
Button A
short press: Select brightness level
long press (3 sec): Switch color mode (gradient / solid)

Button B
short press: Select color palette
long press (3 sec): Switch 12h / 24h mode
Press Button A and Button B at the same time to enter setup mode. There you can use Button A to change values (hours/minutes) and Button B to proceed to the next (hours first, minutes, done).

If setup is run in 12h mode a dot in the upper left corner will indicate AM, lower left corner will indicate PM.

3D printing settings

Walls are multiples of 0.6mm. So I recommend printing using a extrusion width/wall width of 0.6mm/1.2mm. Link to a video showing this in Cura can be found in the instructions.
