Glowing Zombie Moon Clock

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

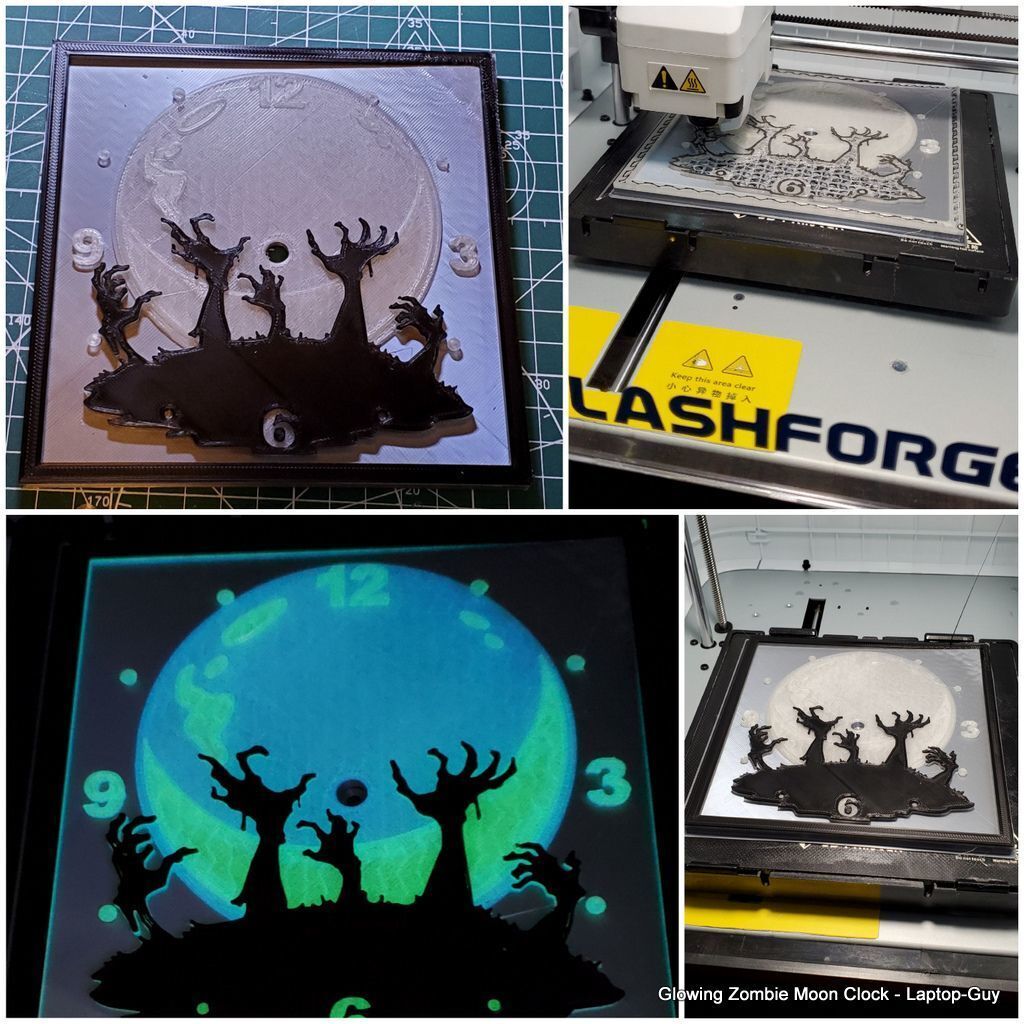

Zombie Moon Clock

4 Color Glow in the Dark Wall Clock:

Just "in time" for Halloween.

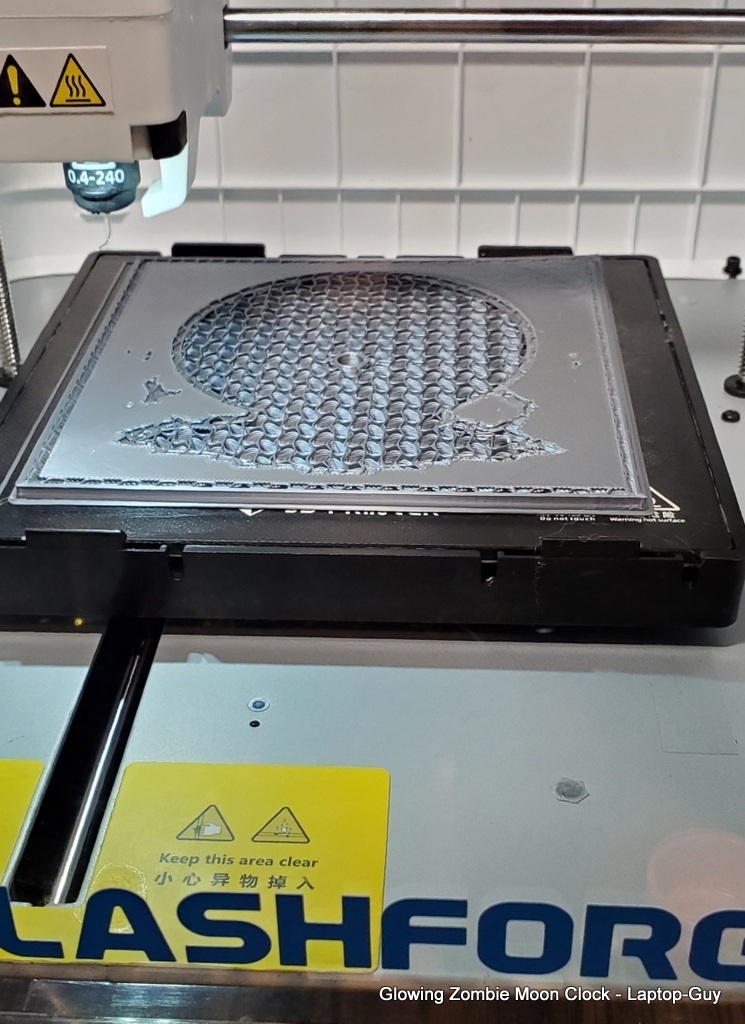

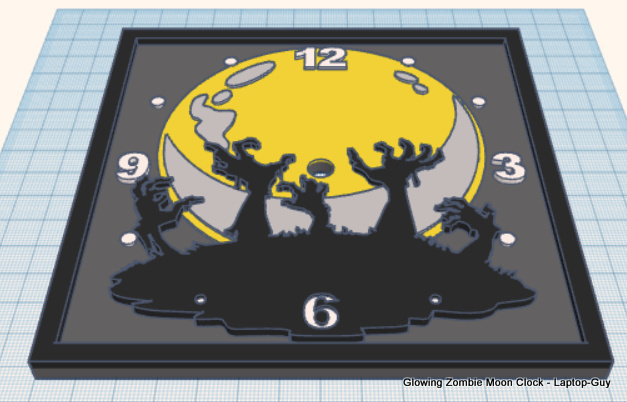

Designed at 140mm square to fit my printer bed. The first layer is the square background.
On top of that I placed a 1mm thick circle for the full moon and another 1mm layer as the crescent and some craters as highlights. Also at that layer is the hour marks since I wanted them to be a glow in the dark layer as well.. The final layer is the Zombie hand mound and a boarder is applied around the square.
I set a 8mm hole punched in the center to accommodate the clock movement.

Clock kit:
I got a 3/4 inch shaft clock movement kit from hobby store for 7 bucks (with 20% coupon).
Amazon has many similar for a few dollars more. Search "3/4 Clock Movement Repair Kit".
There's a large selection, some with many hands in the kit. Choose one with a description like "suitable for 4 - 8 mm (5/ 32 - 5/16 inch) thickness clock panel."

See below for list of print pause places I used.

Thanks for checking out my design.

See the details in the original posting on Thingiverse
https://www.thingiverse.com/thing:4967922


3D printing settings

Print Settings
Printer Brand FlashForge
Printer Model Adventurer 3
Rafts Yes
Supports No
Resolution PLA Standard
Infill 15%
Filament Brand Amolen, Flashforge
Filament Color Multicolor - See notes below
Filament Material PLA

Zombie Moon Clock - 4 Color Filament Change by Layer and Pause Position

| Layer | Z Position | Description | PLA Color | Brand |
|-----------|---------------|--------------------------------|------------------------------|-------------------|
| 0 | 0mm | Start | Silk Silver | Amolen |
| 22 | 4.12mm | Moon | Blue Glow in the Dark | Amolen |
| 27 | 5.02mm | Moon Highlight, Numbers | Green Glow in the Dark | Amolen |
| 33 | 6.1mm | Mound Zombie Hands | Black | Flashforge |
| 38 | 7.0mm | End | | |

3D printer file information

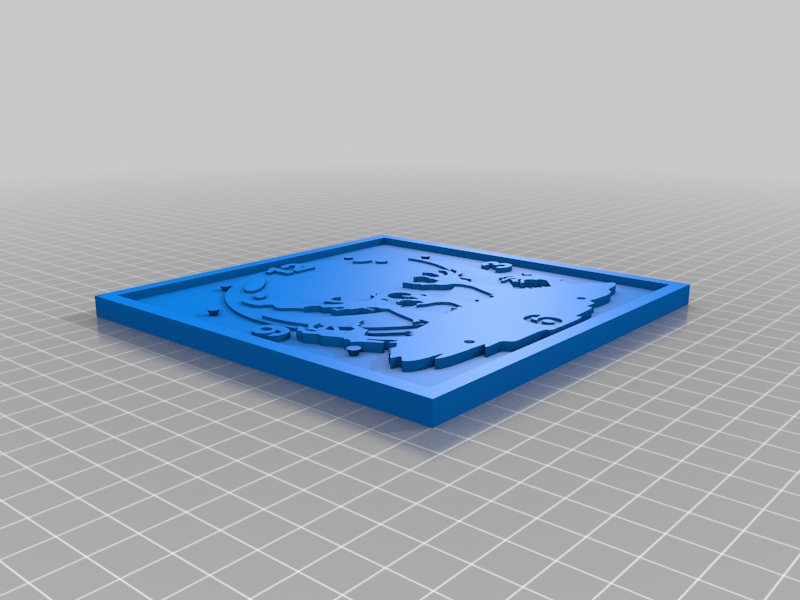

  • 3D design format: OBJ and STL Folder details Close
    • The_Zombie_Moon_Clock.obj
    • The_Zombie_Moon_Clock.stl

    Learn more about the formats

  • Publication date: 2021-09-18 at 23:11
    ?
    Published to Thingiverse on: 2021-09-18 at 12:03

License

CC BY - Attribution
