Gargoyle Soap Dish

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.9k views
  • 9 likes
  • 127 downloads

3D model description

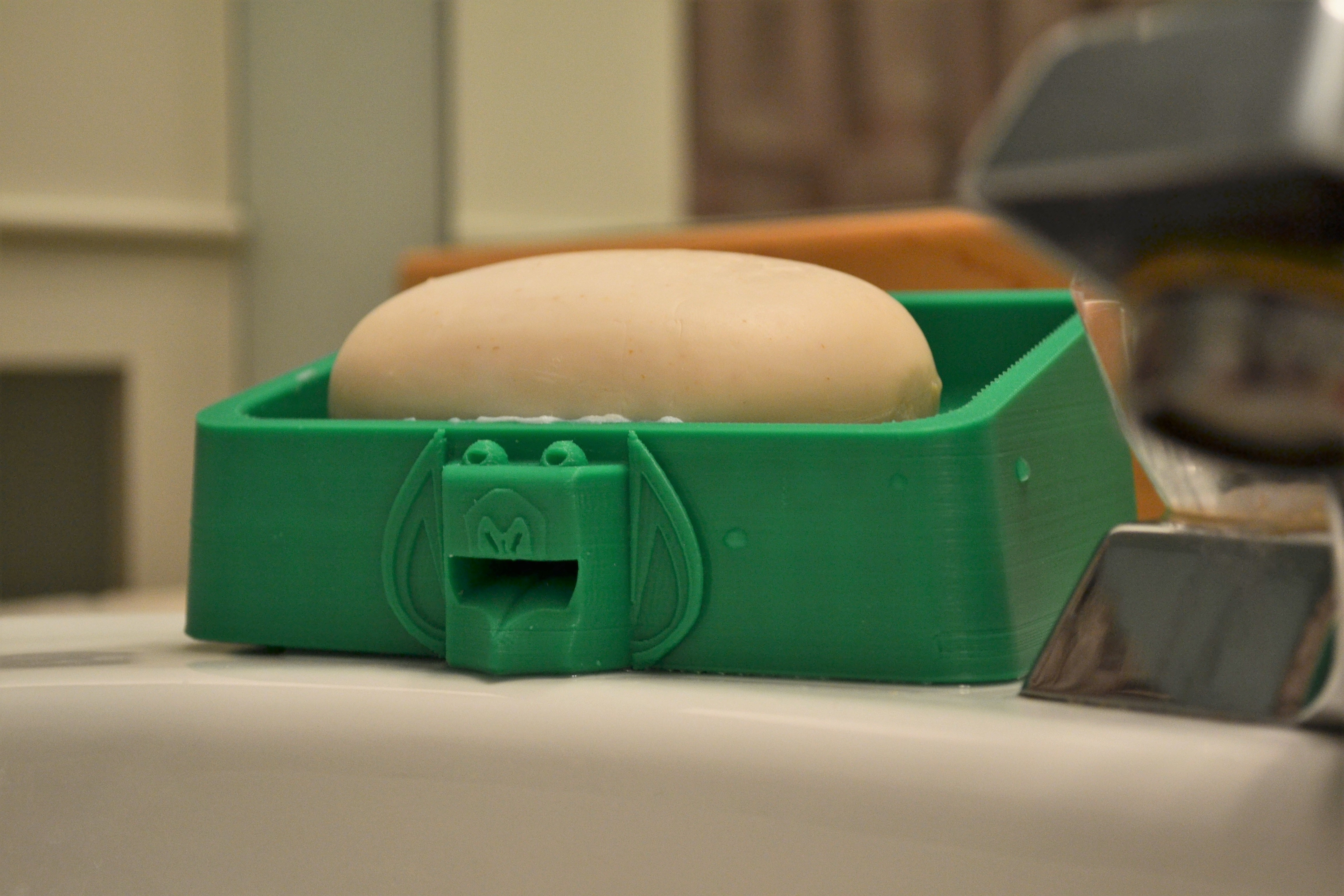

I wanted my soap to drain out the mouth of a bat-face gargoyle instead of turning to mush - and now your soap can too!

This is a self-draining soap dish intended to be placed close to a sink basin. I couldn't procure a standard soap size, so I based the dimensions off a bar of Yardley soap, or 3.5 in. x 2 in. x 1.5 in.

The 123D Design file is provided so that you can customize this to your needs. Have fun!

See it in action (aw yeah):
https://www.youtube.com/watch?v=NvYFFswSjRg


3D printing settings

The concave interior covers a generous amount of sparse infill, so print with at least 4 solid layers on the top of the model and at least 2 on the bottom.

I use green HatchBox ABS filament for prints destined as working objects. It bonds well and prints consistently for all shapes and sizes.

The infill can go as sparse as 5%, but only if you have confidence that your filament and temperatures will bridge properly.

The print shown in the photos and video was extruded at 230 C with a heated bed temperature of 90 C. The fan was turned to 10% after 10 layers (so in effect, after the raft was complete). Supports are not needed inside the mouth unless there are bridging problems.

3D printer file information

  • 3D design format: STL Folder details Close
    • Gargoyle Soap Dish.stl
  • Publication date: 2016/11/30 at 02:40

License

CC BY NC SA
