Fridge Secure Medical Case

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.6k views
  • 71 likes
  • 116 downloads

3D model description

1) Each year children younger than 6 years are hospitalized after getting a hold of family members' medication.

2) Most medicines can be kept at room temperature, however some require refrigeration

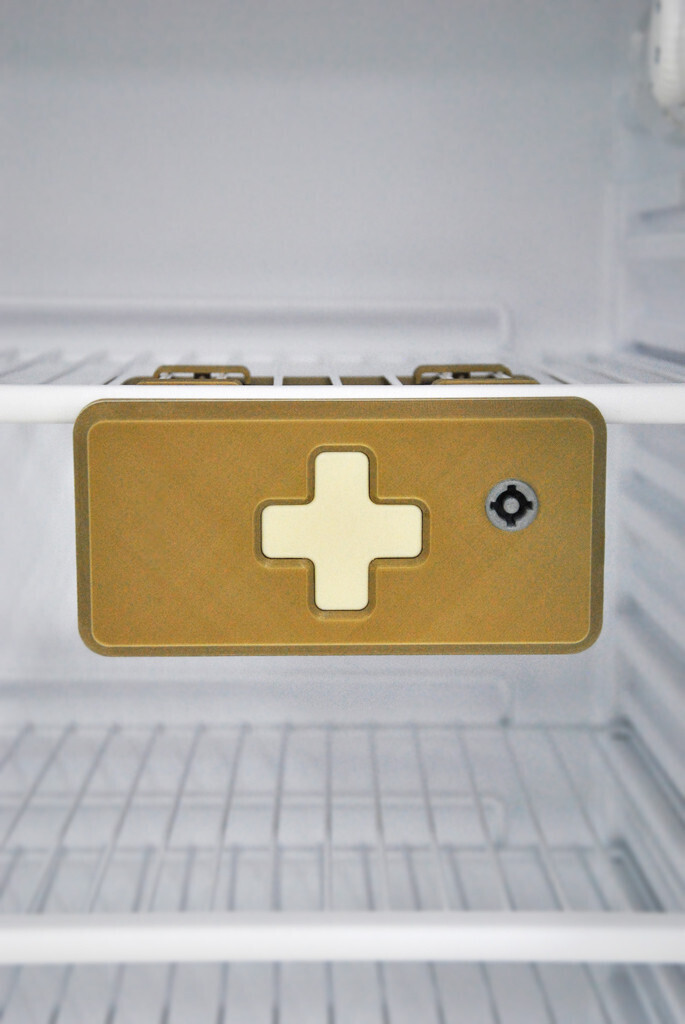

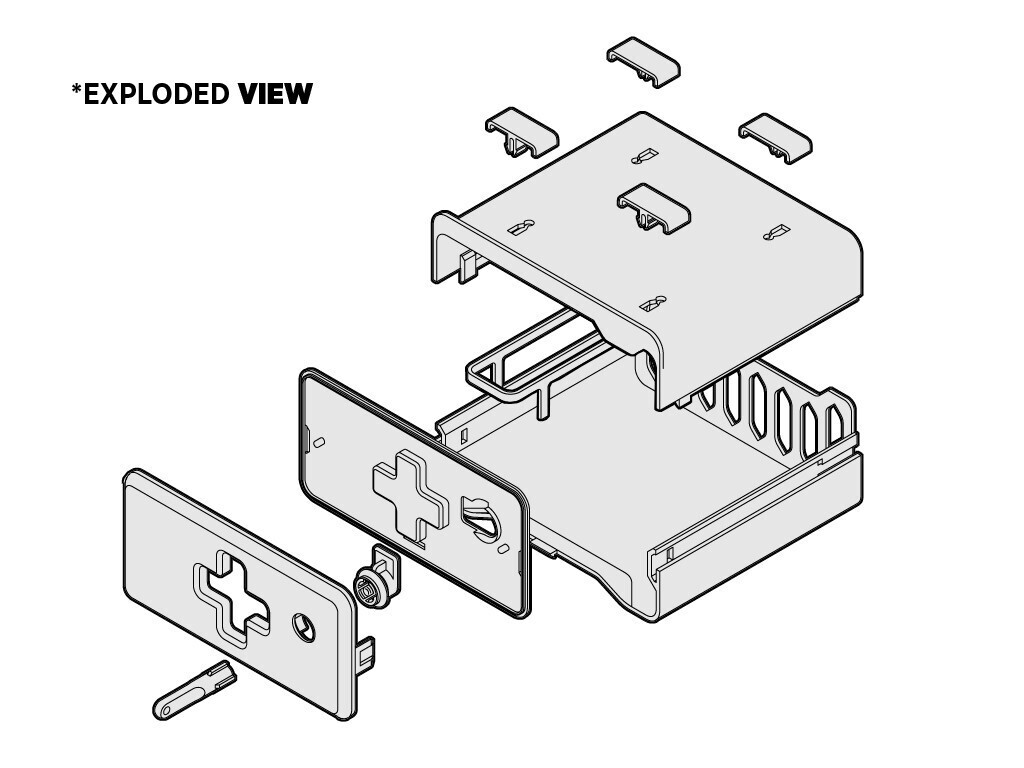

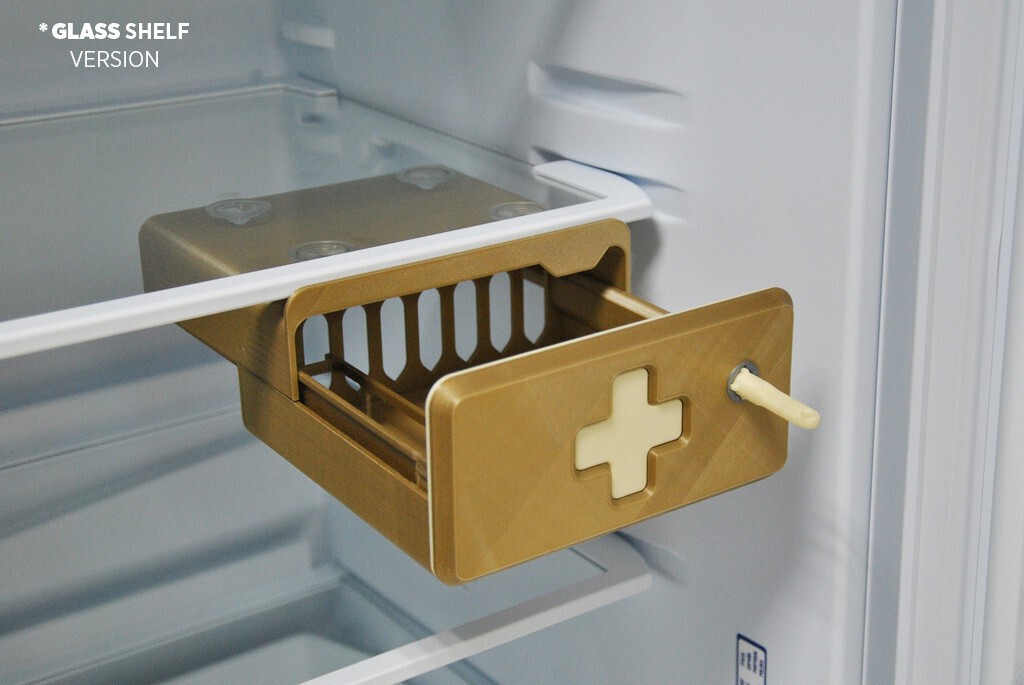

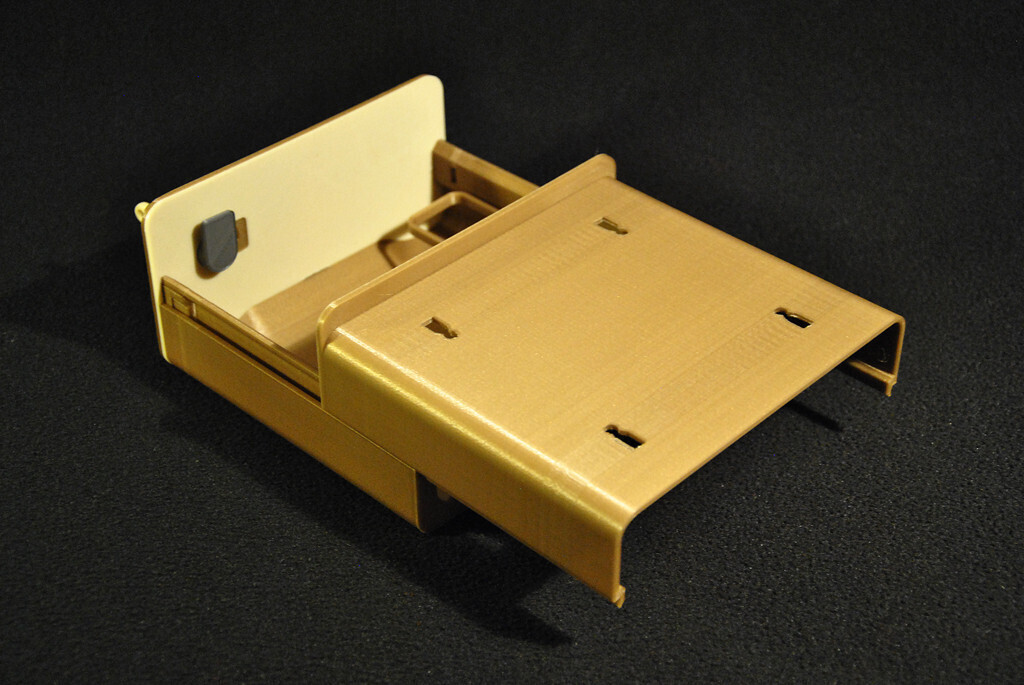

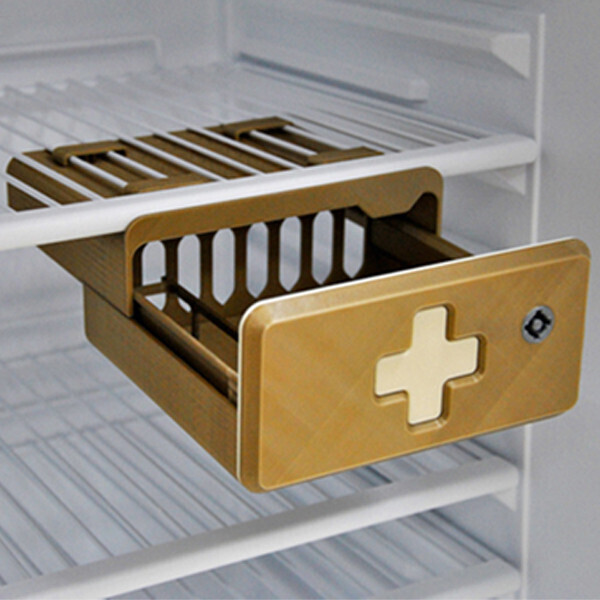

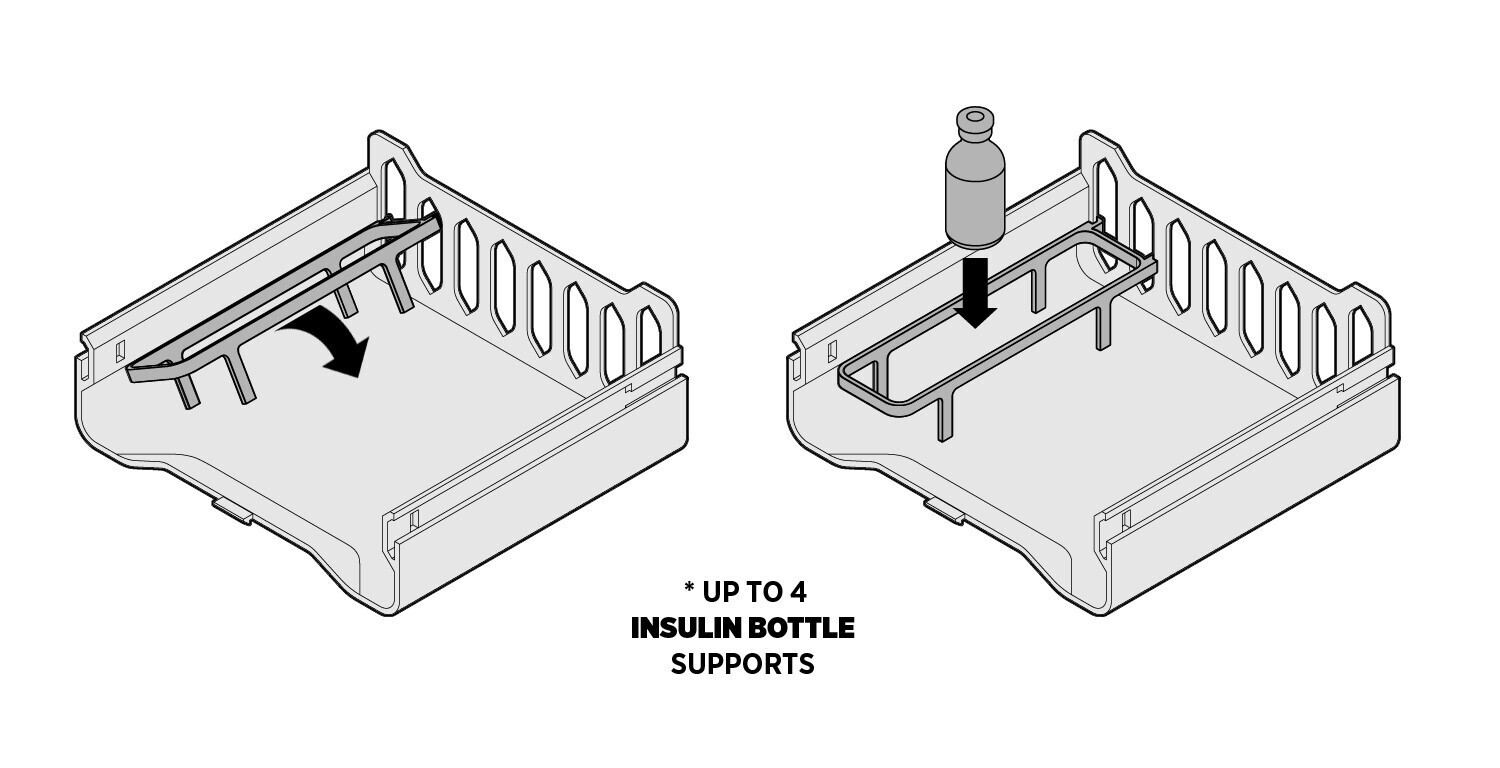

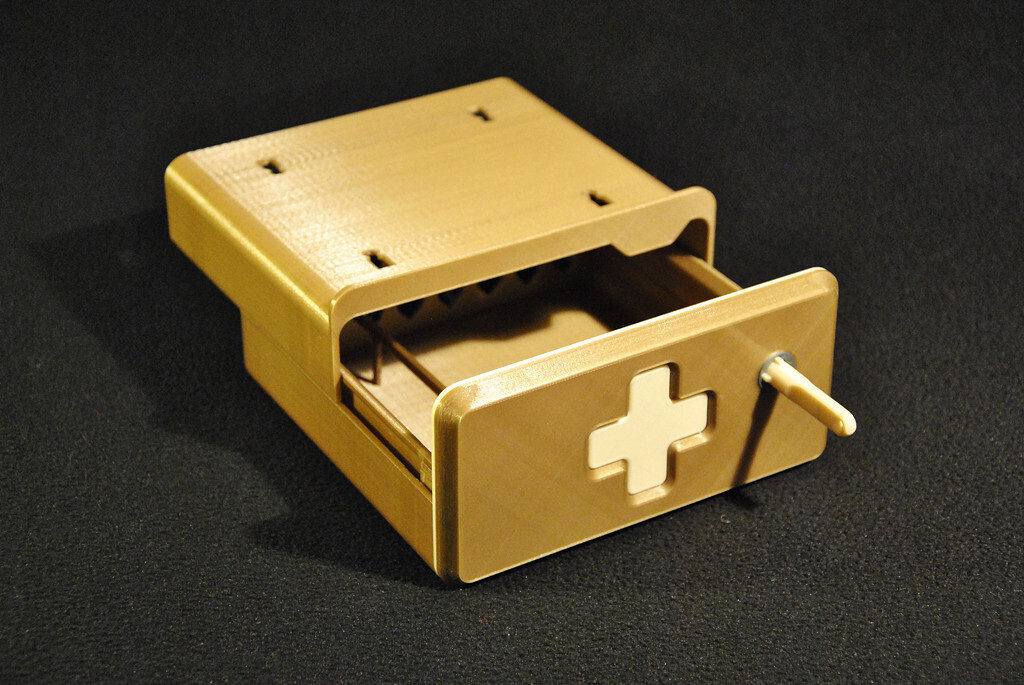

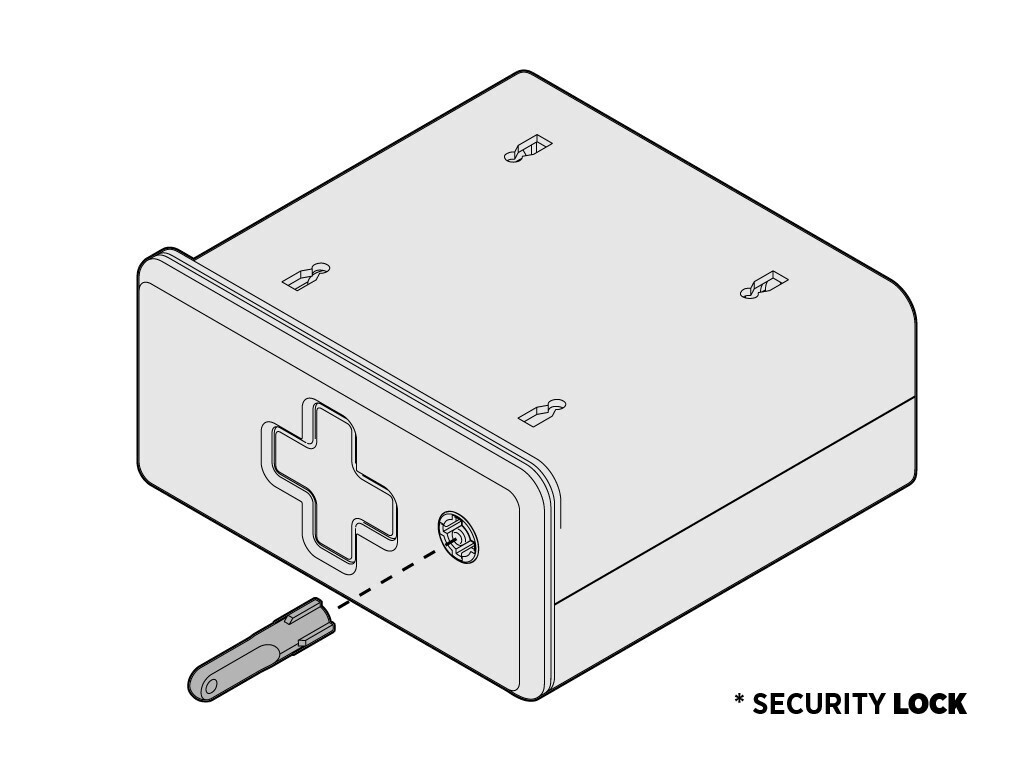

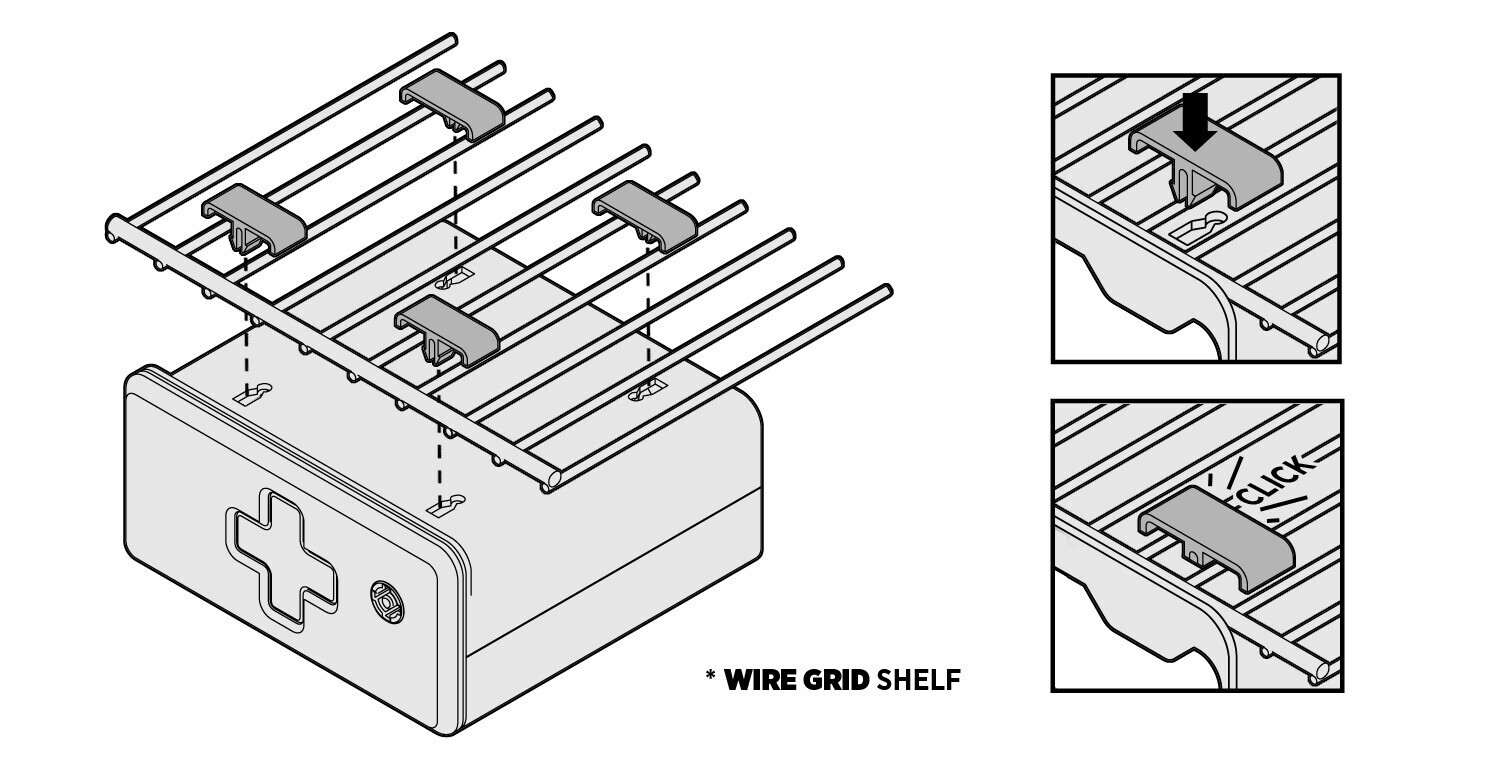

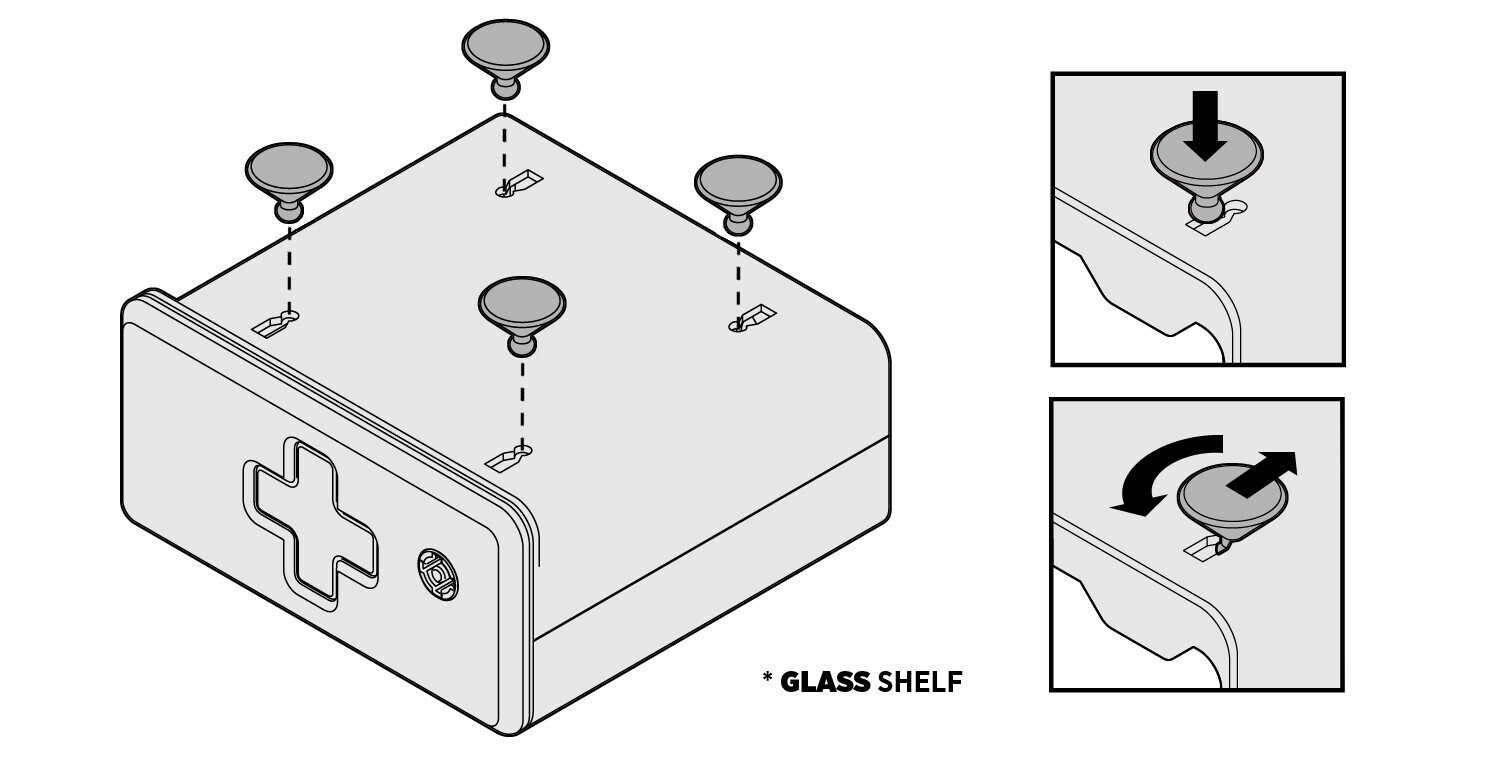

It was with this two problems in mind that i started designing the Secure Medical Case. Compact and with a practical drawer system this solution uses the shelf as support, leaving a significant amount of free space underneath. Since there are two types of shelves to different anchor systems were need. For the Wire Grid Shelf it is possible to use the 4 Clip System and for the Glass Shelf you can use the 4 Suction Cups System instead. Inside of the case it can be inserted up to 4 small supports for Insulin Bottles to prevent them to fall and roll. The Key Lock was designed to prevent curious children to try to open the lock with a kitchen knife blade. To maintain the key away from the kids, it is possible to insert it in a key chain together with the house keys.

3D printer file information

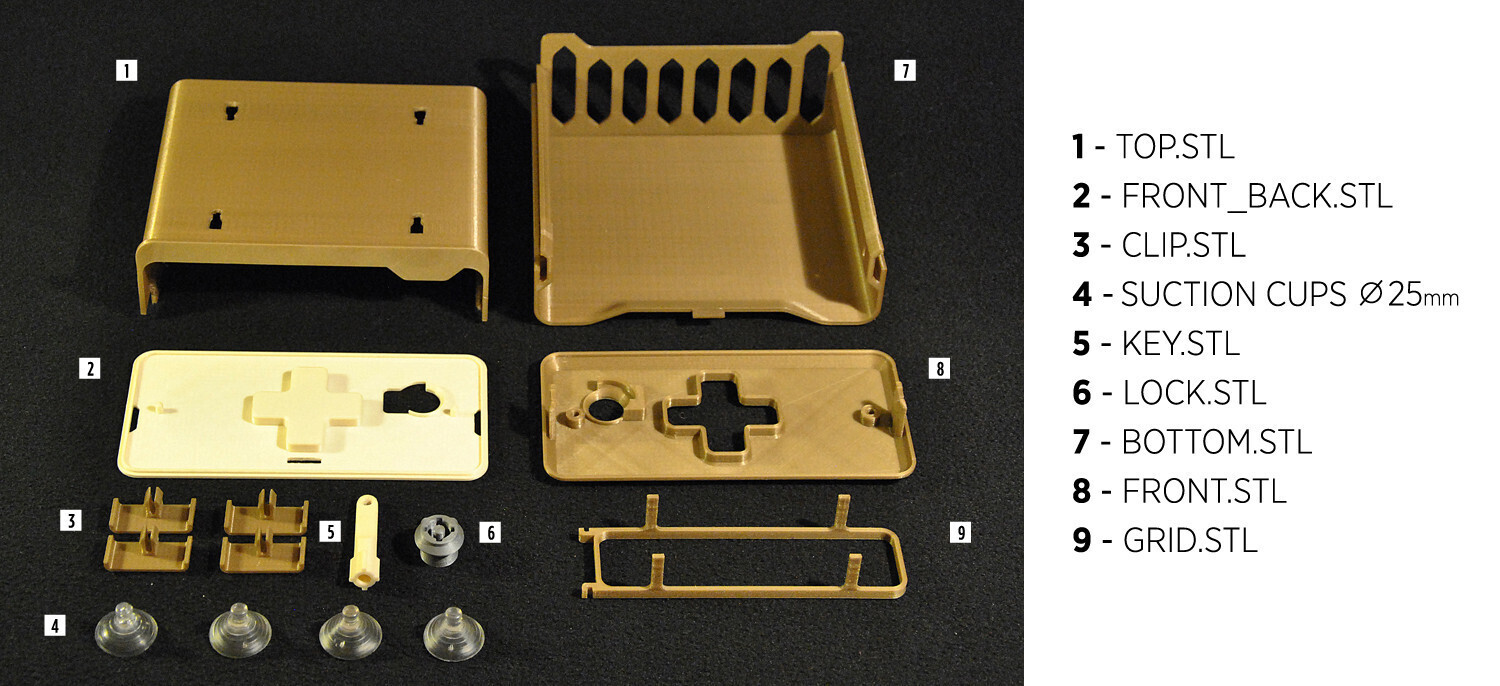

  • 3D design format: STL Folder details Close

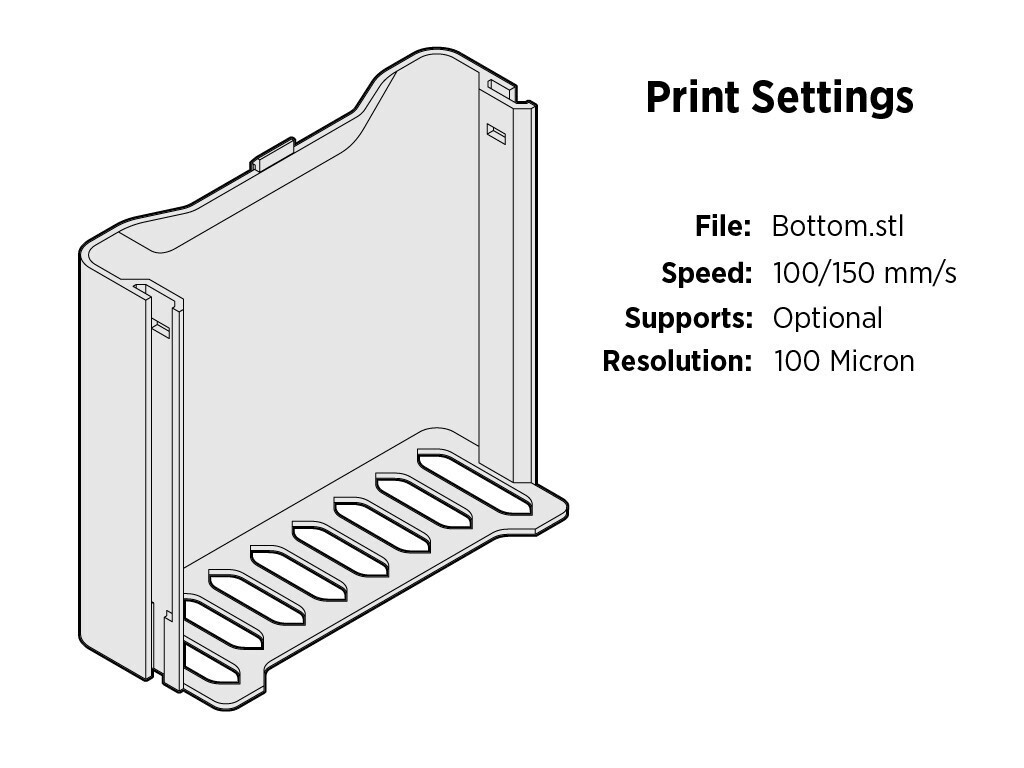

    • BOTTOM.stl

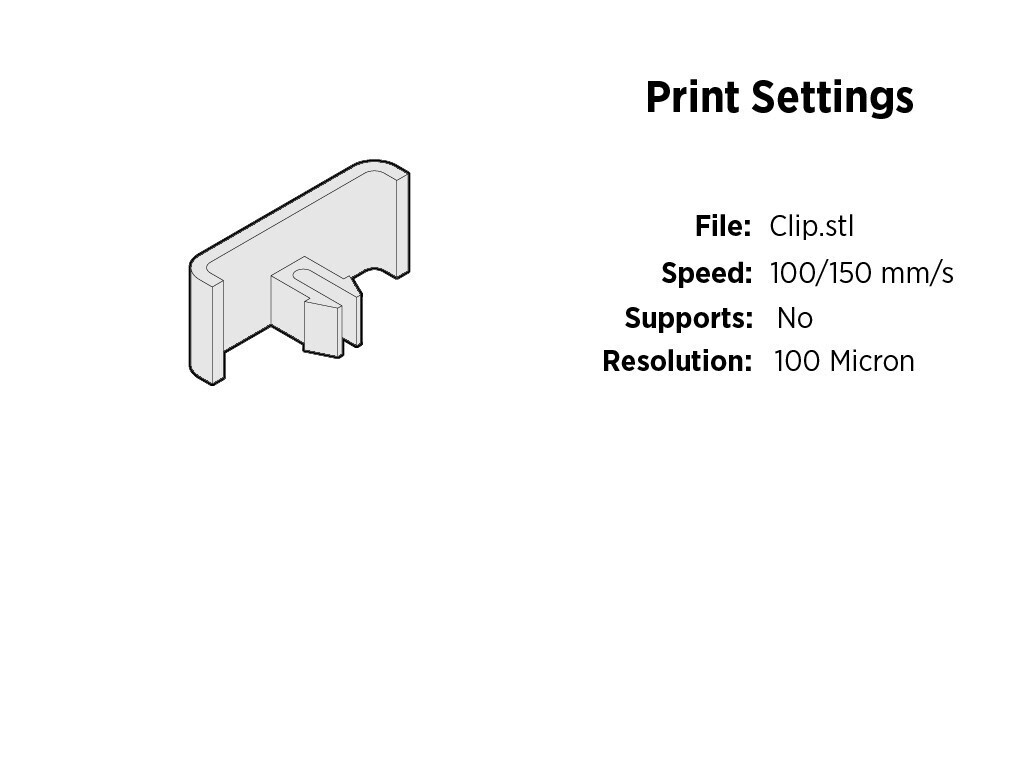

    • CLIP.stl

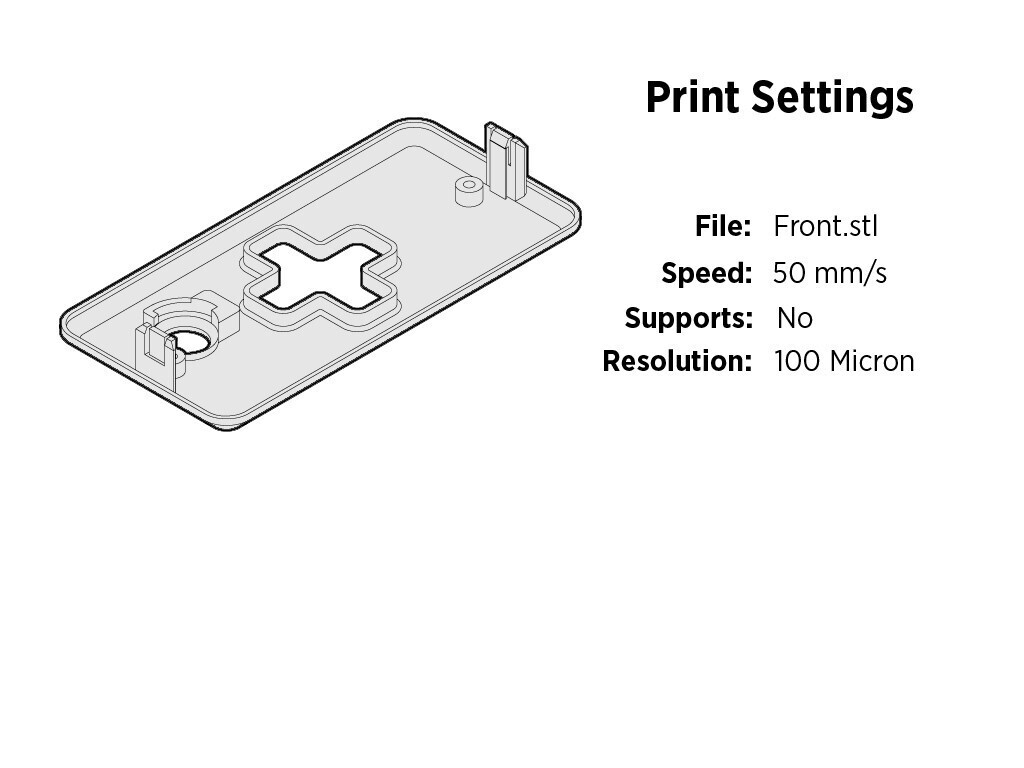

    • FRONT.stl

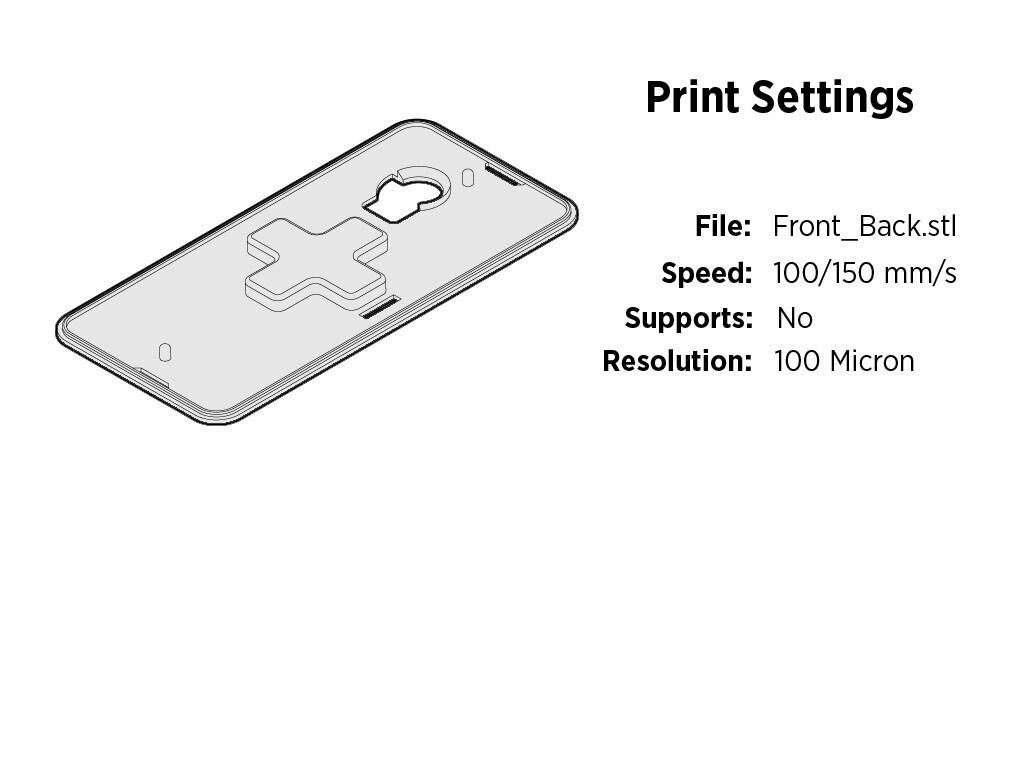

    • FRONT_BACK.stl

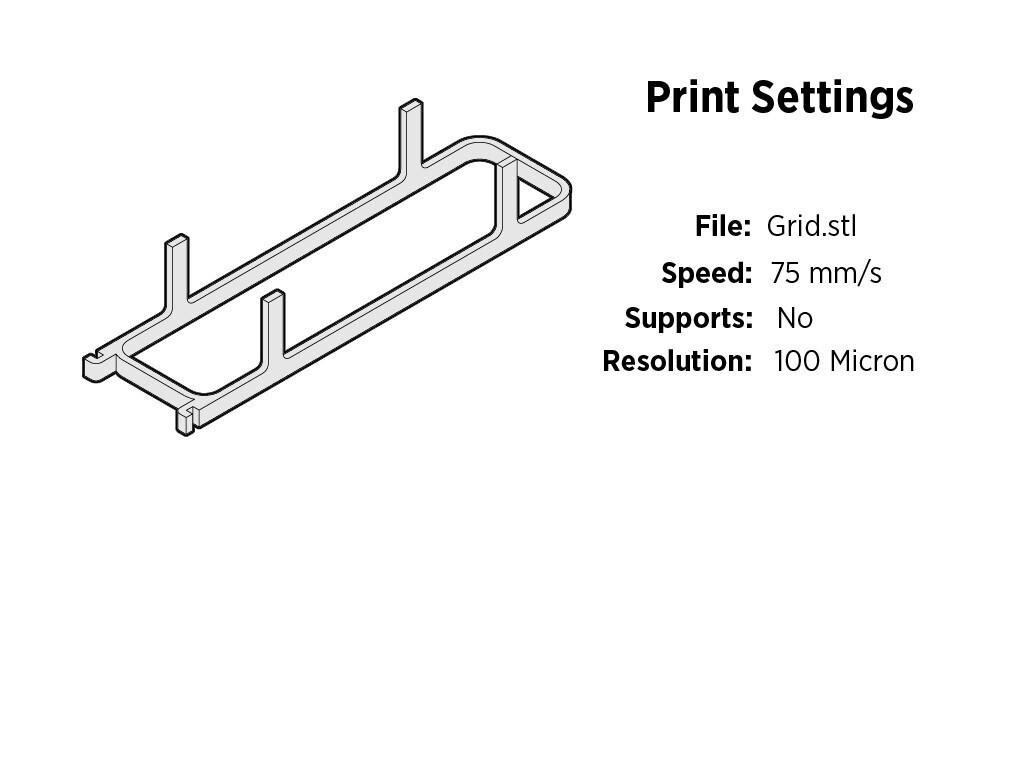

    • GRID.stl

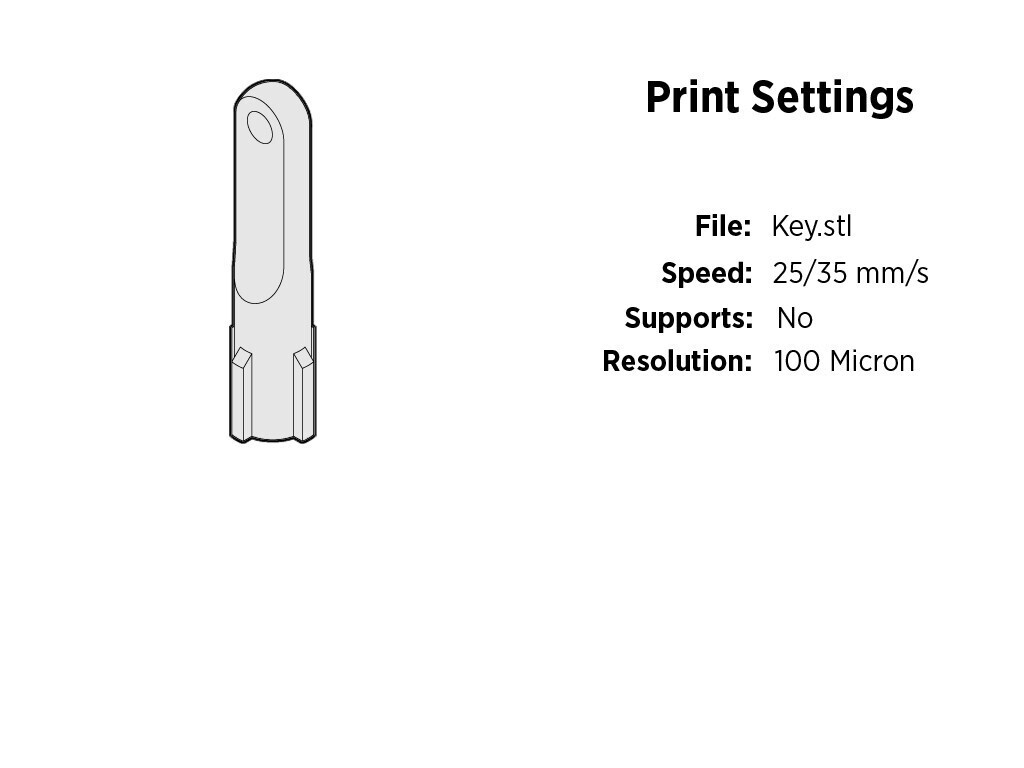

    • KEY.stl

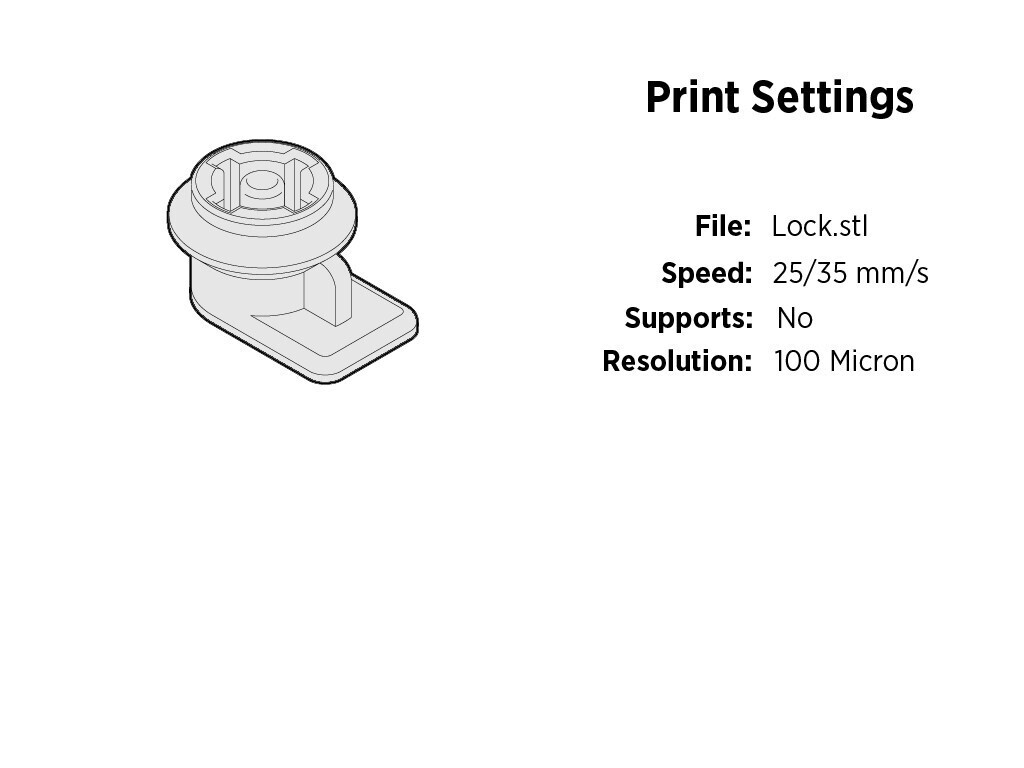

    • LOCK.stl

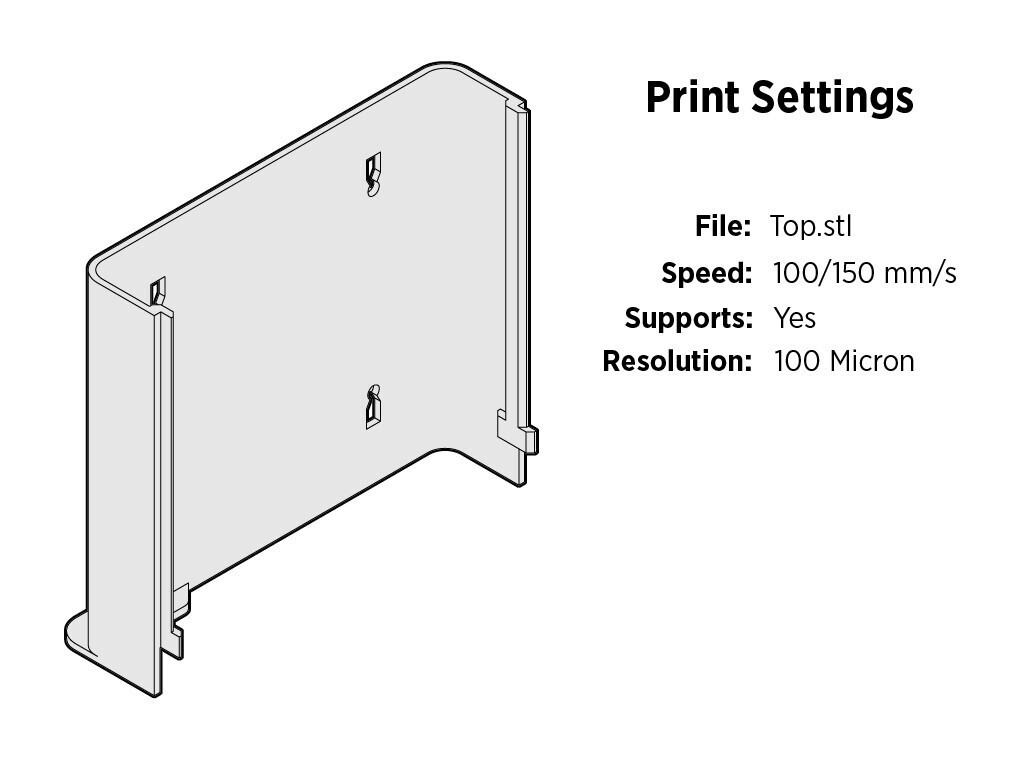

    • TOP.stl

    Learn more about the formats

  • Last update: 2016/07/29 at 16:58
  • Publication date: 2015/03/09 at 16:06

License

CC BY NC ND

Creator

Designs 21
Downloads 11.8k
Sales US$2,309
Followers 267

I'm an Industrial Designer with a great passion for 3D Printing. I like to create alternative products optimised for FDM Printing Technology.
