Tartlet Making Machine

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.8k views
  • 6 likes
  • 1 download

3D model description

Text in Spanish and English - Text in Spanish and English

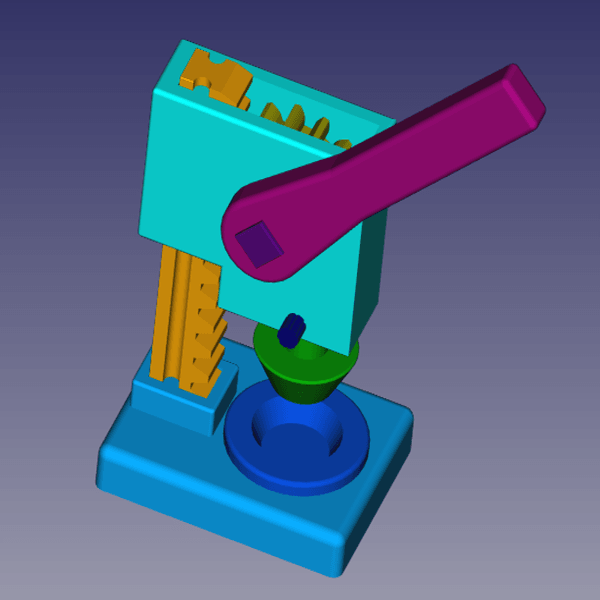

If you like pastries, you'll know that forming the cake paste in the mould is a real pain in the ass. They don't usually come out the same and it's a tedious and heavy task. This tool will make it easier for you to make tartlets.

Put the mould of your tartlet with the dough you want, put the lever down and it's done! They will all be the same and the same thickness will save you a lot of work and make you more productive!

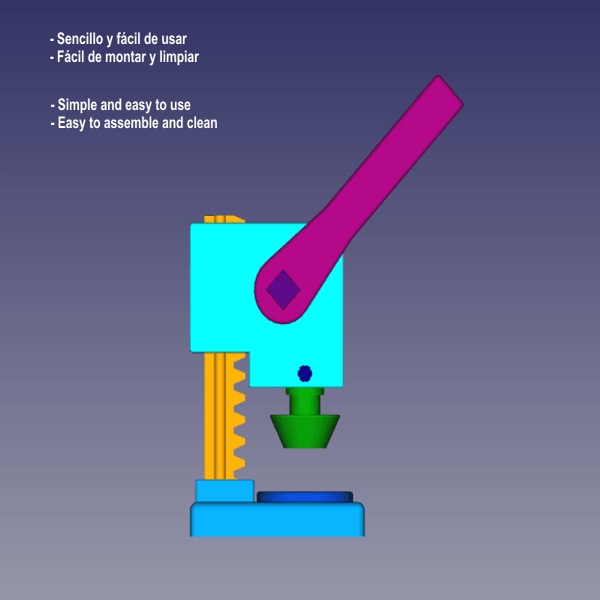

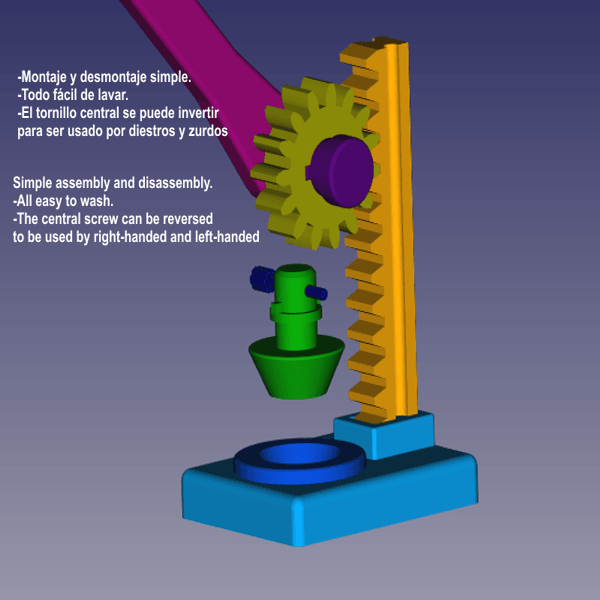

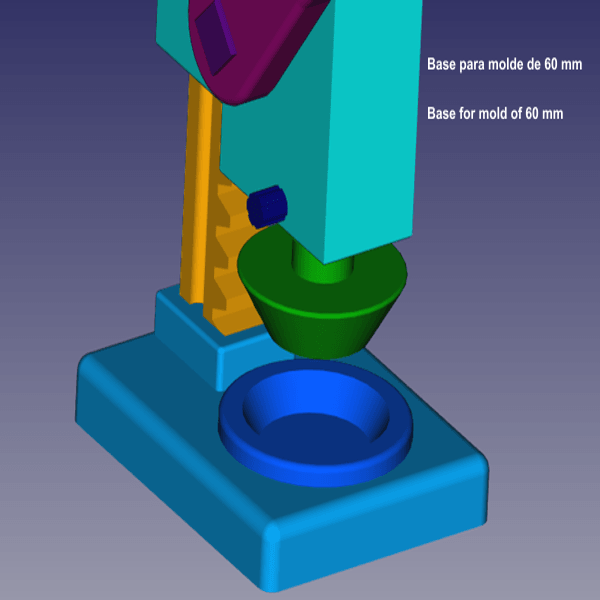

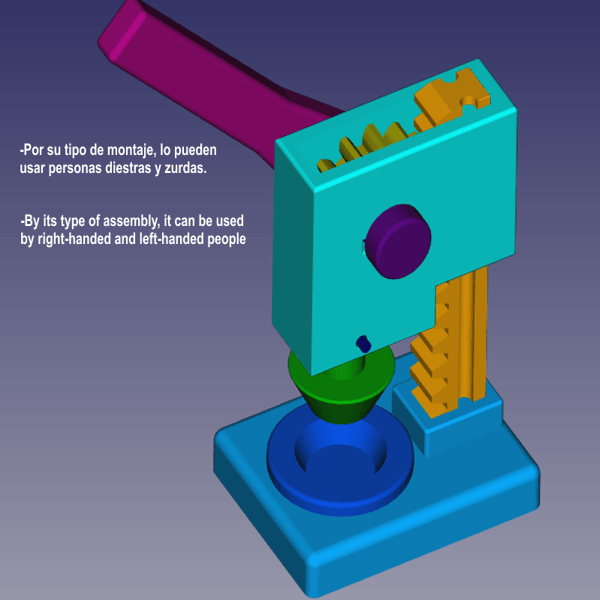

Can be used by right-handed and left-handed people. Easy to assemble and clean. It has the most used molds (50 and 60 mm) but if you have other sizes, you can send me the specifications and I will add it to the project.

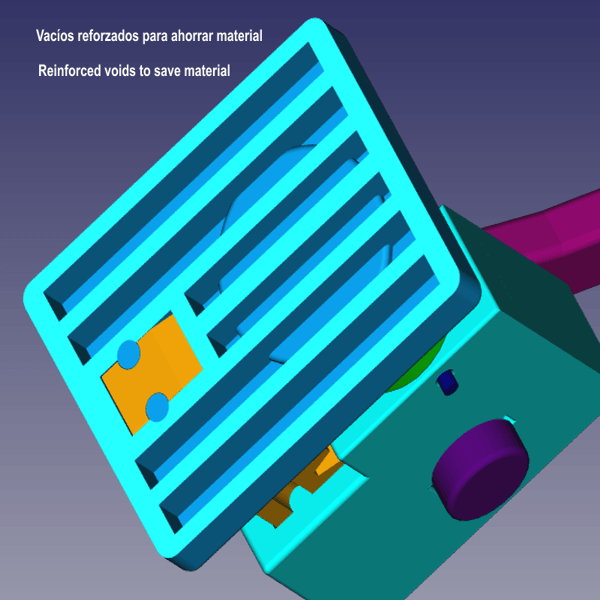

It is designed to save on printing material costs.


If you like baking, you will know that forming the tart paste in the mold is a real can. They do not usually leave the same and it is a tedious and heavy task. This tool will make it easier for you to make tarts.

Put your tart with the dough you want, lower the lever and it's done! All will be the same and with the same thickness, you will save a lot of work and be more productive!

It can be used by right-handed and left-handed people. Easy to assemble and clean. It has the most used molds (50 and 60 mm) but if you have other sizes, you can send me the specifications and I will add it to the project.

It is designed to save on printing material costs.


3D printing settings

Longest piece: 19 cm (7.4 inch)

Highest piece 9.5 cm (3.7 inch)

Recommended minimum filling 30%.

Length part: 19 cm (7,4 inch)

Highest part 9.5 cm (3,7 inch)

Minimum fill recommended 30%

The overall dimensions once assembled:

Height 19 cm. (7.5 inch)

Base width 9 cm. (3.5 inch)

The total measurements once assembled:

High 19 cm. (7.5 inch)

Base width 9 cm. (3.5 inch)

Total no. of parts 11

Total number of pieces 11

3D printer file information

  • 3D design format: STL Folder details Close
    • Base.stl
    • BaseMolde50.stl
    • BaseMolde60.stl
    • Brazo.stl
    • CajaRueda.stl
    • Cremallera.stl
    • EjeRueda.stl
    • Formador50.stl
    • Formador60.stl
    • RuedaDentada.stl
    • TornilloSujeccion.stl

    Learn more about the formats

  • Publication date: 2018/05/12 at 20:57
