Folding Dryer for Home Made Fresh Pasta/Lasagna/Tagliatele

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

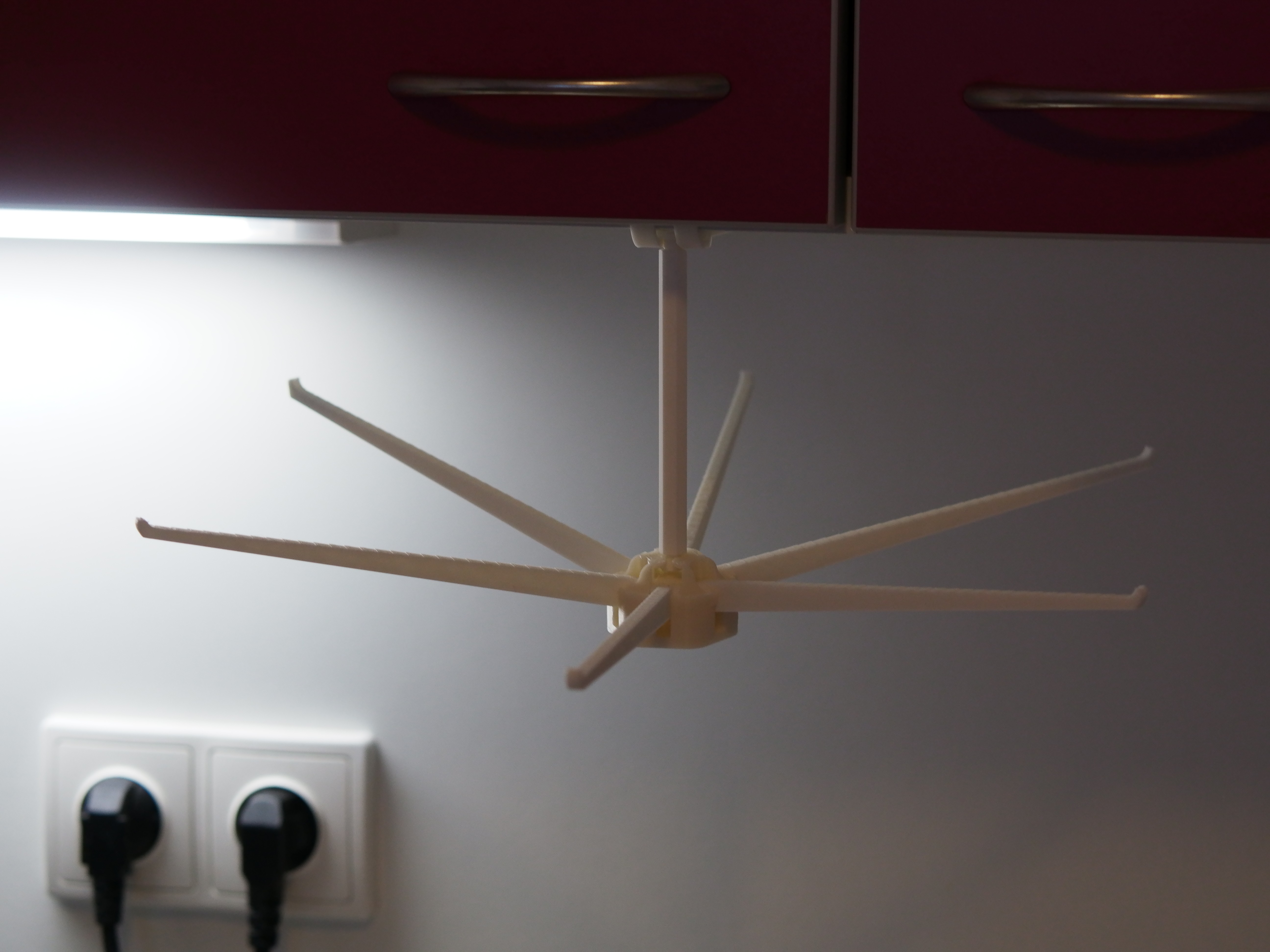

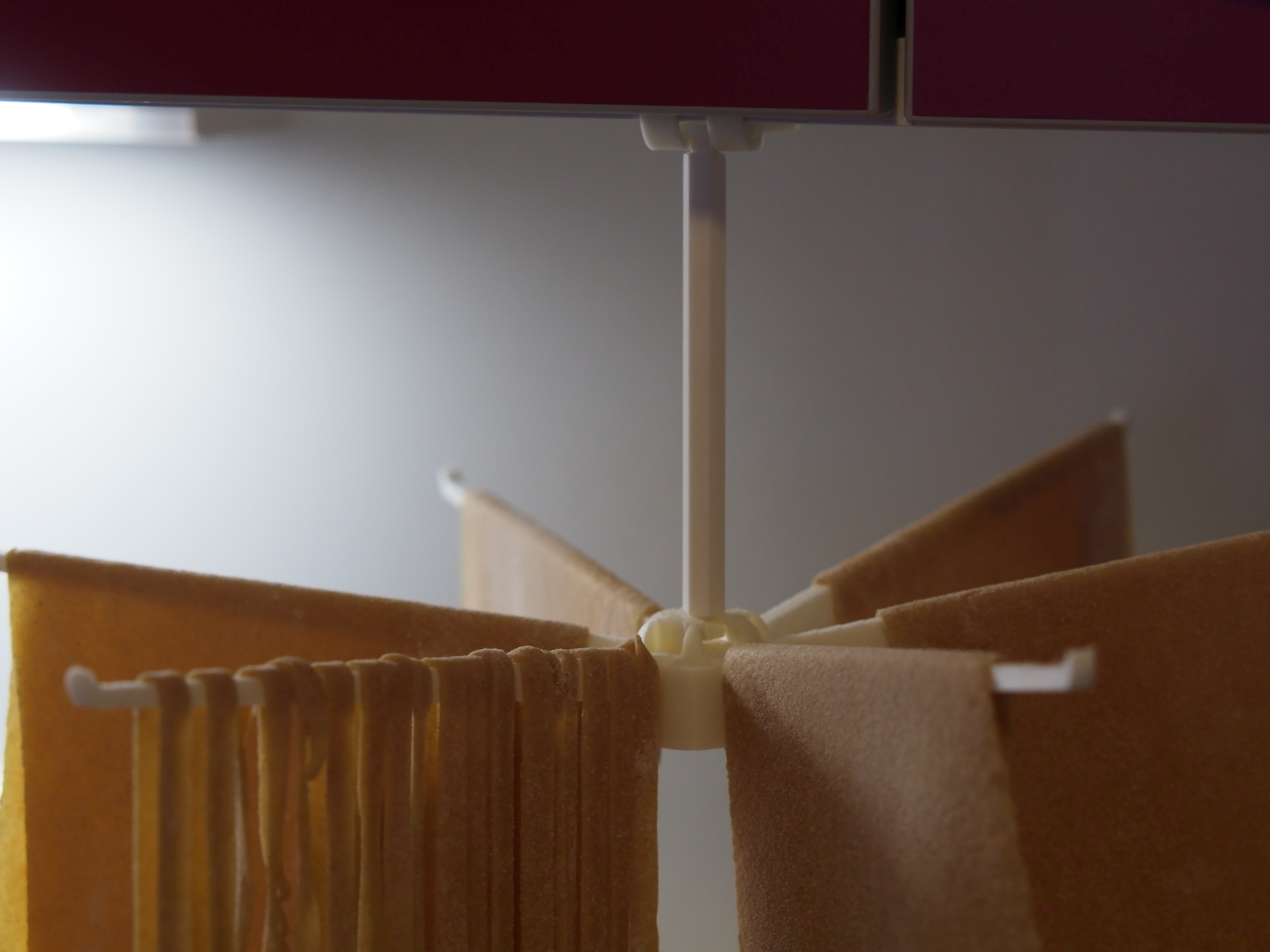

We love to make home pasta. It's really good dish and when friends are coming - we can cook it all together and have fun. But it was always hard to find a place to put and dry it a bit, so I’ve decided to design and 3d-print pasta dryer. It's well suited for tagliatelle or lasagna

You need to print:
- 6x ray

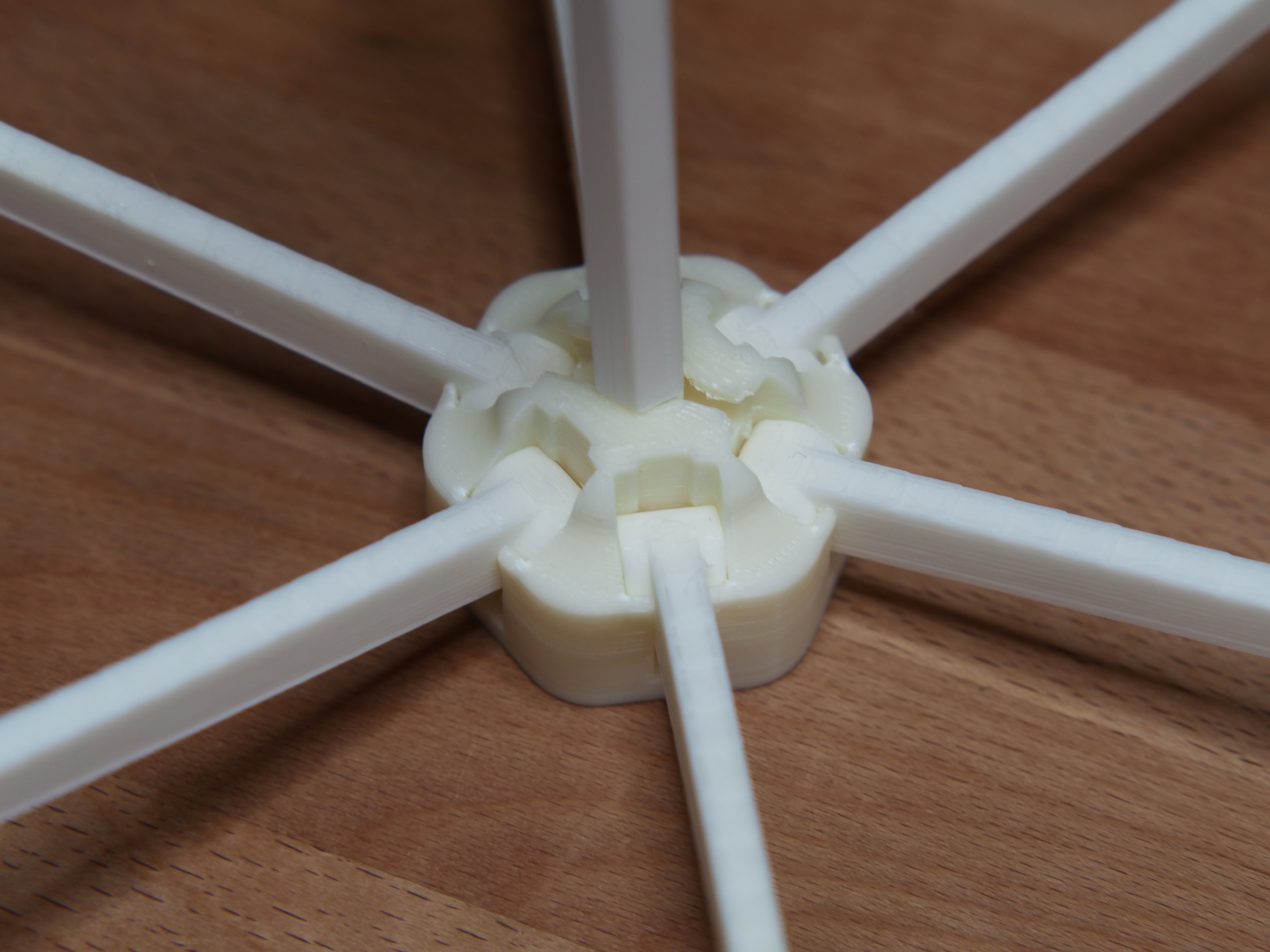

- 1x base
- 1x stick

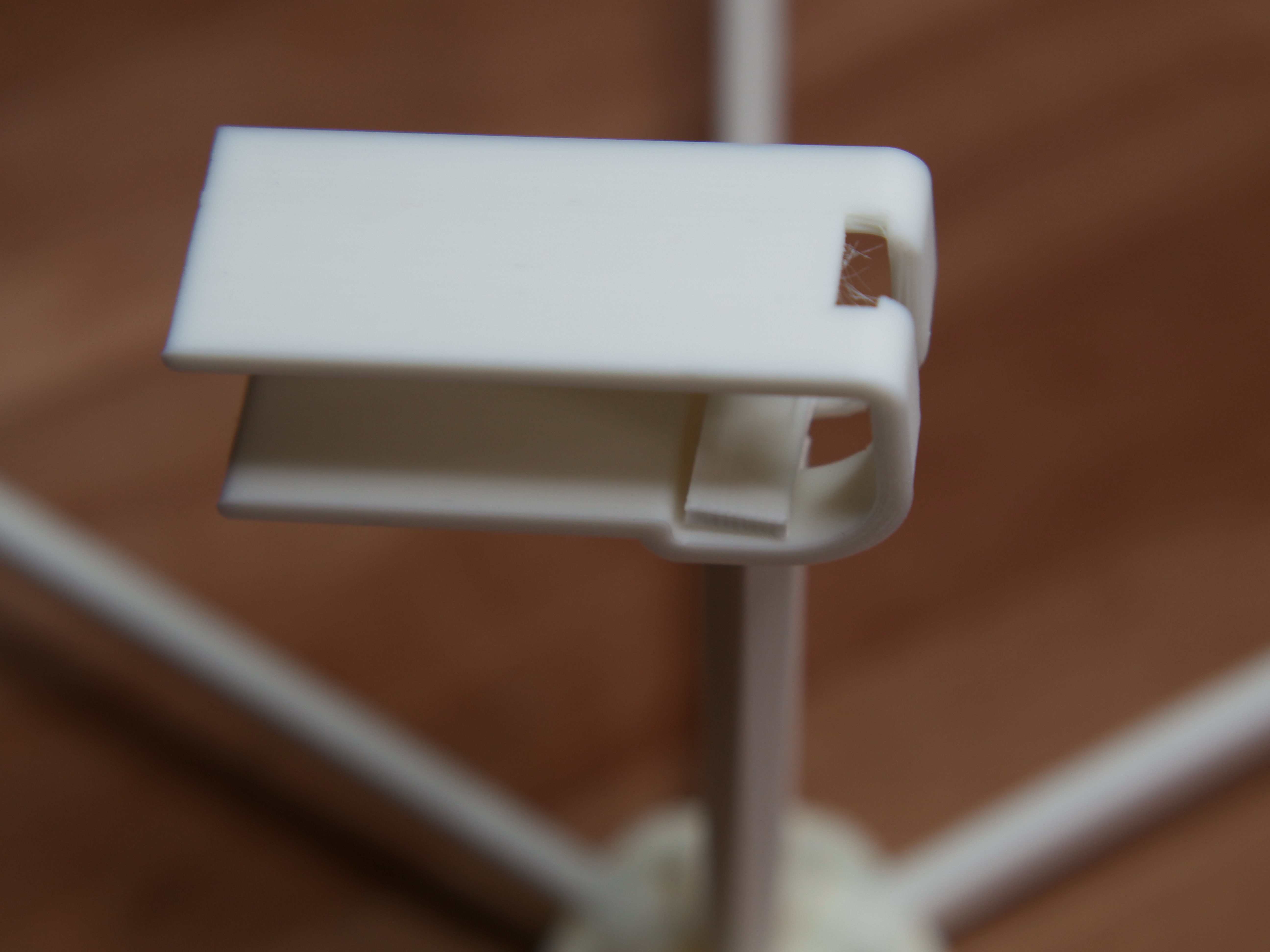

- 1x shelf mount

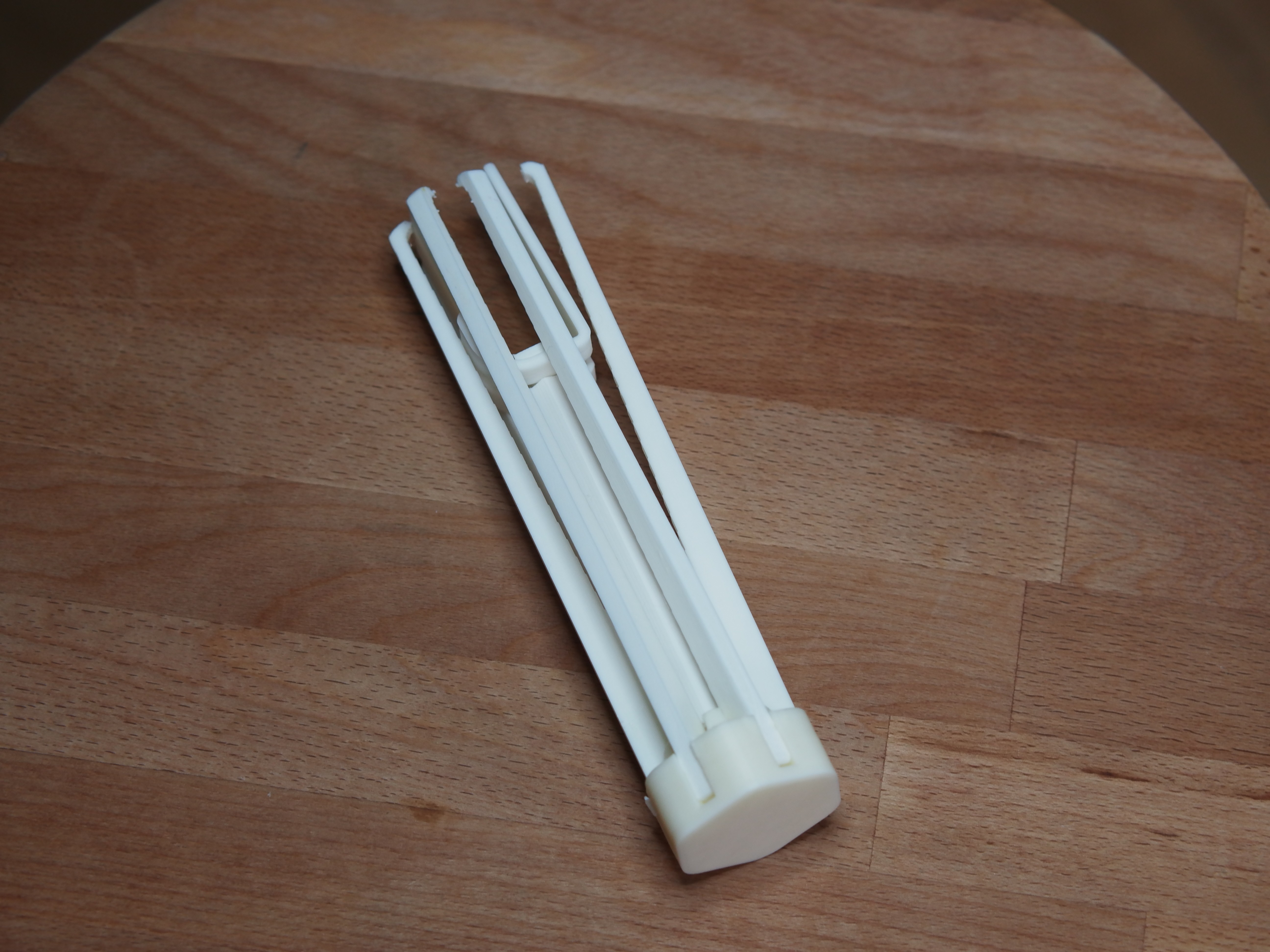

It's easily folded and will not consume a lot of space on your kitchen

Note: If you want to print one, but don't have a kitchen shelf to mount, I can prepare a special version - which you can put on top of wine bottle and put on the table. Just ask in comments!


3D printing settings

Rafts: No
Supports: No
Resolution: .2
Infill: Doesn't matter - 20% is generally ok

Notes:
I would not recommend to print 'rays' with ABS, because it's considered to be not-food safe.

Mine drier is printed from PLA, except of base part - which is printed from ABS, to be a bit more flexible (in general PLA or PETG should also work)

3D printer file information

  • 3D design format: STL Folder details Close
    • base.stl
    • ray.stl
    • shelf mount.stl
    • stick.stl

    Learn more about the formats

  • Publication date: 2018-03-23 at 13:11

License

CC BY
