Flame Lamp

3D model description

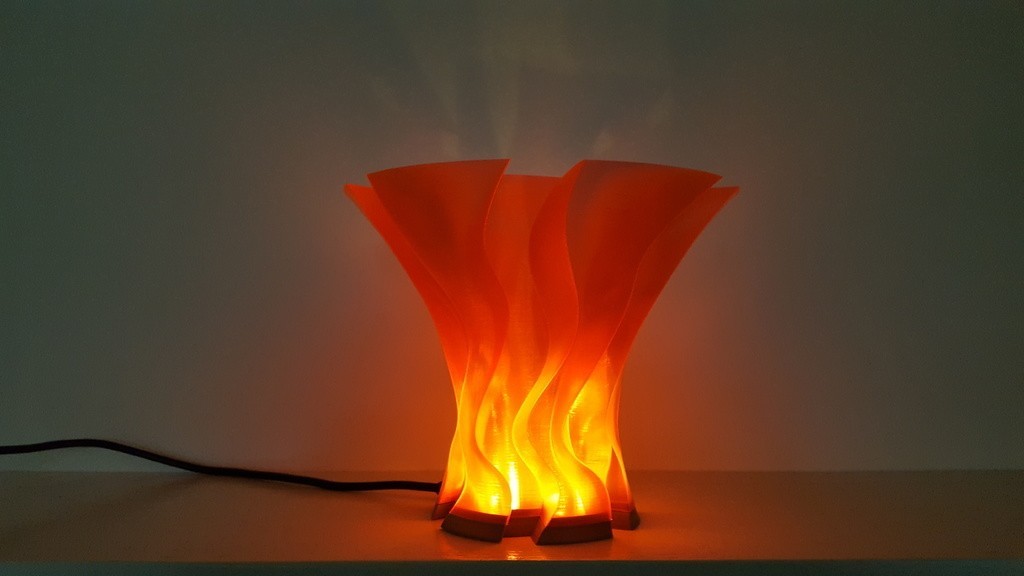

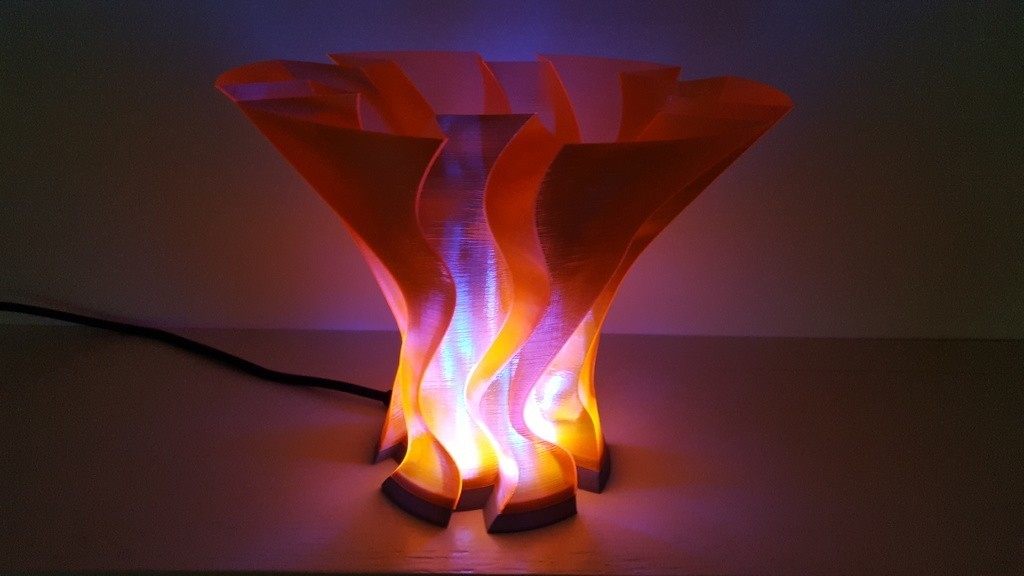

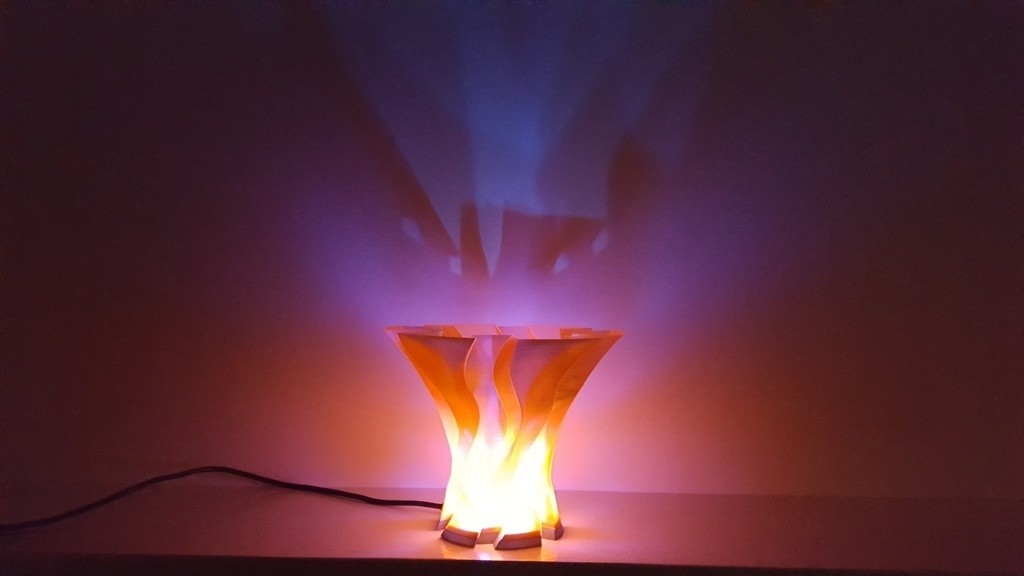

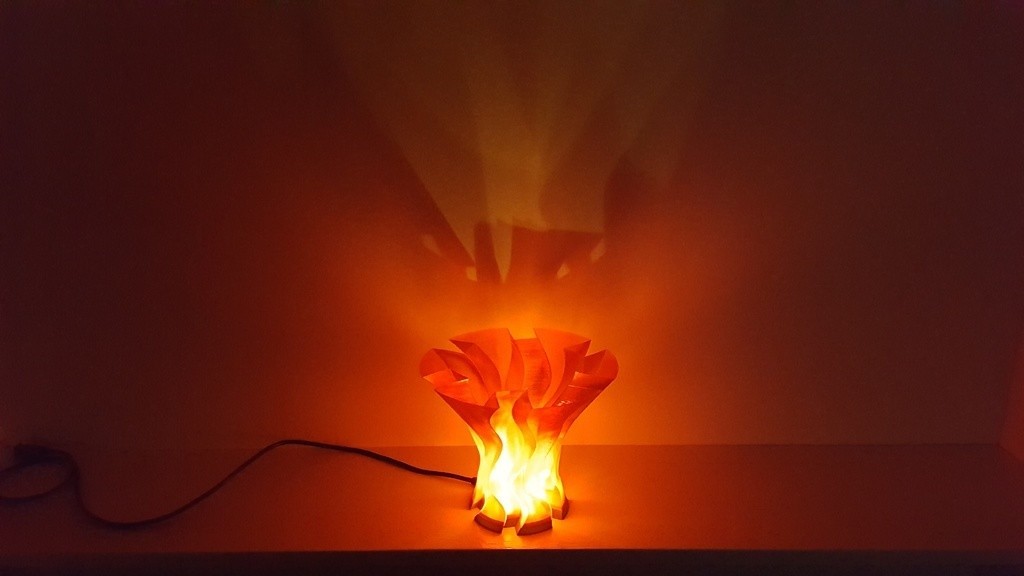

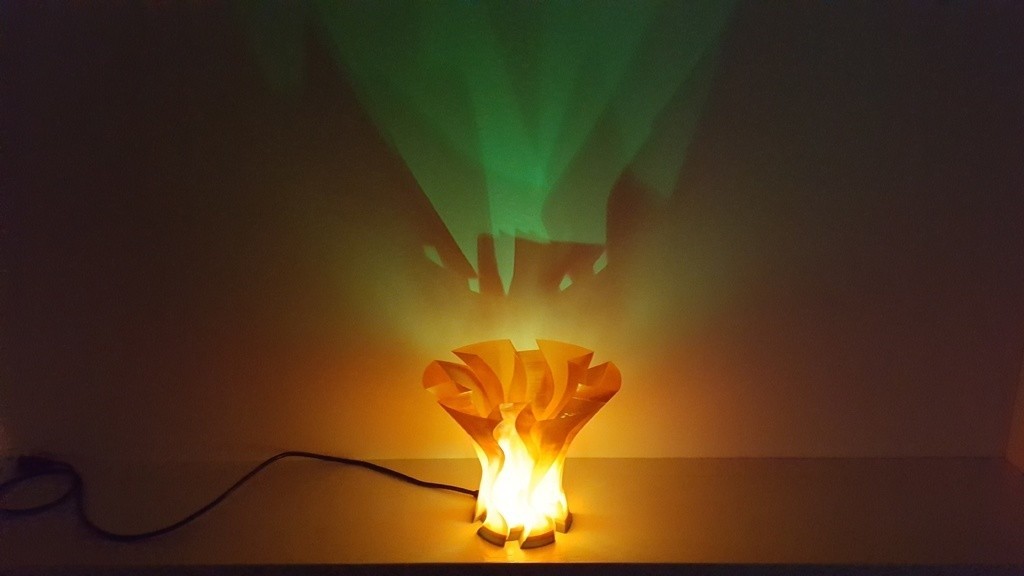

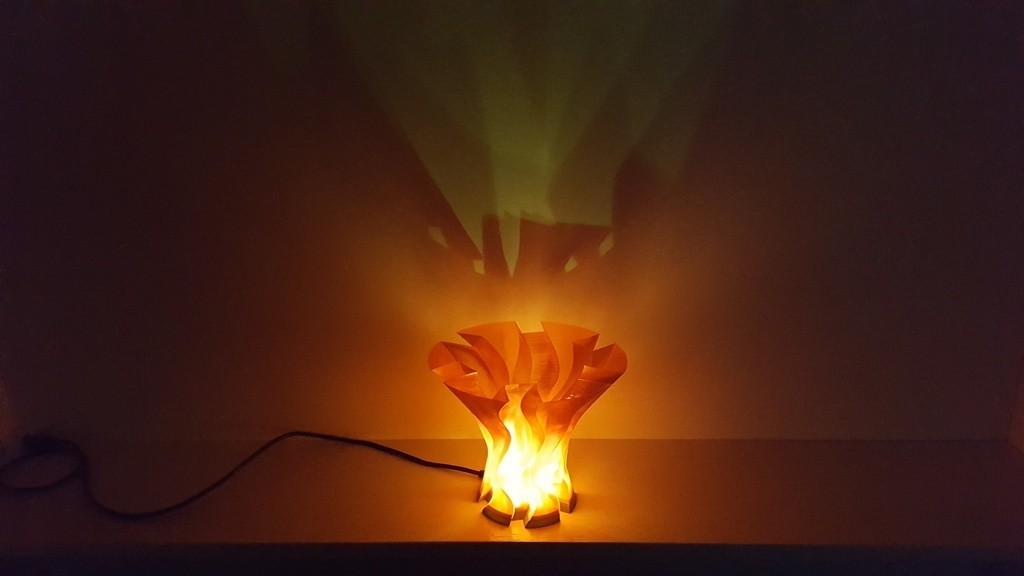

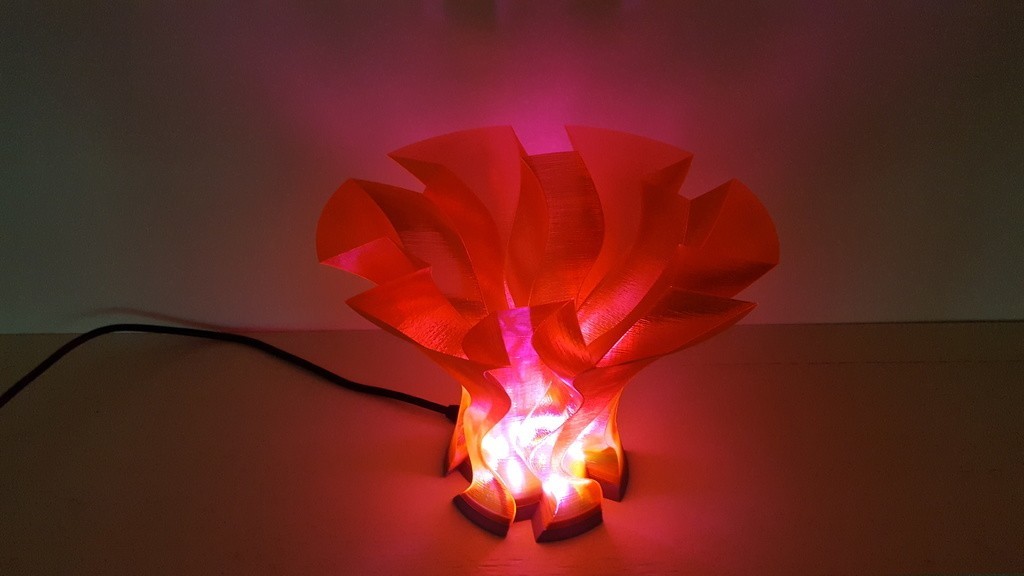

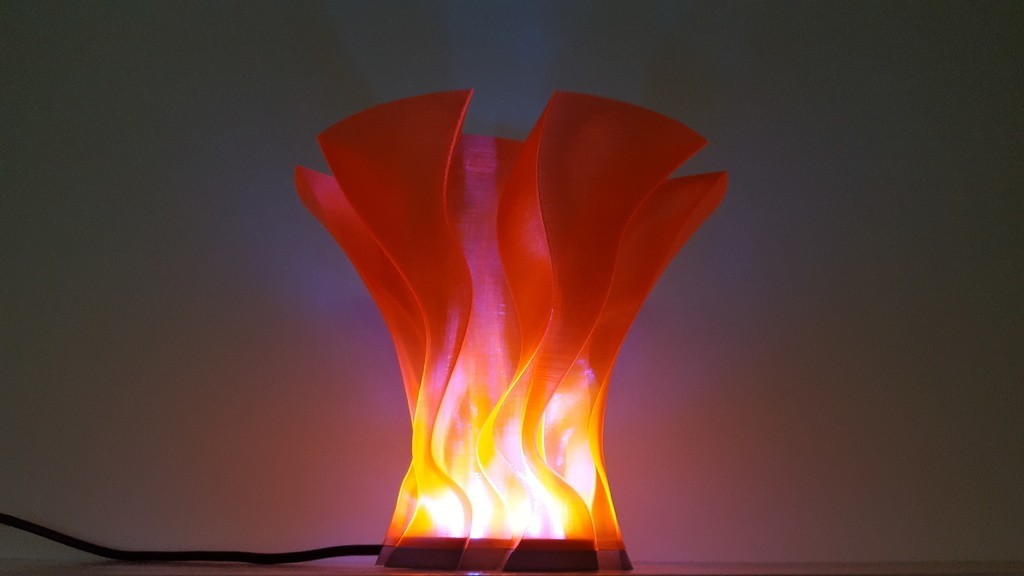

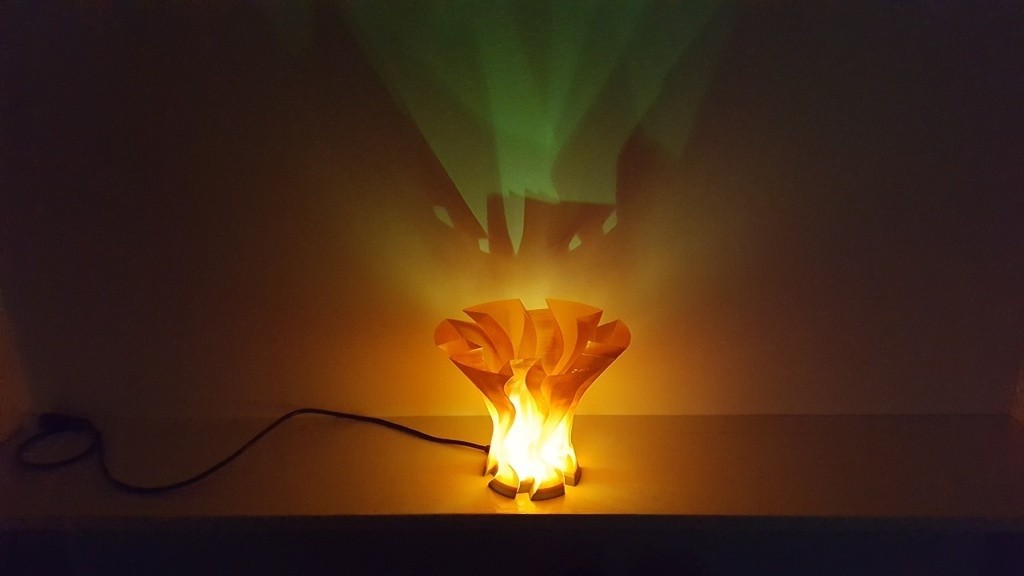

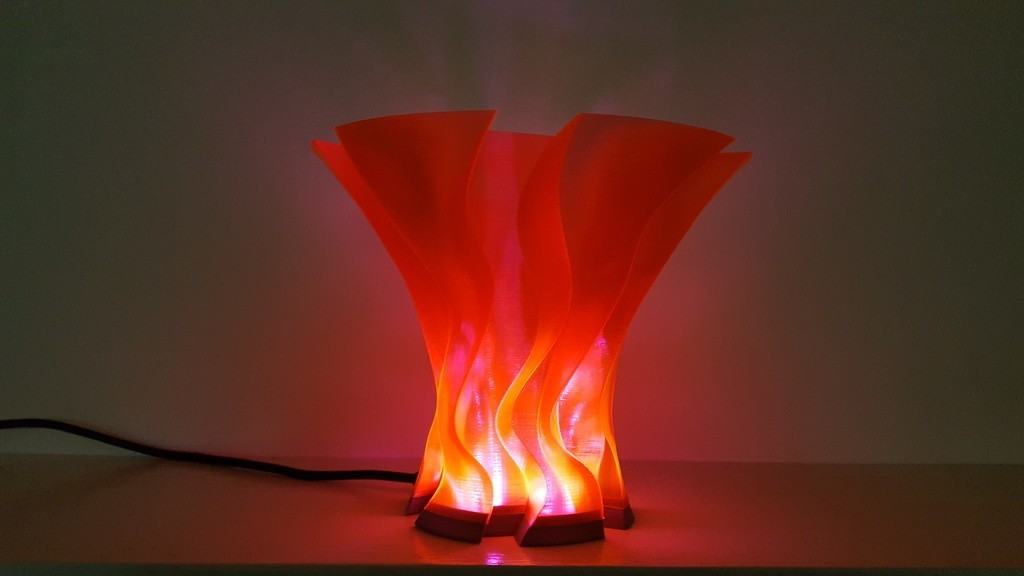

Ambient Light using NeoPixels and a Arduino Nano as a light source :-)

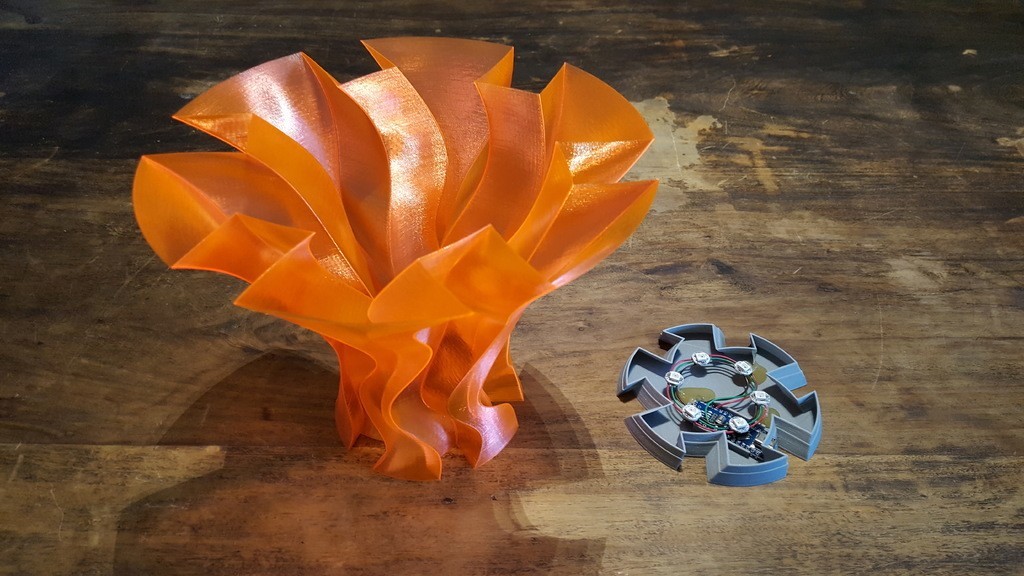

The lamps shade is printed in PET-G using the “spiral outer contour mode” without any bottom layers.
The base is printed in silver ABS, 0.2mm resolution.
For both prints I used a 0.4mm nozzle.

The Arduino sketch and library I used are included in the ZIP file. They are from AdaFruit and I just changed it a bit so the LED's slowly change color. For more info: https://learn.adafruit.com/adafruit-neopixel-uberguide/arduino-library-use

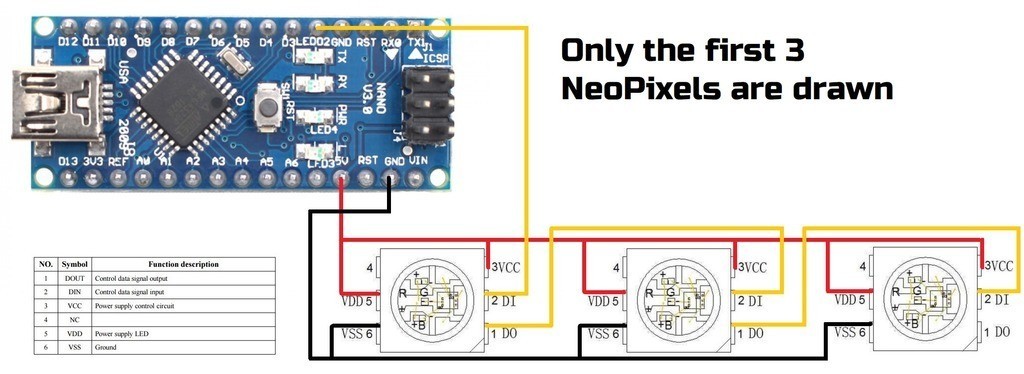

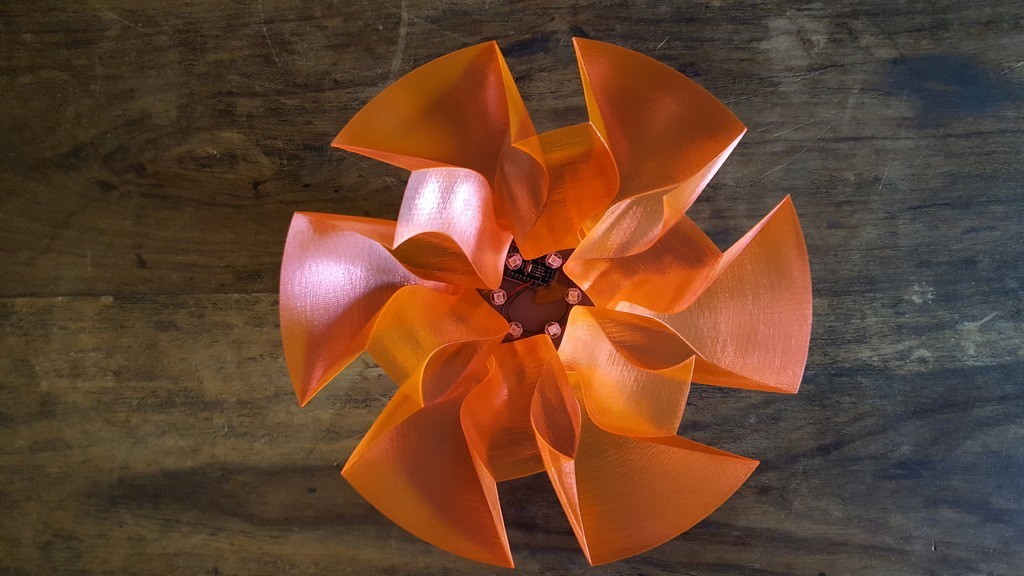

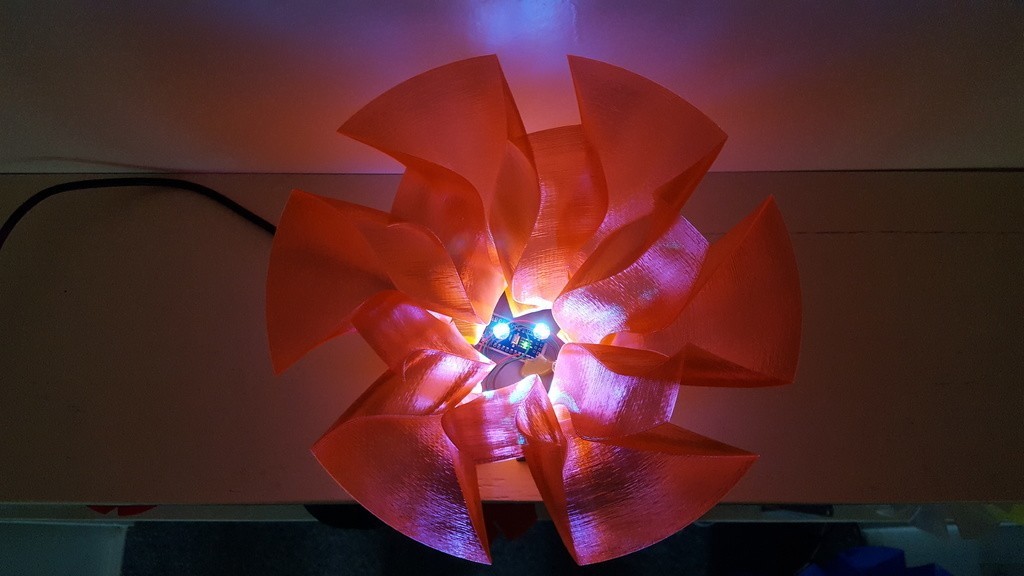

The 6 LED's are soldered in series to form a ring. Because they can take a max of 60mA each, I took the 5V from the Arduino's internal regulator. I included a simple firing diagram at the picture section.

Note: I had to hot-glue the Arduino to the base, so it can't move while plugging the USB cable in and out.

If you have any questions, feel free to ask :-)
Do you have constructive comments or think I made a mistake? Please tell me :-)

  • 3D model format: STL and ZIP
