3D model description

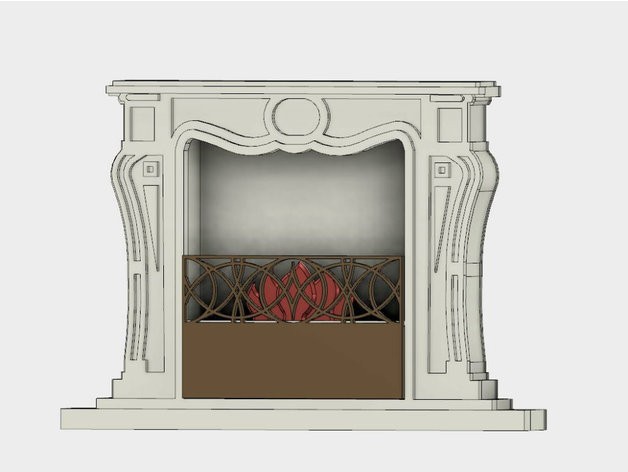

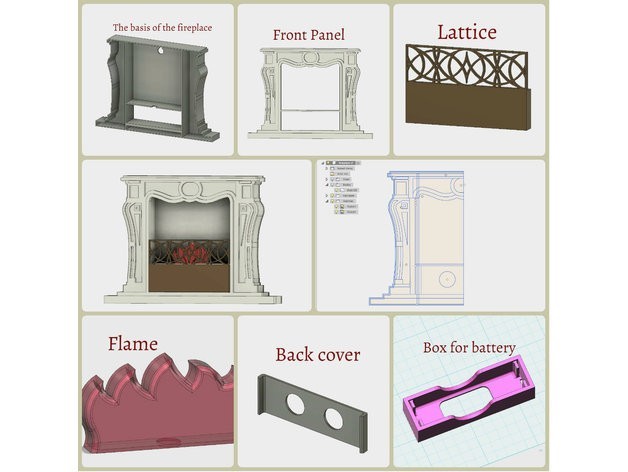

3d printed fireplace with Fusion 360.

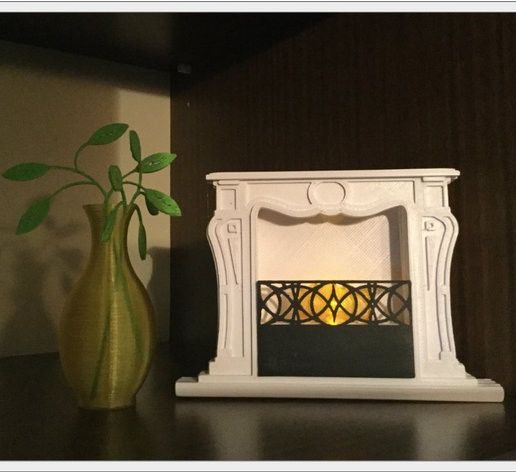

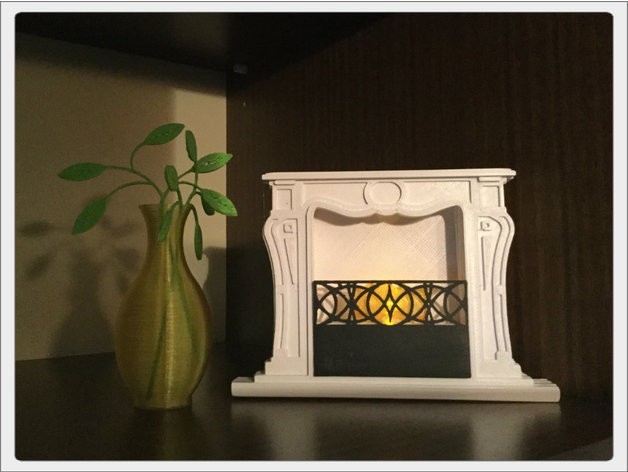

I love to look at the fire and relax near the fireplace. This is a small fireplace - lamp simulates the light of the fire.
Also a fireplace can be used in a doll house.

All parts are printed on a 3D printer, white, yellow and black ABS plastic. Details of the fireplace are connected with glue.

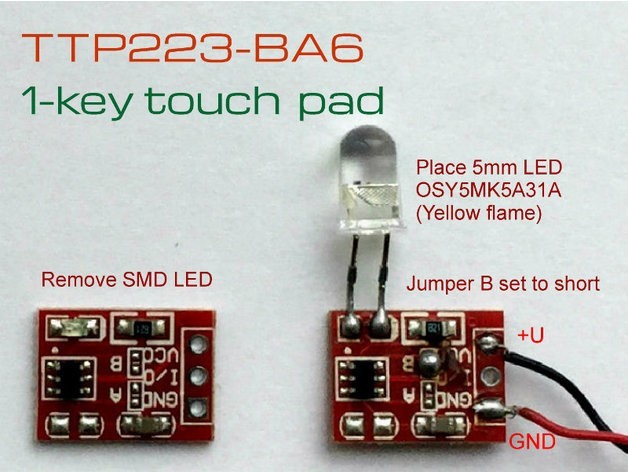

In order to simulate the flame used LED (OSY5MK5A31A OPTOSUPPLY LED flashes

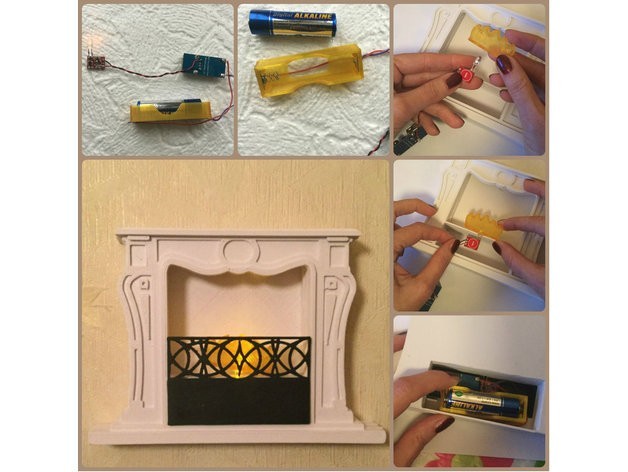

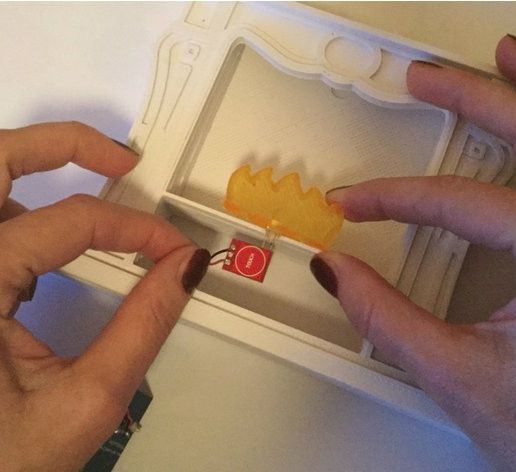

Yellow flashing LED 4500-5800 mcd with the brightness and the angle of dispersion 30 °, simulating a candle flame). Turning is done through the touch switch. The whole electronic part is powered by AA 1.5 batteries. To increase the voltage boost converter, I applied. (goo.gl/1NGj4i).
The electronic part is collected in the lower compartment of the fireplace.

More information can be seen on http://www.instructables.com/id/3d-Printed-Fireplace-With-Fusion-360/

https://youtu.be/J4qGSLQsc8E

3D printing settings

Printer:
prusa i3

Infill:
0,15

3D printer file information

  • 3D design format: STL Folder details Close
    • back_cover.stl
    • base.stl
    • box_for_battery.stl
    • flame.stl
    • front_wall.stl
    • lattice.stl

    Learn more about the formats

  • Publication date: 2017/01/16 at 14:33

License

CC BY NC SA
