Rotating spice rack spice rack

?
Creation quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Hi, this is an idea I had for a spice rack and I wanted to bring it to reality.

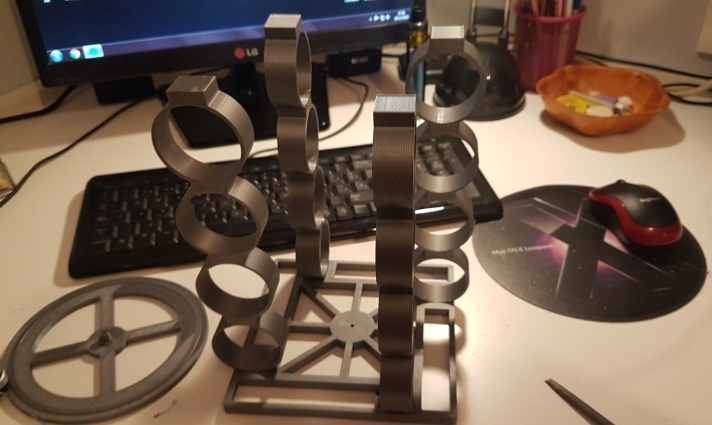

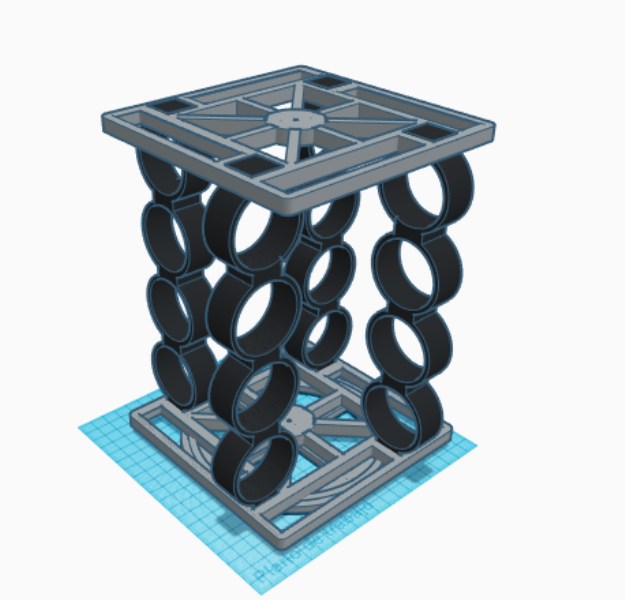

This model consists of 3 parts: Circular base, square base(x2) and the distribution for the jars(x4).

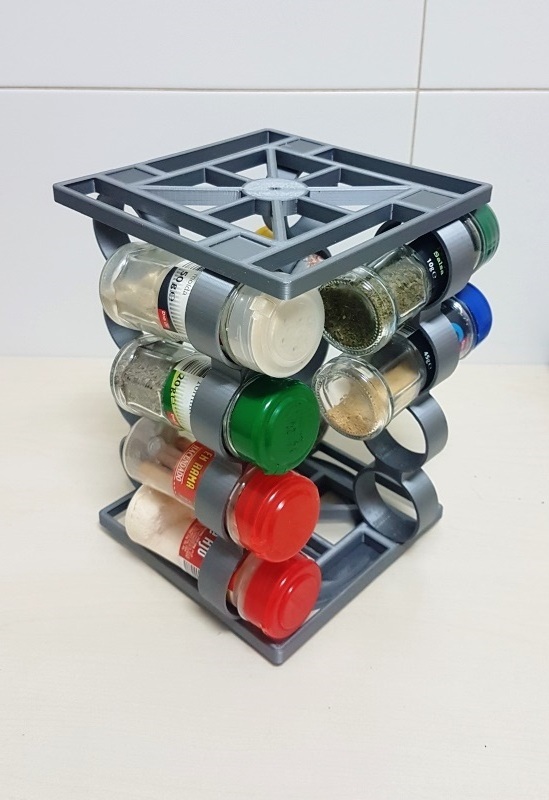

Holds up to 16 spice jars and takes up very little space. It can also rotate on its own thanks to the incorporation of a bearing (standard 22mm...my old inline skates are starting to come in handy XD). It is resistant and can be printed in a relatively short time and in a simple way because it does not have supports and fits everything being very compact.

Note: Canisters up to 45mm in diameter can be placed, I have them of various brands and goes well.

Overall dimensions of the set 180x180x230

I hope you like it and I hope you find it useful. Greetings!


3D printing settings

(Nozzle 0.4)

PLA T°210 BED 80-60

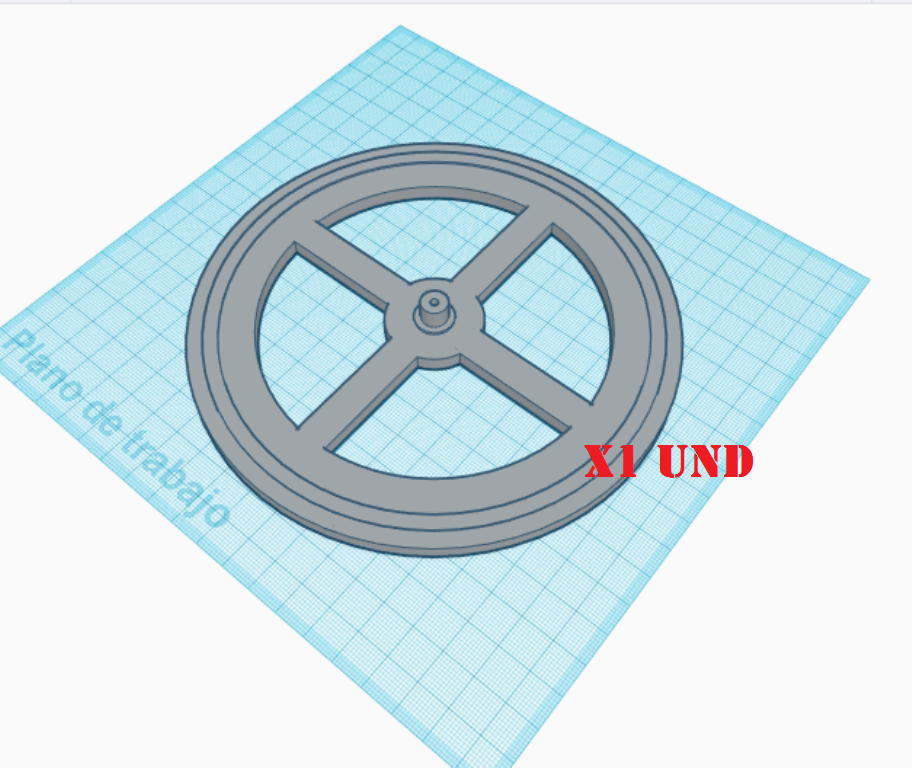

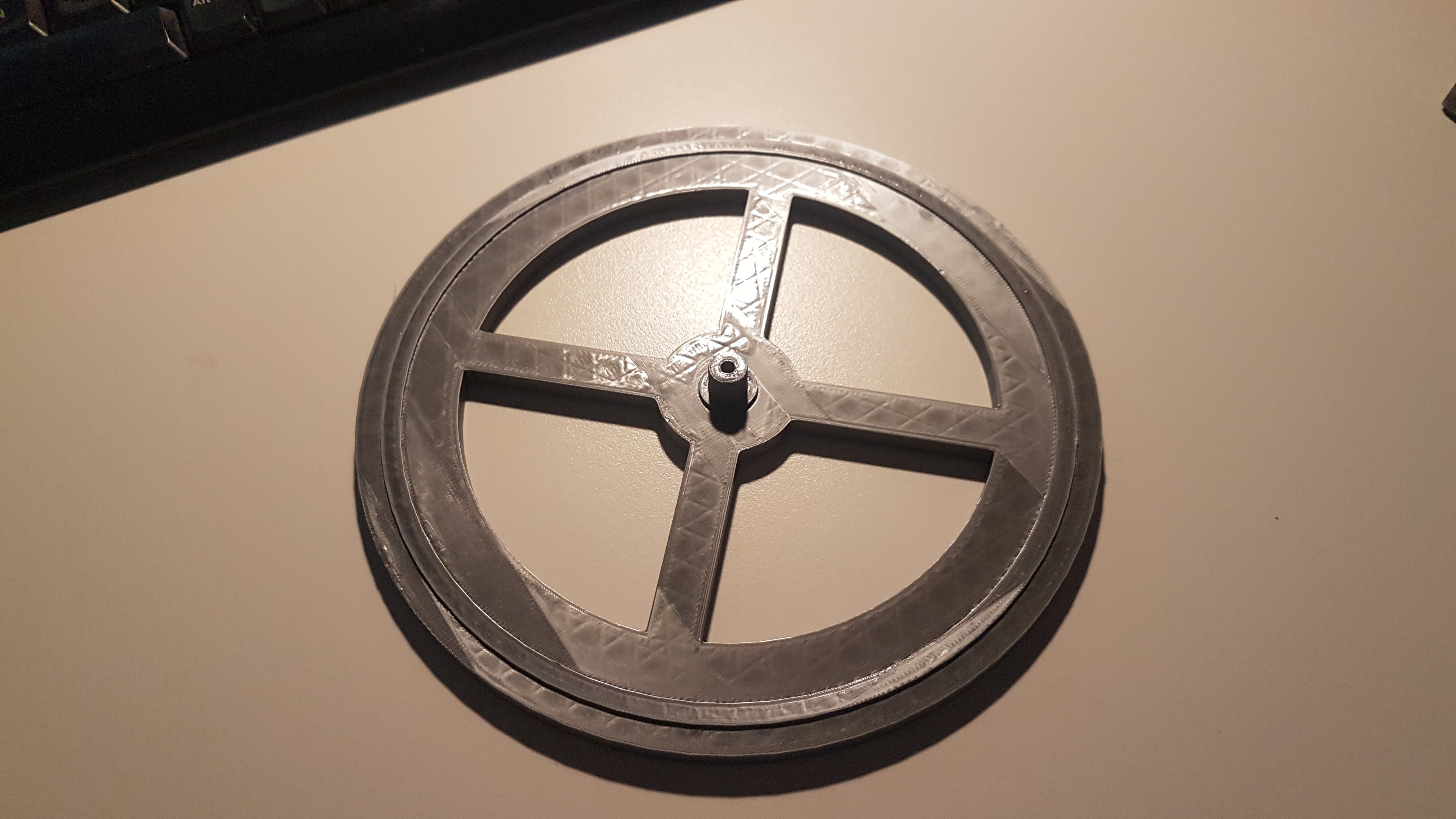

Circular bed: Layer height 0.2, V impression 80, V movement 150, Filling 20% (reinforcement in the center where the bearing goes 80%) Time 3h

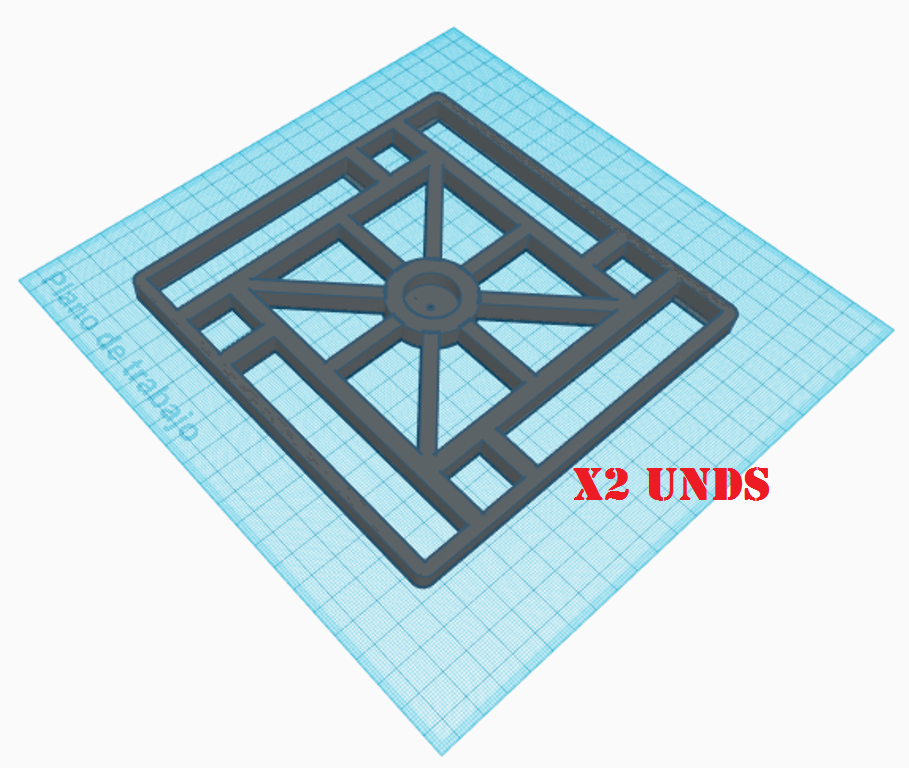

Square base: similar to the circular base. Time 6h

Distribution:(X4 at a time) Layer height 0.3, V 90-150, filling 15% Time 10h

3D printer file information

  • 3D design format: STL Folder details Close
    • Base especiero.stl
    • Especiero Base circular.stl
    • soportes especiero.stl

    Learn more about the formats

  • Last update: 2021-01-13 at 18:16
  • Publication date: 2020-12-29 at 21:06
