Spaghettiometer / Spaghettometer
- 1.2k views
- 2 likes
- 9 downloads
3D model description

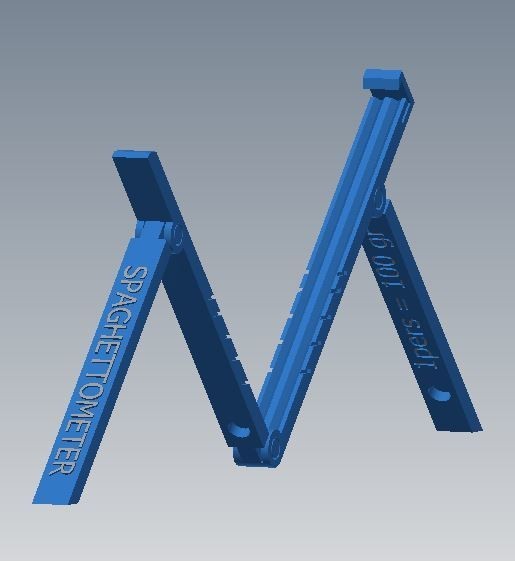

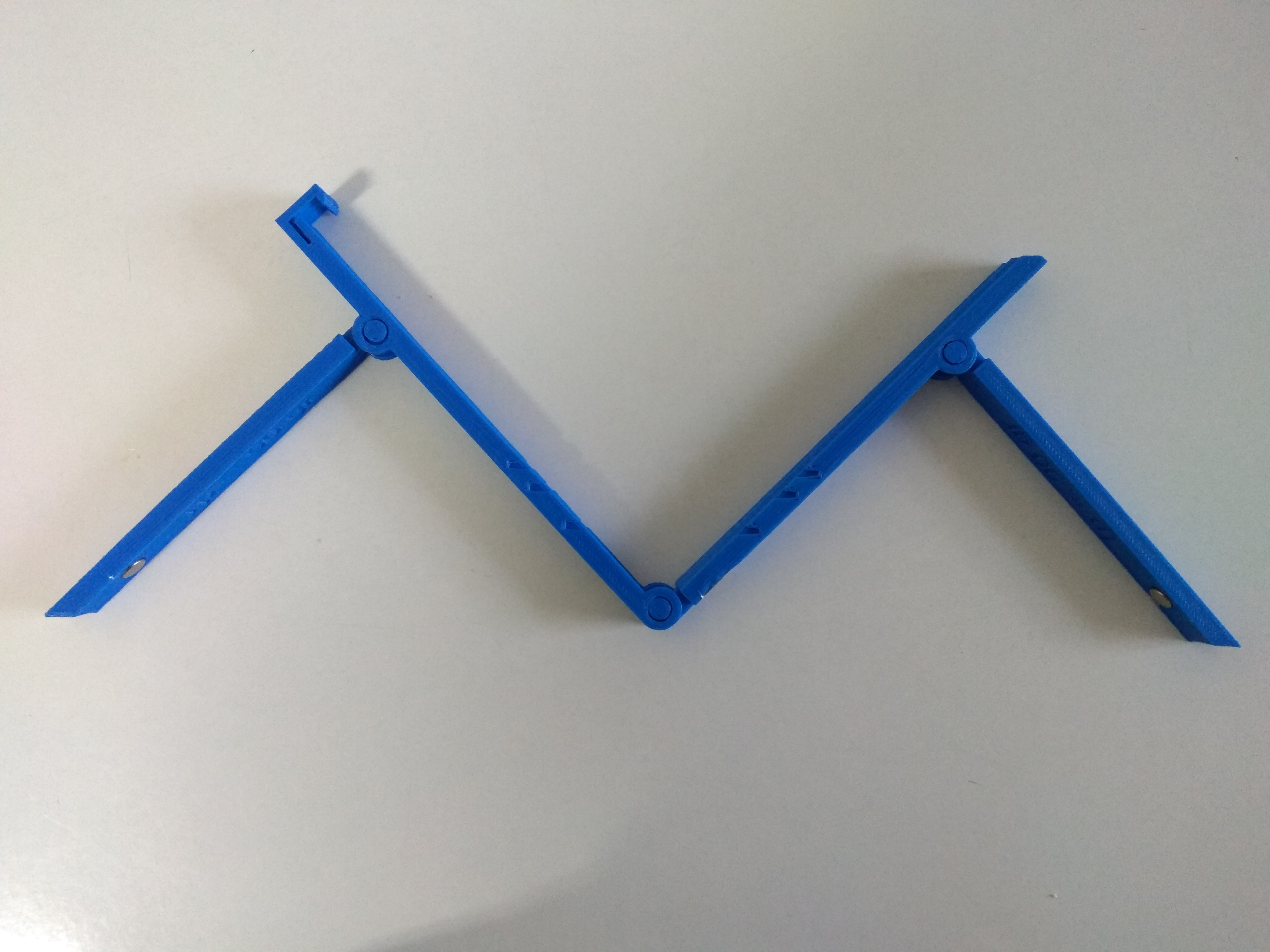

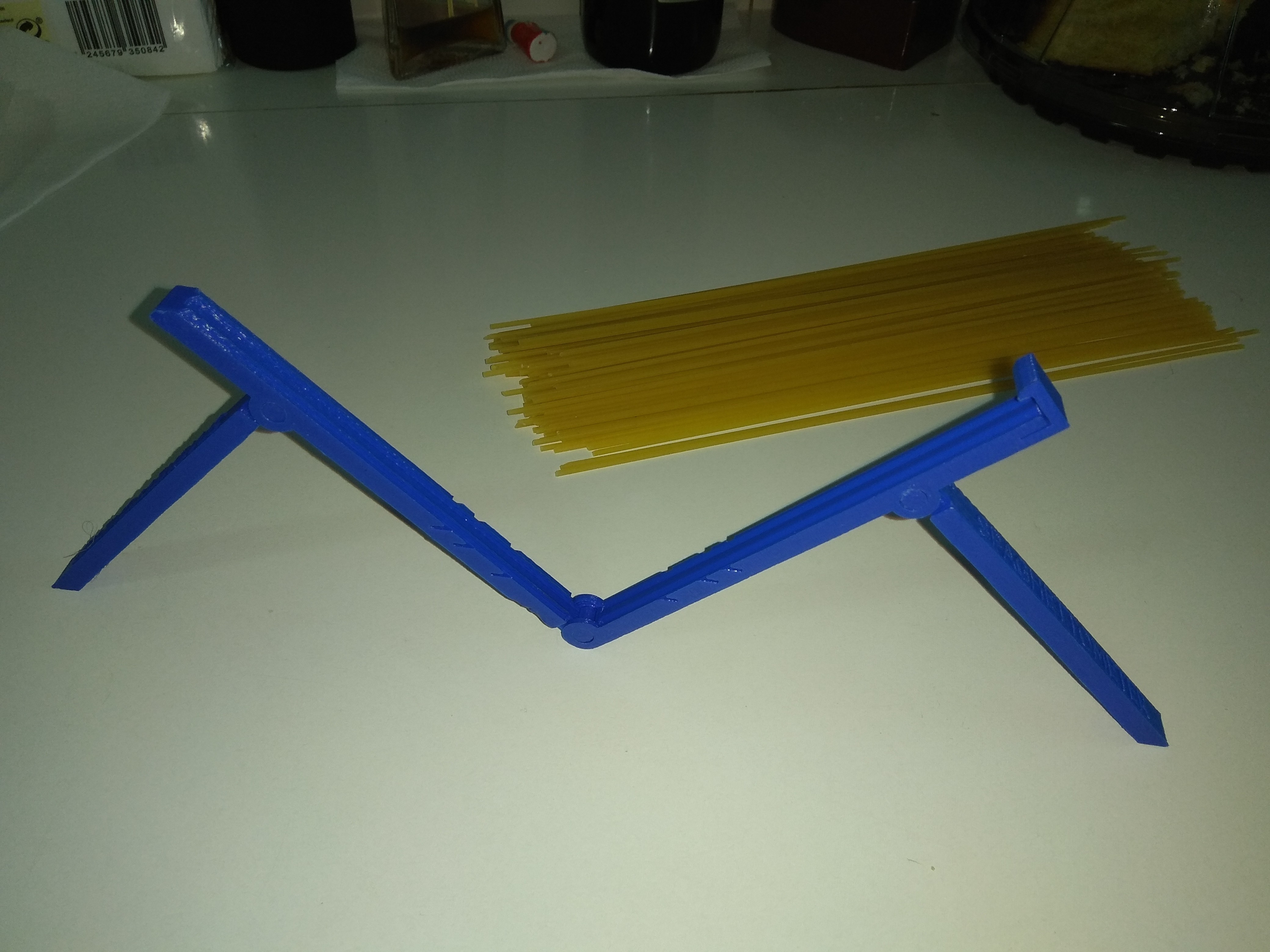

It is a spaghetti meter that can also be used to close the bag of spaghetti. It works by depositing spaghetti on the center bars, each mark on the piece means 100 grams of pasta, which is the average amount of a serving for one person. In the photos is explained graphically. It can measure up to 500 gr.

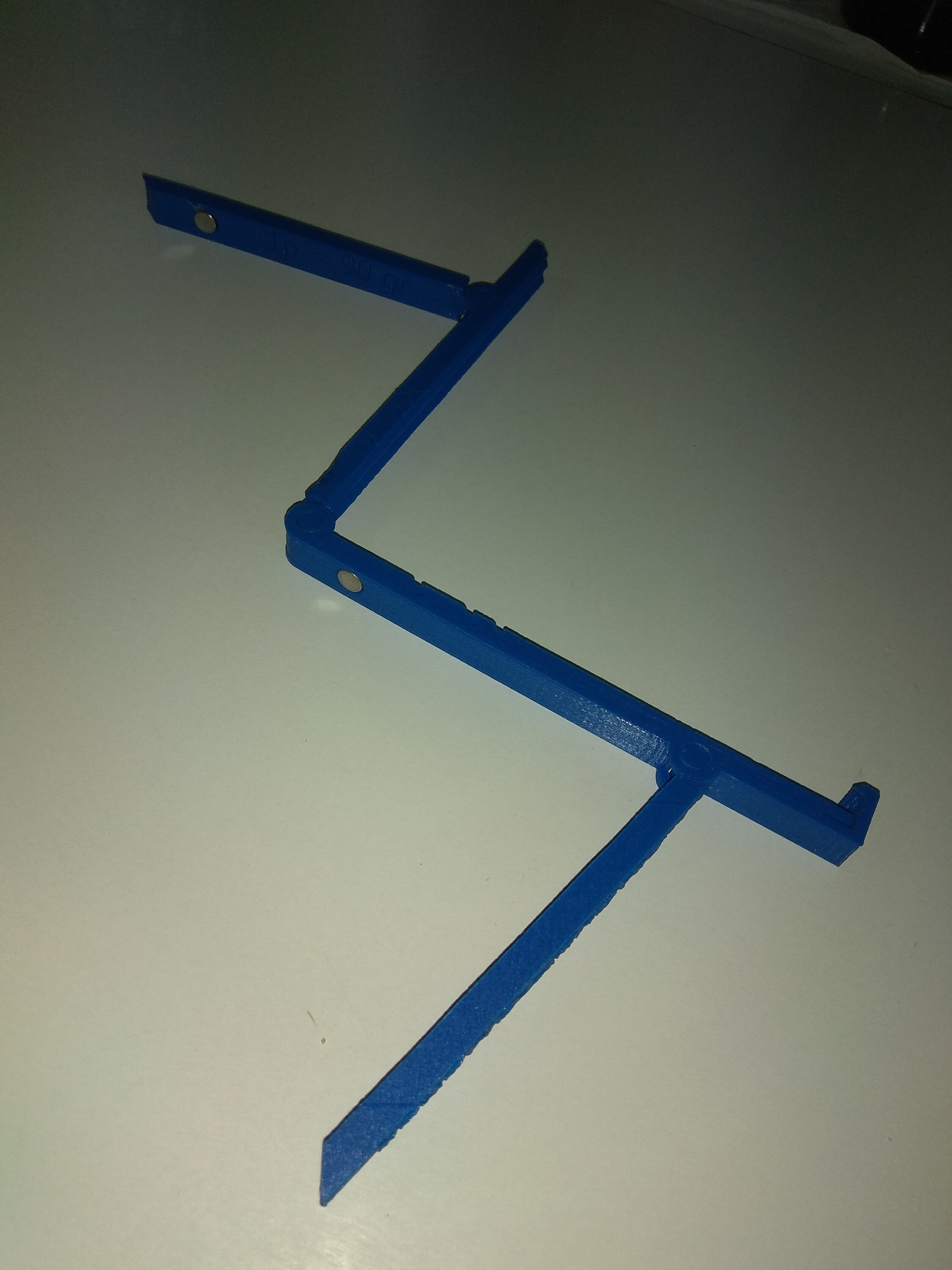

The side bars are closed with circular neodymium magnets (6 mm in diameter and 3 mm in height), so that they do not disturb when the spaghettiometer is closed.
The file is printed without support so that the joints are in good condition.
It may be necessary to scale the stl file to 1000% cure.
3D printing settings
Layer height: 0.2 mm
Wall Thickness: 0.8 mm
Top / bottom thickness: 0.8 mm
Filled density: 30%
Print speed: 40 mm / s (Anet A8)
It has to be printed without support
- 3D file format: STL
- Publication date: 2018/03/31 at 09:34
