Encircled Tree

?
Creation's quality: 4.9/5 (4 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 7.4k views
  • 70 likes
  • 1.1k downloads

3D model description

I found the fantastic Laser cut tree in a round frame by mistercrunch (http://www.thingiverse.com/thing:359145) and wanted to make a 3D printed version as a Christmas gift. Using the original file, a lot of small branches didn't print properly or fell off when removing from the print bed - the bottom curls were absolutely impossible for me to print well.
So I set out to make a 3D print-friendly version of the tree. This essentially meant manually redrawing every single branch and twig thicker and changing a number of details to be printable. I also spent a lot of time to make every curve smoother and feel more organic.


3D printing settings

Printer:
RigidBot

Rafts:
No

Supports:
No

Resolution:
0.20

Infill:
20%

Notes:
Diameter is 230mm and thickness 5mm; the latter can probably be cut in half if you plan to hang it on a wall, just remember that the trunk will have to support the entire tree.
Printed with 20% honecomb infill and triple walls, the entire print weighs 80g. Since there are no Z-details, 0.20mm layer height went fine.

Post-Printing

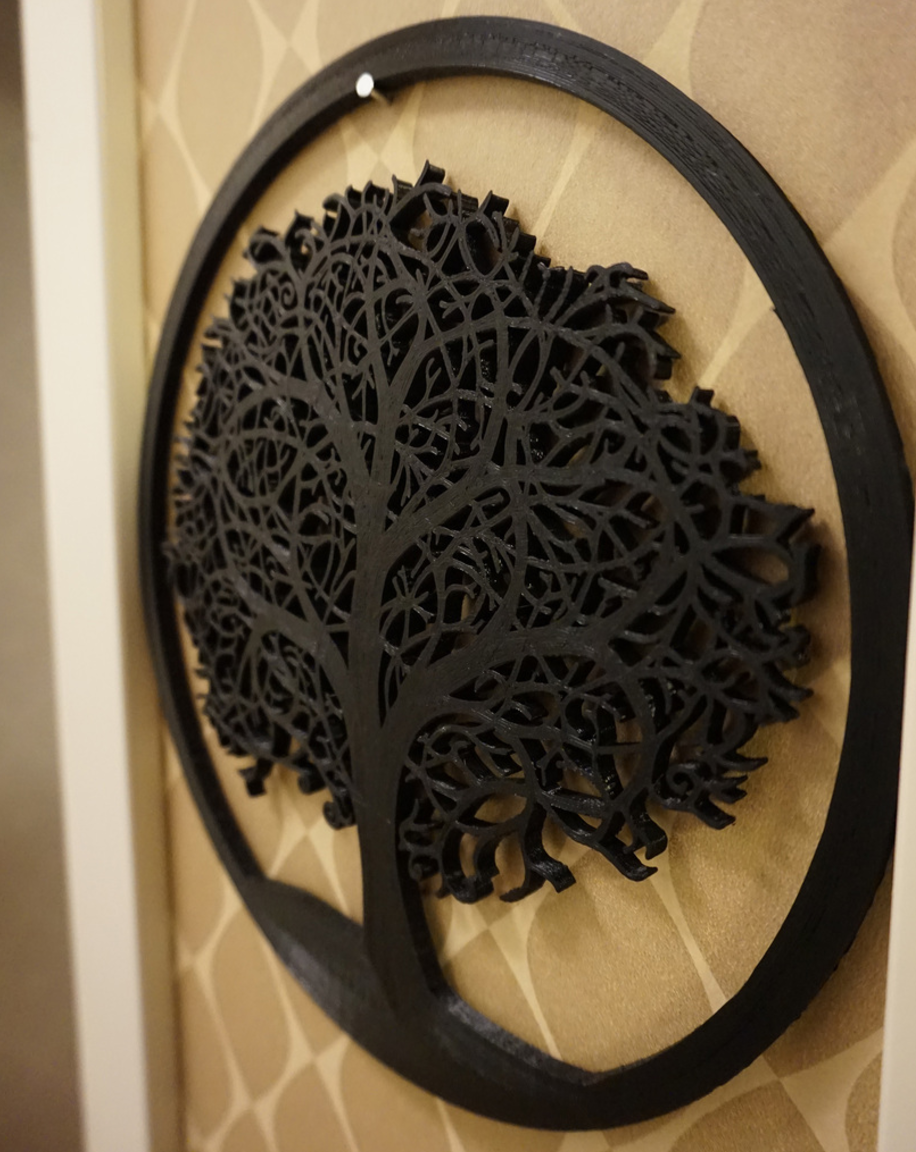

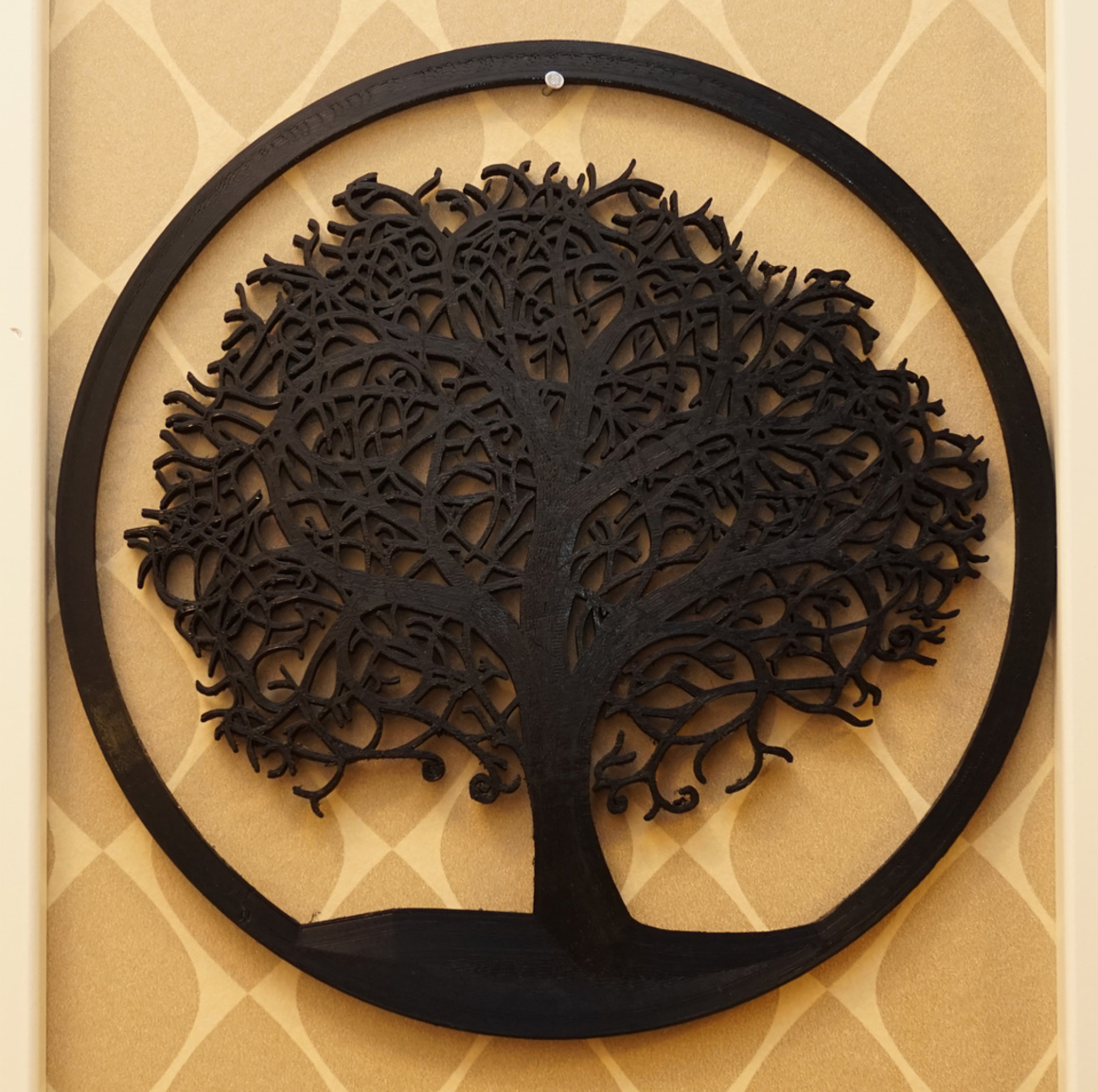

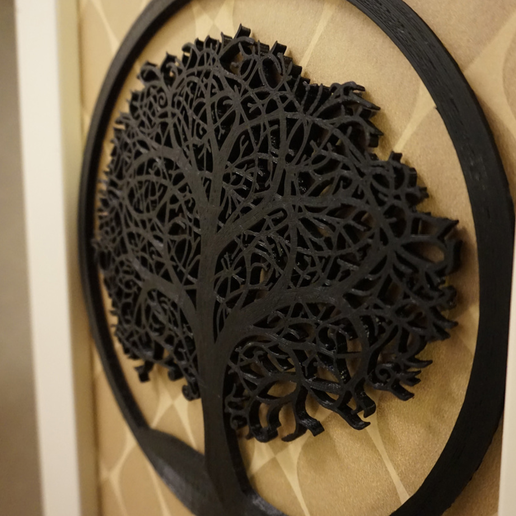

The photos you see are after a 20-second cleanup (quick pass with heat gun to remove the finest hair-like strands), but nothing more is done so far.

Placement

Option 1: Hang it on a nail on the wall. For an absolutely flat finish, have the bottom side facing outwards.
Option 2: Hang it from a piece of thread in a window - the light shining through gives a lovely effect.

3D printer file information


License

CC BY NC

Creator

Designs 45
Downloads 9.6k
Sales US$92
Followers 83

Hi! I'm a tinkerer, designer and maker from Sweden. If you like my designs, feel free to leave a comment. :)
