DYSON DC V6 multi-tube master key cap

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2.6k views
  • 4 likes
  • 1 download

3D model description

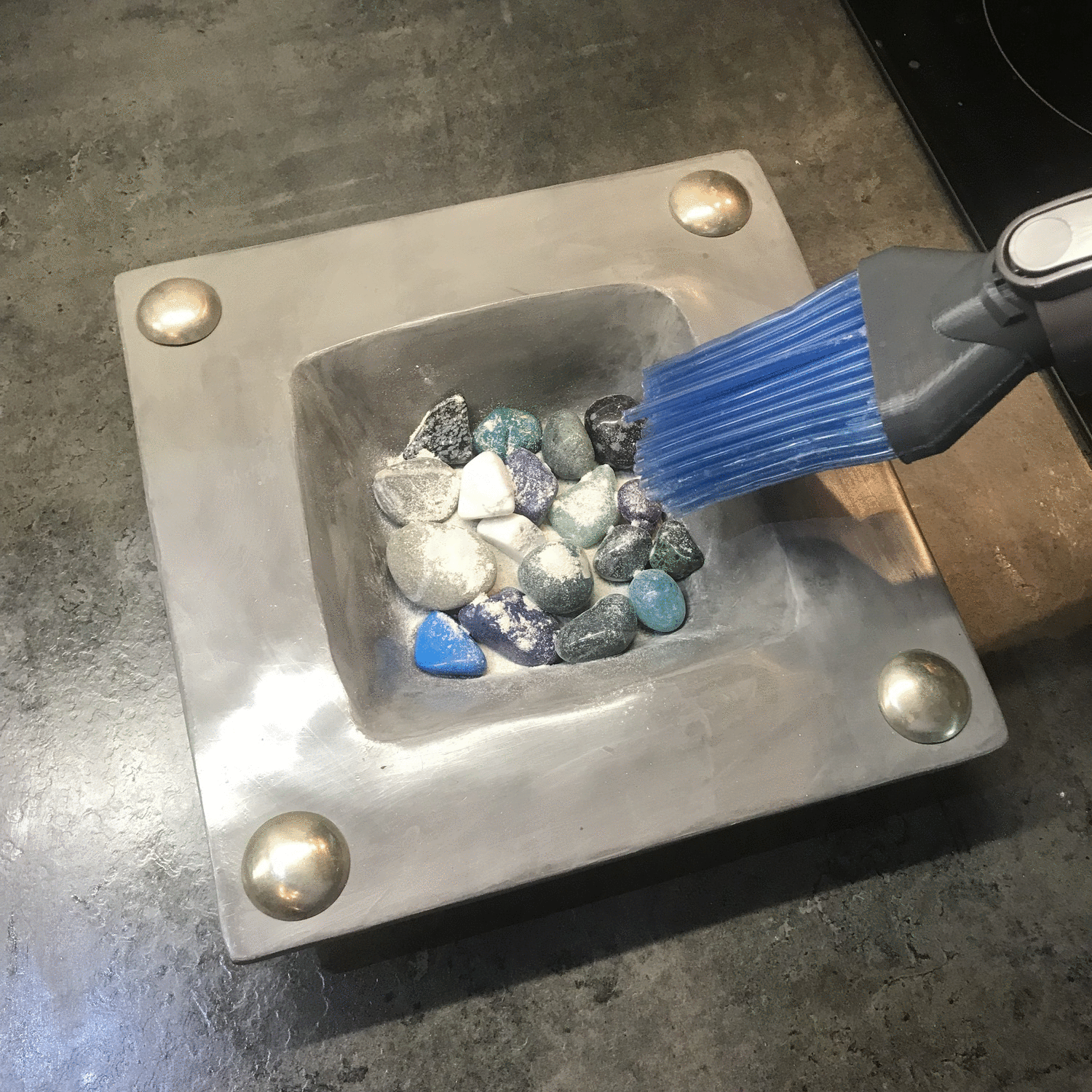

Here is a tip for your DYSON DC V5 or V6 vacuum cleaner to suck up dust without the risk of catching the small trinkets you leave lying around... Perfect for cleaning a pocket holder without vacuuming your keys or change!

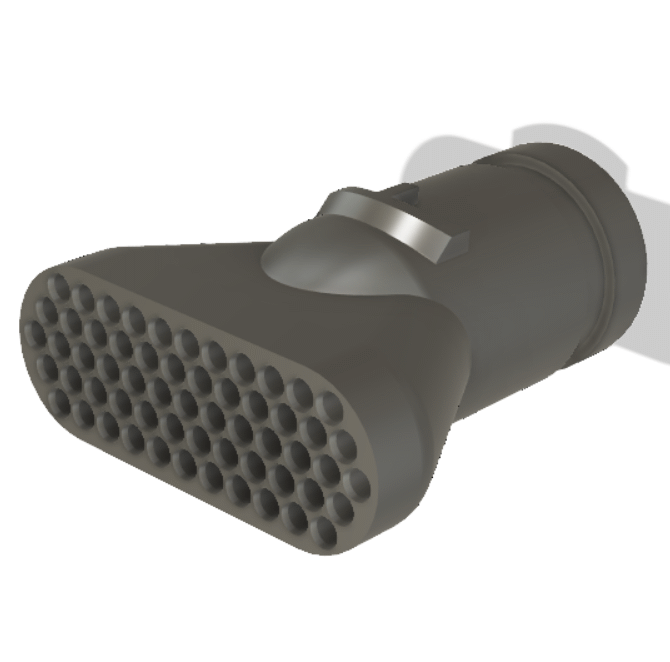

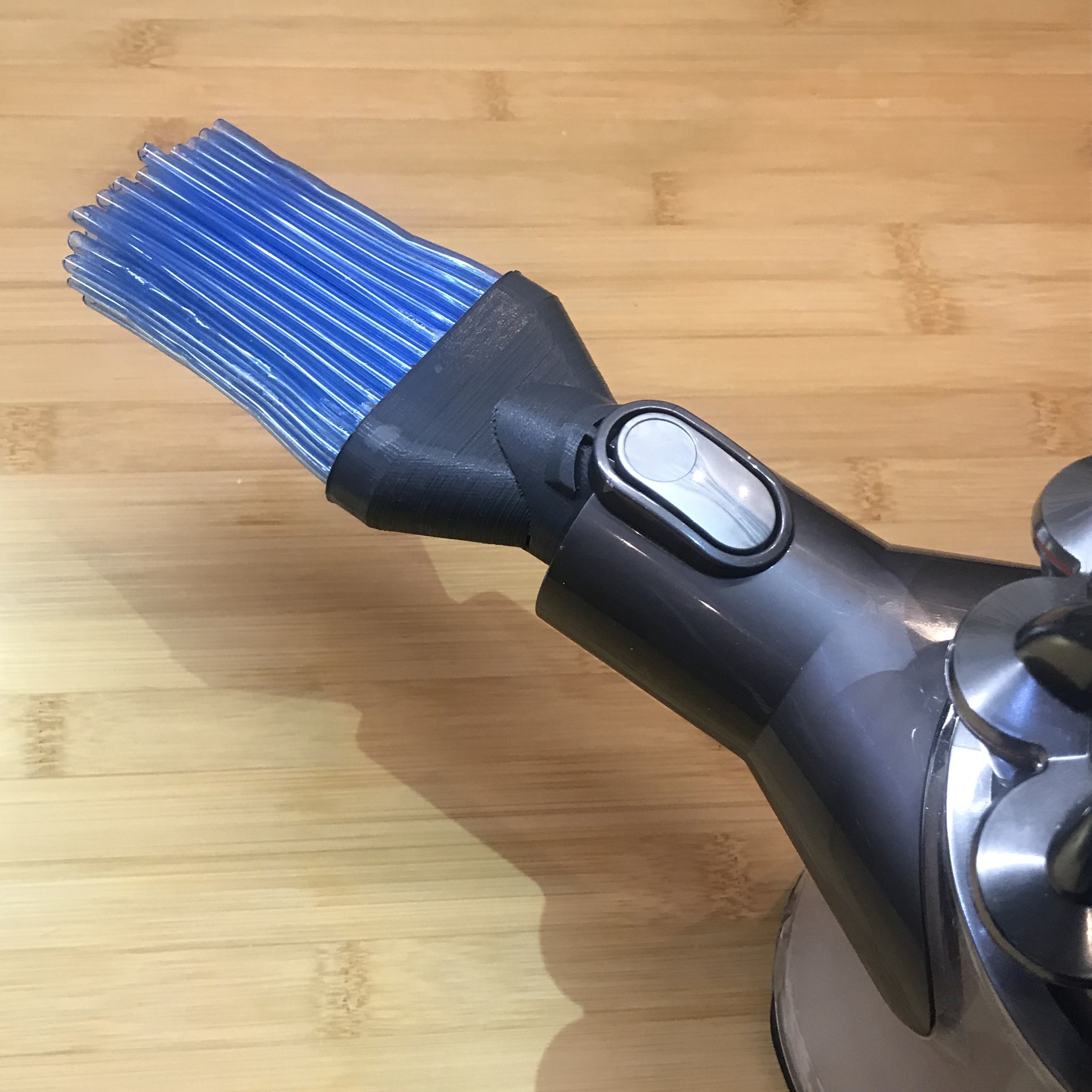

This adapter can be used to fix 59 straws with an outside diameter of 4 mm. In my case I used 4 x 2.5 mm polyurethane hose (diameter 4 mm external, 2.5 mm internal) which are very flexible. You can also use more rigid 4x2 RILSAN (Polyamide) hoses such as compressed air hoses that you can find at the counter from industrial product distributors (NOVAFLEX, SONAFI, DIFLUID, FAURE...)


3D printing settings

Printing in PLA

Without support (59 holes face down)

0.15 mm layers

3D printer file information

  • 3D design format: STL Folder details Close
    • EmboutDysonTuyauxCapilaires4X2.5.stl

    Learn more about the formats

  • Last update: 2019/04/09 at 20:19
  • Publication date: 2019/04/04 at 00:28

Copyright

©

Tags

Creator

Page translated by automatic translation. See the original version.
Issue with this design? Report a problem

Best sellers of the category Home


Add a comment

2 comments

Hello RTaylor, this tool will not fit a V8 Dyson vac. I have no V8 in hand to design the right tool, maybe later !

Do you make one that fits the v8 Dyson cordless vac? Thanks!
