Elegant window latch (don't require holes to in window's frame)

?
Creation quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

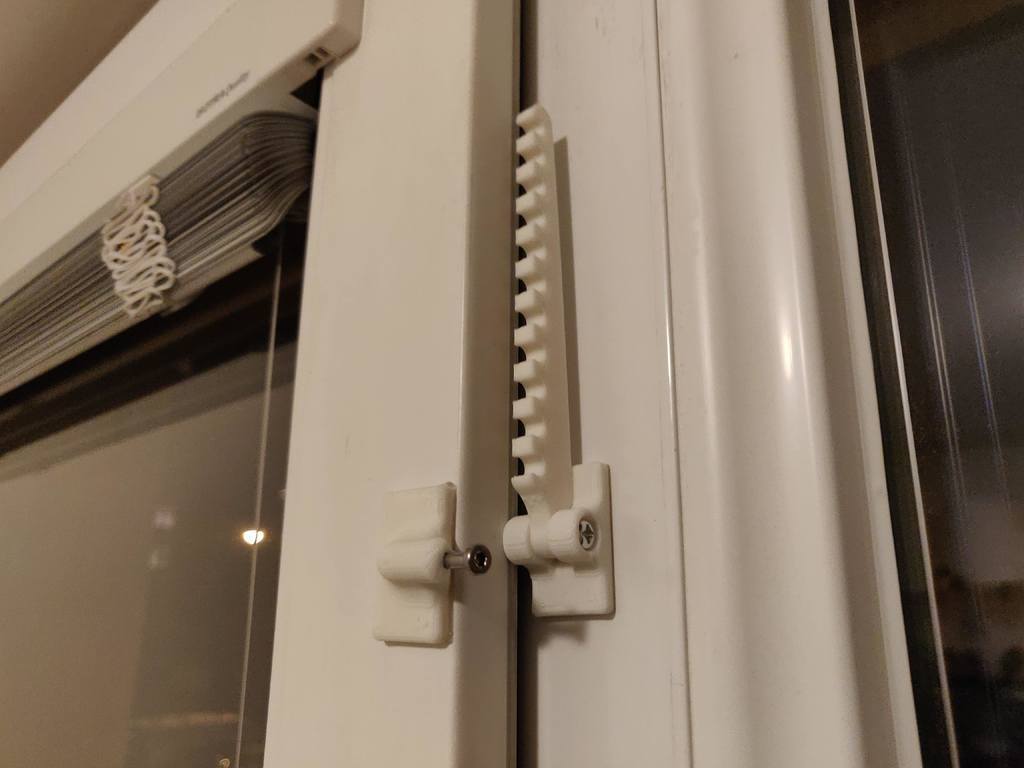

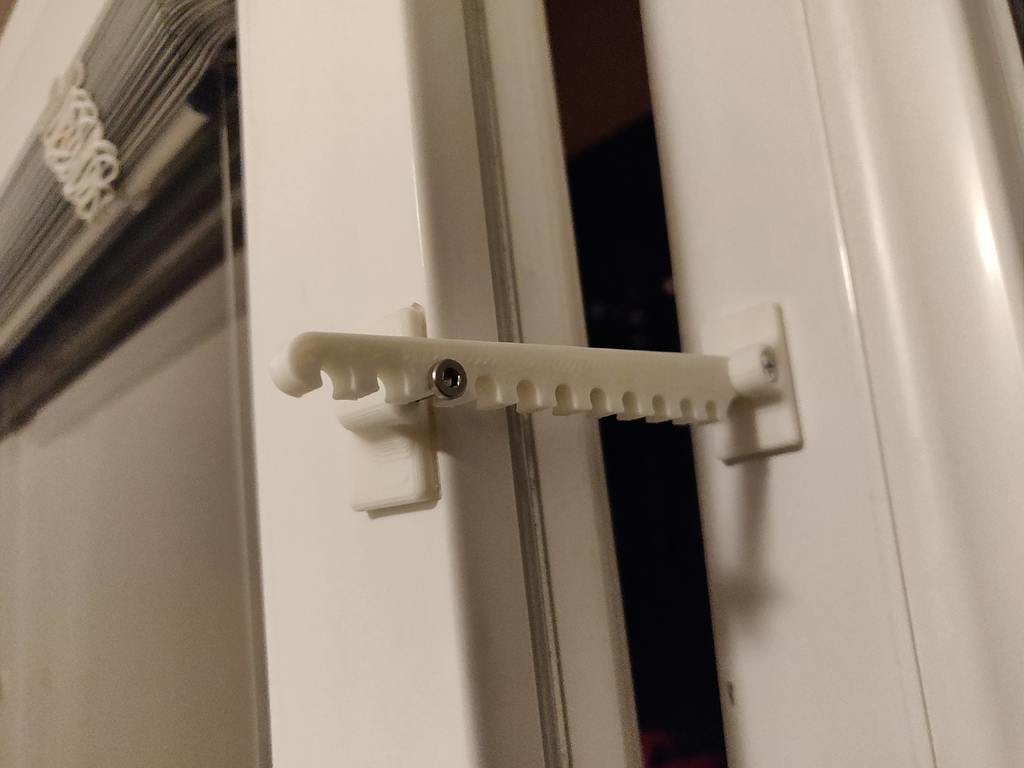

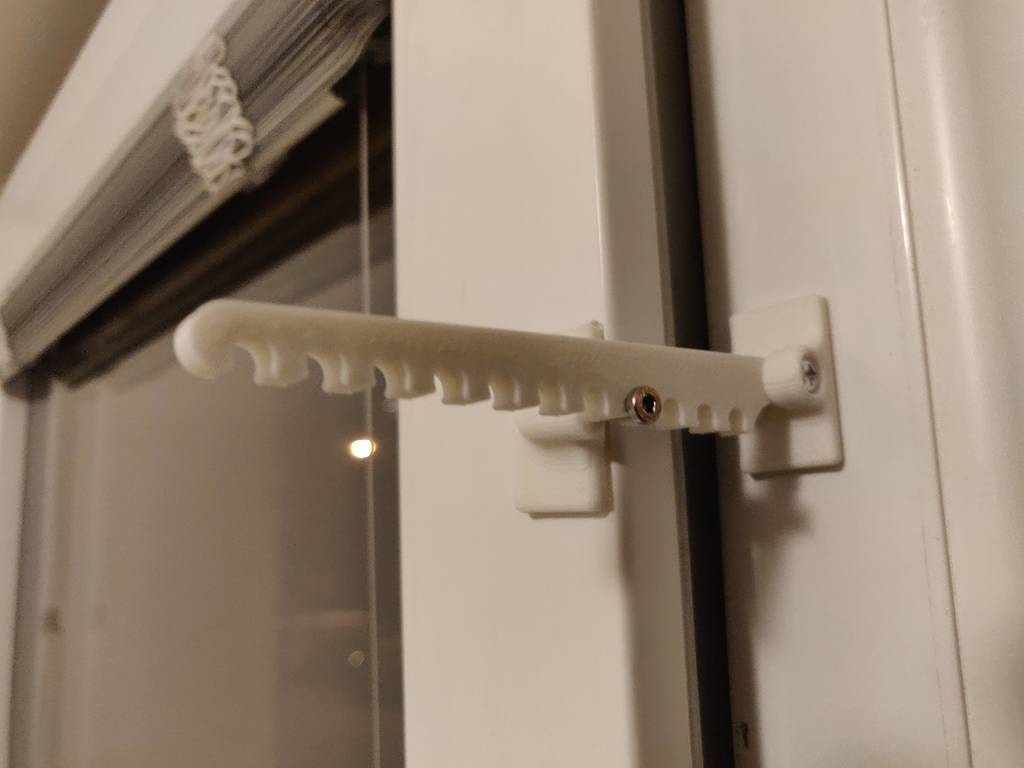

Window latch to precisely control how wide it will be open. Easy to control air exange during winter

Key points

  • Wide range of available positions
  • Elegant design, will not take too much space on your window
  • Can be sticked with double-sided tape, not necessary to make holes in window's frame
  • Quick to print ~ 30-40 minutes
  • Doesn't require supports
  • Can be printed with low resolution, like 0.3mm
  • Source files in Fusion 360 attached

You will also need:

  • 20mm m3 screw with flat hex head and 8mm part without thread (for best look)
  • 18mm m3 screw
  • m3 nut
  • 19mm width double-sided tape (transparent 3M works just fine)

3D printer file information

  • 3D design format: STL Folder details Close
    • Mount.stl
    • hook.stl
    • latch.stl

    Learn more about the formats

  • Publication date: 2018-10-01 at 10:24
    ?
    Published to Thingiverse on: 2018-09-30 at 22:26

License

CC BY
