DirecTV Genie DVR Wall Mount

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 131 views

3D model description

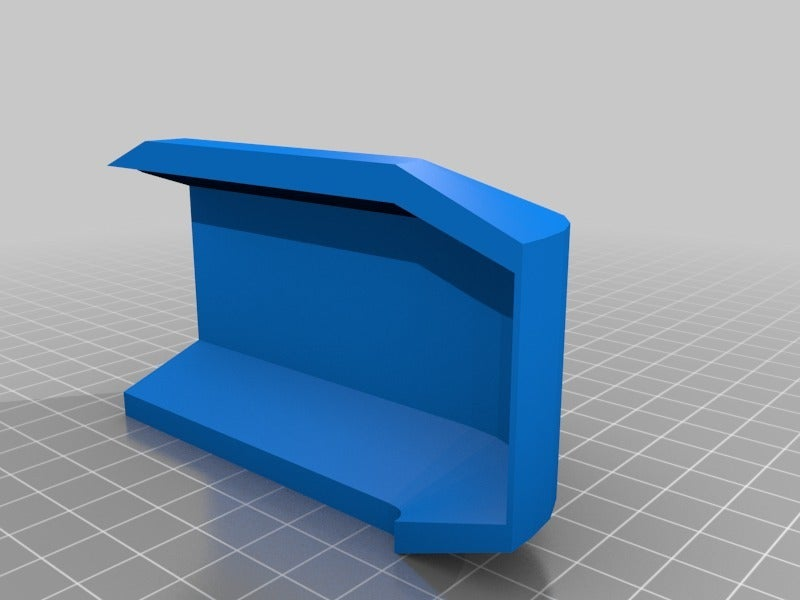

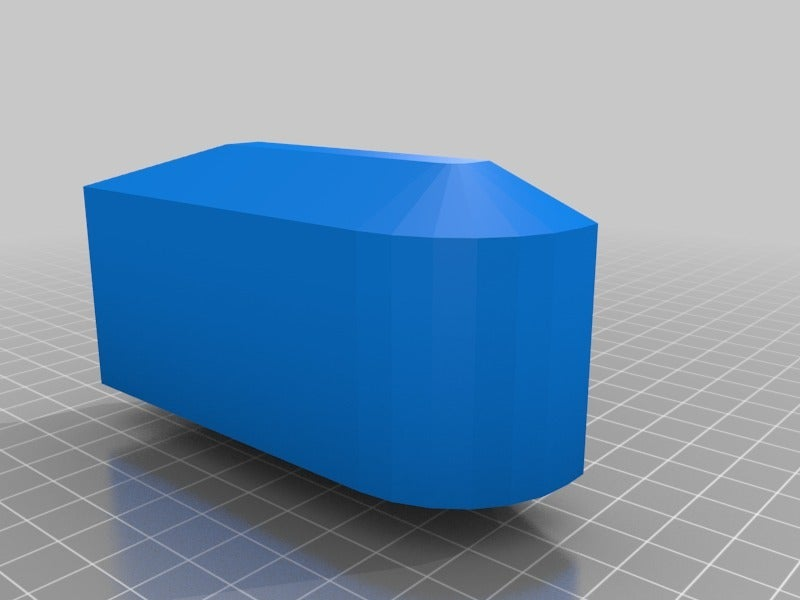

This is a kit that allows you to wall mount the DirecTV HR54-700 Genie HD DVR receiver. Simply install the bottom brackets on the wall then add the DVR. The top brackets can be installed last although it's quite sturdy with only one top bracket.

I'll admit, it's not a perfect fit but I've included the SketchUp file if you'd like to add a fillet to the interior surfaces.

Last thing: These brackets were designed so that the receiver would face to the left. If you'd like your receiver to face right, you may be able to just mirror the brackets from left to right. Mirroring from top to bottom would flip the parts so that the mounting tabs would be located under the receiver.

Cheers!


3D printing settings

-

3D printer file information

  • 3D design format: SKP and STL Folder details Close
    • HR54-700-BF.stl
    • HR54-700-BR.stl
    • HR54-700-TF.stl
    • HR54-700-TR.stl
    • HR54-700.skp
  • Publication date: 2021/07/27 at 01:09

License

CC BY
