Customizable Retro Lightbox

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

#DAGOCULTS

This is a customizable 3D model, where you can print your own retro lightbox. These boxes normally costs >20 bucks, a printed one costs me about 5 dollar.

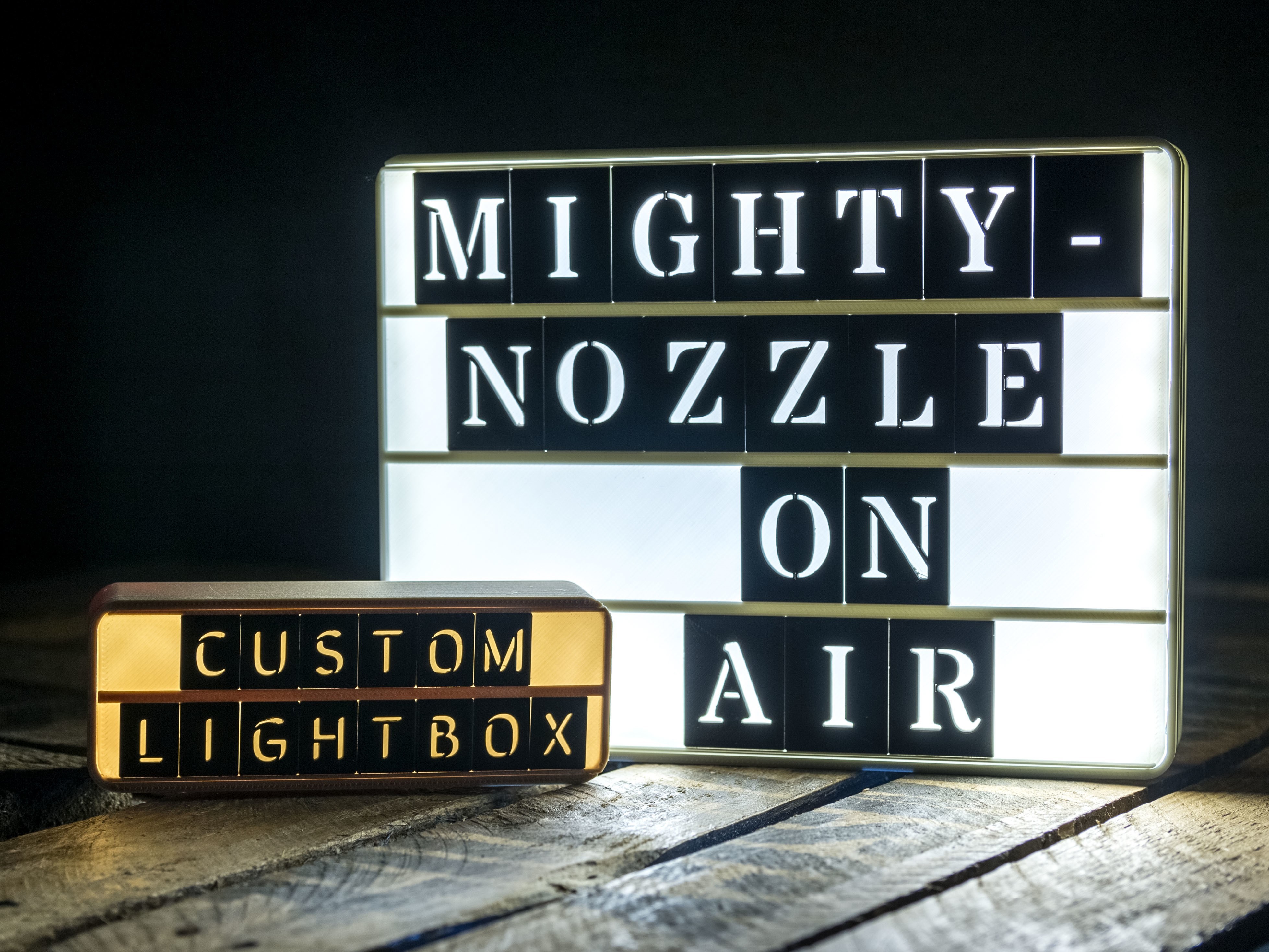

I've also added the two lightboxes as .stl files each with two different fonts that I'm using in the first picture.

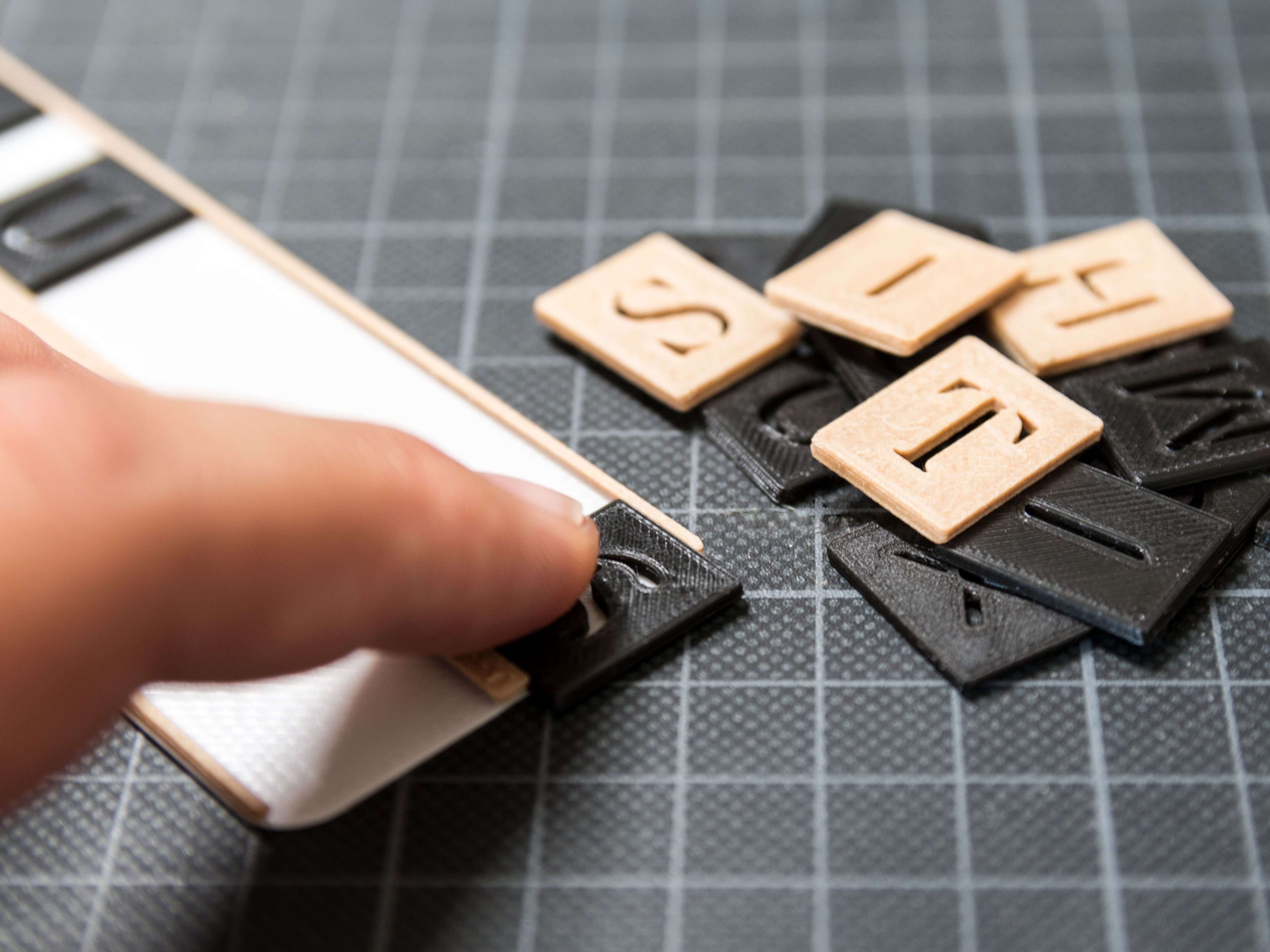

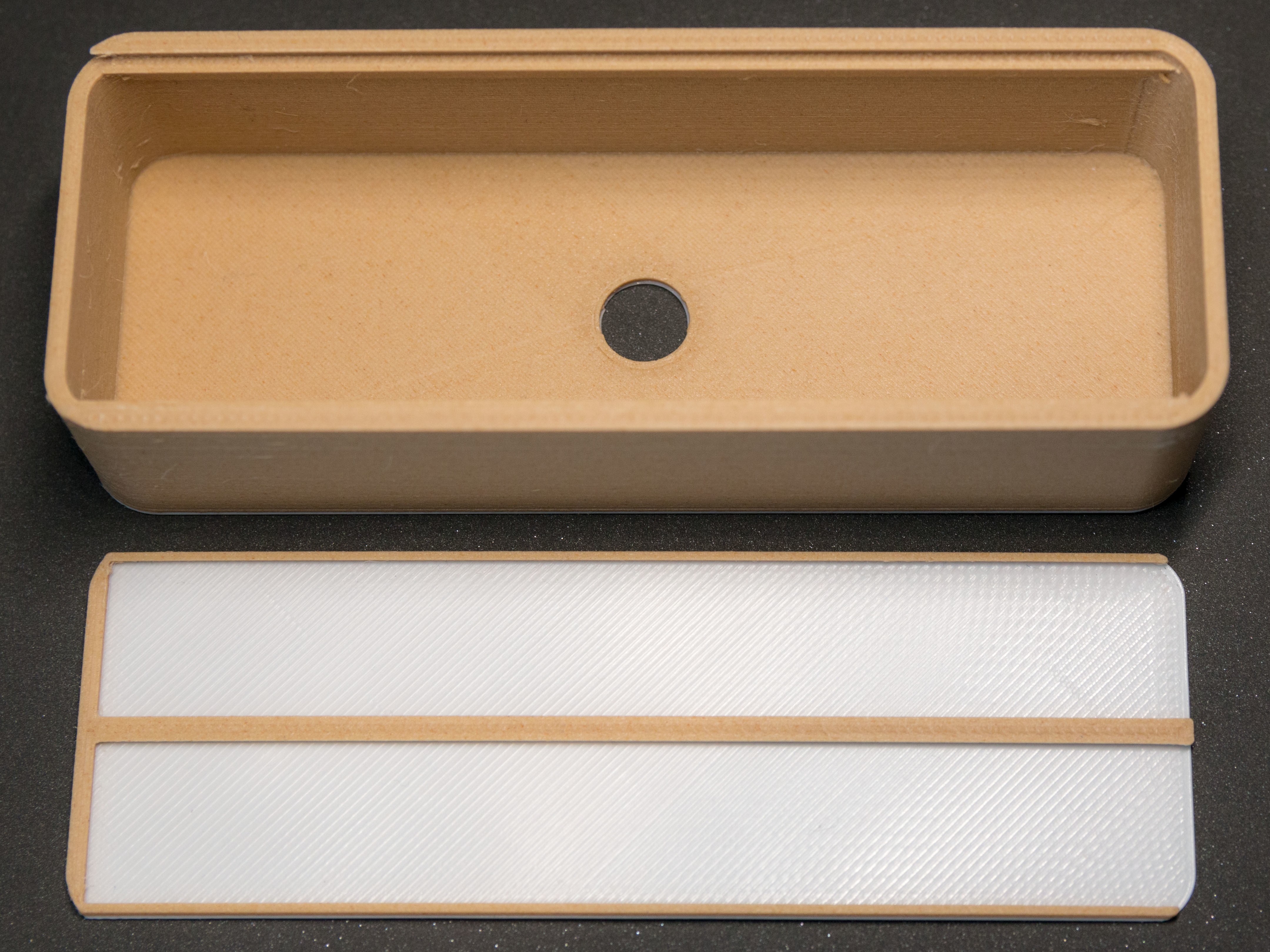

The lid as well as the letter plates are chamfered. So you are able to slide the letter plates into the rails of the lid. After that you can slide the lid into the rails of the box. This ensures that these parts don't fall out.

Customizable Settings
Use OpenSCAD to create your own customized retro Lightbox.

You can set:

  • length, height and width of the box
  • number of lines
  • 2 different fonts: Siren Stencil (the little box in the picture) and Stardos Stencil (the big box)
  • round edges of the lightbox
  • size of the hole on the back, to insert your led light
  • different thicknesses of the lid, letter plates and box

Light sources
I've ordered following lights from Banggood:

For a small lightbox:

For a medium lightbox:

  • 1m LED strip with a switch and USB connector (thats in my big lightbox). I use it with a USB power bank: goo.gl/FazfhM and the power bank: goo.gl/jeEBAv

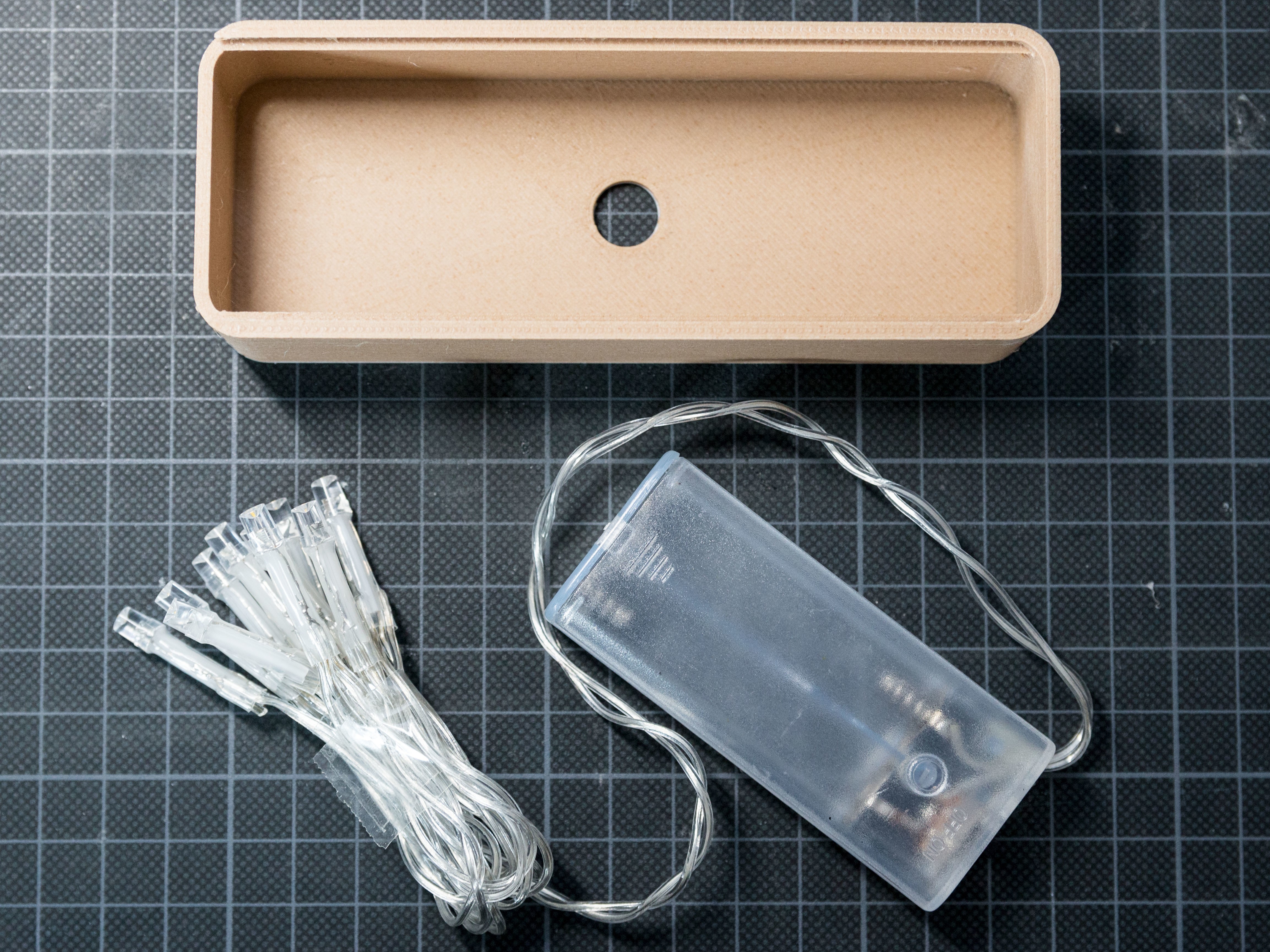

  • 20 LED "snowman". It has a 3 AA-cell case: goo.gl/8AEiPD

For a big lightbox:

  • 2m LED strip USB powered: goo.gl/MWZb9k

How to support me?
Do you like my things and do you want to support me? You can use these links if you want to buy something. This helps me doing more things. Thanks!

Banggood: https://goo.gl/ZXgx3A
Gearbest: https://goo.gl/FfE59f
Aliexpress: https://goo.gl/bQLi15


3D printing settings

  • Use some hot glue to place the led bulbs to the bottom and also fix the cable that way, otherwise the light isn't that homogeneously as you wish.

  • If you are using a LED strip, you can glue it along the wall of the box, instead on the bottom.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • customizable_lightbox.zip
    • customized_lightbox_2sections_130x48x30_2TH_0.5Lid_1.5Plate_11Hole_8round_0.3Tolerance_Siren_Stencil.stl
    • customized_lightbox_2sections_130x48x30_2TH_0.5Lid_1.5Plate_11Hole_8round_0.3Tolerance_Stardos_Stencil.stl
    • customized_lightbox_4sections_210x160x30_1.92TH_0.6Lid_2Plate_11Hole_8round_0.25Tolerance_Siren_Stencil.stl
    • customized_lightbox_4sections_210x160x30_1.92TH_0.6Lid_2Plate_11Hole_8round_0.25Tolerance_Stardos_Stencil.stl

    Learn more about the formats

  • Last update: 2017-09-03 at 12:19
  • Publication date: 2017-08-24 at 21:21

License

CC BY NC

Tags

Creator

I like to create things to save money and time. Wherever possible, I try to use aspects of ecological design. As a full-time software developer and pragmatic solution designer my focus is on the creation of customizable things.
