Customizable Lamp from LED-Strips with Dimmer
:strip_icc():blur(15):format(webp)/https://files.cults3d.com/uploaders/13519523/illustration-file/9790a695-6191-46be-ae89-ff2fea78edb7/Capture%20d%E2%80%99e%CC%81cran%202018-04-18%20a%CC%80%2011.13.43.png)
/https://files.cults3d.com/uploaders/13519523/illustration-file/9790a695-6191-46be-ae89-ff2fea78edb7/Capture%20d%E2%80%99e%CC%81cran%202018-04-18%20a%CC%80%2011.13.43.png)
/https://files.cults3d.com/uploaders/13519523/illustration-file/1b98a172-f4ca-4df4-8b95-15971f151d2a/Capture%20d%E2%80%99e%CC%81cran%202018-04-18%20a%CC%80%2011.13.48.png)
/https://files.cults3d.com/uploaders/13519523/illustration-file/8f20b588-7c16-4e4b-a005-e8003f7157e5/Capture%20d%E2%80%99e%CC%81cran%202018-04-18%20a%CC%80%2011.13.53.png)

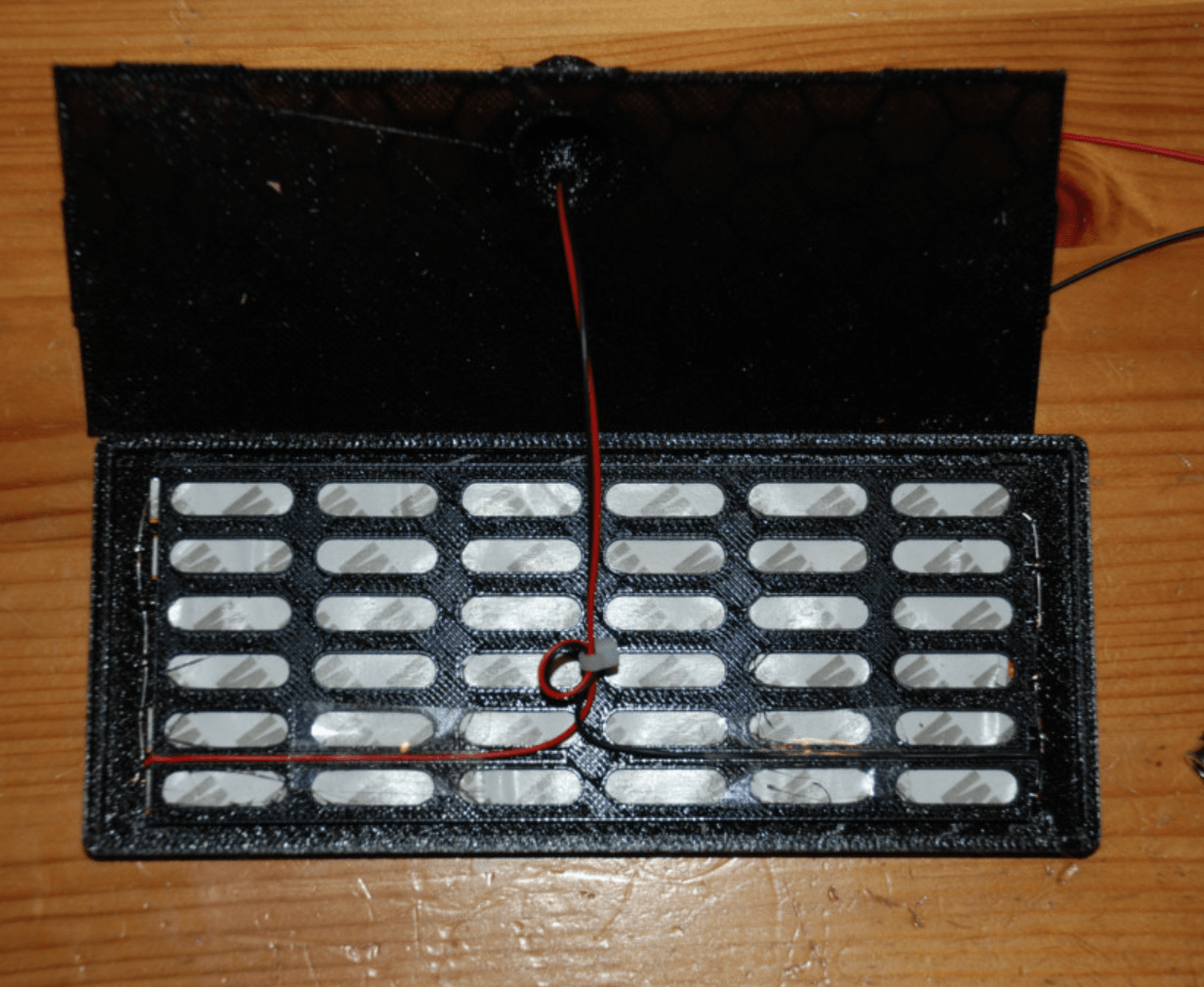

/https://files.cults3d.com/uploaders/13519523/illustration-file/52f3a698-7808-4c47-912e-10bdb5ea3fef/Capture%20d%E2%80%99e%CC%81cran%202018-04-18%20a%CC%80%2011.13.58.png)
/https://files.cults3d.com/uploaders/13519523/illustration-file/97c924c0-6353-4176-ad89-1191674b4dbd/Capture%20d%E2%80%99e%CC%81cran%202018-04-18%20a%CC%80%2011.14.02.png)
?
Creation quality:
5.0/5
(1 votevotes)
Evaluation of members on the printability, utility, level of detail, etc.
Your rating:
0/5
- 2k views
- 4 likes
- 70 downloads
- 0 comments
- 0 makes
3D model description

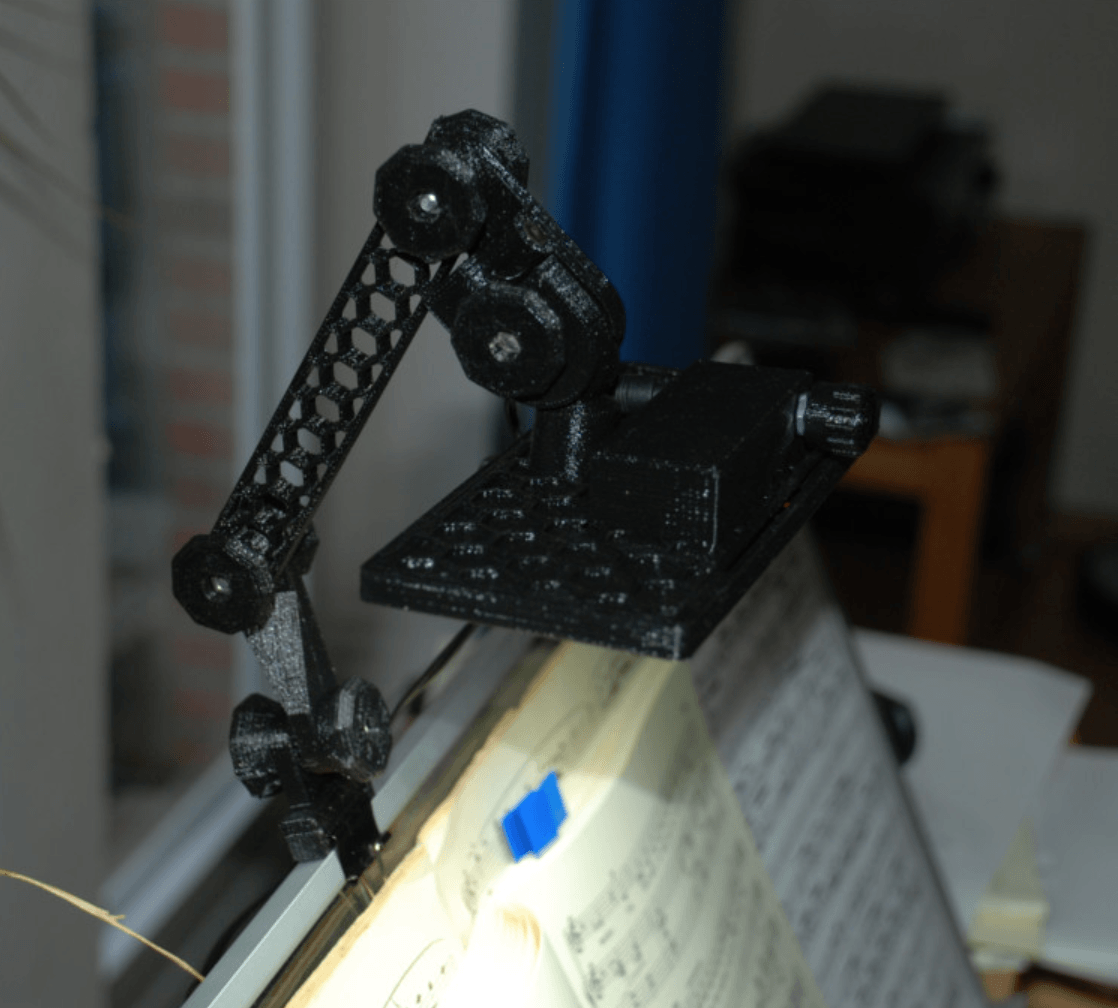

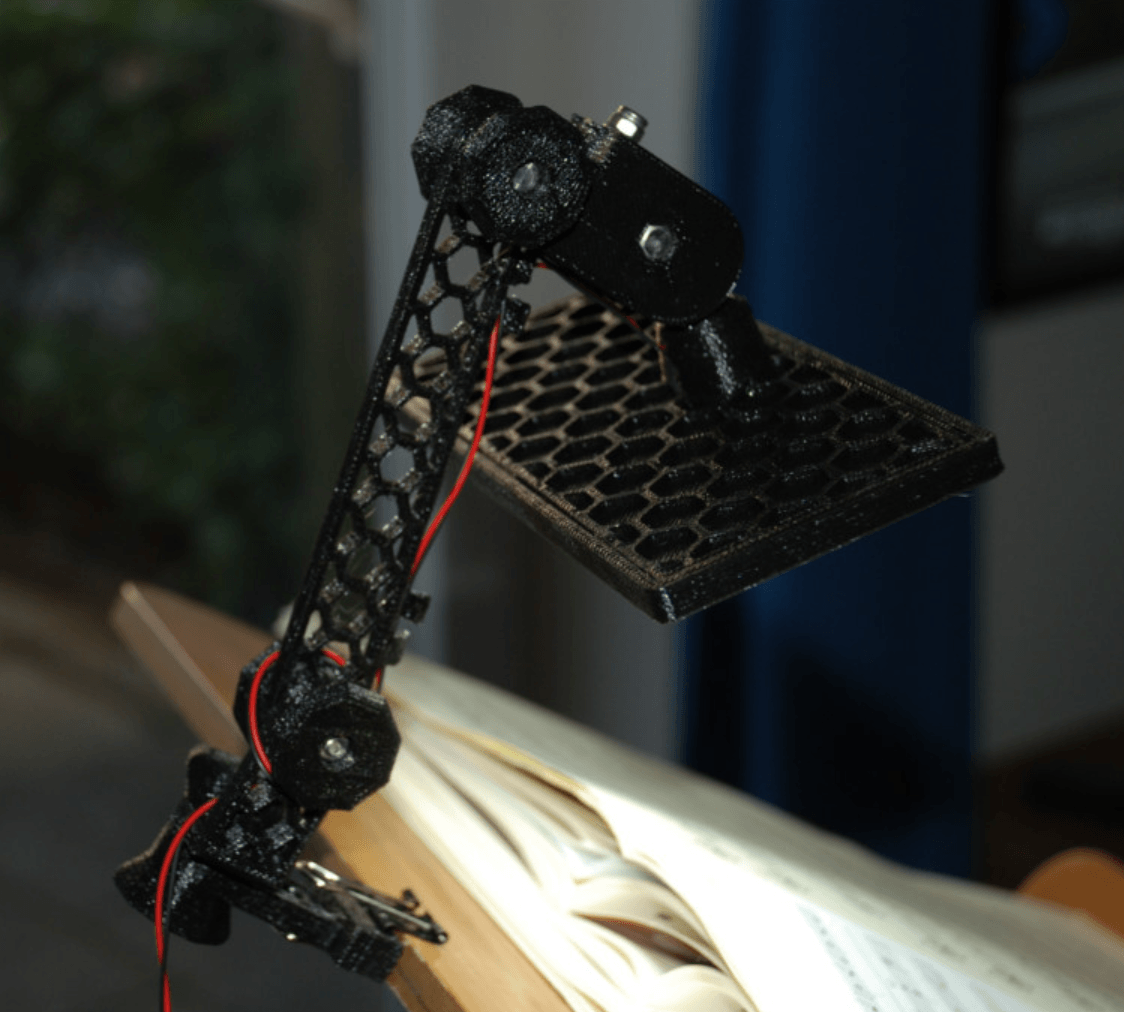

A lamp!
NOT all stl-files have to be printed for a single lamp!

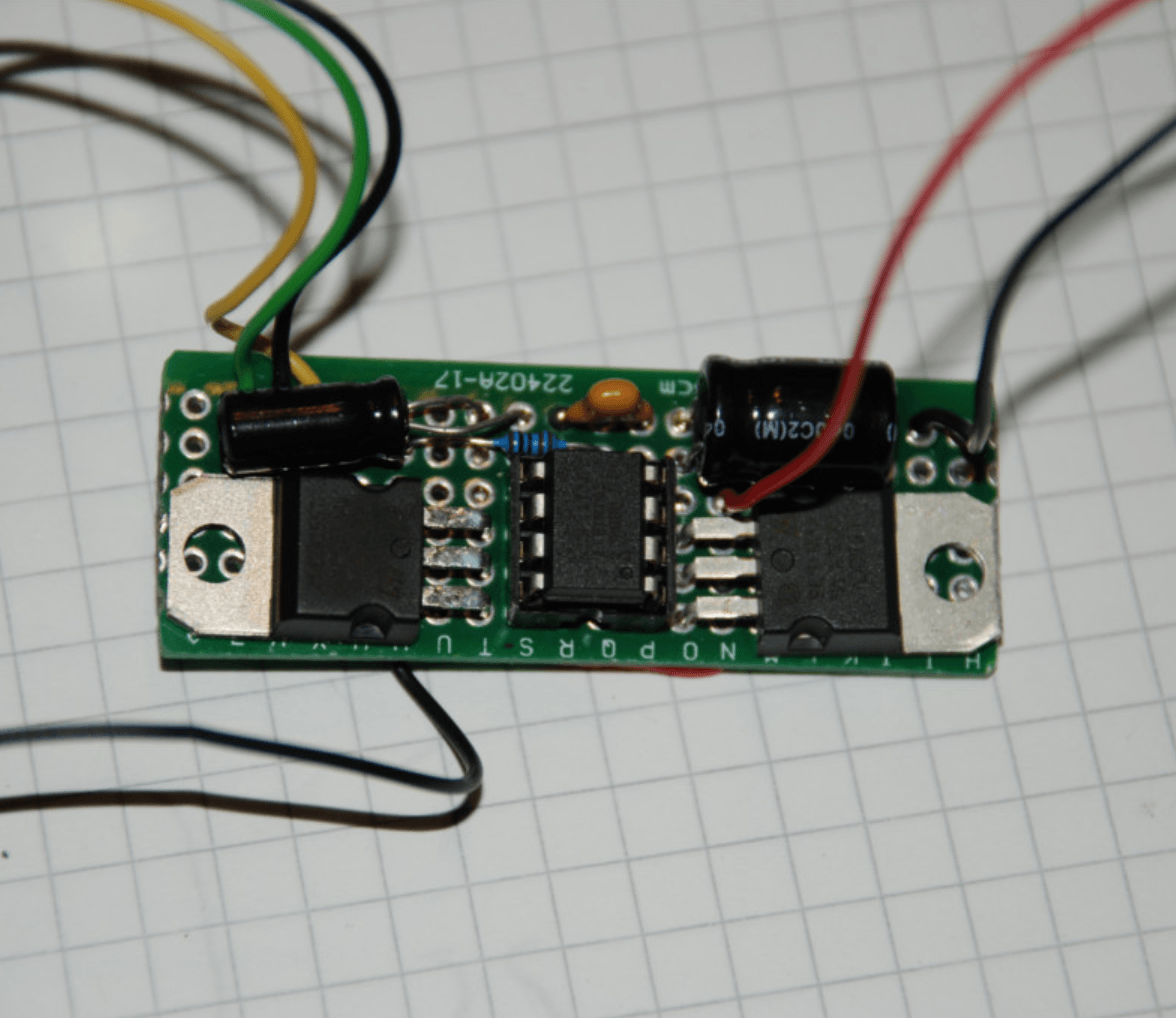

The circuit diagram and the firmware (ATtiny85) for the dimmer can be found at http://dede67.bplaced.net/Arduino/LED-Dimmer/LED-Dimmer.html.
Screws (DIN 933) needed: M4x25, M4x30, (M5x40 for ZwingeBuegel only)
EDIT 2018-04-11: uploaded a new (better!) version.
Instead of ZwingeBuegel I now use FoldbackAdapterV2ab for mounting the lamp.
I now have three of these lamps productive - two of them are dimmable.
A customizable version of FoldbackAdapterV2ab can be found at https://cults3d.com/en/3d-model/tool/foldback-clip-adapter.
3D printing settings
Printer:
Velleman K8200
Rafts:
Doesn't Matter
Supports:
Doesn't Matter
Resolution:
0.25mm
Infill:
25%
Notes:
Printed in PLA.
3D printer file information
-
3D design format: STL Folder details Close
- LED-Strip-Leuchte_-_Arm120_m0.stl
- LED-Strip-Leuchte_-_Arm120_m0_ktrue.stl
- LED-Strip-Leuchte_-_Arm150_m0.stl
- LED-Strip-Leuchte_-_ArmVerdreht.stl
- LED-Strip-Leuchte_-_DimmerAufsatz.stl
- LED-Strip-Leuchte_-_DrehgeberKnopf.stl
- LED-Strip-Leuchte_-_FoldbackAdapterV2ab.stl
- LED-Strip-Leuchte_-_GehaeuseOberteilV2.stl
- LED-Strip-Leuchte_-_GehaeuseUnterteilV2a.stl
- LED-Strip-Leuchte_-_GehaeuseUnterteilV2true.stl
- LED-Strip-Leuchte_-_K8200Befestigung.stl
- LED-Strip-Leuchte_-_KnopfM514.stl
- LED-Strip-Leuchte_-_Kugelgelenk.stl
- LED-Strip-Leuchte_-_LeuchtBett.stl
- LED-Strip-Leuchte_-_Winkel.stl
- LED-Strip-Leuchte_-_ZwingeBuegel30_20.stl
