Customizable Gear5

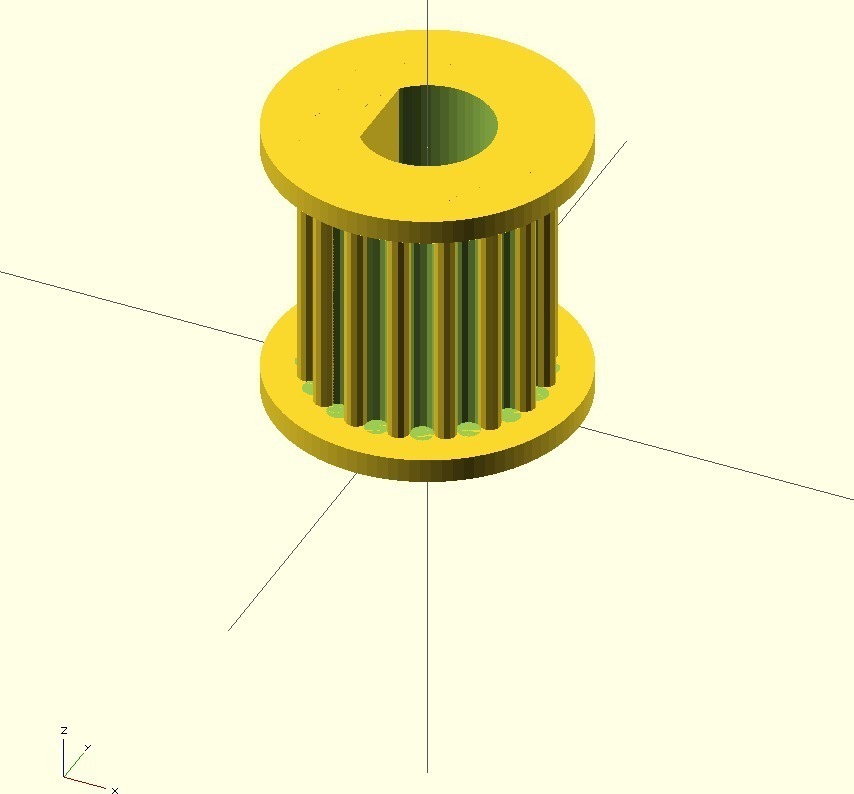

gear5.jpg Free 3D file Customizable Gear5・3D printable model to download

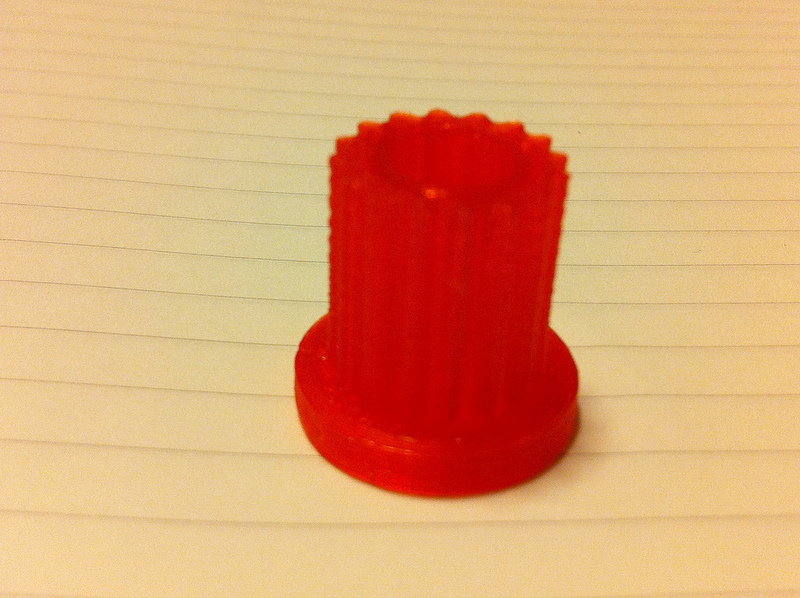

Gear_c.jpg Free 3D file Customizable Gear5・3D printable model to download
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

TakuyA

TakuyA

3D model description

This is amendment of http://www.thingiverse.com/thing:50223
Fringe size is variable and Fringe anlgle is added for avoiding overhung.

3D printing settings

Change the bellow parameters as you like on OpenScad
Export .stl file and print.

Parameters

shaft diameter
gear diameter
gear hight
number of tooth
tooth shape
fringe thickness
fringe size
fringe angle 90/45
number of fringe 0 or 1 or 2
D cut on/off

3D printer file information

  • Design number: 1062594
  • 3D design format: Folder details Close
    • parametric-gear5.scad

    Learn more about the formats

  • Publication date: 2023-02-13 at 22:02
    ?
    Published to Thingiverse on: 2013-02-20 at 12:11

License

CC BY - Attribution
