COOKIE BOX COLLECTION // SET OF 5 CHOCO-WAFFLE-ROLLS

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 393 views
  • 2 likes
  • 1 download

3D model description

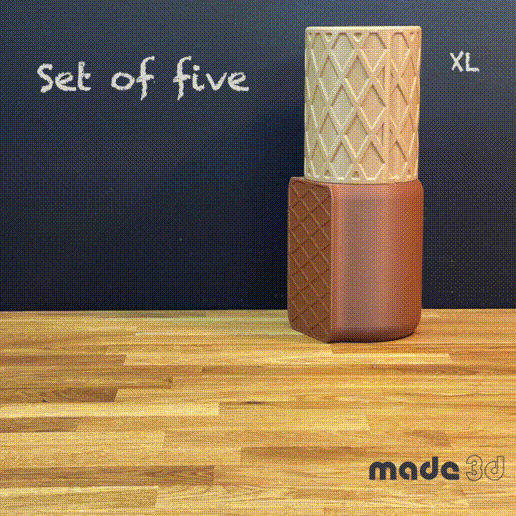

Set of 5 functional choco-waffle boxes.

The boxes have different sizes and functions:

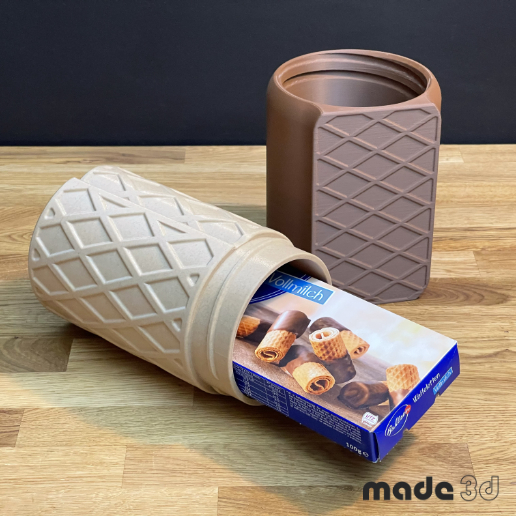

XL // 140 x 340mm // large compartment for all kinds of things

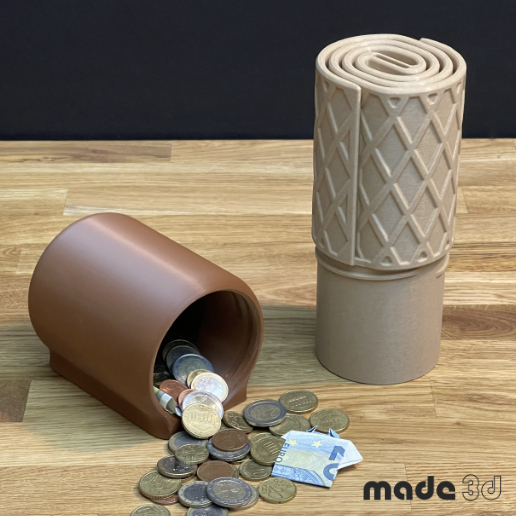

L // 104 x 260mm // piggy bank for money

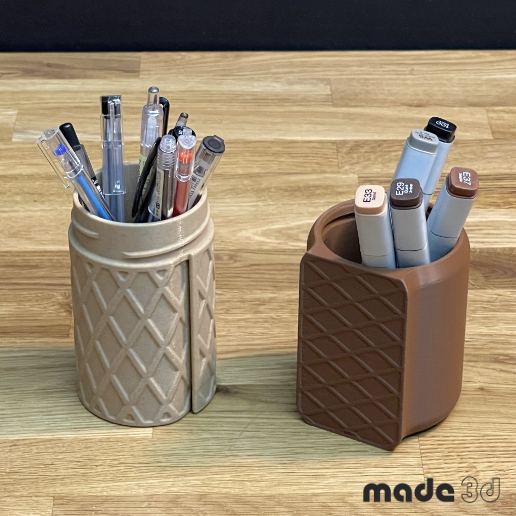

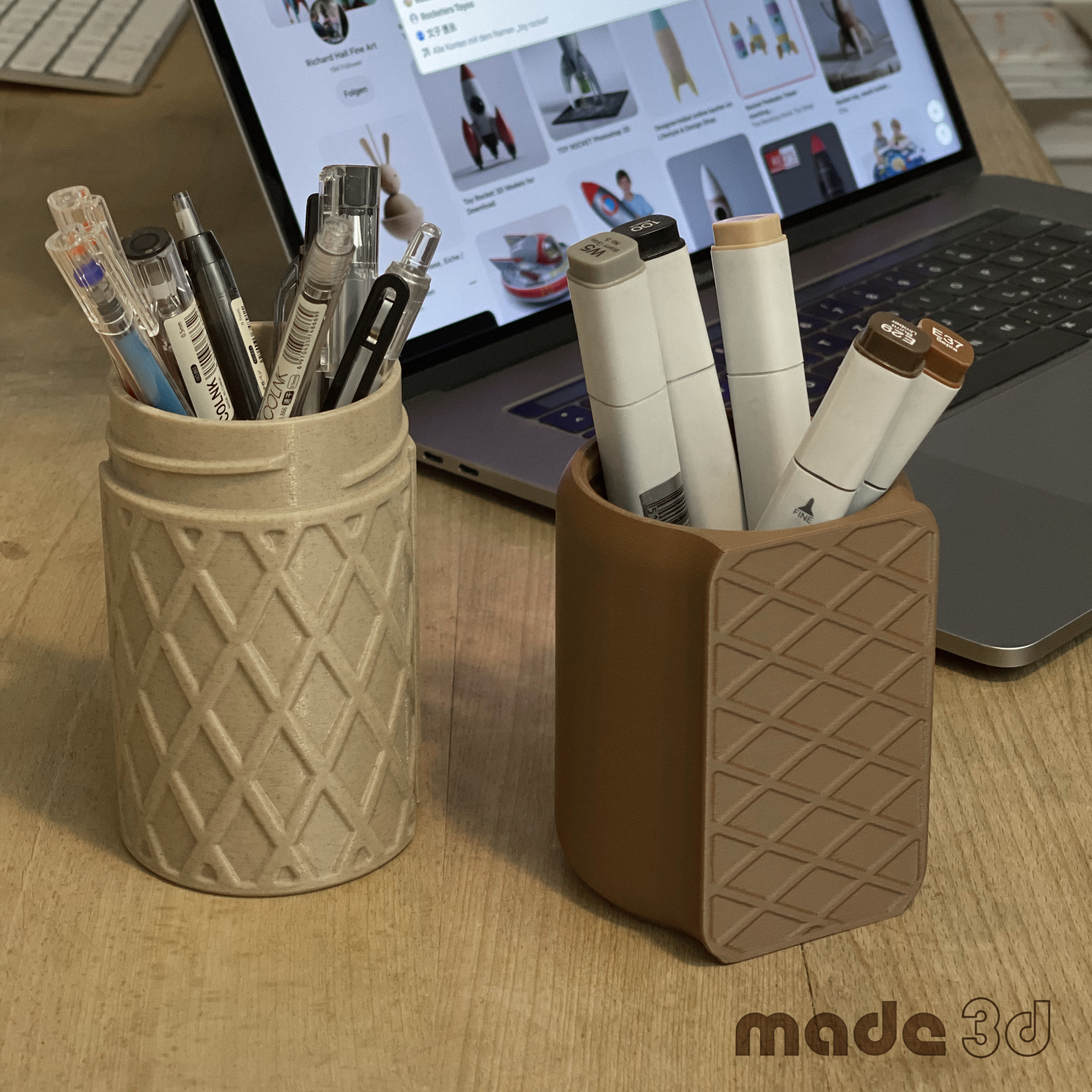

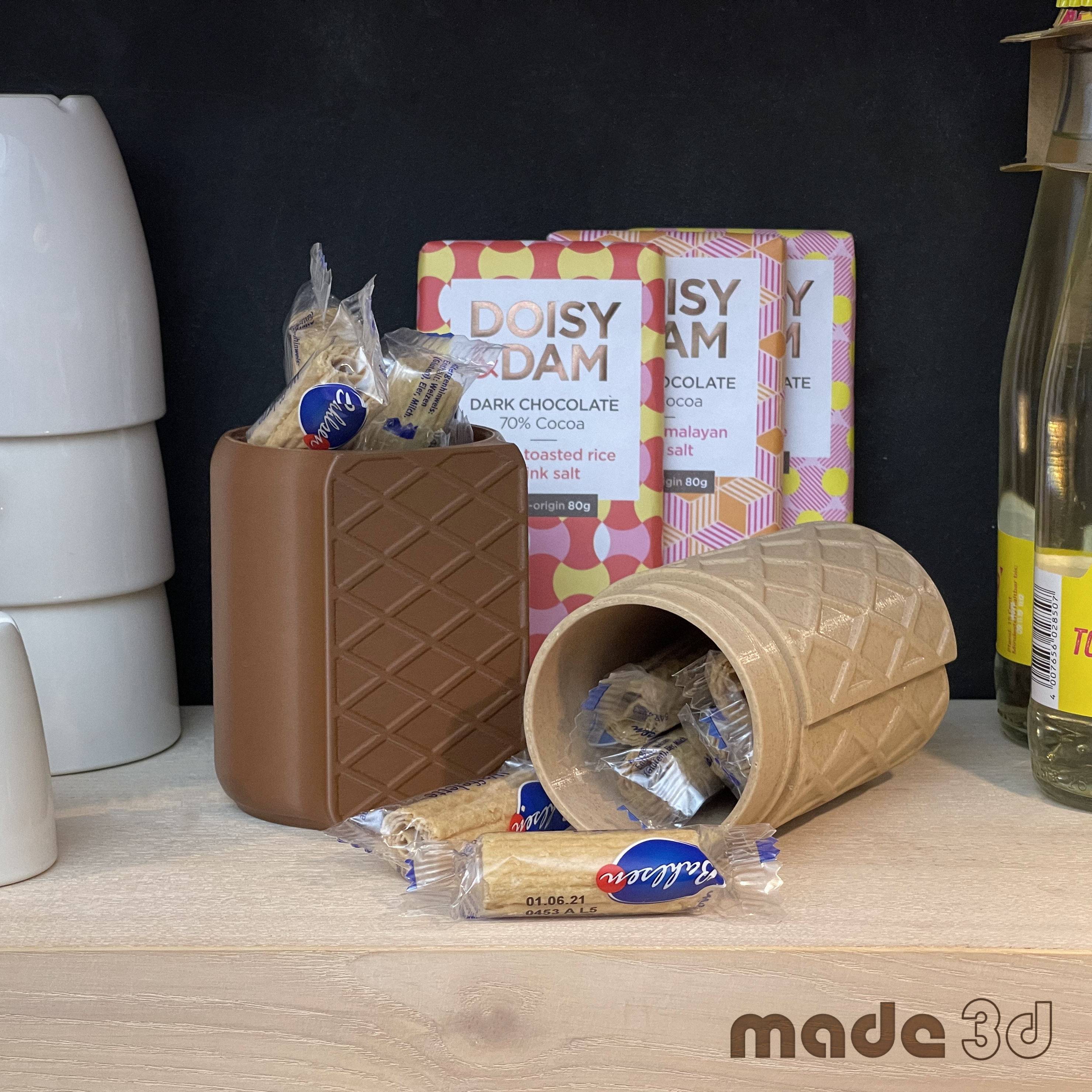

M // 79 x 190mm // pencil case + pen holder

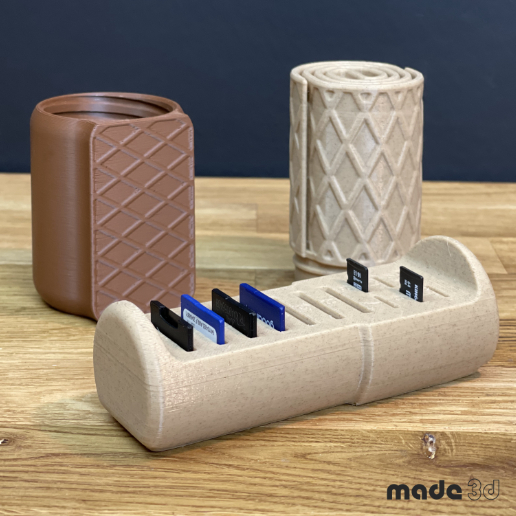

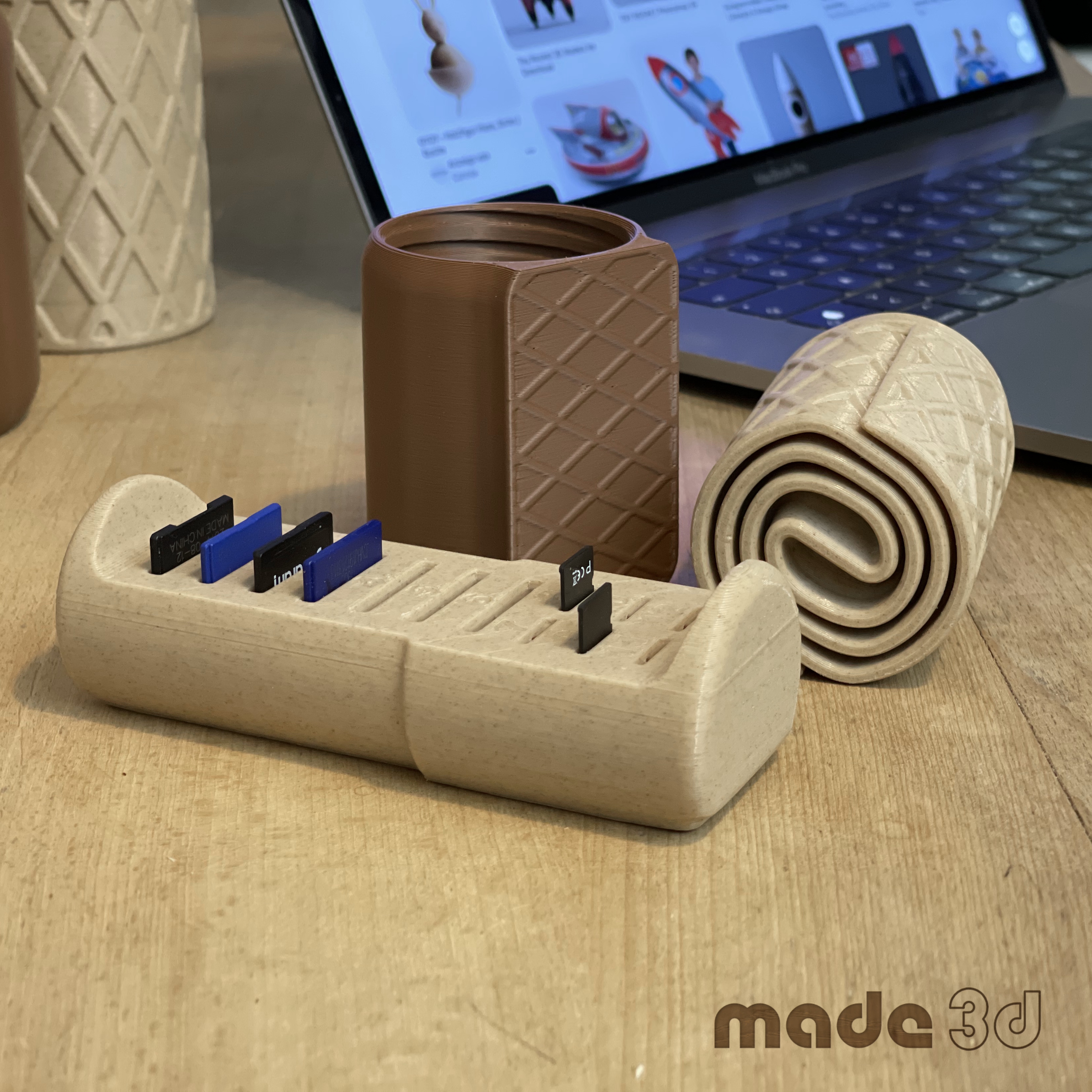

S // 56 x 135mm // sd-card holder for 7 sd-cards and 6 micro-sd-cards

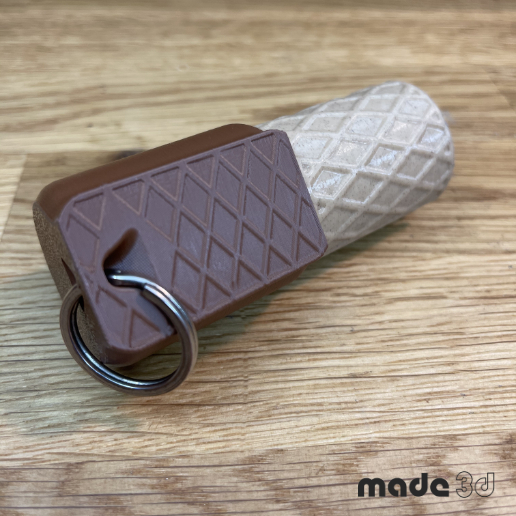

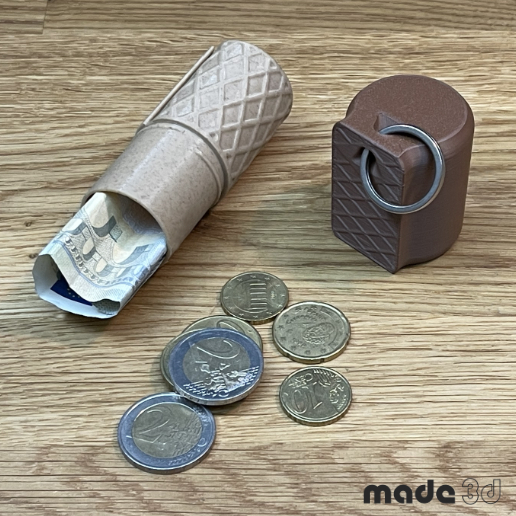

XS // 36 x 88mm // key chain for small change

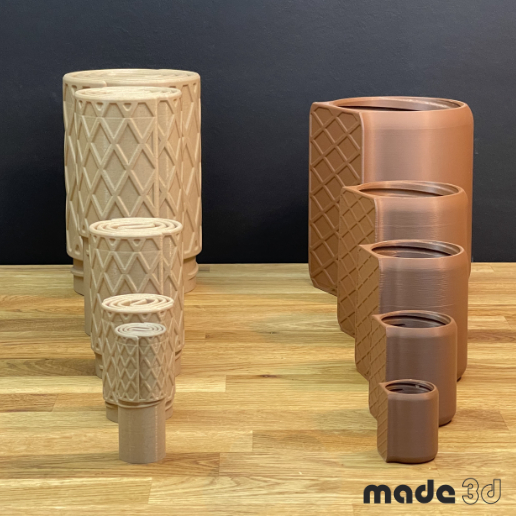

All 5 boxes can be put together into each other like the traditional russian matryoshka figurines.

All parts designed for FDM 3d-printing.

NO SUPPORT MATERIAL // NO POST-PROCESSING

The prints shown on the images are printed on the PRUSA i3 MK3s with the textured powder coated PEI magnetic spring steel sheet.

Printtime & Material:

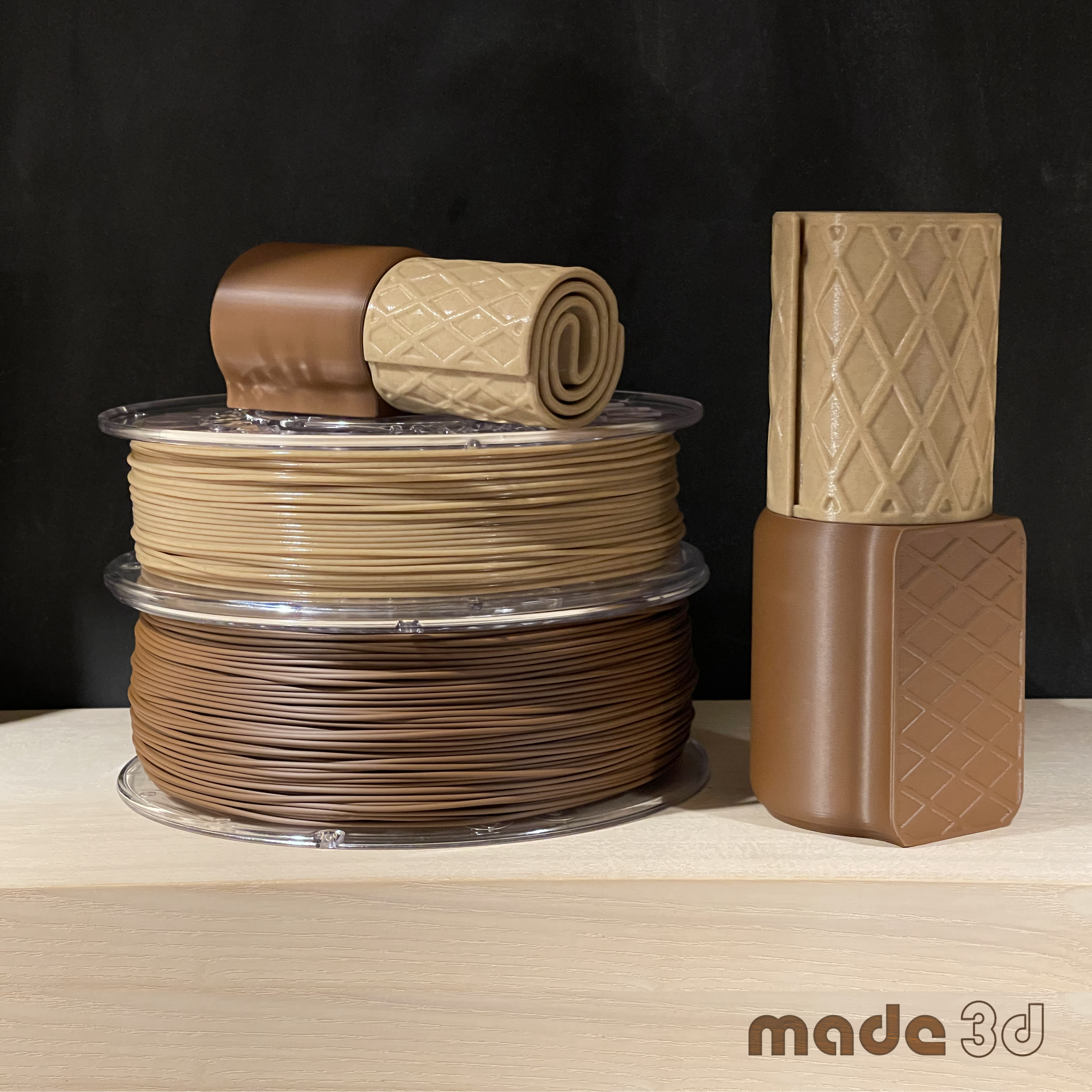

The chocolate-filament is PLA NX-2 brown from Extrudr:

XL: 363g // 21,5h
L: 173g // 11,5h
M: 89g // 6h
S: 41g // 3h
XS: 17g // 2,5h
= 683g // 44,5h

The waffle-filament is PLA extrafill Mukha from Fillamentum:

XL: 364g // 24h
L: 198g // 14h
M: 96g // 7h
S: 43g // 3,5h
XS: 20g // 4h
= 721g // 52,5h

3D printing settings

3d files are optimized for 0.4mm nozzle and 0.2mm layer height
PLA recommended

For best result i recommend a textured heatbed surface.

The 3d cad files are also adjusted to a well-set and calibrated 3d printer.

There may be problems if you:
- use a bigger nozzle diameter then 0.4mm
- your printer overextrude
- the layer height is bigger then 0.2mm for size XL -S
- the layer height is bigger then 0.15mm for size XS

  • 3D file format: STL and ZIP
  • Last update: 2021/01/29 at 07:55
  • Publication date: 2021/01/21 at 20:56
