Complemento antirasgadura para tenis

Download free STL file Complemento antirasgadura para tenis • 3D print model, rodrigo191637Download free STL file Complemento antirasgadura para tenis • 3D print model, rodrigo191637
Download free STL file Complemento antirasgadura para tenis • 3D print model, rodrigo191637

Did you 3D print this model?

3D model description

En si este no es tanto el diseño sino la idea.

Por lo general me gusta usar Vans y patinar. Pero tengo un problema y es que siempre se rasgan de la parte atrás, entonces decidí imprimir estas cintillas.

Es muy fácil de colocarlas, sugiero usar un silicón de buena calidad para el pegado. Luego de imprimir la pieza, esta la calientas con una pistola para el cabello o una pistola de calor la colocas en la parte del tenis que deseas reforzar la presionas para deformarla y darle la forma necesaria y una vez que tengas la forma deseada agregas el pegamento. Una vez colocada vuelves a aplicar calor y hasta que quede con la forma que deseas. Me cuentas de tus resultados ;)

ENGLISH// In itself this is not so much the design but the idea.

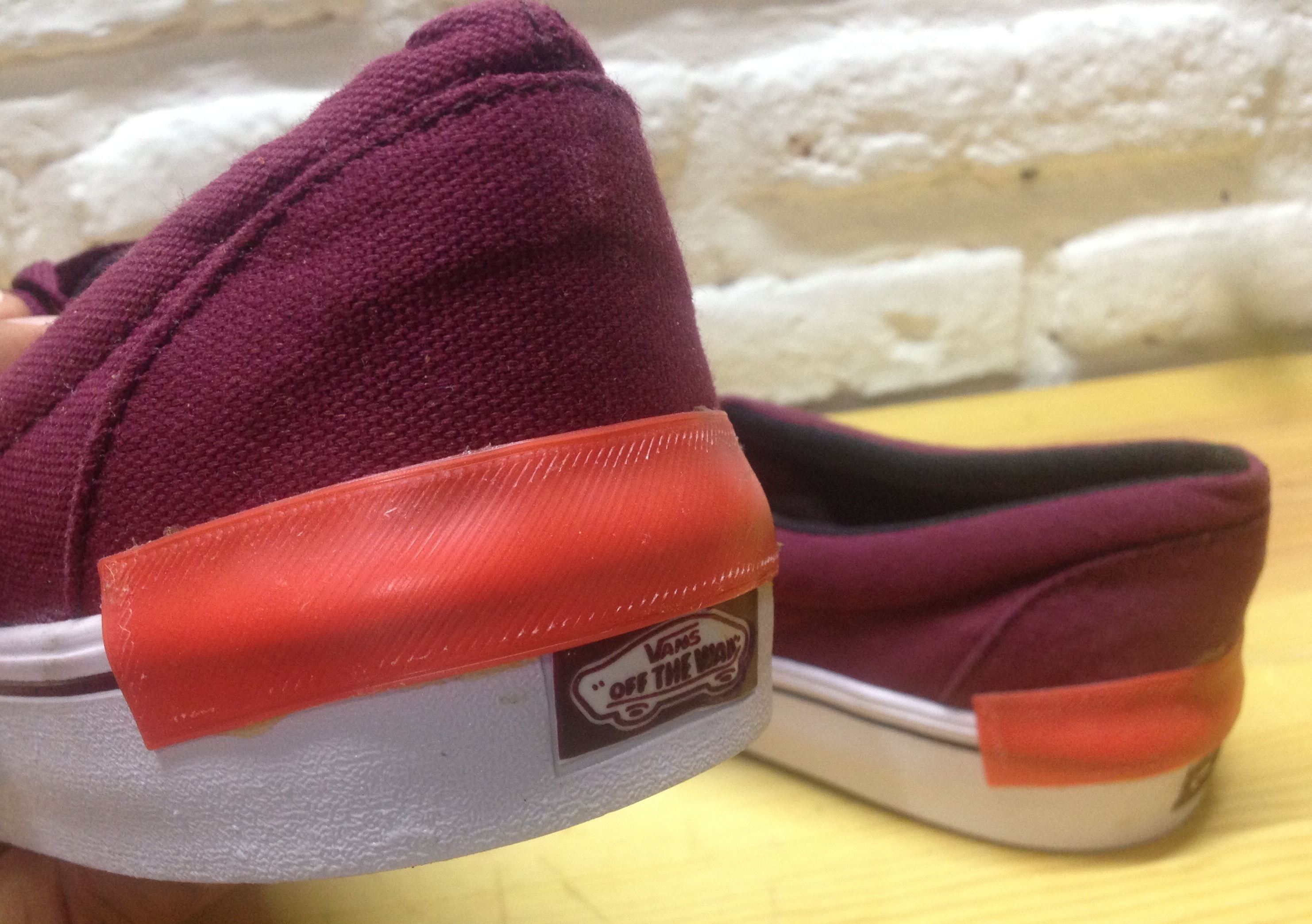

I usually like to wear Vans and skate. But I have a problem and that is that they always tear from the back, so I decided to print these ribbons.

It is very easy to put them on, I suggest using a good quality silicone for bonding. After printing the piece, you heat it with a hair gun or a heat gun, place it on the part of the tennis that you want to reinforce, press it to deform it and give it the necessary shape and once you have the desired shape add the glue . Once placed you apply heat again and until it is the shape you want. Tell me about your results ;)

3D printing settings

Para esta cualquier diámetro de extrusor entre 0.4 mm y 0.5 mm esta bien.

Estas las imprimí con la siguiente configuración.
Tamaño del extrusor 0.5 mm
Utilice filamentos de la marca Luktec. PLA.
Cama caliente a 60 C
Temperatura del extrusor a 200 C
Altura de capa 0.4 mm
Ancho de la linea 0.5 mm
Velocidad de impresión a 50 mm/s

Toma alrededor de 20 minutos con esta configuración imprimir 2 cintillas.

No requiere soportes o adherencias a la cama. Si tienes alguna duda. Puedes contactarme.

Espero te resulte útil.

ENGLISH//
For this any extruder diameter between 0.4mm and 0.5mm is fine.

I printed these with the following configuration.

Extruder size 0.5mm
I use Luktec brand filaments. PLA.

Hot bed at 60 C
Extruder temperature at 200 C
Layer height 0.4 mm
Line width 0.5 mm
Print speed at 50mm / s

It takes around 20 minutes with this setting to print 2 ribbons.

Does not require supports or adhesions to the bed. If you have any question. You can contact me.

  • 3D file format: STL
  • 3D model size: X 120 × Y 20 × Z 1 mm
