colorFabb Coffee Cup Holder
?
- 2.8k views
- 6 likes
- 64 downloads
- <span class="text--light">0</span> comments
- <span class="text--light">0</span> makes
3D model description

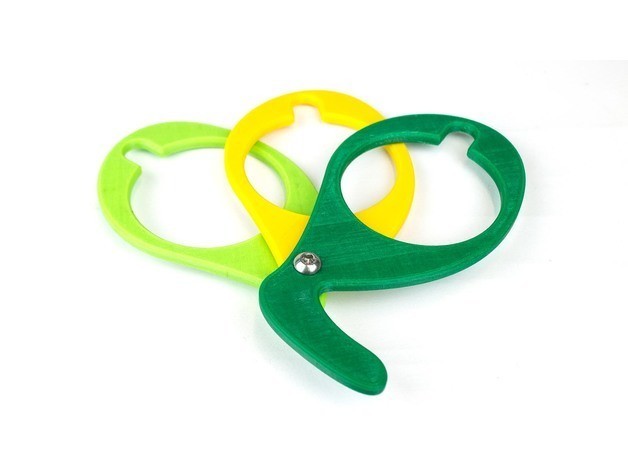

Since we recently moved into our new office, it was useful to have a way of carrying multiple cups of coffee every time we get ourselves a refill.
So that is why we designed this cup holder, which is shaped in the form of our logo, and printed in similar colors of our colorFabb_XT filament. Just like how you sometimes see at festivals or parties, it is foldable for easy carry.
After printing, a small M6 screw was used in combination with a locking nut to hold everything together. The printed parts stack up to a height of 15 millimeters, so a screw of at least 20 millimeters in length should suffice.
3D printing settings
Printer Brand:
Ultimaker
Printer:
Ultimaker 2
Rafts:
No
Supports:
No
Resolution:
0.2
Infill:
15%
Notes:
Printed using mostly standard settings found in Cura. No brim is necessary since XT does not have a lot of warping. The nozzle temperature is around 245 to 255 degrees Celsius, and the print bed can be at 75 degrees Celsius.
3D printer file information
-
3D design format: STL Folder details Close
- Bottom_Light_Green.stl
- Middle_Yellow.stl
- Top_Dark_Green.stl
- Publication date: 2017-07-07 at 12:33
License
CC BY-NC-SA - Attribution - Non commercial - Share alike
