Caliper Wall Mount Bracket

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1k views
  • 7 likes
  • 56 downloads

3D model description

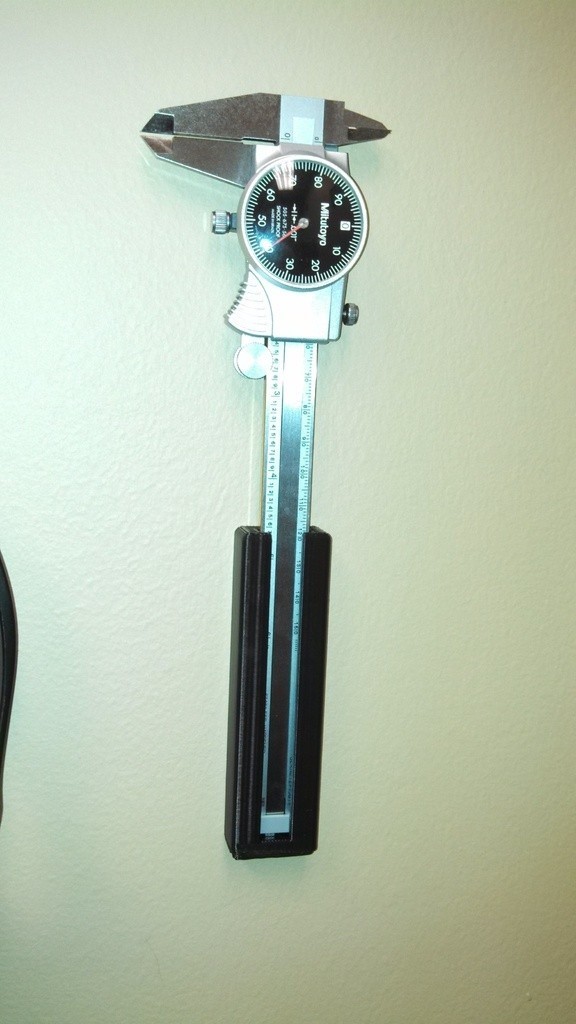

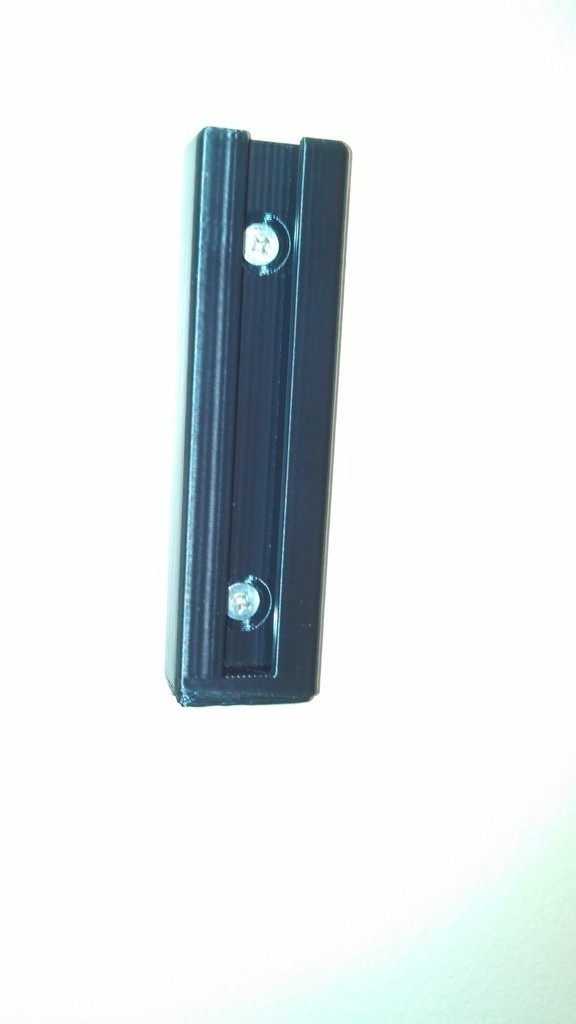

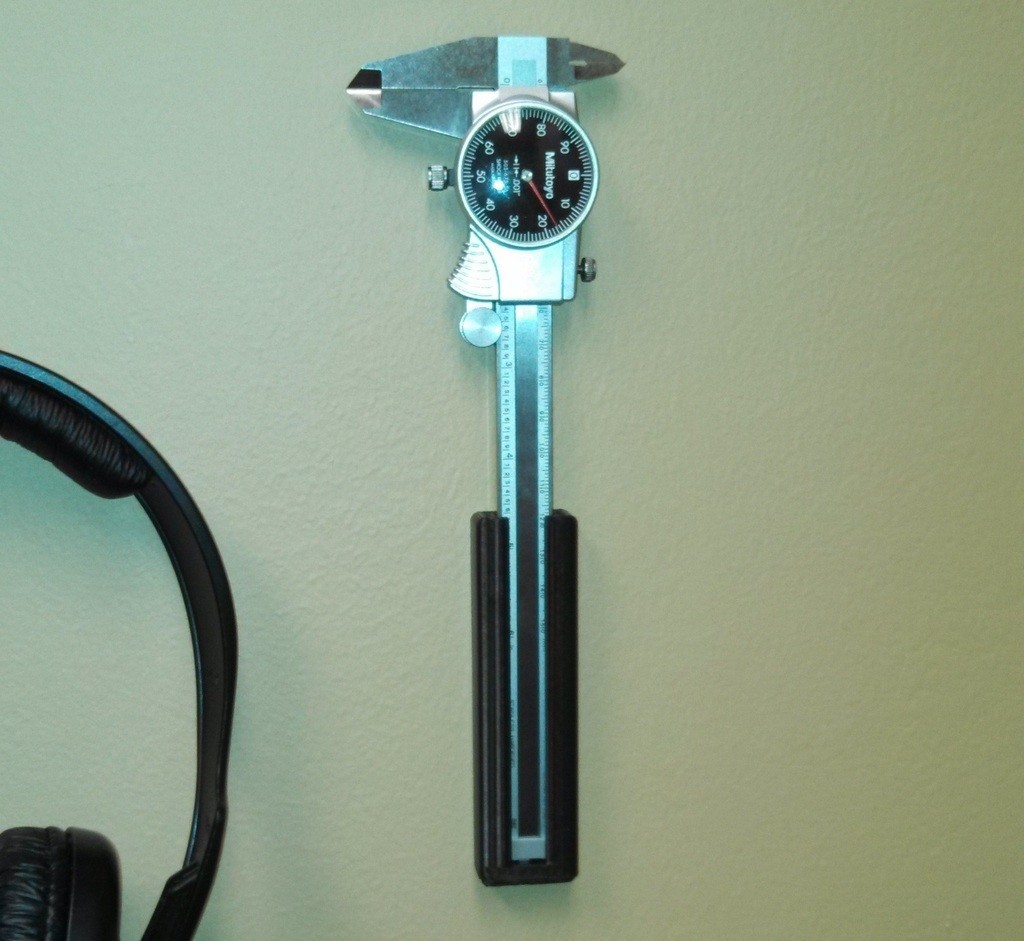

This is a wall mount bracket for a Mitutoyo 6" Dial Caliper. I am sure this will work with most 6" calipers available. If not, I have supplied the Solidworks file so you can make a minor tweek if necessary.

3D printing settings

Printed on Replicator 2X out of ABS on Low settings with 20% infill. Printed vertically with Raft and no support. The .X3G file is included (it is set to print two of these at once). It took about 2 hours 30 minutes.

  • 3D file format: STL
  • Publication date: 2018/11/22 at 17:48

License

CC BY
